MOTOR PROGRAMMING INSTRUCTIONS

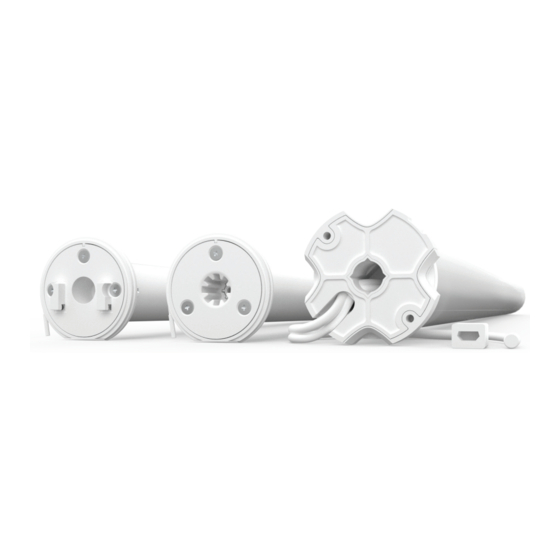

5V Zero & Li-ion Wire-free Motors
SOFT STOP
ELECTRONIC
LIMIT
SOLAR OPTION
LEVEL CONTROL
•
USE THIS DOCUMENT WITH THE FOLLOWING MOTORS:
PART NUMBER
MT01-1320-069001
MT01-1320-069002
MT01-1325-069001
MT01-1325-069002
MT01-1325-069003
MT01-1325-069005
MT01-1328-069001
MT01-1328-069002
MT01-1335-069001
MT01-1345-069001
MT01-1345-069002
MT01-1325-069012
MT01-1325-069013
MT01-1328-069004
AUTOMATE V4_PRGM_JAN_2021
Live Feedback
Energy e cient
SELECTABLE
SPEED
BI-DIRECTIONAL
BATTERY
POWERED
DESCRIPTION
5V ZERO LI-ION 0.5NM MOTOR [Ø20/5V/20rpm] (Skyline)
5V LI-ION 0.5NM ARC MOTOR [Ø20/5V/20rpm] (S45)
5V ZERO LI-ION 1.1NM SHORT MOTOR [Ø25/5V/20rpm] (Skyline Short)
5V LI-ION 1.1NM ARC MOTOR [Ø25/5V/20rpm] (Skyline)
5V LI-ION 1.1NM ARC MOTOR [Ø25/5V/20rpm] (S45 Short)
5V LI-ION 1.1NM ARC MOTOR [Ø25/5V/20rpm] (S45)
5V LI-ION 2.0NM ARC MOTOR [Ø28/5V/20rpm] (Skyline)
5V LI-ION 2.0NM ARC MOTOR [Ø28/5V/20rpm] (S45)
5V LI-ION 3.0NM ARC MOTOR [Ø35/5V/20rpm]
5V LI-ION Q3.0NM ARC MOTOR [Ø45/5V/20rpm]
5V LI-ION 10.0NM ARC MOTOR [Ø45/5V/9rpm]
5V LI-ION 1.1NM CT20 SRT [Ø25/5V/20rpm] (Skyline)
5V LI-ION 1.1NM CT20 [Ø25/5V/20rpm] (Skyline)
5V LI-ION 2.0NM CT 15 [Ø28/5V/20rpm] (Skyline)
Fav Position
433 MHZ
FAVORITE
POSITION
BATTERY CHECK
USB CHARGE
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for rollease acmeda AUTOMATE MT01-1320-069001
Summary of Contents for rollease acmeda AUTOMATE MT01-1320-069001
- Page 1 MOTOR PROGRAMMING INSTRUCTIONS 5V Zero & Li-ion Wire-free Motors Fav Position Live Feedback Energy e cient SOFT STOP ELECTRONIC SELECTABLE 433 MHZ FAVORITE BATTERY CHECK USB CHARGE LIMIT SPEED BI-DIRECTIONAL POSITION SOLAR OPTION LEVEL CONTROL BATTERY POWERED • USE THIS DOCUMENT WITH THE FOLLOWING MOTORS: PART NUMBER DESCRIPTION MT01-1320-069001...
- Page 2 Do not dispose of in general waste. Please recycle batteries and damaged electrical products appropriately. 2 | Automate ROLLEASE ACMEDA Programming Instructions | 5V Li-ion Tubular Motors ™...
-
Page 3: Table Of Contents
9.2 Toggle motor to Roller Mode ADJUSTING SPEED 10.1 Increase motor speed 10.2 Decrease motor speed SOFT STOP CONFIGURATION 11.1 Turn Soft Stop OFF 11.2 Turn Soft Stop ON ROLLEASE ACMEDA Programming Instructions | 5V Li-ion Tubular Motors | 3 Automate ™... -
Page 4: Assembly
ASSEMBLY 4 | Automate ROLLEASE ACMEDA Programming Instructions | 5V Li-ion Tubular Motors ™... -
Page 5: Retrofit Installation
RETROFIT INSTALLATION CHARGING ROLLEASE ACMEDA Automate Programming Instructions | 5V Li-ion Tubular Motors | 5 ™... -
Page 6: P1 Button Functions
Hold P1 button on motor head. Activate Pairing Mode Approx. Sleep Mode P1 button on motor head. Approx. Approx. Reverse Direction Approx. Approx. Approx. Reset To Factory Settings Approx. Approx. Approx. Approx. 6 | Automate ROLLEASE ACMEDA Programming Instructions | 5V Li-ion Tubular Motors ™... -
Page 7: Initial Set-Up
Damage to shade may occur when operating motor prior to IMPORTANT setting limits. Attention should be given. Reversing motor direction using this method is only possible during initial set-up ROLLEASE ACMEDA Programming Instructions | 5V Li-ion Tubular Motors | 7 Automate ™... -
Page 8: Set Limits
UP or DOWN buttons To save lower limit, hold DOWN and STOP. on controller. Motor Response Approx. IMPORTANT After setting limits, motor will automatically exit from initial set-up mode. 8 | Automate ROLLEASE ACMEDA Programming Instructions | 5V Li-ion Tubular Motors ™... -
Page 9: Adjusting Limits
Approx. Approx. IMPORTANT The bottom limit should be set ~ 1.38 in. (35mm) below the Ultra-Lock to disengage the auto lock mechanism when the shade is raised. ROLLEASE ACMEDA Programming Instructions | 5V Li-ion Tubular Motors | 9 Automate ™... -
Page 10: Controllers And Channels
Press P2 on Press P2 on controller B to remove controller A. controller A. Motor Response Motor Response Motor Response IMPORTANT Consult user manual for your controller or sensor 10 | Automate ROLLEASE ACMEDA Programming Instructions | 5V Li-ion Tubular Motors ™... -
Page 11: Favorite Positioning
Send shade to favorite position Approx. Delete favorite position Press P2 on controller. Press STOP on controller. Press STOP on controller. Motor Response Motor Response Motor Response ROLLEASE ACMEDA Programming Instructions | 5V Li-ion Tubular Motors | 11 Automate ™... -
Page 12: Tilt & Roller Mode
If motor is in Tilt Mode, use following steps to change to Roller Mode. Hold UP & DOWN on controller. Press STOP on controller. Motor Response Motor Response Approx. 12 | Automate ROLLEASE ACMEDA Programming Instructions | 5V Li-ion Tubular Motors ™... -
Page 13: Adjusting Speed
Press P2 Press UP Press UP Motor Response Motor Response Motor Response 10.2 Decrease Motor Speed Press P2 Press DOWN Press DOWN Motor Response Motor Response Motor Response ROLLEASE ACMEDA Programming Instructions | 5V Li-ion Tubular Motors | 13 Automate ™... -
Page 14: Soft Stop Configuration
Turn Soft Stop ON Motor must be in fastest speed to turn Soft Stop ON. Press P2 Press UP Press UP Motor Response Motor Response Motor Response 14 | Automate ROLLEASE ACMEDA Programming Instructions | 5V Li-ion Tubular Motors ™... -
Page 15: Battery Check Function
Motor must be at Lower Limit. Hold DOWN to toggle off Hold DOWN to toggle on Motor Response Motor Response Red LED flashes x3 Red LED flashes x3 Approx. Approx. ROLLEASE ACMEDA Programming Instructions | 5V Li-ion Tubular Motors | 15 Automate ™... -
Page 16: Sleep Mode
T +61 3 9355 0100 | F +61 3 9355 0110 T +39 02 8982 7317 | F +39 02 8982 7317 16 | Automate Programming Instructions | 5V Li-ion Tubular Motors ROLLEASE ACMEDA ™ © 2021 Rollease Acmeda Group...
