- Page 1 责任 进取 敏行 合作 www.infiray.com 400-998-3088 Mini Series Mini Thermal Imaging Monocular User Manual InfiRay Technologies Co., Ltd. All rights reserved and shall not be copied and distributed in any form without written permission.
-
Page 2: Table Of Contents
责任 进取 敏行 合作 www.infiray.com 400-998-3088 CONTENTS 1. Overview ............................3 2. Features ............................4 3. System Functions ..........................5 4. Product Components ........................6 5. Operation Functions ......................... 6 5.1 Switching on/off ........................7 5.2 Electronic Magnification......................7 5.3 Context Menu ......................... 8 5.4 Advanced Menu ........................ -
Page 3: Overview

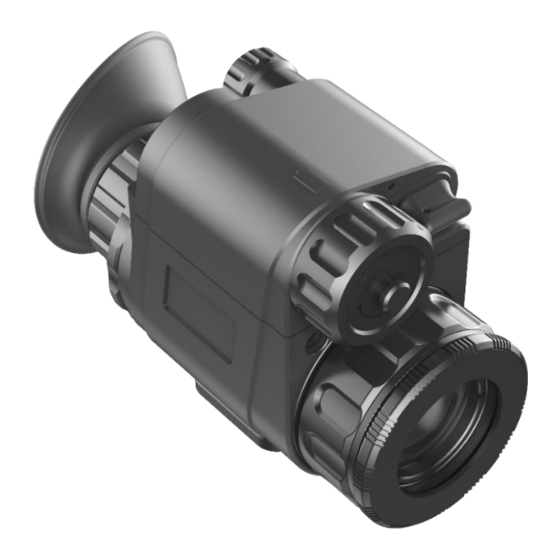

Monocular hand-held thermal imager or portable infrared thermal image sight but also can be used as wearable device when installed on the helmet. Mini series can be widely used in investigation, security, search and rescue, outdoor sports and other application fields. -
Page 4: Features
责任 进取 敏行 合作 www.infiray.com 400-998-3088 2.Features Table 1. The features of the Mini series multifunction thermal imager Model ML19 MH25, ML25, PM3, PM6 Detector Parameter Resolution 384× 288 640× 512 17μm Pixel Size 12μm 8~14μm 8~14μm Response Spectra ≤40mK@25℃，f#1.0 ≤40mK@25℃，f#1.2... -
Page 5: System Functions
责任 进取 敏行 合作 www.infiray.com 400-998-3088 hot/Pseudo Color hot/Pseudo Color Remote Control Bluetooth Bluetooth Physical Parameter Battery CR123/16340（Recommend） CR123/16340（Recommend） /16650 /16650 CR123——2.5 hours CR123——2 hours Max. Battery Life 16340——up to 4 hours 16340——up to 3 hours 16650——up to 6 hours 16650——up to 4.5 hours... -
Page 6: Product Components
● Output analog video in PAL format; ● The installation interface can be expanded(Picatinny rail，helmet). 4.Product Components The main components of the Mini series are shown in figure 4-1. Figure 4-1. The main components of Mini series 5.Operation Functions The related function such as switch, peripheral, menu and other functions can be implemented through operating the rotary encoder. -
Page 7: Electronic Magnification
责任 进取 敏行 合作 www.infiray.com 400-998-3088 The status indicator icon is displayed in the upper left corner of the image and the battery power icon is displayed in the upper right corner. As shown in figure 5-1 of normal display. -
Page 8: Context Menu
When there is no menu, long press the rotary encoder for 3 seconds to call up the advanced menu (when long press the encoder, don’t let lens vertically down, otherwise the Mini series will be shutdown). The advanced menu includes five functions which are Device, Function, Reticle, Calibration and Setting. - Page 9 3 seconds can also exit the advanced menu. The functional details of the advanced menu are shown in table 5-1 and the relevant operation status is shown in figure 5-4, 5-5, 5-6 and 5-7. Table 5-1. Details of Mini series advanced menu Function items Option items...
- Page 10 责任 进取 敏行 合作 www.infiray.com 400-998-3088 horizon angle of the product icon turns blue, relative to the ground. and the dip angle scale appears at the left. —— —— Helmet Mode ON/OFF Video outputs through the The upper left Video Out ON/OFF attached type-c data cable.
- Page 11 5-6. calibration interface. Calibration After entering the compass calibration interface, wave the Compass Mini series to make the calibration Compass Compass calibration "infinity" turn according to the interface is shown icon, to the prompt icon in figure 5-7.
- Page 12 Figure 5-6. Reticle calibration interface Figure 5-7. Compass calibration interface 5.5 Remote Control The Mini series is built-in bluetooth module. Through bluetooth, the Mini series can be All rights reserved and shall not be copied and distributed in any form without written permission.
-
Page 13: Preventative Maintenance
APP. The bluetooth connection method is as follows: Turn on the bluetooth function on the Mini series, and the bluetooth icon will be flashing; Then turn on the bluetooth of the remote controller (or smartphone) within 1 minute, to complete the automatic connection between remote controller (or APP) and Mini series. -
Page 14: General Trouble Shooting
7.General Trouble Shooting Please contact with our company or sellers as soon as possible if there are some abnormalities that cannot be ruled out. Private demolition is strictly prohibited. Table 2. Mini series general trouble shooting Trouble description Probable reason... - Page 15 责任 进取 敏行 合作 www.infiray.com 400-998-3088 FCC Caution. § 15.19 Labeling requirements. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
