InfiRay DUAL Operating Manual

InfiRay DUAL Operating Manual

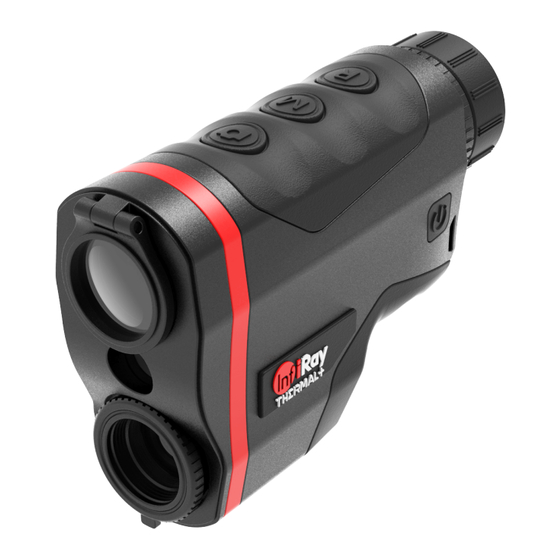

Handheld monocular
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
DUAL
HANDHELD MONOCULAR
OPERATING MANUAL

Advertisement

Table of Contents
loading

Related Manuals for InfiRay DUAL

Summary of Contents for InfiRay DUAL

  • Page 1 DUAL HANDHELD MONOCULAR OPERATING MANUAL...

  • Page 2: Important Safety Information

    Important safety information Environmental influences WARNING! Never point the lens of the device directly at intense heat sources such as the sun or laser equipment. The objective lens and eyepiece can function as a burning glass and damage the interior components.

  • Page 3: Disposal Of Batteries

    Safety instructions for the power supply unit ● Check the power supply unit, cable and adapter for visible damage before use. ● Do not use any defective parts. Defective components must be replaced. ● Do not use the power supply unit in wet or humid environments. ●...
  • Page 4 User information on the disposal of electrical and electronic devices (private households) The WEEE symbol on products and/or accompanying documents indicate that used electrical and electronic products must not be mixed with ordinary household waste. For proper treatment, recovery recycling, take these products to the appropriate collection...

  • Page 5: Intended Use

    Intended use You purchase a corresponding new product. The proper disposal of this product serves to protect the environment and prevents possible harmful effects on human beings and their surroundings, which may arise as a result of incorrect handling of waste. The device is intended for displaying heat signatures during nature observation, remote hunting observations and for civil use.

  • Page 6: Labeling Requirements

    Labeling requirements This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Information to the user Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate...

  • Page 7: Body-Worn Operation

    Body-worn Operation This device was tested for typical body-support operations. To comply with RF exposure requirements, a minimum separation distance of 0.5cm must be maintained between the user's body and the handset, including the antenna. Third-party belt-clips, holsters, and similar accessories used by this device should not contain any metallic components.

  • Page 8: Speci Cations

    1920×1080 Specifications Green Color 3600mAh Battery Battery Power Max. operating Time(22℃)*，h Supply External Power Supply 5V (USB C) Support Wi-Fi/APP (InfiRay Outdoor) Support Photo/Video Recorder Memory Capacity，GB Physical IP rating IP67 Specifications Operating Tempeture，℃ -20 ~ +55 Weight，g Dimension，mm 135×46×93...
  • Page 9 Laser rangefinder 1500 Measuring Range, m Functions ±60 Measuring Angle, ° Measurement Accuracy ±1m，±1° Wavelength, nm ※ The actual service time depends on the use frequency of functions like Wi-Fi, video recording, etc. Improvements may be made to the design and software of this product to enhance its features without prior notice;...

  • Page 10: Package Contents

    • Quality card • Thermal+ stickers II. Description Dual Monocular (hereinafter referred to as "Dual") is a multi-spectral and multi-function monocular integrating thermal monocular, daytime monocular laser rangefinder, electronic compass, and other functions. The product mainly features that the direct-view day channel combines with thermal channel for target enhancement.

  • Page 11: Device Composition

    • Magnesium alloy shell, metallic texture, solid and durable. • Up to 9 laser reticle styles and 2 laser reticle colors. • 3600mAh rechargeable battery, 8h ultra-long battery life. IV. Device Composition 1 Rangefinding button 2 Menu button 3 Capture button 4 Power button 5 Eyepiece 6 Eyepiece adjusting ring...

  • Page 12: Button Operation

    V. Button Operation Button Current Mode Press Press and Hold Powered off Power on the device Enable sleep mode Shutdown Powered on Return to the upper menu Menu without saving changes Infrared Photo Record observation interface Capture button End the recording Recording Photo and save the video...

  • Page 13: Battery Charging

    VI. Battery Charging Dual is powered by a battery with a built-in cell, a rechargeable lithium-ion battery pack that provides battery power for up to 8 hours of normal operation. The battery should be fully charged before the first use.

  • Page 14: Safety Precautions

    Dual supports external power supplies, such as the portable power source for a mobile phone (5V). • Connect an external power supply to the USB C port (12) of Dual; • Then, the device automatically switches to the external power supply and charges the internal battery pack at the same time;...

  • Page 15: Notes For Use

    VIII. Usage Notes for Use WARNING: The lens of the thermal imaging scope must not be pointed at any sources of intense radiation energy, such as laser-emitting devices or the sun. This may damage the electronic components in the device. Damage caused by failure to comply with the operating manual is not covered under warranty.

  • Page 16: Digital Zoom

    IX. Digital Zoom Dual can perform 1×, 2×, and 4× digital zoom on images. • On the home screen, press both M and Capture buttons to zoom in/out on the image; • The magnification is displayed at the status bar of the display area in real time.

  • Page 17: Image Calibration

    XIII. Photo Taking/Video Recording Dual is equipped with a built-in 16GB memory space, which allows photo taking and video recording of an observed target. The image and video files will be named after time, so it is recommended to set the system date and time settings in the advanced menu before using the photographing and video recording functions (refer to "Main...

  • Page 18: Memory Access

    Note: • You can open and operate the menu during video recording; • All images taken and videos recorded will be saved in the built-in memory card in the formats of IMG_YYYYMMDDhmmss_XX.jpg (photos) and VID_YYYYMMDDhmmss_XX.mp4 (videos), of which YYYYMMDDhhmm refers to year/month/day/hour/minute/second, and XX the serial number of the two-bit multimedia file;...
  • Page 19 Please check the actual memory in Dual's device file management. • After connecting the computer, do not use the computer's formatting...

  • Page 20: Status Bar

    XV. Status Bar The status bar is located at the top, right, and bottom of the image interface and displays information related to the current operating status of the device. From the top down and left to right, there are: Top: Image mode, polarity, Wi-Fi status, analog video status, azimuth angle, video recording, photo taking, digital zoom, battery level, and current time.
  • Page 21 - Screen Luminance: After selecting this option, press the M button to adjust the brightness from 0 to 5; - Wi-Fi: After selecting this option, press the M button to turn on/off Wi-Fi; - Polarity: After selecting this option, press the M button to switch between green hot and black hot;...
  • Page 22 2. Wi-Fi Settings On the main menu, select the "Wi-Fi" option, press the Menu button to display the "ON" and "OFF" buttons, and press the left and right buttons to select. When the Wi-Fi is on, the status bar displays the " "...
  • Page 23 b) Reticle Color Select "Reticle Color" in the main menu, and press the Menu button to enter the interface for selecting the reticle color. Press the left and right buttons to select the reticle color, with 2 black and green colors available.
  • Page 24 b) Contrast Select the "Contrast" option in the main menu, and press the Menu button to enter the " " adjustment interface, as shown in the figure. Press the left and right buttons to adjust the image contrast. There are 6 adjustable levels of image contrast from 0 to 5 from dark to bright.
  • Page 25 7. Document Management " option, and press the Menu button In the main menu, select the " to enter the file management interface, which consists of 4 parts, namely, file list, file information, thumbnail, and storage information. The file list includes lists of photos and videos. The photo file list is displayed by default.

  • Page 26: Advanced Menu

    photo playback screen, the file name will automatically disappear after a display of over 5s and become a full-screen display. On the current screen for playing photo files, press the Power button to return to the photo file list, and press and hold the Menu button to return to the home screen.
  • Page 27 Advanced Menu Operations • On the submenu, select the "Date" option, and press the Menu button to open the time setting page; • The 24-hour system is adopted, in a format of "20XX-XX-XX, XX:XX"; Date and • The default setting is 2022-01-01, 00:00; Time Settings •...
  • Page 28 • On the main menu, select the "Compass Calibration" option, and press the Menu button to display the calibration prompt interface; • Rotate the device along the three axes indicated by the icon, with each axis rotating at least 360°; Compass •...
  • Page 29 • On the submenu, select the "Status Auto Hiding" option; • Press the Menu button and 2 options of "ON/OFF" appear. Press the left and right buttons to select "ON/OFF"; Status Auto • The status bar will automatically hide after 10s of no Hiding operation on the observation page •...
  • Page 30 • For selecting Y, press the Menu button to enter the Y direction adjustment, press the up or down buttons to move the cursor by 1 pixel each time, and press and hold the up or down buttons to move by 10 pixels each time •...
  • Page 31 • On the secondary menu, select the "Format" option, and press the Menu button to enter the format tab; • A pop-up prompts "Yes/No" to format the memory card. Press the left and right buttons to select "Yes/No", and the default is "No"; •...
  • Page 32 • Select the "Factory Reset" option, and press the Menu button to open it; • For a "No" selection, press the Menu button to confirm the selection and return to the upper menu, and for "Yes", the device will restart automatically; •...
  • Page 33 XVIII. Wi-Fi Dual has a built-in Wi-Fi module. The device can connect wirelessly to a mobile apparatus (laptop or mobile phone) via Wi-Fi. • In the advanced menu, enable Wi-Fi. For detailed operations, refer to "Advanced Menu-Wi-Fi". • After the Wi-Fi of the scope is enabled, search for the Wi-Fi signal with the name "Dual_DP19 _XXXX"...
  • Page 34 You can download the user manual of InfiRay Outdoor at our official website (www.infirayoutdoor.com). You can also test and update the software of the product via the InfiRay Outdoor app or download it on our official website. About InfiRay Outdoor •...

  • Page 35: Technical Inspection

    XX. Technical Inspection Perform a technical inspection to check the following items each time before you use the device. • Exterior of the device (no crack on the enclosure). • Lens and eyepiece (no crack, oil, stain, or other sediments) •...
  • Page 36 Fault Possible Causes Solution The scope cannot The battery is out of Charge be started. charge. The USB cable is The device cannot Replace the USB cable. damaged. be powered by using an external The external power If necessary, check the external power power supply.

  • Page 37: Legal And Regulatory Information

    WLAN: 2.412-2.472GHz (for EU) Wireless transmitter module power < 20dBm (only for EU) IRay Technology Co., Ltd. thus declares that the Dual series thermal imaging monocular complies with the directives 2014/53/EU and 2011/65/EU. The full text of the EU declaration of conformity as well as additional information are available at: www.infirayoutdoor.com.This...
