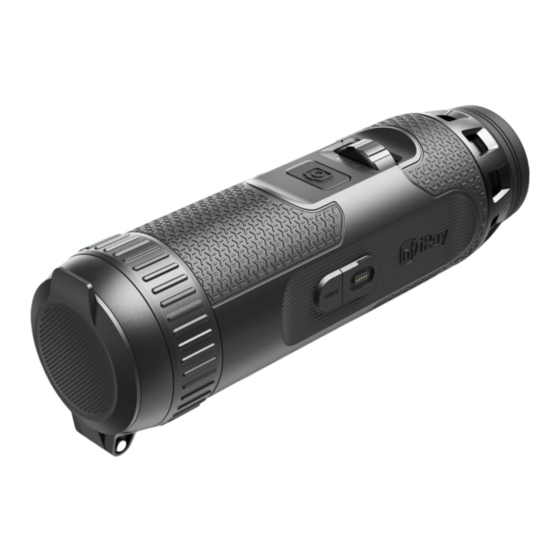

InfiRay EYE III User Manual
Thermal imaging monocular
Hide thumbs
Also See for EYE III:
- User manual (26 pages) ,
- User manual (330 pages) ,
- Quick start manual (68 pages)
Related Manuals for InfiRay EYE III
Summary of Contents for InfiRay EYE III
- Page 1 InfiRay Outdoor • EYE III Series • User Manual www.infirayo utdoor.com All rights reserved and shall not be copied and distributed in any form without written permission. - 0 -...
-
Page 2: Important Safety Information
InfiRay Outdoor • EYE III Series • User Manual www.infirayo utdoor.com IMPORTANT SAFETY INFORMATION meant to be replaced by the end user. - The battery capacity decreases when operated in a cold ambient Environmental influences temperature. This is not a fault and occurs for technical reasons. - Page 3 InfiRay Outdoor • EYE III Series • User Manual www.infirayo utdoor.com - Do not use the power supply unit in wet or humid environments. 2012/19/EU (WEEE directive): Products marked with - Only charge the device at temperatures ranging between 0° C and 50° C.
- Page 4 It cannot be removed. Observation with and without glasses Thanks to the flexible eye-shade, the EYE III series can be used with or without glasses. It offers a full field of view in both cases. All rights reserved and shall not be copied and distributed in any form without written permission.
-
Page 5: Specifications
InfiRay Outdoor • EYE III Series • User Manual www.infirayo utdoor.com Specifications Resolution 1440 × 1080 Battery Power Supply Battery Type / Capacity / Model EL25 EL35 EH35 Built-in Li-ion battery / 4.2Ah / 3.6V Output Voltage Detector Specifications Max. operating Time... -
Page 6: Package Contents
3. Controller The EYE III series is light and easy to carry, small in size, suitable for single- All rights reserved and shall not be copied and distributed in any form without written permission. - 5 -... -
Page 7: Button Descriptions
InfiRay Outdoor • EYE III Series • User Manual www.infirayo utdoor.com 4. Camera button 5. Type C port 6. Power indicator 7. Lens focus ring 8. Objective lens 9. Lens cap Button Descriptions Rotate Button Current Status Press Press and Hold... -
Page 8: Safety Instructions For Battery
(5) is red. The power indicator (6) is on only in the charging status. The EYE III series is supplied with a built-in rechargeable Li-ion battery pack, When the power indicator (6) turns green, the device is fully charged. -
Page 9: Operation
InfiRay Outdoor • EYE III Series • User Manual www.infirayo utdoor.com ⚫ Don’t charge the device instantly while bring the battery from cold idled for long time. Avid fully charged or discharged. environment to warm environment. Charge after 30-40 mins. -
Page 10: Status Bar
InfiRay Outdoor • EYE III Series • User Manual www.infirayo utdoor.com the Controller (3) to select the option. ⚫ Power off: On the home screen, press and hold the Controller (3) + ⚫ Photographing / Video recording: On the home screen, briefly press Camera button (4) at the same the Camera button (4) to start / stop a video recording. - Page 11 Photography and Video Recording and transfer videos and images to other media to free up the space. EYE III series is equipped with a function for video recording and photography of the observed image which is saved on the built-in 32GB All rights reserved and shall not be copied and distributed in any form without written permission.
-
Page 12: Video Recording
InfiRay Outdoor • EYE III Series • User Manual www.infirayo utdoor.com hour/minute/second. Video Recording - The maximum duration of a video recording file is 30 minutes. When ⚫ On the home screen, short press the Camera button (4) to start the the duration is more than 30 minutes, the video will be automatically video recording function. -
Page 13: Digital Zoom
InfiRay Outdoor • EYE III Series • User Manual www.infirayo utdoor.com ⚫ You can select required files or folders for copying or deleting screen brightness and image sharpness. operations. ➢ In the home screen, press the Controller (3) to enter the shortcut menu. -
Page 14: Main Menu Function
⚫ Menu navigation is cyclical: as soon as the last menu option of the first ⚫ During the continuous operation of the EYE III, when you exit from the page is reached, it will turn to the first menu option of the second page main menu, the cursor remains at the position before exiting. - Page 15 InfiRay Outdoor • EYE III Series • User Manual www.infirayo utdoor.com weather conditions. Turn Wi-Fi on/off ⚫ Press and hold the Controller (3) to enter the Main Menu interface. ⚫ Rotate the Controller (3) to select the Wi-Fi option. ⚫ Press briefly the Controller (3) to turn on /off the Wi-Fi function.
- Page 16 InfiRay Outdoor • EYE III Series • User Manual www.infirayo utdoor.com enabled when the Interconnection function is on, and vice versa. Turn PIP function on/off ⚫ Press and hold the Controller (3) to enter the Main Menu interface. ⚫ Rotate the Controller (3) to select the PIP option.
- Page 17 InfiRay Outdoor • EYE III Series • User Manual www.infirayo utdoor.com ⚫ When the Microphone is on, the sound around the device will be synchronously collected during video recording. Set the image hue ⚫ Press and hold the Controller (3) to enter the Main Menu interface.
- Page 18 InfiRay Outdoor • EYE III Series • User Manual www.infirayo utdoor.com compass calibration interface. An icon like a triaxial coordinate system appears on the screen. ⚫ In the 15 seconds, rotate the scope along the three axes indicated by the icon, with each axis rotating at least 360°.
- Page 19 InfiRay Outdoor • EYE III Series • User Manual www.infirayo utdoor.com Note: Please ensure that the power of the device is sufficient before the update. Reset to the factory settings ⚫ Press and hold the Controller (3) to enter the Main Menu interface.
- Page 20 Setting Wi-Fi Name and Password The EYE III series can be can connect with the mobile device (laptop or The name and password of the Wi-Fi in EYE III series can reset on the mobile phone) for data transmission via Wi-Fi function.
- Page 21 When the interconnection icon is the two devices to start the pairing. displayed on the status bar and ⚫ When two EYE III are connected, the one whose Wi-Fi is enabled is the prompt ‘Sending Data’ data sender and the other one that the interconnection is on is the data appears on the upper left conner receiver.
-
Page 22: Firmware Update
Wi-Fi in real time. ⚫ Notifications about updates will be posted on the official website or You can find the detailed instruction about InfiRay Outdoor at the site social media or InfiRay Outdoor APP. www.infirayoutdoor.com. -
Page 23: Maintenance
⚫ The controller/button should be in working order. We, IRay Technology Co., Ltd., hereby declares that the radio equipment EYE III series is in compliance with the All rights reserved and shall not be copied and distributed in any form without written permission. - Page 24 InfiRay Outdoor • EYE III Series • User Manual www.infirayo utdoor.com Directives 2014/53/EU, 2011/65/EU and RER 2017 (SI Note: This equipment has been tested and found to comply with the limits 2017/1206). The full text of the EU&UK declaration of for a Class B digital device, pursuant to part 15 of the FCC Rules.
- Page 25 InfiRay Outdoor • EYE III Series • User Manual www.infirayo utdoor.com This device was tested for typical body-support operations. To comply with RF exposure requirements, a minimum separation distance of 0 cm must be maintained between the user's body and the handset, including the antenna.
