Summary of Contents for InfiRay Affo AP09
- Page 1 InfiRay Outdoor • AFFO Series • Operating Manual www.infirayoutdoor.com...
- Page 2 InfiRay Outdoor • AFFO Series • Operating Manual www.infirayoutdoor.com IMPORTANT SAFETY INFORMATION meant to be replaced by the end user. - Only use the battery charger included in the delivery package. - Only charge the device at temperatures ranging between 0° C and 40° C.
- Page 3 InfiRay Outdoor • AFFO Series • Operating Manual www.infirayoutdoor.com replaced. The battery used does not contain mercury, cadmium or lead in quantities - Do not use the power supply unit in wet or humid environments. exceeding - Only use the original cable provided with the battery charger.
- Page 4 InfiRay Outdoor • AFFO Series • Operating Manual www.infirayoutdoor.com - Check that the settings for the device are correct. See the notes in the For business customers within the European Union Please contact your dealer or supplier regarding the disposal of electrical section Operation.
-
Page 5: Specifications
InfiRay Outdoor • AFFO Series • Operating Manual www.infirayoutdoor.com Specifications Model AP13 AL19 AL25 Physical Specifications Ingress Protection Detector Specifications IP67 Rating Type Uncooled Vox Memory Capacity, GB Resolution 256×192 384×288 Support (InfiRay outdoor) Wi-Fi / APP Pixel size, μm... -
Page 6: Package Contents

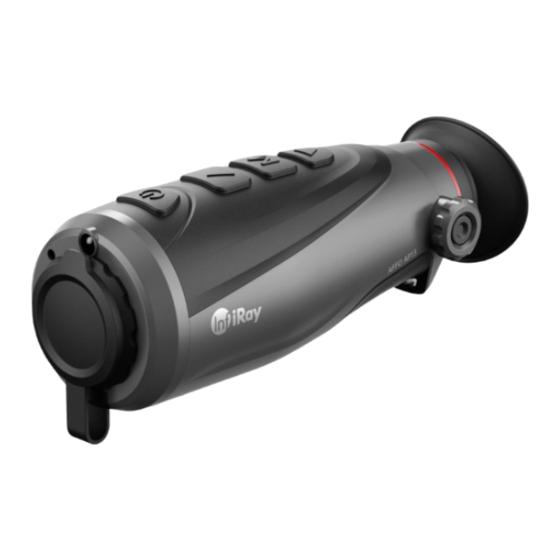

InfiRay Outdoor • AFFO Series • Operating Manual www.infirayoutdoor.com Package Contents Description ⚫ AFFO series thermal imaging monocular The AFFO series thermal imaging monocular is for outdoor use. It can be ⚫ Neck strap used in the day or night, or in harsh weather (such as rain, snow, fog, and ⚫... - Page 7 InfiRay Outdoor • AFFO Series • Operating Manual www.infirayoutdoor.com Units and Controls 1. Eyeshade 2. Diopter adjustment 3. Down button 4. Menu (M) button 5. Up button 6. Power button 7. LED light 8. Objective lens 9. Lens cover 10. USB rubber cap 11.
-
Page 8: Button Descriptions
InfiRay Outdoor • AFFO Series • Operating Manual www.infirayoutdoor.com Button Descriptions Button Current Status Press Press and Hold Powered off —— Power on the device Enter the standby mode (the display is off, Power button Home screen Power off the device... - Page 9 InfiRay Outdoor • AFFO Series • Operating Manual www.infirayoutdoor.com Charging is completely green ⚫ During using, when the battery icon turns red , this means the The AFFO series is supplied with a built-in rechargeable Li-ion battery pack, power level is low, please charge the device in time to avoid the data which allows operation up to 9.5 hours.
-
Page 10: Operation
InfiRay Outdoor • AFFO Series • Operating Manual www.infirayoutdoor.com ⚫ The battery is short circuit protected. However, any situation that may light. cause short-circuiting should be avoided. ⚫ Please note that when the device is turned on, the LED light is ⚫... -
Page 11: Calibration Mode
InfiRay Outdoor • AFFO Series • Operating Manual www.infirayoutdoor.com the section Menu for details). There are three calibration modes: Automatic (A), Manual (M) and ⚫ Power off: After using the Background (B). device, press and hold the Select the required calibration mode in the Menu (referring to the Menu - Power (6) button for 3 Calibration). -
Page 12: Digital Zoom
2s. (refers to Menu - Date Setting and Time Settings in this manual) or to synchronize date and time in the InfiRay Outdoor application. Digital Zoom Photography On the home screen, short press the Down (3) button to take a photo. - Page 13 InfiRay Outdoor • AFFO Series • Operating Manual www.infirayoutdoor.com ⚫ Connect the device to a computer through the Type C data cable. Video Recording ⚫ Power on the device for operation, and the USB function box pops up ⚫ On the home screen, press and hold the Down (3) button to start the on the screen.
-
Page 14: Video Output
InfiRay Outdoor • AFFO Series • Operating Manual www.infirayoutdoor.com Video Output ⚫ There are four folders that are .MISC, LOCK-CIF, PHOTO-CIF and VIDEO-CIF. ⚫ The captured videos and photos are respectively stored by time in the The AFFO series supports analog video output and connect with an external VIDEO-CIF and PHOTO-CIF folders. - Page 15 InfiRay Outdoor • AFFO Series • Operating Manual www.infirayoutdoor.com ⚫ Adjust the current parameters or enter the submenus with a short press of the M (4) button. ⚫ In all menu interfaces, short press the Power (6) button return to the...
- Page 16 InfiRay Outdoor • AFFO Series • Operating Manual www.infirayoutdoor.com Set the display brightness level ⚫ Press and hold down the M (4) button to enter the Menu. ⚫ Select the Display Brightness menu option with the Up (5) / Down (3) button.
- Page 17 InfiRay Outdoor • AFFO Series • Operating Manual www.infirayoutdoor.com ⚫ The icon of the calibration mode will be displayed on the status bar. Set the date of the device ⚫ Press and hold down the M (4) button to enter the Menu.
- Page 18 InfiRay Outdoor • AFFO Series • Operating Manual www.infirayoutdoor.com ⚫ Save the selected time and exit the submenu with a long press of the M (4) button. ⚫ Or, briefly press the Power (6) button to return to the home screen without saving.
- Page 19 InfiRay Outdoor • AFFO Series • Operating Manual www.infirayoutdoor.com ⚫ Select the Info menu option with the Up (5) / Down (3) button. ⚫ The relevant information of the device will be shown by a short press of the M (4) button.
-
Page 20: Hotspot Tracking
InfiRay Outdoor • AFFO Series • Operating Manual www.infirayoutdoor.com Hotspot Tracking interface. ⚫ Select the PIP option with The AFFO series provides hotspot tracking function, which allows you to the Up (5) / Down (3) track the hottest object in the button. - Page 21 Outdoor application. The design of the AFFO series provides the software update option. ⚫ After connected to the mobile device, Updating is possible via the InfiRay Outdoor application. Also, it is feasible find and click the "Setting" icon download update...
-
Page 22: Technical Inspection
Legal and Regulatory Information ⚫ InfiRay Outdoor saves the last connected device automatically. Therefore, once you link to InfiRay Outdoor before, it will automatically Wireless transmitter module frequency range: detect an update in the background even when the device is not WLAN: 2.412-2.472GHz (For EU) - Page 23 InfiRay Outdoor • AFFO Series • Operating Manual www.infirayoutdoor.com IRay Technology Co., Ltd. thus declares that the AFFO equipment. series thermal imaging monocular complies with the Note: The manufacturer is not responsible for any radio or TV interference directives 2014/53/EU and 2011/65/EU. The full text of...
- Page 24 InfiRay Outdoor • AFFO Series • Operating Manual www.infirayoutdoor.com This equipment complies with FCC RF radiation exposure limits set forth for Add: Simsukian Industrial Park, Jiayi Industrial Zone, Guihua Village, an uncontrolled environment. Guanlan Street, Longhua District Shenzhen P.R. China Body-worn Operation Model No.: SK22G-0500200Z...
