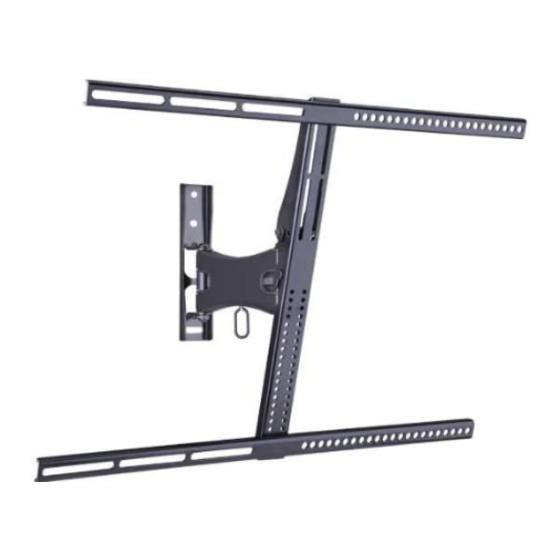

QMF107 Instruction Manual
We are here to help!
Please contact Customer Service with any questions.
Customer Service
Americas: 800-359-5520 • 651-484-7988 • info@milestone.com
Europe, Middle East, and Africa: +31 (0) 495 580 852 • info@milestone.com
Asia Pacifi c: 86 755 8996 9226 • info@milestone.com
Milestone • 6436 City West Parkway • Eden Prairie, MN 55344 USA
©2012 Milestone AV Technologies, a Duchossois Group Company. All rights reserved. Secura is a brand of Milestone.
All other brand names or marks are used for identifi cation purposes and are trademarks of their respective owners.
secura-av.com
(6910-002040 <01>)
Advertisement
Table of Contents
Related Manuals for Secura QMF107
Summary of Contents for Secura QMF107
- Page 1 Milestone • 6436 City West Parkway • Eden Prairie, MN 55344 USA ©2012 Milestone AV Technologies, a Duchossois Group Company. All rights reserved. Secura is a brand of Milestone. All other brand names or marks are used for identifi cation purposes and are trademarks of their respective owners.
- Page 2 English - How to use this manual Suomi - Oppaan käyttäminen For best results, reference both the text and illustrations. Saavutat parhaan tuloksen tutustumalla sekä tekstiin Select one item or the other. että kuviin. Leikkaa katkoviivaa pitkin ja yhdistä kuvat ja suomenkielinen teksti.
-
Page 3: Specifications
English IMPORTANT SAFETY INSTRUCTIONS – SAVE THESE INSTRUCTIONS – PLEASE READ ENTIRE MANUAL PRIOR TO USE Specifi cations Weight capacity-DO NOT EXCEED: 31.7 kg (70 lb) includes TV and any accessories Tilt: +5° -14° CAUTION: Avoid potential personal injuries and property damage! Do not use this product for any purpose not explicitly specifi ed by manufacturer. -
Page 4: Required Tools
Required Tools 13 mm 5.5 mm 10 mm (1/2 in.) (7/32 in.) (3/8 in.) Optional Tools 5.5 mm (9/16 in.) 10 mm (7/32 in.) Supplied Parts and Hardware WARNING: This product contains small items that could be a choking hazard if swallowed. Before starting assembly, verify all parts are included and undamaged. - Page 5 Select TV Hardware and Mount TV Brackets Select the hardware diameter and length Your TV type will help you determine which hardware confi guration to use. Installation option without spacers (TVs with fl at backs) Installation option using spacers (TVs with irregular backs) Hand thread screws into the threaded inserts on the back of your TV to determine the correct screw diameter (M4, M6,...
- Page 6 Attach horizontal brackets to TV For TVs with an irregular back Ensure the brackets [03] are level and centered on the back of the TV. Standard confi gurations are shown. For special applications, or if you are uncertain about your hardware selection, contact Customer Service.
- Page 7 Mount to Wall - Before You Begin IMPORTANT Mount will shift 107.5 mm (4.23 in.) in either direction from the center when it is in the home position. Consider this when selecting the location for your wall mount. 107.5 mm (4.23 in.) 107.5 mm (4.23 in.) 6910-002040 <01>...
- Page 8 Mount to Wall 13 mm 5.5 mm Wood Stud (1/2 in.) (7/32 in.) Locate stud Verify the center of the stud using an awl, a thin nail, or an edge to < 16 mm edge stud fi nder. (5/8 in.) CAUTION: Avoid potential personal injuries and property damage! Any material covering the wall must not exceed 16 mm (5⁄8 in.).
- Page 9 Mount to Wall 13 mm 10 mm Solid Concrete and Concrete Block (1/2in.) (3/8 in.) Level wall plate [01] and mark hole locations CAUTION: Avoid potential personal injuries and property damage! Mount the wall plate [01] directly onto the concrete surface. Minimum solid concrete thickness: 203 mm (8 in.).
- Page 10 Hang your TV onto the Wall Plate 10 mm HEAVY! You will need assistance with this step. IMPORTANT You need a small space between the adjustment screws (AS) and the wall plate [01] for the TV bracket [02] to hang on. To add space, loosen the adjustment screws (AS).
-
Page 11: Manage Cables
Manage Cables Route your cables using the cable mangagement clip (CMC) provided. Be sure to leave enough slack in the cables to allow the TV to move freely. If the cable management clip (CMC) will not be used, you may remove it. (CMC) (CMC) Adjust Tension... - Page 12 Suomi English Milestone AV Technologies and its affi liated corporations and subsidiaries (collectively, “Milestone”), Milestone AV Technologies sisar- ja tytäryhtiöineen (yhdessä Milestone) on pyrkinyt tekemään intend to make this manual accurate and complete. However, Milestone makes no claim that the tästä...
