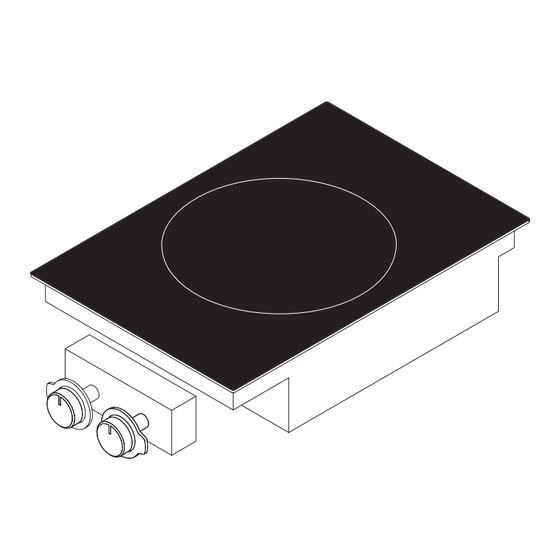

- Page 1 Operating and installation instructions PIW1 Induction glass ceramic wok PIW1UMEN-001 1037295 www.bora.com...
- Page 2 T +49 (0) 8035 / 907-240 F +49 (0) 8035 / 907-249 info@bora.com www.bora.com The distribution and duplication of this document, as well as the use and disclosure of its contents are prohibited unless expressly authorised. © BORA Lüftungstechnik GmbH, 2015 All rights reserved.
-
Page 3: Table Of Contents
Switching off the cooking zone ......21 6.1.5 Automatic heat up function ......21 6.1.6 Switching the childproofing feature on/off ..21 Cleaning and Maintenance Cleaning agents ..........23 Maintaining the cooktop ........23 Cleaning the cooktop ........23 7.3.1 Cleaning the control knobs ....... 23 www.bora.com... -
Page 4: General
INFO BORA Holding GmbH, BORA Vertriebs Safety and warning instructions GmbH & Co KG, BORA APAC Pty Ltd and BORA Lüftungstechnik GmbH - hereinafter referred The safety and warning instructions in this manual are to as BORA - shall not assume any liability for emphasised with symbols and signal words. - Page 5 Caution Indicates a possible hazardous situation which can cause minor injury if not respected. — Caution Indicates a situation which can cause minor injury if not respected. Tab. 1.2 Meaning of the warning symbols and signal words www.bora.com...
-
Page 6: Safety
Every time the device is used for will be tempted to climb onto the device. cooking, supplementary moisture is XKeep children and other persons away from released into the room air. the cooking surfaces. Unauthorised modifications Due to unauthorised modifications www.bora.com... -
Page 7: Safety Instructions, Operation
Objects on the cooktop can heat up and ignite. XNever leave oil or fat to heat up unattended. XDo not leave any objects on the XNever extinguish oil and fat fires cooktop. with water. XSuffocate the fire, for example by using a lid. www.bora.com... -
Page 8: Safety Instructions, Assembly
Hard and pointed objects may cause damage to the glass ceramic plate of the cooktop. XDo not use the cooktop surface as a kitchen worktop. XDo not use any hard and pointed objects when working on the cook- top. www.bora.com... -
Page 9: Safety Instructions, Spare Parts
XDo not install a damaged device. A damaged device may put your safety at risk! Use as intended Repair and maintenance work may only be carried out by specialists authorised by the The device is solely intended for preparing manufacturer. food in private households. www.bora.com... - Page 10 BORA shall not assume any liability for damages caused by improper use or incorrect operation. All misuse is prohibited!
-
Page 11: Technical Data
Weight (incl. accessories/packaging) 11.0 kg Cooktop Power levels 1 - 9, P Cooking zone power setting Ø 310 mm 2400 W 3000 W Tab. 3.1 Technical data Device dimensions Ø 310 Fig. 3.1 Device dimensions Fig. 3.2 Control box dimensions www.bora.com... -
Page 12: Device Description
The cooking zone is only indirectly heated up by the heat emitted by the pot. Cooking zones with induction only work if the cookware has a magnetisable base. www.bora.com... -
Page 13: Power Levels
The cooling fan switches on automatically if the cooktop is used intensively. You will hear a Tab. 4.3 Overview of the automatic heat up function whirring sound. The cooling fan may continue running after the device has been switched off. www.bora.com... -
Page 14: Pan Size Recognition
Before the induction coils and/or cooling elements overheat, the overheating protection will initiate one of the following measures: The power setting automatically switches to power level after 10 minutes. The cooking zone indicator switches to www.bora.com... -
Page 15: Installation
Preparing the worktop If there are any missing or damaged parts, please notify BORA After Sales Service immediately. Create the worktop cut-out taking into account the Do not under any circumstances install parts which are specified cut-out dimensions. - Page 16 1116 1088 Fig. 5.4 Dimension of groove for flush installation 1338 1310 INFO If the induction glass ceramic wok is used, the groove dimensions must be increased to 7 mm for flush installation. 1709 1681 Tab. 5.2 Cut-out dimensions www.bora.com...
-
Page 17: Installing The Cooktop
The total dimensions of the adjustment plates [2] and the fixed front panel [3] should be 36 mm. The total dimensions of 36 mm must be adhered to in order to ensure that the control box [1] functions smoothly. Fig. 5.8 Installed control box and cooktop www.bora.com... -
Page 18: Installing The Cooktop
Put on the control knob [6]. Place the mounting rail [2] in the worktop cut-out. Insert the cooktop [1]. Align the cooktop [1] exactly. Align the mounting rail [2] so that it is positioned evenly under the cooktop and the cooktop extractor PL540. www.bora.com... -
Page 19: Power Connection
Create the connection between the cooktop and the control box. Verify that the installation was done correctly. Switch on the main switch/automatic circuit breaker. Put the cooktop into operation (see the Operation section). Check all the functions are working correctly. www.bora.com... -
Page 20: Handover To User
Once installation is done: Explain the important functions to the user. Explain all safety-relevant aspects of operation and handling to the user. Provide the user with the accessories and operating and installation instructions to be kept in a safe place. www.bora.com... -
Page 21: Operation
The power level set is active and is shown in the The cooktop is switched off. cooking zone indicator. Press the control knob of the cooking zone. Turn the control knob to the left, holding it at position for at least 5 seconds. www.bora.com... - Page 22 Switching off the childproofing feature Press the control knob of the cooking zone. Turn the control knob to the left, holding it at position for at least 5 seconds. The cooking zone indicator goes out. The child safety lock is deactivated. www.bora.com...
-
Page 23: Cleaning And Maintenance
Only use cookware which is suitable for glass ceramic Rinse the control knob well after cleaning. cooktops (see the Device description chapter). Allow the control knob to dry thoroughly. Re-insert the clean and dry control knob into the slot after the cleaning is completed. www.bora.com... -
Page 24: Troubleshooting
Wait until the cooling fan switches off cooktop has been switched off. has cooled down and will then switch off automatically. automatically. Tab. 8.1 Resolving a fault In all other instances, call the BORA Service Team (see the Warranty, service and spare parts chapter). www.bora.com... -
Page 25: Decommissioning, Disassembly And Disposal
Remove the device from the worktop upwards. for return and recycling of electronic and electrical Remove further accessory parts. parts and other materials. Remove the old appliance and dirty accessory as described under “Disposing of the product in an environmentally friendly way”. www.bora.com... -
Page 26: Warranty, Service And Spare Parts
10.3 Spare parts Only use original spare parts when making repairs. INFO Spare parts can be obtained from your BORA dealer, the BORA online service website at www.bora.com/service or by calling the service number provided. - Page 28 F +49 (0) 8035 / 907-249 F +61 2 8076 3514 info@bora.com info@boraapac.com.au www.bora.com www.boraapac.com.au Austria: BORA Vertriebs GmbH & Co KG Prof.-Dr.-Anton-Kathrein-Straße 3 6342 Niederndorf Österreich T +43 (0) 5373 / 62250-0 F +43 (0) 5373 / 62250-90 mail@bora.com www.bora.com...
