TUSS44x0 EVM for Ultrasonic Sensors User's Guide

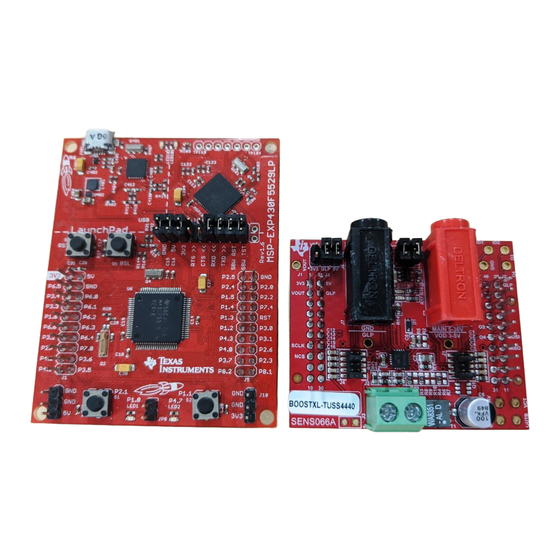

The TUSS44x0 Evaluation Module (EVM) lets users evaluate the functionality of Texas Instrument's
TUSS4440 and TUSS4470 ultrasonic sensor-signal conditioner and driver integrated circuits. The
TUSS4440 and TUSS4470 devices are highly integrated transducer drive analog front-end devices for
industrial ultrasonic applications. This user's guide describes both the hardware platform containing a
sample TUSS4440 (BOOSTXL-TUSS4440) or TUSS4470 (BOOSTXL-TUSS4470) device, and the
graphical user interface (GUI) software used to configure and operate the device. This EVM can be used
to display the ultrasonic echo envelope and time-of-flight measurement results of the transducer when
used with the GUI.
...................................................................................................................
1
2
2.1
2.2
2.3
2.4
.....................................................................................................................
3
3.1
3.2
3.3
3.4
3.5
3.6
3.7
4
4.1
4.2
..................................................................................................................
5
1
2
3
4
5
6
7
8
9
Tree View Page Listing
10
11
12
13
14
15
SLAU822A - December 2019 - Revised April 2020
Submit Documentation Feedback
........................................................................................................
.................................................................................................
..........................................................................................................
.........................................................................
................................................................................
.......................................................................................
....................................................................................
.....................................................................................
................................................................................
.................................................................................
............................................................................
List of Figures
.............................................................................
...................................................................................................
..................................................................................................
...................................................................................................
..................................................................................................
....................................................................................................
.....................................................................................................
....................................................................................................
...............................................................................................
................................................................................................
.........................................................................
........................................................................................
Copyright © 2019-2020, Texas Instruments Incorporated
SLAU822A - December 2019 - Revised April 2020
Contents
...................................................
..............................................
...............................................................
..............................................................
........................................................
......................................................................
TUSS44x0 EVM for Ultrasonic Sensors User's Guide
User's Guide
.................................
3
4
4
6
9
9
10
10
10
11
12
14
22
23
25
26
35
40
3
4
5
7
7
10
10
11
12
12
13
15
16
17
18
1
Advertisement
Table of Contents
Related Manuals for Texas Instruments TUSS44 0 Series
Summary of Contents for Texas Instruments TUSS44 0 Series
-
Page 1: Table Of Contents
Data Monitor - Data Dump ................. Data Monitor - Measurement and Diagnostics ..................Data Monitor - Tabulated Results SLAU822A – December 2019 – Revised April 2020 TUSS44x0 EVM for Ultrasonic Sensors User's Guide Submit Documentation Feedback Copyright © 2019–2020, Texas Instruments Incorporated... - Page 2 ................Bill of Materials for BOOST-TUSS4470 Trademarks LaunchPad, BoosterPack, Code Composer Studio, MSP430 are trademarks of Texas Instruments. All other trademarks are the property of their respective owners. TUSS44x0 EVM for Ultrasonic Sensors User's Guide SLAU822A – December 2019 – Revised April 2020 Submit Documentation Feedback Copyright ©...
-
Page 3: Introduction
Ultrasonic Test Driver Transducer Push-Buttons and LEDs Points MSP-EXP430F5529LP BOOST-TUSS44x0 Figure 1. BOOSTXL-TUSS44x0 EVM Block Diagram SLAU822A – December 2019 – Revised April 2020 TUSS44x0 EVM for Ultrasonic Sensors User's Guide Submit Documentation Feedback Copyright © 2019–2020, Texas Instruments Incorporated... -
Page 4: Setup And Operation
36 V and a current output up to 500 mA. 2.1.2 Initial EVM Setup 2.1.2.1 Setup Instructions The user requires two separate boards from Texas Instruments to assemble the TUSS44x0 EVM, as shown in Figure Figure 2. EVM Boards - Separated TUSS44x0 EVM for Ultrasonic Sensors User's Guide SLAU822A –... -
Page 5: Evm Boards - Assembled
Table 1 lists each power mode with the jumper position of the power mode selector block. SLAU822A – December 2019 – Revised April 2020 TUSS44x0 EVM for Ultrasonic Sensors User's Guide Submit Documentation Feedback Copyright © 2019–2020, Texas Instruments Incorporated... -
Page 6: Boost-Tuss44X0 (Discontinued Evm) Setup And Operation
2.2.2 Initial EVM Setup 2.2.2.1 Setup Instructions The user requires two separate boards from Texas Instruments to assemble the TUSS44x0 EVM, as shown in Figure TUSS44x0 EVM for Ultrasonic Sensors User's Guide SLAU822A – December 2019 – Revised April 2020 Submit Documentation Feedback Copyright ©... -
Page 7: Evm Boards - Separated
Figure 5 shows the assembled solution for the BOOST-TUSS44x0 board configuration. Figure 5. EVM Boards - Assembled SLAU822A – December 2019 – Revised April 2020 TUSS44x0 EVM for Ultrasonic Sensors User's Guide Submit Documentation Feedback Copyright © 2019–2020, Texas Instruments Incorporated... - Page 8 TUSS44x0 voltage regulator input. xxxxxxxx xxxxxxxx xxxxxxxx xxxxxxxx xxxxxxxx xxxxxxxx TUSS44x0 EVM for Ultrasonic Sensors User's Guide SLAU822A – December 2019 – Revised April 2020 Submit Documentation Feedback Copyright © 2019–2020, Texas Instruments Incorporated...
-
Page 9: Installing The Graphical User Interface Software
Run the GUI installer and save the executable (.exe) file in a convenient location (such as the computer Desktop or the C:\Program Files (x86)\Texas Instruments\ folder). Double-click the executable file or desktop shortcut to run the application. To download the TUSS44x0 EVM GUI, go to www.ti.com/product/TUSS44x0-EVM... -
Page 10: Software
Figure 6. Automatic Prompt to Flash Program MSP-EXP430F5529LP The GUI installs the tuss44x0-firmware.bat file to the My Documents folder under the Texas Instruments > TUSS Generation III > TUSS44x0 > UNIFLASH folder. The GUI runs through the command prompt to flash program the MSP-EXP430F5529LP. -
Page 11: Tuss44X0 Gui Start-Up Screen
• Device:TUSS4440 or TUSS4470 Figure 8. TUSS44x0 EVM GUI Starting Screen With Successful EVM Connection Status SLAU822A – December 2019 – Revised April 2020 TUSS44x0 EVM for Ultrasonic Sensors User's Guide Submit Documentation Feedback Copyright © 2019–2020, Texas Instruments Incorporated... -
Page 12: Tuss44X0 Gui Left Panel
Device Status fields at any time, click the refresh button in the bottom left corner. Figure 10. Faults and Errors Tab TUSS44x0 EVM for Ultrasonic Sensors User's Guide SLAU822A – December 2019 – Revised April 2020 Submit Documentation Feedback Copyright © 2019–2020, Texas Instruments Incorporated... -
Page 13: Evm Status - Success
PC, MSP-EXP430F5529LP, and TUSS44x0 EVM, the EVM status fields are updated according to Table Figure 11. EVM Status – Success SLAU822A – December 2019 – Revised April 2020 TUSS44x0 EVM for Ultrasonic Sensors User's Guide Submit Documentation Feedback Copyright © 2019–2020, Texas Instruments Incorporated... -
Page 14: Tuss44X0 Gui Center Panel
These control groups are defined as follows: TUSS44x0 EVM for Ultrasonic Sensors User's Guide SLAU822A – December 2019 – Revised April 2020 Submit Documentation Feedback Copyright © 2019–2020, Texas Instruments Incorporated... -
Page 15: Data Monitor - Run Options
IO Mode Select — Determines if IO Mode 0, 1, 2, or 3 will be used to generate a burst. SLAU822A – December 2019 – Revised April 2020 TUSS44x0 EVM for Ultrasonic Sensors User's Guide Submit Documentation Feedback Copyright © 2019–2020, Texas Instruments Incorporated... -
Page 16: Data Monitor - Data Dump
(milliseconds), amplitude, and distance (m) at the indicators. Before capturing ultrasonic echo information, ensure the following sequential checklist is reviewed: TUSS44x0 EVM for Ultrasonic Sensors User's Guide SLAU822A – December 2019 – Revised April 2020 Submit Documentation Feedback Copyright © 2019–2020, Texas Instruments Incorporated... -
Page 17: Data Monitor - Measurement And Diagnostics
Interrupt feature of pin O4 is enabled, the low-to-high toggle transition result is displayed in the Tabulated Results. SLAU822A – December 2019 – Revised April 2020 TUSS44x0 EVM for Ultrasonic Sensors User's Guide Submit Documentation Feedback Copyright © 2019–2020, Texas Instruments Incorporated... -
Page 18: Data Monitor - Tabulated Results
Additional features include a bit field sweep and external sync-trigger. TUSS44x0 EVM for Ultrasonic Sensors User's Guide SLAU822A – December 2019 – Revised April 2020 Submit Documentation Feedback Copyright © 2019–2020, Texas Instruments Incorporated... - Page 19 GUI/EVM to act as the sync-master, such that the MSP-EXP430F5529LP forces a low-to-high transition on BOOSTXL-TUSS44x0's pin-13 when the START button is clicked in the Run Options group. SLAU822A – December 2019 – Revised April 2020 TUSS44x0 EVM for Ultrasonic Sensors User's Guide Submit Documentation Feedback Copyright © 2019–2020, Texas Instruments Incorporated...
- Page 20 8-bit hex value of the register, and individual bit values. TUSS44x0 EVM for Ultrasonic Sensors User's Guide SLAU822A – December 2019 – Revised April 2020 Submit Documentation Feedback Copyright © 2019–2020, Texas Instruments Incorporated...
- Page 21 Zero Grid Set all register values to 0. Deselect Grid Remove all selections from the grid. SLAU822A – December 2019 – Revised April 2020 TUSS44x0 EVM for Ultrasonic Sensors User's Guide Submit Documentation Feedback Copyright © 2019–2020, Texas Instruments Incorporated...
-
Page 22: Tuss44X0 Gui Right Panel
The Utilities tab offers additional tools to help the user search for and calculate values that pertain specifically to ultrasonic time-of-flight and the TUSS44x0 device (see Figure 19). TUSS44x0 EVM for Ultrasonic Sensors User's Guide SLAU822A – December 2019 – Revised April 2020 Submit Documentation Feedback Copyright © 2019–2020, Texas Instruments Incorporated... -
Page 23: File Menu, Quick Access Menu, And Status Bar
The text file is saved with the term datalog and a date- time stamp in the "My Documents\Texas Instruments\TUSS Generation III\TUSS44x0" directory. File Menu, Quick Access Menu, and Status Bar 3.7.1... - Page 24 Data Plotter — All XML charted data exported from the Data Monitor page can be loaded into the plotter for post-analysis, overlap, comparison, CSV export, and averaging. Figure 21. Data Plotter TUSS44x0 EVM for Ultrasonic Sensors User's Guide SLAU822A – December 2019 – Revised April 2020 Submit Documentation Feedback Copyright © 2019–2020, Texas Instruments Incorporated...
-
Page 25: Schematic, Bill Of Materials, And Layout
Schematic, Bill of Materials, and Layout This section provides a detailed description of the schematic, bill of materials (BOM), and layout. SLAU822A – December 2019 – Revised April 2020 TUSS44x0 EVM for Ultrasonic Sensors User's Guide Submit Documentation Feedback Copyright © 2019–2020, Texas Instruments Incorporated... -
Page 26: Boostxl-Tuss44X0 (Active)
Schematic, Bill of Materials, and Layout www.ti.com BOOSTXL-TUSS44x0 (Active) 4.1.1 Schematics Figure 22. BOOSTXL-TUSS4440 Schematic TUSS44x0 EVM for Ultrasonic Sensors User's Guide SLAU822A – December 2019 – Revised April 2020 Submit Documentation Feedback Copyright © 2019–2020, Texas Instruments Incorporated... - Page 27 Schematic, Bill of Materials, and Layout www.ti.com Figure 23. BOOSTXL-TUSS4470 Schematic SLAU822A – December 2019 – Revised April 2020 TUSS44x0 EVM for Ultrasonic Sensors User's Guide Submit Documentation Feedback Copyright © 2019–2020, Texas Instruments Incorporated...
- Page 28 6KE69D 10%, X5R, 0603 Diode, TVS, Uni, SOD-323 CDSOD323- Bourns 36 V, 75 Vc, T36S SOD-323 TUSS44x0 EVM for Ultrasonic Sensors User's Guide SLAU822A – December 2019 – Revised April 2020 Submit Documentation Feedback Copyright © 2019–2020, Texas Instruments Incorporated...
- Page 29 Texas Conditioning For Instruments Transformer Driven Sensors, RTJ0020J (WQFN-20) Ultrasonic Dia 14.4mm UTR-1440K-TT- PUI Audio Xmr/Receiver, SLAU822A – December 2019 – Revised April 2020 TUSS44x0 EVM for Ultrasonic Sensors User's Guide Submit Documentation Feedback Copyright © 2019–2020, Texas Instruments Incorporated...
- Page 30 Test Point, White Compact 5007 Keystone TP4, TP5, TP6, Compact, White, Testpoint TP7, TP8, TP9, TP10 TUSS44x0 EVM for Ultrasonic Sensors User's Guide SLAU822A – December 2019 – Revised April 2020 Submit Documentation Feedback Copyright © 2019–2020, Texas Instruments Incorporated...
- Page 31 Header, 100mil, Sullins 100mil, PBC03DAAN Sullins Connector 3x2, Gold, TH 2x3, 230 mil Solutions above insulator SLAU822A – December 2019 – Revised April 2020 TUSS44x0 EVM for Ultrasonic Sensors User's Guide Submit Documentation Feedback Copyright © 2019–2020, Texas Instruments Incorporated...
- Page 32 FKEA Grade 0, 0603 3.90k RES, 3.90 k, 1%, 0603 RC0603FR- Yageo 0.1 W, 0603 073K9L TUSS44x0 EVM for Ultrasonic Sensors User's Guide SLAU822A – December 2019 – Revised April 2020 Submit Documentation Feedback Copyright © 2019–2020, Texas Instruments Incorporated...
- Page 33 Test Point, White Compact 5007 Keystone TP4, TP5, TP6, Compact, White, Testpoint TP7, TP8, TP9, TP10 SLAU822A – December 2019 – Revised April 2020 TUSS44x0 EVM for Ultrasonic Sensors User's Guide Submit Documentation Feedback Copyright © 2019–2020, Texas Instruments Incorporated...
- Page 34 Figure 24. Top Overview of BOOSTXL-TUSS44x0 Layout Figure 25. Bottom Overview of BOOSTXL-TUSS44x0 and Components Layout and Components TUSS44x0 EVM for Ultrasonic Sensors User's Guide SLAU822A – December 2019 – Revised April 2020 Submit Documentation Feedback Copyright © 2019–2020, Texas Instruments Incorporated...
- Page 35 Schematic, Bill of Materials, and Layout www.ti.com BOOST-TUSS44x0 (Discontinued) 4.2.1 Schematics Figure 26. BOOST-TUSS4440 Schematic SLAU822A – December 2019 – Revised April 2020 TUSS44x0 EVM for Ultrasonic Sensors User's Guide Submit Documentation Feedback Copyright © 2019–2020, Texas Instruments Incorporated...
- Page 36 Schematic, Bill of Materials, and Layout www.ti.com Figure 27. BOOST-TUSS4470 Schematic TUSS44x0 EVM for Ultrasonic Sensors User's Guide SLAU822A – December 2019 – Revised April 2020 Submit Documentation Feedback Copyright © 2019–2020, Texas Instruments Incorporated...
- Page 37 Miniature, SMT Miniature, SMT Ultrasonic Signal RTJ0020J TUSS4440TRTJR Texas Instruments Conditioning For Transformer Driven Sensors, RTJ0020J (WQFN-20) SLAU822A – December 2019 – Revised April 2020 TUSS44x0 EVM for Ultrasonic Sensors User's Guide Submit Documentation Feedback Copyright © 2019–2020, Texas Instruments Incorporated...
- Page 38 Transformer, 3.22x4.7mm 750317611 Wurth Elektronik 0.002 uH, SMD Ultrasonic Dia 14.4mm UTR-1440K-TT-R PUI Audio Xmr/Receiver, TH TUSS44x0 EVM for Ultrasonic Sensors User's Guide SLAU822A – December 2019 – Revised April 2020 Submit Documentation Feedback Copyright © 2019–2020, Texas Instruments Incorporated...
- Page 39 1/4, Nylon, Philips panhead H5, H6, H7, H8 Standoff, Hex, Standoff 1902C Keystone 0.5"L #4-40 Nylon SLAU822A – December 2019 – Revised April 2020 TUSS44x0 EVM for Ultrasonic Sensors User's Guide Submit Documentation Feedback Copyright © 2019–2020, Texas Instruments Incorporated...
-
Page 40: Boost-Tuss44X0 (Discontinued) 5 References
TUSS4440 Transformer Drive Ultrasonic Sensor IC with Logarithmic Amplifier Receiver • TUSS4470 Direct Drive Ultrasonic Sensor IC with Logarithmic Amplifier Receiver TUSS44x0 EVM for Ultrasonic Sensors User's Guide SLAU822A – December 2019 – Revised April 2020 Submit Documentation Feedback Copyright © 2019–2020, Texas Instruments Incorporated... - Page 41 • Added Echo Interrupt feature information to the Tabulated Results section ................. • Changed Schematic, Bill of Materials, and Layout section SLAU822A – December 2019 – Revised April 2020 Revision History Submit Documentation Feedback Copyright © 2019–2020, Texas Instruments Incorporated...
