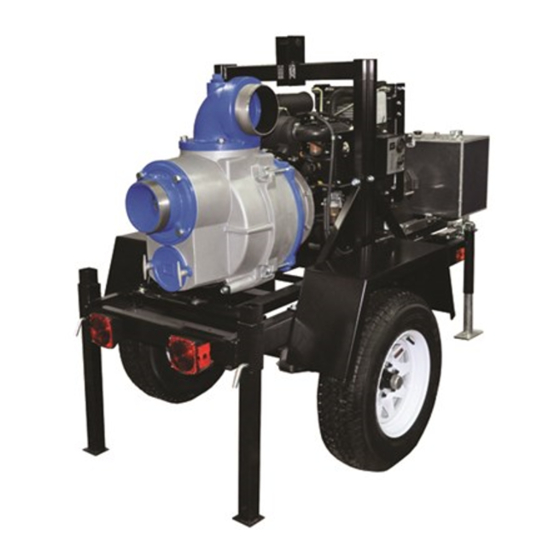

- Page 1 Operation, Maintenance and Parts Manual 6-inch Trash Pump EPT5-150HA, EPT5-150YD Tsurumi (America), Inc. 1625 Fullerton Court, Glendale Heights, IL 60139 1-888-878-7864 | www.tsurumipump.com...
-
Page 2: Specifications
Retain instructions for future reference. TSURUMI PUMP reserves the right to discontinue any model or change specifications at any time without incurring any obligation. ©2011 Tsurumi (America), Inc. 1625 Fullerton Court, Glendale Heights, IL 60139. All Rights Reserved. -
Page 3: Operation
6” Trash Pump Operation, Maintenance and Parts Manual TSURUMI PUMP 6” Trash Pump Make sure pump and trailer are level and trailer wheels are blocked to prevent movement during operation. Do not operate pump unattended. Shaft seal damage will occur if prime is lost or if flow is insufficient to keep the shaft seal cool. -
Page 4: Maintenance
6” Trash Pump Operation, Maintenance and Parts Manual TSURUMI PUMP 6” Trash Pump Loosen four 5/8-11 x 6-1/2" hex bolts (Ref. No. C12) holding Ball Coupling Adjustment: casing to adapter. Slide 5/8" bolt -washer-nut from casing Install coupling over correct size trailer hitch mating ball and and adapter ear four total bolts. -
Page 5: Shim Adjustment
6” Trash Pump Operation, Maintenance and Parts Manual TSURUMI PUMP 6” Trash Pump NOTE: Always inspect O-ring seals. Replace when cracked or worn. impeller. If the impeller is badly worn, it is recommended that the Wet the O-ring with soapy water for ease of assembly. - Page 6 6” Trash Pump Operation, Maintenance and Parts Manual TSURUMI PUMP 6” Trash Pump and secure with fasteners. Yanmar diesel units: align Yanmar 3TNM72 flywheel drive hub with flywheel drive plate and align end if Use the engine fuel system hand primer to prime the engine impeller stub shaft with bearing in flywheel.
- Page 7 6” Trash Pump Operation, Maintenance and Parts Manual TSURUMI PUMP For Repair Parts contact dealer where pump was purchased. Please provide following information: -Model Number -Serial Number (if any) Part description and number as shown in parts list Gas Engine Pump – Honda & Briggs & Stratton Diesel Engine Pump –Daihatsu/Vanguard...
- Page 8 6” Trash Pump Operation, Maintenance and Parts Manual TSURUMI PUMP For Repair Parts contact dealer where pump was purchased. Please provide following information: -Model Number -Serial Number (if any) Part description and number as shown in parts list Diesel Engine Pump –Yanmar...
- Page 9 6” Trash Pump Operation, Maintenance and Parts Manual TSURUMI PUMP Repair Parts List - Engine Explosion Part Number for Models: Ref. B & S Honda Daihatsu Yanmar Description Vanguard GX660/GX670 Diesel Diesel Qty. Impeller Kit (includes Ref. Nos. E2, E3, E4)
- Page 10 6” Trash Pump Operation, Maintenance and Parts Manual TSURUMI PUMP For Repair Parts contact dealer where pump was purchased. Please provide following information: -Model Number -Serial Number (if any) Part description and number as shown in parts list Frame Explosion...
- Page 11 6” Trash Pump Operation, Maintenance and Parts Manual TSURUMI PUMP Repair Parts List - Frame Explosion Part Number for Models: Ref. B & S Honda Daihatsu Yanmar Description Vanguard GX660/GX670 Diesel Diesel Qty. Frame Kit 5585-100-90 5585-100-90 5585-100-90 5585-100-90 Lifting Bail Kit...
- Page 12 6” Trash Pump Operation, Maintenance and Parts Manual TSURUMI PUMP For Repair Parts contact dealer where pump was purchased. Please provide following information: -Model Number -Serial Number (if any) Part description and number as shown in parts list Sled Explosion...
- Page 13 6” Trash Pump Operation, Maintenance and Parts Manual TSURUMI PUMP Repair Parts List - Sled Explosion Part Number for Models: Ref. B & S Honda Daihatsu Yanmar Description Vanguard GX660/GX670 Diesel Diesel Qty. Engine Sled Kit 5585-102-90 5585-102-90 5585-102-91 5585-102-91 (includes Ref.
- Page 14 6” Trash Pump Operation, Maintenance and Parts Manual TSURUMI PUMP For Repair Parts contact dealer where pump was purchased. Please provide following information: -Model Number -Serial Number (if any) Part description and number as shown in parts list Casing Mounting Explosion...
- Page 15 6” Trash Pump Operation, Maintenance and Parts Manual TSURUMI PUMP Repair Parts List - Casing Mounting Explosion Part Number for Models: Ref. B & S Honda Daihatsu Yanmar Description Vanguard GX660/GX670 Diesel Diesel Qty. Casing Kit 5585-001-96 5585-001-96 5585-001-96 5585-001-96 (includes Ref.
