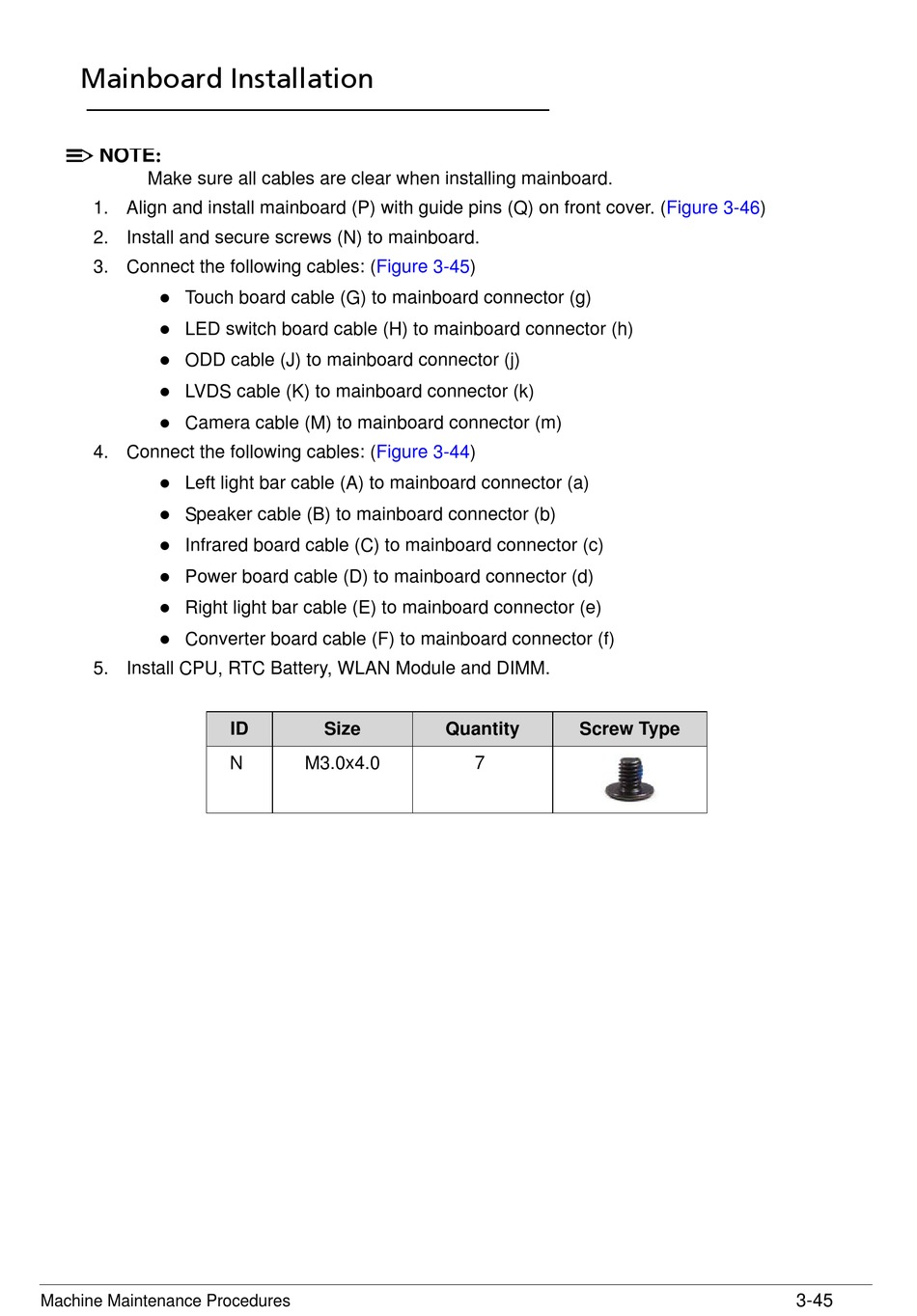

Mainboard Installation

NOTE:
NOTE:
Make sure all cables are clear when installing mainboard.
1. Align and install mainboard (P) with guide pins (Q) on front cover.
2. Install and secure screws (N) to mainboard.
3. Connect the following cables:
 Touch board cable (G) to mainboard connector (g)
 LED switch board cable (H) to mainboard connector (h)
 ODD cable (J) to mainboard connector (j)
 LVDS cable (K) to mainboard connector (k)
 Camera cable (M) to mainboard connector (m)
4. Connect the following cables:
 Left light bar cable (A) to mainboard connector (a)
 Speaker cable (B) to mainboard connector (b)
 Infrared board cable (C) to mainboard connector (c)
 Power board cable (D) to mainboard connector (d)
 Right light bar cable (E) to mainboard connector (e)
 Converter board cable (F) to mainboard connector (f)
5. Install CPU, RTC Battery, WLAN Module and DIMM.
Machine Maintenance Procedures
(Figure
(Figure
ID Size
N M3.0x4.0
0
3-45)
3-44)
Quantity Screw Type
7
(Figure 3-46)
3-45
