Summary of Contents for Weber mt SM 62-2

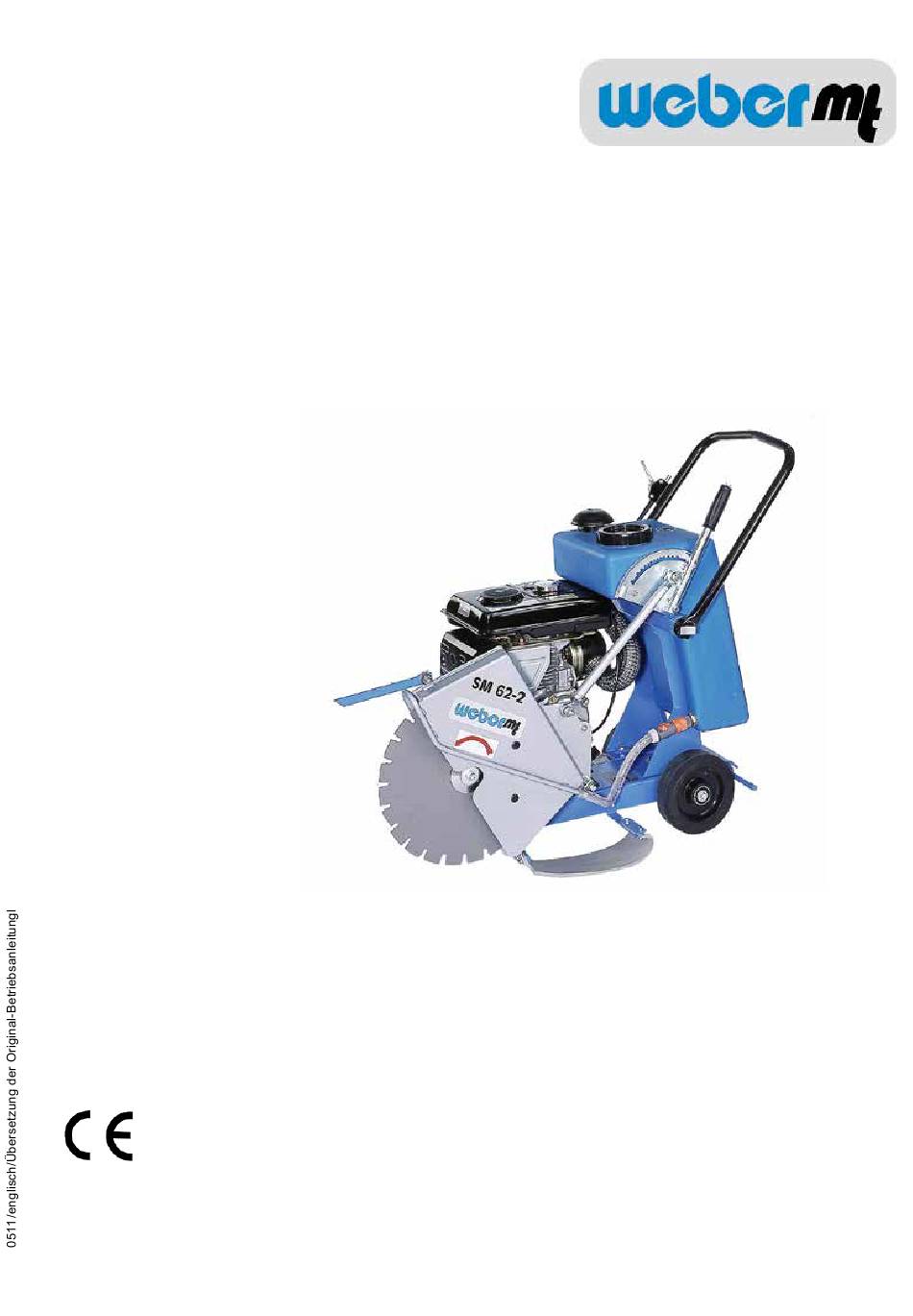

- Page 1 Operating and Maintenance Manual SM 62-2 Robin-Subaru EH 34 D Weber Maschinentechnik GmbH Im Boden 5 - 8, 10 57334 Bad Laasphe-Rückershausen / Germany Telephone +49 (0) 27 54 / 398-0 Fax +49 (0) 27 54 / 398-101 E-Mail: info@webermt.de Web: www.webermt.de...
- Page 2 SM62-2...
-
Page 3: Table Of Contents
Table of contents Introduction Safety guidelines Graphic presentation Device description Technical data Activities prior to starting work Starting Cutting Taking out of operation Maintenance overview Maintenance work Operating fluids and fill levels Troubleshooting Storage Contact addresses SM62-2... -
Page 4: Introduction
Introduction This operating and maintenance manual is designed to facilitate familiarization with your joint cutter, and enable you to maintain it and use it for its proper purpose. When complying with the instructions in the operating and maintenance manual you help to avoid hazards, reduce repair and downtime costs, and increase the reliability and service life of your joint cutter. -
Page 5: Safety Guidelines
Malfunctions that impair safety must be eliminated without delay. The joint cutter type SM 62-2 is only intended for cutting: - bituminous material (road surfaces); and - concrete surfaces. - Page 6 Operation Prior to starting work the owner of the joint cutter must be familiar with the working environment. The working environment includes obstacles in the work and traffic area, the bearing capacity of the ground, as well as the necessary safeguarding of the construction site in the area adjacent to public traffic;...
- Page 7 Inspection Joint cutters must be inspected in accordance with the corresponding conditions of use and operation as needed; however, an inspection to ensure they are operationally safe must be performed by an expert at least once a year. The results of the inspection must be recorded in writing and must be stored at least until the next inspection.
-
Page 8: Graphic Presentation

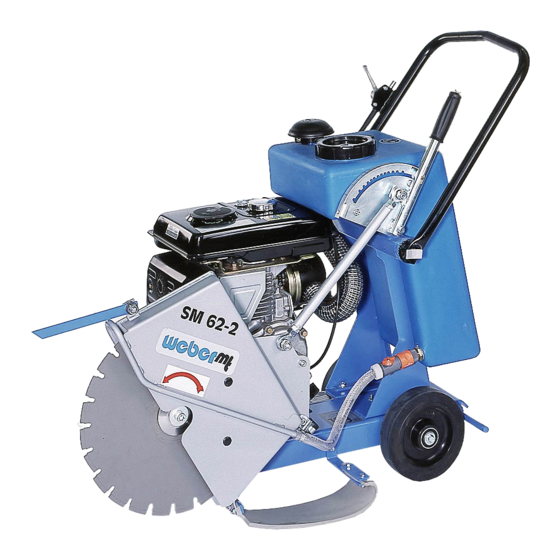

Graphic presentation Overall view of the SM 62-2 Cutting disk 1 Manual guidance rod/transport handle Cutting depth adjustment lever 2 Water tank Hearing protection (sticker) 3 Fuel tank 4 Engine 5 Scale for cutting depth 6 Cutting disk protection SM62-2... -
Page 9: Device Description
Device description The joint cutter of type SM 62-2 is used for cutting work on roads and buildings. Drive The joint cutter is propelled by an air-cooled Robin-Subaru gasoline engine. Force is transferred to the cutting shaft mechanically via a ribbed V-belt. -
Page 10: Technical Data
Technical data SM 62-2 Weight Operating weight CECE in kg Dimensions Overall length (in mm) 1140 Overall width (in mm) Height with manual guidance rod (in mm) Cutting disk diameter (max. mm) Disk bore (mm) 25,4 Drive Engine manufacturer Robin-Subaru... - Page 11 1 Description 2 Type ....................... 3 Serial number 4 Year of manufacture ......................5 Weight 6 Rated power kW SM62-2...
-
Page 12: Activities Prior To Starting Work
Activities prior to starting work Transport When transporting the joint cutter on a vehicle, secure it with suitable restraints. Move handle (1) forwards and lock with the tommy screw (2). Attach the crane hook (1) to the handle and lift the machine onto the means of transport selected. - Page 13 Water supply Open water tank (1) and completely fill with clean water. Close water tank securely with cap (2). Open the stop cock (1) for sprinkling the water. SM62-2...
- Page 14 Replacing the cutting disc Lift the cutting disc protection (1) to the highest position using the cutting depth adjustment lever Remove the protective cap (1). Push 6 mm round steel (1) into the opening. Put the hollow hexagon wrench (2) onto the clamping bolt (1) and rotate the cutting shaft slowly until you feel the 6 mm round steel engage.
-
Page 15: Starting
Starting Bring the gas lever (1) into full-throttle position. Turn the short-circuit button to the “ON” position. Slide the choke lever (1) to the left (close). Open the fuel cock (2). Slowly tighten the handle (1) of the reversing starter (2) until resistance is noticeable. -
Page 16: Cutting
Cutting Align the pointer (1) to the marked cut line. Enough water should always be supplied for cutting. The water is only supplied to bind with the dust. Open the stop cock (1) at the water sprinkling system. Push the gas lever (1) all the way to the front (towards the machine) to the full throttle position. -
Page 17: Taking Out Of Operation
Taking out of operation Bring the gas lever (1) into idle position. Close the fuel cock (1). Turn the short-circuit button to the „0“ - OFF position. Close the water cock (1). During breaks — even if they are short — the ma- chine must be shut down. -
Page 18: Maintenance Overview
Maintenance overview Maintenance interval Maintenance point Maintenance activity Engine - Changing engine oil After the first 25 operating hours Re-tighten all accessible threaded connections Every 8 operating hours/ Clean air filter insert, check for Engine daily damage, replace if necessary - Check the engine oil level Engine - Changing engine oil... -
Page 19: Maintenance Work
Maintenance work Changing engine oil Remove the oil dip stick (1). Remove the oil drain screw (1) and drain oil. Only drain engine oil when at operating temperature. After emptying completely, put in the locking screw (1). Fill with oil in accordance with specifications. Danger of scalding due to hot oil. - Page 20 Changing the spark plug Pull off the spark plug connector (1). Screw out spark plug using suitable spark plug wrench. Only replace spark plug when cold! Risk of injury! Clean spark plug and check electrode separation, change spark plug if necessary. Screw in spark plug.
-
Page 21: Operating Fluids And Fill Levels
Operating fluids and fill levels Assembly Operating material Quantity Summer Winter SM 62-2 Quality Engine Engine oil SAE 10 W 40 1.2 l (-10 ~ + 50 °C) API - CD CE of SHPD or CCMC - D2 - D3 - PD1... - Page 22 Action to be take before long-term storage (longer than a month) - Clean thoroughly - Check watertight Entire joint cutter - If there are leaks, correct defect Empty fuel and fill with clean fuel Fuel tank up to the lower edge of filler neck Check oil level, if necessary fill to upper oil-level mark Engine...
- Page 23 Telefax + 48 (0) 22 - 739 70 – 82 02-863 Warszawa E-Mail info@webermt.com.pl in Tschechien WEBER MT s.r.o. Telefon + 42 (0) 776 222 216 V Piskovne 2054 + 42 (0) 776 222 261 278 01 Kralupy nad Vitavou E-Mail info@webermt.cz...
- Page 24 > Vibration plates > Vibrating tampers > Vibration rollers > Joint cutters > Internal vibrators and converters > Rollers Weber MASCHINENTECHNIK GmbH Im Boden 57334 Bad Laasphe - Rückershausen Telephone + 49 27 54 / 398 0 - fax +49 27 54 / 398 101 SM62-2...
