- Page 1 Operating and Maintenance Manual SRX 750 D Yanmar L 48 Weber Maschinentechnik GmbH Im Boden 5 - 8 , 10 D-57334 Bad Laasphe-Rückershausen / Germany Tel.: + 49 (0) 27 54 / 398 0 Fax: + 49 (0) 27 54 / 398 101 E-Mail: info@webermt.de Web: www.webermt.de SRX 750 D...
- Page 2 SRX 750 D...
-
Page 3: Table Of Contents
Table of contents Introduction Safety guidelines Graphic presentation Device description Technical data Activities prior to starting work Starting Tamping Shutting down Maintenance overview Maintenance work Operating fluids and fill levels Troubleshooting Storage Contact addresses SRX 750 D... -
Page 4: Introduction
Introduction This operating and maintenance manual is designed to facilitate familiarization with your tamper, and enable you to maintain the tamper and use it in accordance with the proper application possibilities. When complying with the instructions in the operating and maintenance manual you help avoid hazards, reduce repair and downtime costs, and increase the reliability and service life of your tamper. -
Page 5: Safety Guidelines
Safety guidelines General All safety instructions must be read and complied with, non-compliance results in – Danger to life and limb of the user – Impairments to the machine or other property. In addition to the operating manual, the accident-prevention regulations in the country where the appliance is used must be complied with. - Page 6 Operation Prior to starting work the owner of the tamper must be familiar with the work environment. The work environment includes obstacles in the work and traffic area, the bearing capacity of the ground, as well as the necessary safeguarding of the construction site in the area adjacent to public traffic; and it includes compliance with traffic regulations.
- Page 7 Inspection Tampers must be inspected in accordance with appropriate implementation conditions and operating conditions, as needed; however, an inspection to ensure operationally safe status must be performed by an expert at least once a year. The results of the inspection must be recorded in writing and must be stored at least until the next inspection.
-
Page 8: Graphic Presentation

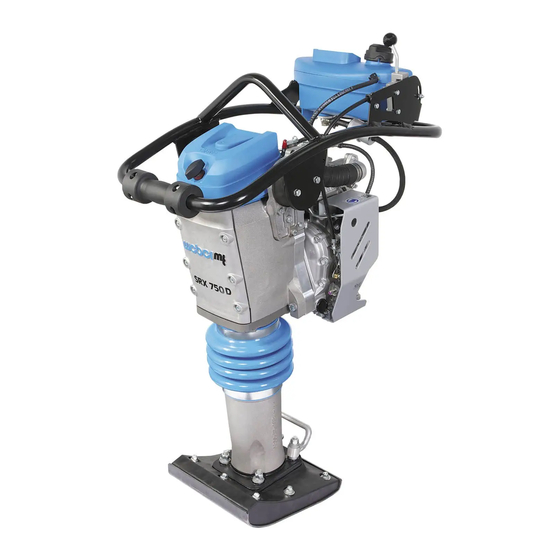

Graphic presentation Overall view SRX 750 D Fuel tank Tamping system Gas lever Tamping foot Manual guidance rod Hearing protection (sticker) Engine Transport roller SRX 750 D... -
Page 9: Device Description
Device description The series SRX 750 D tamper is used for road-building, canal construction, pipe laying and landscaping compaction tasks. Drive The compactor is propelled by an air-cooled Yanmar diesel engine. Force is transmitted via the centrifugal clutch directly to the tamping system. The compaction work is performed by the tamping foot. -
Page 10: Technical Data
Technical data SRX 750D Weight Operating weight CECE in kg Dimensions Overall length (in mm) Overall width (in mm) Height (in mm) 1110 Tamping foot width (in mm) Impact rate (/min) Force / impact (in kN) 28,9 Drive Engine manufacturer Yanmar Type L 48 N... - Page 11 1 Description 2 TYPE ....................... 3 Serial number 4 Year of construction ......................5 Mass 6 Rated power kW ......................SRX 750 D...
-
Page 12: Activities Prior To Starting Work
Activities prior to starting work Transport When transporting the tamper on a vehicle, secure it with suitable restraints. Loading with crane Fit the crane hook into the lifting ring (1) and lift the machine onto the desired means of transport. Only use lifting machines with a minimum bearing capacity of 100 kg. -
Page 13: Starting
Starting After horizontal transport: Bring tamper into a vertical position and wait several minutes until the engine oil has collected in the lower area of the crankcase. Push the gas lever (1) to full-throttle position. Slowly tighten the handle (1) of the reversing starter (2) until resistance is noticeable. -
Page 14: Shutting Down
Shutting down Do not switch off the engine under full load; let engine run idle for a few minutes. Push the gas lever (1) all the way to the front. During breaks – even if they are short – the machine must be shut down. -
Page 15: Maintenance Work
Maintenance work Change the engine oil Remove the oil dip stick (1). Open the drain plug (2) of the engine and drain oil. Only drain engine oil when at operating temperature. Screw in the oil drain plug (2) with new seal and top off with oil as specified. - Page 16 Clean / change air filter cartridge Unscrew the air filter cover (1). Remove the air filter insert from the air filter enclosure. Clean the air filter (1). Clean air filter insert if there is damage or if its is extremely dirty. Change the fuel filter Pull the fuel line (1) off the fuel filter (2) on both sides.
- Page 17 Change the tamping foot Unscrew the 4 nuts (1). Lift the tamping foot (2) off of the tamper and attach a new tamping foot. When mounting the new tamping foot the nuts (1) must be tightened with a torque of 35 Nm. Mount the fastening nuts of the tamping foot using the plate springs as shown in the adjacent illustration.
-
Page 18: Operating Fluids And Fill Levels
Operating fluids and fill levels Operating material Assembly Summer Winter 750 D Quality Engine Engine oil SAE 10 W40 0.8 l (– 10 ~ + 50 °C) API – CD CE or SHPD or CCMC – D2 – D3 – PD1 Fuel tank Diesel 3.0 l... -
Page 19: Storage
Actions to be taken before long-term storage (longer than a month) Entire soil compactor – Clean thoroughly – Check watertight – If there are leaks, correct defects Fuel tank – Empty fuel and fill with clean fuel up to the lower edge of filler neck Engine –... - Page 20 SRX 750 D...
- Page 21 SRX 750 D...
- Page 22 SRX 750 D...
-
Page 23: Contact Addresses
Telefax + 48 (0) 22 - 739 70 – 82 02-863 Warszawa E-Mail info@webermt.com.pl In Tschechien WEBER MT s.r.o. Telefon + 42 (0) 776 222 216 V Piskovne 2054 + 42 (0) 776 222 261 278 01 Kralupy nad Vitavou E-Mail info@webermt.cz... - Page 24 > Vibration plates > Vibrating tampers > Vibration rollers > Joint cutters > Internal vibrators and converters > Rollers Weber MASCHINENTECHNIK GmbH Im Boden 57334 Bad Laasphe-Rückershausen Telephone +49 (0) 27 54 / 398-0 – Fax +49 (0) 27 54 / 398-101 SRX 750 D...
