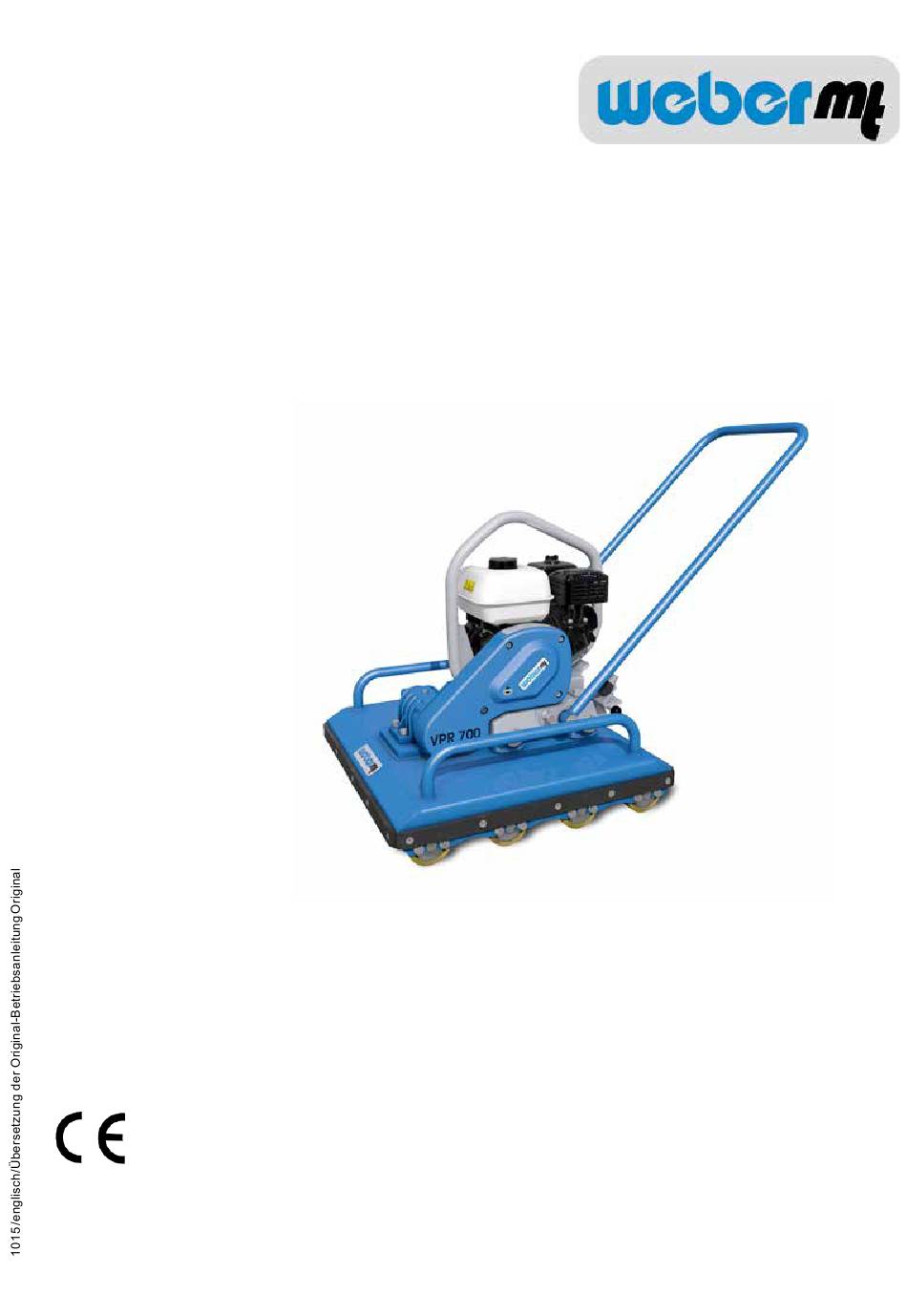

- Page 1 Operating and Maintenance Manual VPR 700 Honda GX 160 Weber Maschinentechnik GmbH Im Boden 5 - 8, 10 57334 Bad Laasphe-Rückershausen / Germany Telephone +49 (0) 27 54 / 398-0 Fax +49 (0) 27 54 / 398-101 E-Mail: info@webermt.de Web: www.webermt.de...
- Page 2 VPR 700...
-
Page 3: Table Of Contents
Table of contents Introduction Safety guidelines Graphic presentation Device description Technical data Activities prior to starting work Starting Compacting Shutting down Maintenance overview Maintenance work Operating fluids and fill levels Troubleshooting Storage Contact addresses VPR 700... -
Page 4: Introduction
You can obtain information on the assembled Honda gasoline engine and find a spare-part list for it at www.honda-engines-eu.com. The valid conformity declaration is enclosed with every machine delivery. VPR 700... -
Page 5: Safety Guidelines
This machine is capable of exceeding the permissible sound level of 80 dB(A). The owner might also face additional dangers when using the machine. Precautionary action must, therefore, be taken. Protective equipment includes: Hearing protection Hard hat Safety shoes Protective gloves VPR 700... - Page 6 Therefore, never operate the engines in enclosed areas or in areas that are poorly ventilated (tunnels, caves, covered pits, etc.). Exercise particular caution when operating the engine in the vicinity of people and livestock. VPR 700...
- Page 7 Do not position yourself or work under suspended loads. If lubricating oils and fuel come into contact with skin, they can cause skin cancer. Upon contact with the skin, clean affected skin with suitable cleaning agent without delay. VPR 700...
- Page 8 Important information for operating and maintenance personnel is marked by pictograms. Warning against irritants or materials hazardous to health Warning against a hazardous place Warning against a suspended load Wear ear protection General regulation Environmental protection Hard hat Safety shoes Protective gloves VPR 700...
-
Page 9: Graphic Presentation
Graphic presentation Overall view VPR 700 Engine Manual guidance rod Engine console Exciter Brake (no image) VPR 700... -
Page 10: Device Description

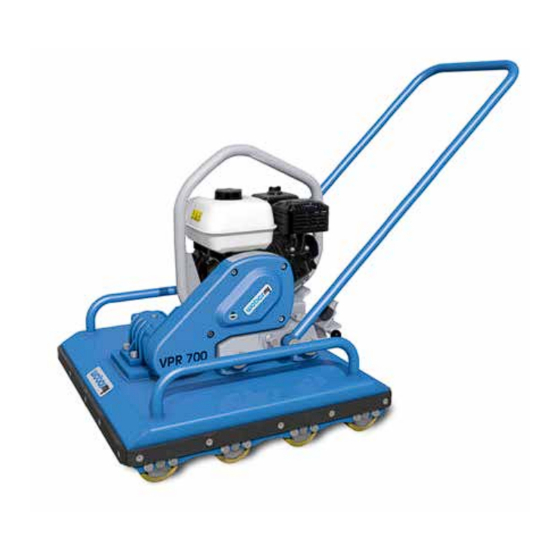

Device description The VPR 700 compactor is used for terrace construction and paving applications. Drive The unit is powered by an air-cooled Honda gasoline engine. Force is transferred to the exciter mechanically via a V-belt. Operation Start the Honda gasoline engine with the attached reversing starter. -
Page 11: Technical Data
Technical data VPR 700 Weight Operating weight CECE in kg Dimensions Overall length (in mm) 1245 Overall width (in mm) Height with folded manual guidance rod (in mm) Length – basic device (in mm) Diameter of rolls (in mm) Drive... - Page 12 1 Description 2 TYPE ......................3 Serial number 4 Year of construction ......................5 Mass 6 Rated power kW ......................VPR 700...
-
Page 13: Activities Prior To Starting Work
For work at the fuel system, have a suitable fire- extinguishing agent at the ready. Fire, naked light, and smoking is forbidden! VPR 700... -
Page 14: Starting
Allow the handle (1) to glide back into the initial position, and then forcefully and completely pull it through with both hands. After the engine has warmed up, slide the choke lever to the right (open). VPR 700... -
Page 15: Compacting
Turn the short-circuit button (1) to the “0” – OFF position. Use the brake (1) to secure the machine. During breaks – even if they are short – the machine must be shut down. Parked devices that represent an obstacle must be safeguarded against through conspicuous measures. VPR 700... -
Page 16: Maintenance Overview
If lubricating oils and fuel come into contact with skin, they can cause skin cancer. Upon contact with the skin, clean affected skin with suitable cleaning agent without delay. If accessible during maintenance, check the condition and stability of all screws. VPR 700... -
Page 17: Maintenance Work
Clean air filter insert as specified by the engine manufacturer if there is damage or if it is extremely dirty. Dispose of oils, greases, cloths soaked in oil, and replaced parts with oil on them in an environmentally friendly manner. VPR 700... - Page 18 Checking the V-belt Remove the V-belt guard (1). Check the V-belt (1) for cracks, damaged flanks, and wear. If there is excessive wear – replace the V-belt as specified in the repair manual. VPR 700...
-
Page 19: Operating Fluids And Fill Levels
Operating fluids and fill levels Assembly Operating material Quantity Summer Winter VPR 700 Quality Engine Engine oil SAE 10 W 40 0.6 l (– 10 ~ + 50 °C) API – CD CE of SHPD or CCMC – D2 – D3 – PD1... -
Page 20: Storage
All bare parts / accelerator / – Oil / grease accelerator control cable / fastening bolts If the machine is to be stored for longer than six months, then contact the Weber service organization to discuss additional measures. VPR 700... - Page 21 VPR 700...
- Page 22 VPR 700...
-
Page 23: Contact Addresses
Telefax + 48 (0) 22 - 739 70 – 82 02-863 Warszawa E-Mail info@webermt.com.pl In Tschechien WEBER MT s.r.o. Telefon + 42 (0) 776 222 216 V Piskovne 2054 + 42 (0) 776 222 261 278 01 Kralupy nad Vitavou E-Mail info@webermt.cz... - Page 24 > Vibrating tampers > Vibration rollers > Joint cutters > Internal vibrators and converters > Rollers Weber MASCHINENTECHNIK GmbH Im Boden 57334 Bad Laasphe-Rückershausen Telephone +49 (0) 27 54 / 398-0 – Telefax +49 (0) 27 54 / 398-101 VPR 700...
