Operating and
Maintenance Manual
CF 2-II
CF 2A
CF 3-II
0100220
0100221
0100320

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CF 2-II and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Weber mt CF 2-II

Summary of Contents for Weber mt CF 2-II

  • Page 1 Operating and Maintenance Manual CF 2-II CF 2A CF 3-II 0100220 0100221 0100320...
  • Page 2 Attached to the machine is a rating plate. Note down the information given on this plate so that you can recreate the rating plate should the plate be lost. 1 Description 2 Type ....................... 3 Serial number 4 Year of construction ............

  • Page 3: Table Of Contents

    Contents 1. Introduction ........................4 2. Description ........................5 3. Technical data ......................... 6 4. Safety ..........................7 4.1. Information and safety stickers ................12 5. Operation........................13 6. Transport ........................19 7. Storage .......................... 19 8. Maintenance ........................20 8.1.

  • Page 4: Introduction

    This operating and maintenance manual must always be kept at the implementation site of the machine and be available to the machine operator. Turn to your Weber MT dealer if you require any additional information. Found on the last page of this manual is a QR code. Scan it to acquire the current contact addresses of all Weber MT branches.

  • Page 5: Description

    2. Description The machine The machine is a hand-guided, forward-moving soil compactor. The machine is composed of a bottom and a top section. The bottom section houses the exciter, while the top section contains the engine and the required controls. An air-cooled Honda gasoline engine makes the exciter vibrate via a centrifugal clutch.

  • Page 6: Technical Data

    3. Technical data CF 2-II Hd CF 2A CF 3-II Hd Weight Operating weight CECE [kg] Dimensions Overall length [mm] 1130 1130 1100 Overall width/with attachment plates [mm] Height with folded guide bar [mm] Base plate length [base in mm]...

  • Page 7: Safety

    4. Safety General All safety instructions must be read and complied with, as non-compliance will result in - Danger to life and limb of the user, - Impairments to the machine or other property. In addition to the operating manual, the accident-prevention regulations in the country where the appliance is used must be complied with.
  • Page 8 Spare parts, changes and Changes and conversions are prohibited unless made with conversions original Weber MT spare parts. If the machine is modified with other accessories without the approval of Weber MT, the manufacturer will not assume liability for any resulting personal injury or property damage.
  • Page 9 Before starting the machine There is danger of material damage if the machine is started before necessary maintenance or repairs have been completed. Make sure every time before starting the machine that all work on the machine has been completed. To avoid injuries, the machine must not be started unless the operator wears the required personal protective equipment.
  • Page 10 Fueling the machine Spilled fuel may ignite and has a negative impact on the environment. Therefore, wipe up spilled fuel and make sure the gas cap is firmly tightened after fueling. When coming into contact with fuels, the rubber-bonded metal buffers of the machine may become damaged or ineffective.
  • Page 11 Safety instructions and A variety of safety instructions and warnings are used warnings throughout this operating manual. The following explains the meaning of signal words and symbols. ATTENTION warns of the ATTENTION danger of material damage. CAUTION warns of the danger CAUTION of slight injury.

  • Page 12: Information And Safety Stickers

    4.1. Information and safety stickers Sticker Meaning All threaded unions must be checked for firm seat on a regular basis and, particularly, after initial use. The fuel tank may only be fueled with regular gasoline. Use the designated lifting ring to lift the machine.

  • Page 13: Operation

    5. Operation Preparing the machine for Remove all packaging material. initial use Check all components for visible damage. Do not start the machine if detecting visible damage. Contact the responsible dealer. Check if the shipment of the machine and its components is complete.
  • Page 14 Operating positions on the machine Overall view CF 2-II , CF 3-II Base plate with exciter Handle Reversing starter Engine Short-circuit switch Carburetor with Lifting ring Locking guide bar choke and fuel cock Gas lever...

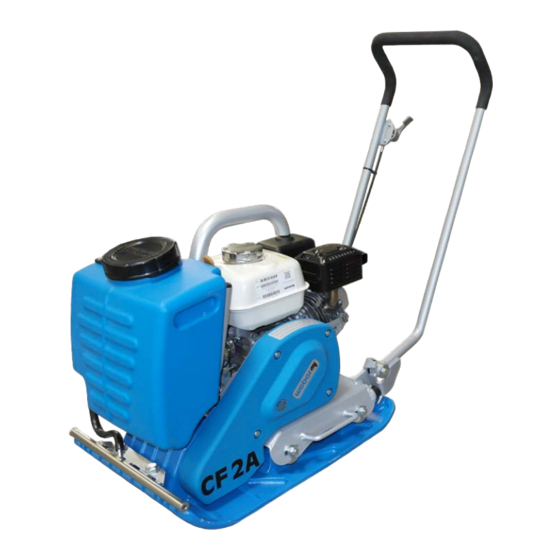

  • Page 15 Overall view CF 2A Base plate with exciter Short-circuit switch Gas lever Engine Locking guide bar Water tank Lifting ring Reversing starter Manifold Handle Carburetor with choke Ball valve and fuel cock Retaining strap - water tank...
  • Page 16 Before starting work Perform the following tasks before starting to work in order to prevent failures or excessive wear. Visual inspections Fuel system for leaks Rubber buffers for crack formation Other damage Check and, if necessary, Engine oil correct the fill levels Fuel Other inspections Check all threaded unions for firm seat...
  • Page 17 Working with the machine Starting the engine ATTENTION Risk of engine damage. The use of starter spray may lead to overheating in the combustion chamber. Do not use any starter spray. WARNING Danger of suffocation from engine exhausts when starting the engine in closed rooms or poorly ventilated work areas.
  • Page 18 Compacting CAUTION There is a crushing hazard between the machine and the wall during work in close proximity to walls. Use extra caution when working close to obstacles. CAUTION Risk of injury if the machine is guided improperly. Guide the machine safely with both hands on the handle. ATTENTION Danger of material damage or excessive wear if V-belt slips through.

  • Page 19: Transport

    Check and, if necessary, correct the engine oil level. Check and clean the air filter. Replace if damaged. Lightly oil all bare parts and levers. If the machine is to be stored for longer than six months, contact the Weber MT’s service organization to discuss additional measures.

  • Page 20: Maintenance

    8. Maintenance General information The section below contains instructions that need to be observed for regular maintenance. Read these instructions carefully and follow them in order to prevent downtimes of the machine caused by excessive wear or damage to the machine.

  • Page 21: Maintenance Overview

    8.1. Maintenance overview Frequency Activity Change the engine oil 8.2.2 Check the valve play of the engine, Honda adjust if necessary instructions Re-tighten all accessible threaded connections Clean the air filter 8.2.3 Change the oil in the exciter 8.2.4 YouTube Playlist - Service Videos...

  • Page 22: Description Of The Maintenance Operations

    8.2. Description of the maintenance operations WARNING If lubricating oils and fuel come into contact with skin, they can cause skin cancer. Wear protective gloves. If skin contact has occurred, wash the affected areas thoroughly. Park the machine on a horizontal subsurface. 8.2.1.

  • Page 23: Clean The Air Filter

    Remove the oil drain plug (2) CAUTION! Danger of scalding due to hot oil. Wear protective gloves. Use extra caution. Allow the oil to drain into the collection vessel. Install the oil drain plug. Fill fresh oil into the engine in accordance with the specification.

  • Page 24: Change The Oil In The Exciter

    8.2.4. Change the oil in the Start the engine and allow the engine to warm up for a few exciter minutes. Switch off the engine. Tilt the machine slightly. Place a suitable collection vessel under the machine. Loosen the oil drain plug (1). Allow the oil to drain.

  • Page 25: Adjust / Replace The Spark Plug

    8.2.6. Adjust / replace the CAUTION spark plug Danger of burn injuries at the hot engine and its attachments. Allow the combustion engine to cool down sufficiently before starting work. Use extra caution during work on the engine when it is at operating temperature.

  • Page 26: Operating Fluids And Fill Levels

    8.3. Operating fluids and fill levels Assembly Operating material Quantity Summer Winter Quality Engine Engine oil SAE 10 W 40 0.6 l (-10 ~ + 50 °C) API - CD CE-CF-CG or SHPD or CCMC - D4 - D5 - PD2 3.1 l Fuel tank Unleaded gasoline...
  • Page 28 Weber Maschinentechnik GmbH Im Boden 5-8, 10 · 57334 Bad Laasphe · Germany Phone +49 2754 398 0 · Fax +49 2754 398 101 info@webermt.de · www.webermt.de 085100056-104 / CF 2-II Hd_2023-01 Original instructions...
