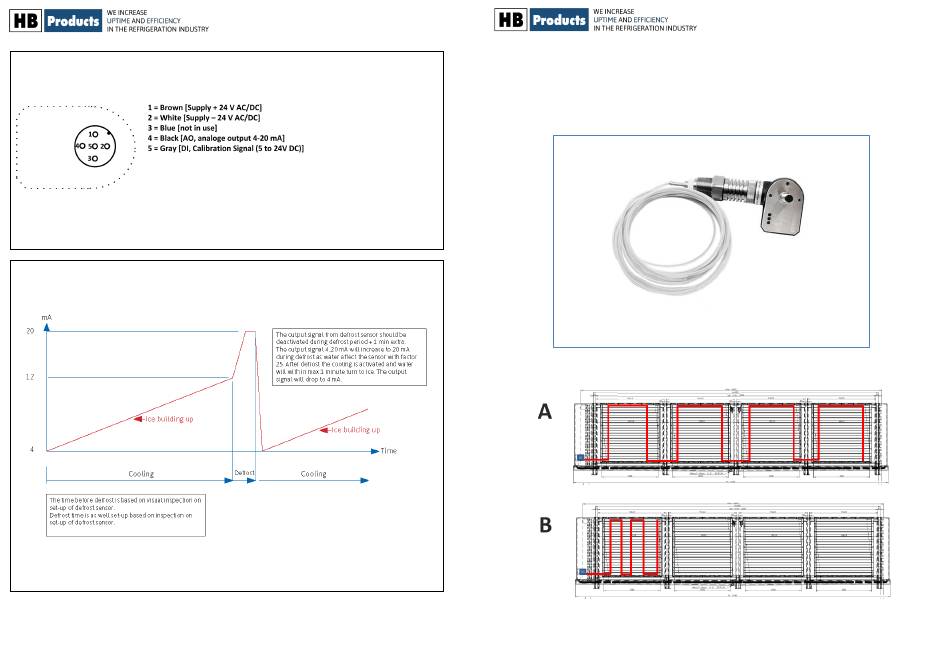

Electrical connection:

The sensor comes with a 5m connection cable as well as a programming cable. Supply and analog output are
connected according to the diagram below:
Pin 1 (brown) & Pin 2 (white): 24 V supply
Pin 2 (brown) & Pin 4 (blue): 4-20 mA output
Pin 3: Not in use
Pin 5 & Pin 2: Calibration from main PLC. Activate 7 sec. Wait 2 sec and then activate 2 sec again.
Sensor output signal:
HB Products A/S – Boegekildevej 21 -8361 Hasselager – tel.: +45 8747 6200 – Email: info@hbproducts.dk (rev. 002)
Quick Guide

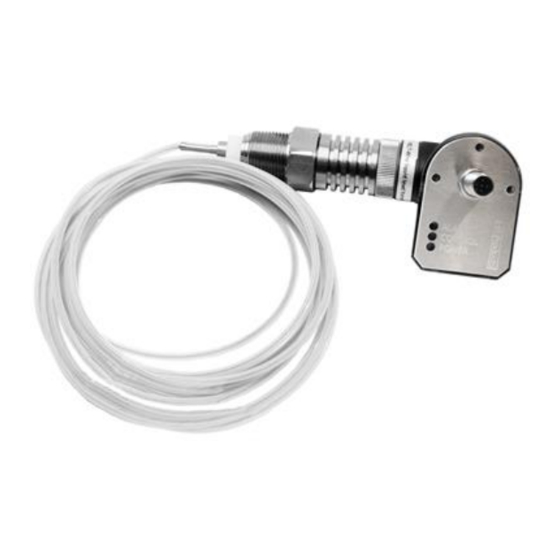

HBDF Defrost Sensor
Defrost on demand
For installation on evaporators:

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HBDF and is the answer not in the manual?

Questions and answers

Summary of Contents for HB Products HBDF

  • Page 1 Pin 5 & Pin 2: Calibration from main PLC. Activate 7 sec. Wait 2 sec and then activate 2 sec again. Sensor output signal: For installation on evaporators: HB Products A/S – Boegekildevej 21 -8361 Hasselager – tel.: +45 8747 6200 – Email: info@hbproducts.dk (rev. 002)
  • Page 2 This example shows an actual value which correspond to an ice thickness of 2mm. We recommend defrosting by an ice thickness of 1 to 1.5mm. HB Products A/S – Boegekildevej 21 -8361 Hasselager – tel.: +45 8747 6200 – Email: info@hbproducts.dk (rev. 002)
