TECHNICAL SERVICE MANUAL: INSTALLATION, OPERATION & MAINTENANCE
TABLE OF CONTENTS
Model Number Chart ..................................................................1
Introduction ................................................................................1
Safety Information & Instructions ...............................................2
Special Information ....................................................................3
Rotation ..................................................................................3
Pressure Relief Valves ...........................................................3
Mechanical Seals ...................................................................3
Maintenance ...............................................................................3
Cleaning Pump .......................................................................3
Storage ...................................................................................3
Suggested Repair Tools .........................................................3
Pump Disassembly ....................................................................5
Pump Assembly .........................................................................6
Installation: Carbon Graphite Bushings .....................................7
Thrust Bearing Adjustment ........................................................8
Pressure Relief Valve Instructions .............................................8
Disassembly ...........................................................................8
Assembly ................................................................................9
Pressure Adjustment ..............................................................9
Important Ordering Information ..............................................9
General Installation Notes ..........................................................9
Foundation ............................................................................... 11
Component & Unit Lifting Features ......................................... 11
Alignment .................................................................................12
Piping .......................................................................................13
Start Up ....................................................................................14
Troubleshooting .......................................................................14
Vacuum Gauge - Suction Port .............................................14
Pressure Gauge - Discharge Port ........................................15
Rapid Wear .............................................................................16
Preventative Maintenance .......................................................16
Do's & Don'ts ...........................................................................17
Installation ............................................................................17
Operation ..............................................................................17
Maintenance .........................................................................17
MOTOR SPEED PRODUCT LINE: STEEL EXTERNALS
493 SERIES™, 4193 SERIES™
SIZES: GG, HJ, HL, AS, AK, AL
© 2019 Viking Pump, Inc. • Cedar Falls, IA
MODEL NUMBER CHART
FLANGE MOUNTED
GG493
HJ493
HL493
AS493
AK493
AL493
INTRODUCTION
The illustrations used in this manual are for identification
purposes only and cannot be used for ordering parts.
Obtain a parts list from your Viking Pump
Always give a complete name of part, part number and
material with the model number and serial number of pump
when ordering repair parts. The unmounted pump or pump
unit model number and serial number are on the nameplate.
This manual only applies to the pump models specified in the
"Model Number Chart" on page 1. Pump specifications and
recommendations are listed in the Catalog Sections, which
are available at vikingpump.com.

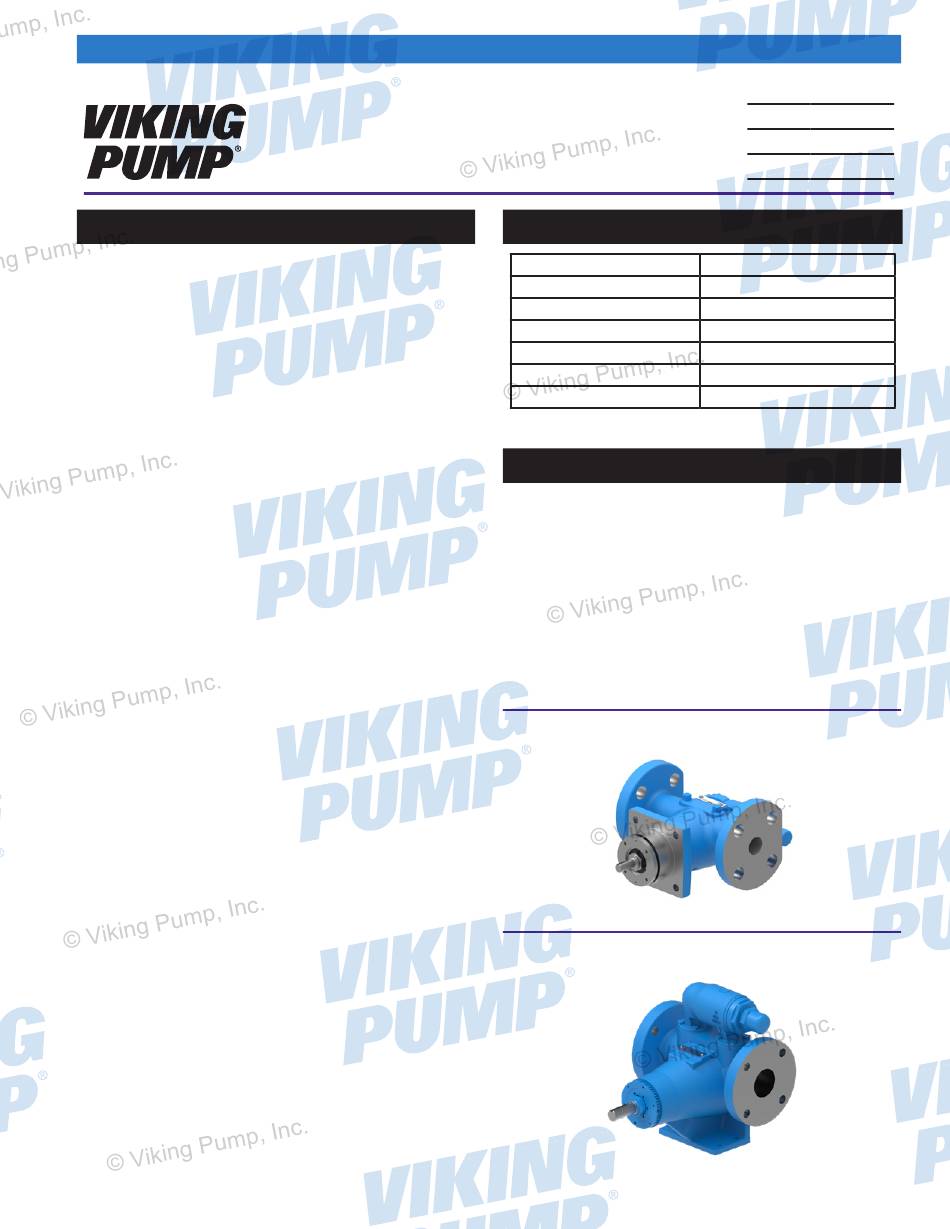

FIGURE 1:
GG, HJ, HL SIZES (493 SERIES™)
FIGURE 2:
AS, AK, AL SIZES (4193 SERIES™)
TSM
1341
Page
1 of 18
Issue
A
FOOT MOUNTED
GG4193
HJ4193
HL4193
AS4193
AK4193
AL4193
