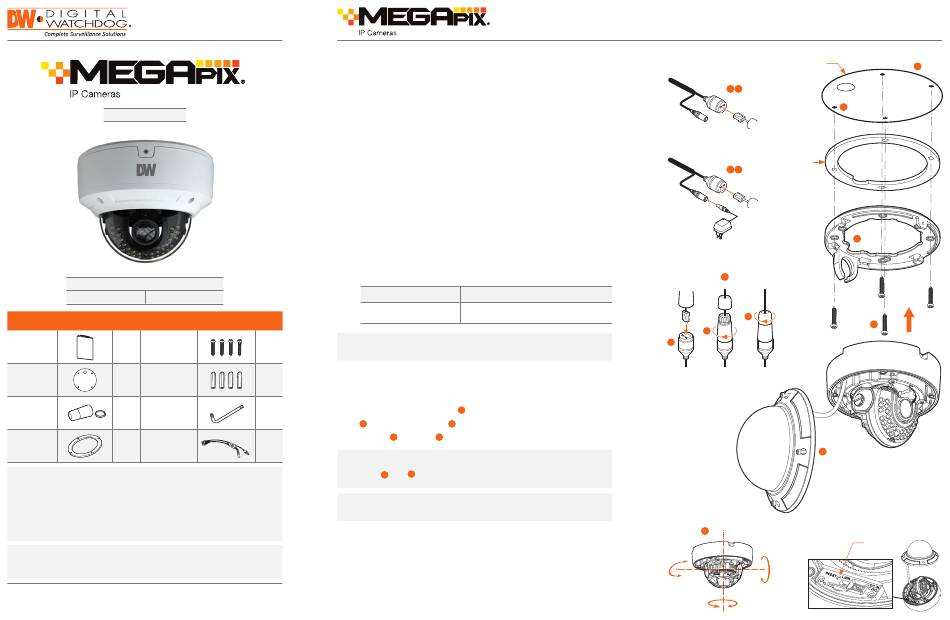

Digital Watchdog MEGApix DWC-MVT4WiA Quick Start Manual

Quick Start Guide
DWC-MVT4WiA
Default Login Information
Username: admin Password: admin
WHAT'S IN THE BOX
Quick set up Tapping screws
1
guide PA 4x35 – 4pcs
Mounting Plastic anchors
1
template – 4pcs
Waterproof
1 Set Allen wrench
cap
CVBS and
Sponge 1 DC IN
cables
NOTE: Download all your support materials and tools in one place.
1. Go to: http://www.digital-watchdog.com/support-download/
2. Search your product by entering the part number in the 'Search by Product'
search bar. Results for applicable part numbers will populate automatically
based on the part number you enter.
3. Click 'Search'. All supported materials, including manuals, Quick Start
Guides (QSG), software and firmware will appear in the results.
Attention: This document is intended to serve as a quick reference for initial
set up. It is recommended that the user read the entire instruction manual for
complete and proper installation and usage.
Tel: +1 (866) 446-3595 / (813) 888-9555
Technical Support Hours:
9:00AM – 8:00PM EST, Monday thru Friday
STEP 1 – PREPARING TO MOUNT THE CAMERA
1. The mounting surface must bear three times the weight of your camera.
2. Do not let the cables get caught in improper places or the electric line
cover to be damaged. This may cause a breakdown or fire.
3. For the installation process, remove the camera's dome cover by
loosening the screws at the base of the dome.
4. Using the mounting template sheet or the camera itself, mark and drill
the necessary holes in the wall or ceiling.
STEP 2 – CABLING THE CAMERA TO EXTERNAL
DEVICES
5. Pass the wires through the mount bracket and make all necessary
connections.
a. NETWORK CONNECTIONS – If you are using a PoE Switch, connect
the camera using an Ethernet cable for both data and power.
b. NETWORK CONNECTIONS – If you are using a non-PoE switch,
connect the camera to the switch using an Ethernet cable for data
transmission and use a power adapter to power the camera.
Power requirements
DC 12V
POE IEEE 802.3af
NOTE: If the PoE network switch is used to connect the camera,
1 Set
DC12V power supply is not required.
STEP 3 – INSTALLING THE CAMERA
1 Set
6. To use the camera's water proof wiring:
a. Install the LAN cable into
1
b. will be assembled to
b
c. Thread
1
NOTE: To ensure moisture seal, make sure the o-ring is in place
between
a
rated sealer is recommended.
NOTE: When using the waterproof cap, crimp the RJ45 connector
after passing the cable through the waterproof cap.
7. Secure the camera to the mounting surface with the provided screws.
8. Adjust the camera to obtain an optimum angle by using the camera's
three axis gimbal. The camera's max angles are:
Pan: 0°~ 360°
Tilt: 0°~ 77°
digital-watchdog.com
Rotation: 0°~ 360°
9. Remove the protection film softly to complete the installation.
Power consumption
Max. 5W
.
a
with a 1/4 turn.
a
tightly to .
c b
and . In extreme environments use of an outdoor
b
Quick Start Guide
Template
Sheet
5 a
4
Ethernet
Cable
Sponge
5 b
Ethernet
Cable
Power
6
c
b
a
3
8
Pan: 0° ~ 360°
Tilt: 0° ~ 77°
Rotation: 0° ~ 360°
1
2
7
Reset
Button
