FrSky VS600 Instruction Manual

Introduction
Thank you for purchasing FrSky VS600 video transmiter. As a multi-functional unit, it is equipped with switchable
operating power and operating band. In order to fully enjoy the benefits of the product, please read the instruction
manual carefully and set the device as described below.

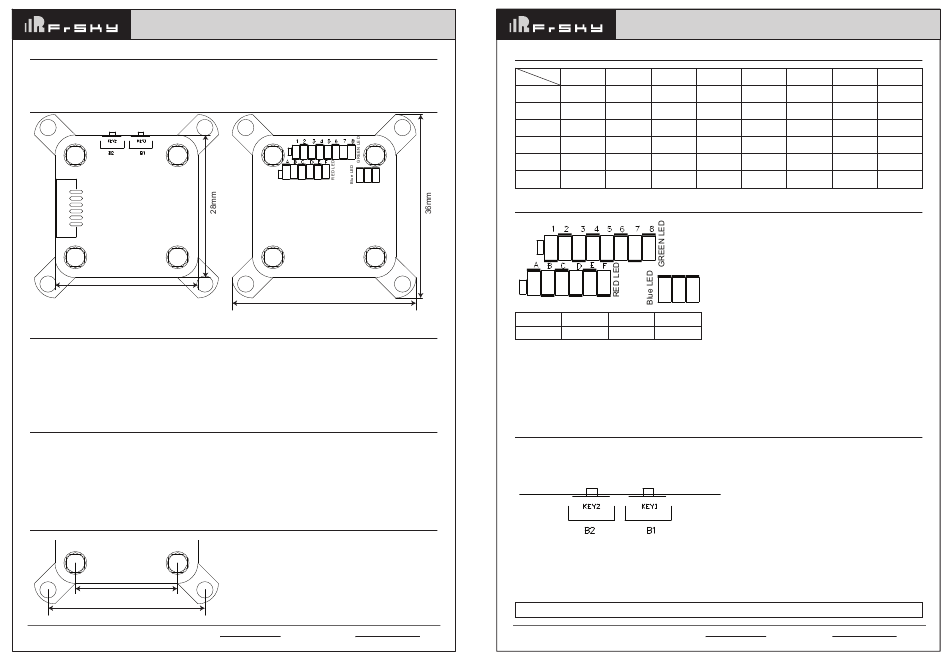

Overview
S.PORT
V_IN
GND
VIDEO
GND
5V_OUT
28mm
TOP
Specifications
• Dimension: Outer Frame 36*36*4.3 mm (L*W*H)
Inner Frame 28*28*4.3 mm (L*W*H)
• Weight: 3.7g
• Transmission Frequency: 5.8 GHz
Available Channel: 48
•
• Operating Voltage: DC 7V~28V
• Operating Current: 260mA@12V (200mW)
Transmission Power: 1mW(Pit mode) / 25mW/ 200mW/ 600mW
•
Features
• Pit Mode supported
• Small and portable
Clear LED indication
•
Adjustable operating band
•
• Optional installation position
Switchable transmission power
•
Mounting Method
20mm
31mm
FrSky Electronic Co., Ltd
Add:F-4,Building C, Zhongxiu Technology Park, No.3 Yuanxi Road, Wuxi, 214125, Jiangsu, China Technical Support: sales4tech@gmail.com
Instruction Manual for VS600
36mm
BOT
1. 30.5*30.5 mm mounting hole diameter: 3.1 mm
2. 20*20 mm mounting hole diameter: 2.5 mm
www.frsky-rc.com Contact us : frsky@frsky-rc.com
Transmission Frequency
FR CH
CH1 CH2 CH3
(MHz)
A 5865 5845 5825
B 5733 5752 5771
C 5705 5685 5665
D 5740 5760 5780
E 5658 5695 5732
F 5362 5399 5436
LED Indication
LED Green Red Blue
Indication Channel Band Power
LED Green: There are 8 green LEDs indicating 8 channels. The number above the LED indicates the
corresponding channel. For example, If LED 1 is on, CH1 is operating.
LED Red: There are 6 red LEDs indicating 6 different operating frequencies. The letter above the LED indicates
the corresponding frequency. For example, If LED A is on, VS600 works under Frequency A.
LED Blue: There are 3 blue LEDs indicating 3 different operating powers. Different from LED Green and LED
Red, the number of lighting LED indicating different powers. From left to right, if there is only one LED
is on, the power is 25mW. 2 indicates 200mW and 3 indicates 600mW.
Configuration method
• Manual configuration
• Automatic configuration
Manual configuration (through Switch B2 & B1)
• Switching Channel: Press B2, channel output will switch from 1 to 8 successively. The switch will start from
the preset CH output, not always from CH1.
Switching Operating Frequency: Press B1, operating band will switch from A to F successively. The switch
•
will start from the preset operating frequency, not always from Frequency A.
Switching Operating Power: Long Press B2 (about 2 seconds), operating power will switch between 25mW,
•
200mW and 600mW successively. The switch will start from the preset operating power, not always from 25mW.
Note: Please be complied with local laws and regulations when selecting operating power.
FrSky Electronic Co., Ltd
Add:F-4,Building C, Zhongxiu Technology Park, No.3 Yuanxi Road, Wuxi, 214125, Jiangsu, China Technical Support: sales4tech@gmail.com
Instruction Manual for VS600
CH4 CH5 CH6 CH7
5805 5785 5765 5745
5790 5809 5828 5847
5645 5885 5905 5925
5800 5820 5840 5860
5769 5806 5843 5880
5473 5510 5547 5584
www.frsky-rc.com Contact us : frsky@frsky-rc.com
CH8
5725
5866
5945
5880
5917
5621
