FrSky TANDEM X20S Manual

FrSky TANDEM X20S Manual

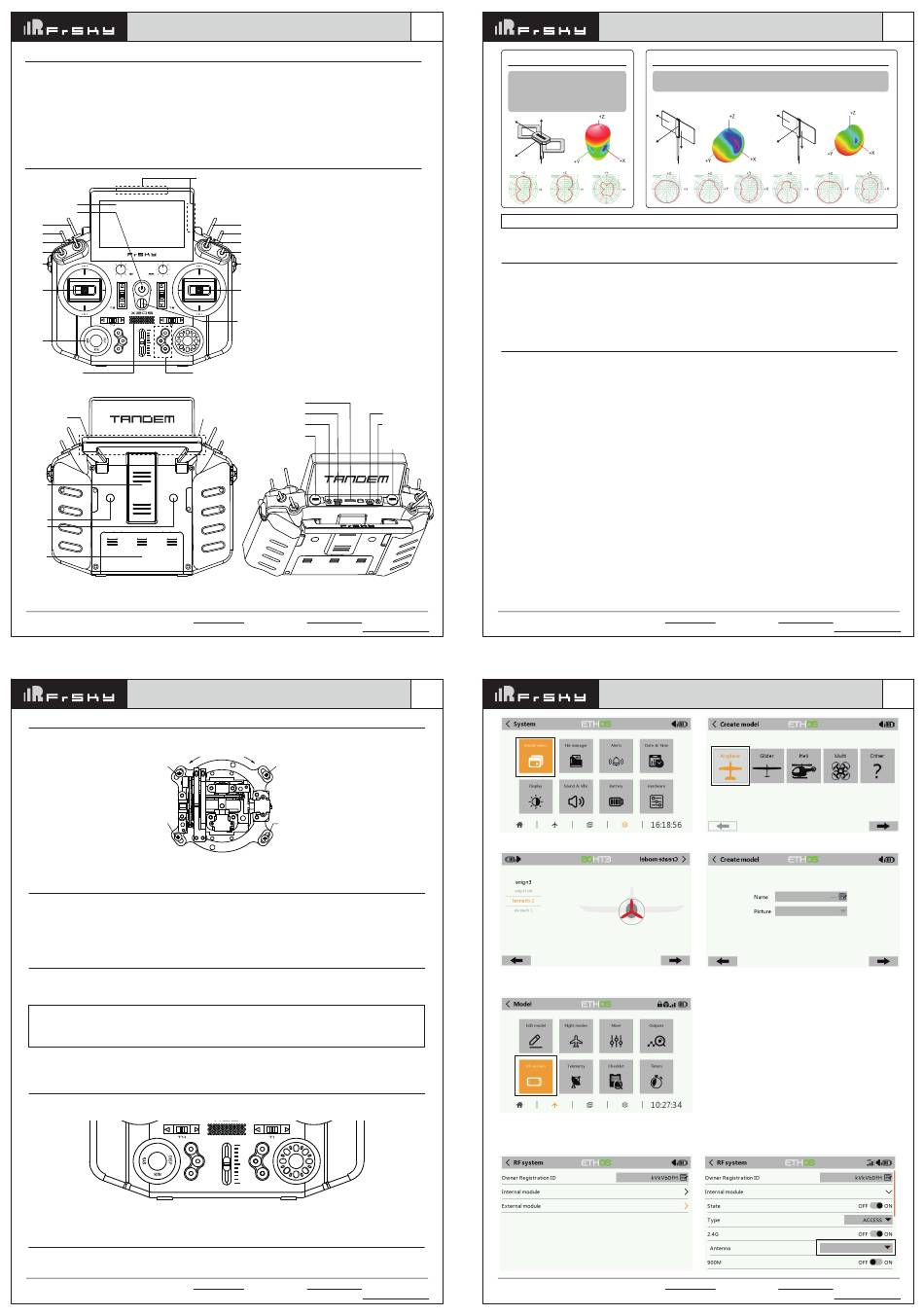

Introduction

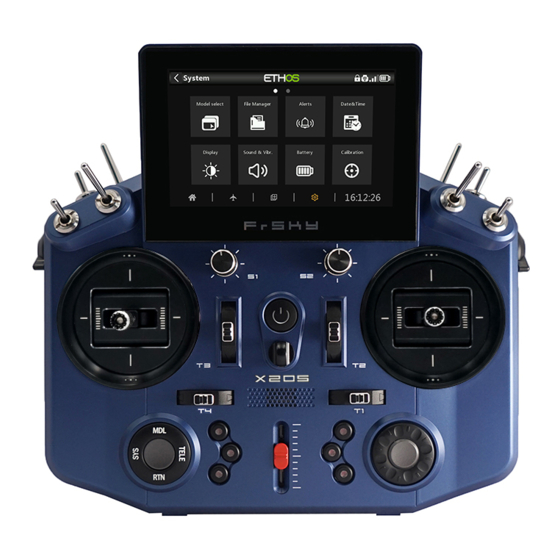

The Tandem X20S is a pioneering dual-band radio transmitter, it drew on feedback and experience with previous
radios and adds many new features such as color touch screen, an ergonomic design that provides unprecedented
comfort in the hand. On the RF side, we have given it the powerful RF system , the TD dual RF system, which does
not simply reiterate the combined features of the FRSKY900MHz and 2.4GHz RF systems. The TD is characterized
by its true simultaneous dual-band remote control with telemetry, enabling incredible and unmatched end-to-end
4ms latency. This radio ships with Ethos, a completely new system that provides users with a powerful, intuitive, and
flexible experience that maximizes the fun of the hobby.

Layout

Display Screen
Power Switch
SF
SE
SB
SA
Slider
Stick
SYS,
MDL, MDL
DISP,
RTN
Speaker Custom button
Carrying Bar
Module
Bay
SWJ
SWI
Battery
Cover
FrSky Electronic Co., Ltd. www.frsky-rc.com
Add: F-4,Building C, Zhongxiu Technology Park, No.3 Yuanxi Road, Wuxi, 214125, Jiangsu, China Technical Support: sales4tech@gmail.com
FrSky TANDEM X20S Manual

Gimbal adjustment

Unscrew the four screws on the back cover of the remote control, open the back cover of the remote control, you
can adjust Gimbal.
Install the screw
Install the screw

Audio bluetooth

This Audio module can have your wireless Bluetooth audio devices connected and functioned as a broadcast.
Open the wireless settings in the ETHOS system menu, select "Audio" and click "Search", then open your
wireless Bluetooth audio device and bound.

2S Li-battery balance charging via USB-C:

The Green LED indicator states:
Led on: in Charging/Led off: end of charge/flash: charge fault
Battery compartment size: 84*41.5*20mm (L*W*H)
Note: 1. Charge the battery with the USB adapter (Voltage: 5V+0.2V Current:＞2.0A) when you use the
USB charging function.
2. The lower the initial charging voltage, the better the charging effect is when the voltage
difference cells exceed 50 mV between the two.

Navigation Controls

The left navigation control does RTN, SYS, MDL, DISP and Page UP/Down. The right navigation control does
scroll and enter. Both navigation controls and touch screen can be used to control the system.
MDL
ETHOS Operating System

Create the model

Step 1: First go to System Settings, then click Model Select to select the model type.
FrSky Electronic Co., Ltd. www.frsky-rc.com
Add: F-4,Building C, Zhongxiu Technology Park, No.3 Yuanxi Road, Wuxi, 214125, Jiangsu, China Technical Support: sales4tech@gmail.com

Switch

2.4G Internal Antenna
● SA: 3 positions; Short Lever
● SB: 3 positions; Long Lever
● SC: 3 positions; Long Lever
● SD: 3 positions; Short Lever
SH ● SE: 3 positions; Short Lever
SG ● SF: 2 positions; Long Lever
SC
● SG: 3 positions; Short Lever
SD
● SH: 2 positions; Momentary, Long lever
Slider
You can choose the Switch and define its
position in the HARDWARE menu.
Stick
1. Micro SD card is not provided with shipment.
2. USB port is for upgrading, reading/writing
Micro SD cards and internal memory of radio
Hook
contents and charging.
3. Smart Port is for firmware upgrade for all
FrSky S.Port devices.
Micro SD Card Port
900M Internal
Antenna Type-C USB Port
Earphone Port
ANT2
Ext. 900M Antenna
Contact us: frsky@frsky-rc.com
01140187
Install the screw
Loosen the four mounting
screws, rotate the gimbal to
a suitable Angle, and tighten
the screws.
Contact us: frsky@frsky-rc.com
01140187
Version
1.0
Infinity 24 Antenna
Recommended 2.4GHz optional
high-gain antenna for achieving
higher performance and further
range.
+X
+Z
+Y
SMA Connector
Note: Please keep the aircraft in the optimal radiation range of the directional antenna at all times.

Specifications

● Dimension: 212*200*95 mm (L*W*H)
● Weight: 809g (without battery)
● Operating system: ETHOS
● Internal RF module: TANDEM
● Number of Channels: Up to 24 channels
● Operating Voltage Range: 6.5 ~ 8.4V (2S Li-battery)

Features

● Built-in TD 900M/2.4G Dual-Band Internal RF Module
Supports Multiple Working Modes
- 2.4G ACCST D16 Mode (Compatible with ACCST Receivers with D16 V2 or later FW)
- 2.4G ACCESS Mode (Compatible with ACCESS Receivers)
- 900M ACCESS Mode (Compatible with ACCESS R9 868/915MHz Receivers)
- *Capable of simultaneous working under ACCESS mode
- 2.4G&900M TD Mode
Smart Port
- Super-low latency and long-range control with telemetry
Training port
- *Up to 50 to 100KM range and down to 4ms end-to-end latency
ANT1
● 800*480 Color Touch-Screen Displays
Ext. 2.4G Antenna
● 6 Quick-Mode Custom Buttons (Front) and 2 Momentary Buttons (Rear)
● Lite Type External Module Bay
● Built-in 6-axis Gryoscope Sensor
● All CNC Metal Trims, Knobs
● Haptic Vibration Alerts and Voice Speech Outputs
● External Antenna Supports SWR indicator warning
● Supports Recharge System for 2S Li-ion Battery (USB Type-C Interface)
● High-speed PARA Wireless Training System (Compatible with FreeLink App3.0)
● High-Precision Hall-Sensor Gimbals with All-CNC Metal Panel
● ETHOS: The more powerful, Flexible and Intuitive OS for your radio.
- Clear and Intuitive UI Design
- Supports Dual Operation Modes of Radio Display (Touch and Non-Touch)
- Supports Multi-Language Switching
- Hardware/Software Version and Factory Version Detection
- Supports running LUA Scripts (in progress)
● All CNC High-Precision Hall-Sensor Gimbals
● Built-in Audio Wireless Module
Add: F-4,Building C, Zhongxiu Technology Park, No.3 Yuanxi Road, Wuxi, 214125, Jiangsu, China Technical Support: sales4tech@gmail.com
Version
1.0

Step 2: Configure the model channel and create the model name.

Model Setup Procedure-Internal Module

Step 1:
Choose the INT MODULE. Then turn ON INTERNAL RF, select the OUTSIDE or INSIDE ANTENNA ( Dual internal
antennas and external antenna work simultaneously while selecting the OUTSIDE ANTENNA.)
Set the Mode for TANDEM X20S internal RF corresponding to your receiver (ACCESS, ACCST D16).
Add: F-4,Building C, Zhongxiu Technology Park, No.3 Yuanxi Road, Wuxi, 214125, Jiangsu, China Technical Support: sales4tech@gmail.com
FrSky TANDEM X20S Manual
Zipp9 (868MHz) / Zipp9 (915MHz) Antenna
Recommended 900MHz optional high-gain antenna for achieving
higher performance and further range.
+X
868MHz
+Y
+Z
SMA Connector
● Operating Temperature: -10℃~60℃ (14℉~140℉)
● USB Adaptor Voltage: 5V+0.2V
● USB Adaptor Current: >2.0A
● Backlit touchable LCD resolution: 800*480
● Compatibility: ACCST D16 & ACCESS receivers
NEW (Compatible with TD Receivers)
FrSky Electronic Co., Ltd. www.frsky-rc.com
01140187
FrSky TANDEM X20S Manual
Touch the screen or use the navigation keys to enter the
RF system menu.
FrSky Electronic Co., Ltd. www.frsky-rc.com
01140187
Version
1.0
+X
915MHz
+Y
+Z
SMA Connector
Contact us: frsky@frsky-rc.com
Version
1.0
Internal
