FrSky Scout VS600 RED Instruction Manual

Instruction Manual for FrSky Scout VS600 Series

Introduction

Thank you for purchasing the FrSky video transmission device. A simple and clean design, equipped with a
switchable power output and operating band and channel. Paired with a FrSky radio transmitter, the parameters can
be adjusted conveniently through the gTrans.lua script. In addition Scout VS600 BLACK/VS600 RED has a built-in
microphone which transmits audio. To fully enjoy all the features of this device please thoroughly read the
instructions below to set up the device.

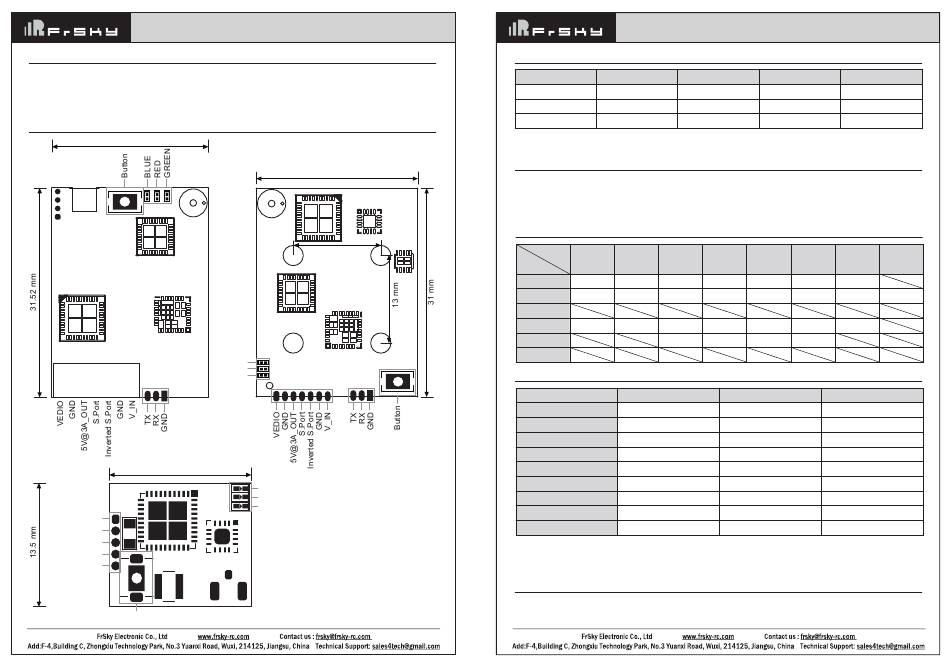

Overview

23.55 mm
Scout VS600 RED
15.5 mm
GND
VTX
+5V
Inverted S.Port
S.Port
Button
Scout VS600 Mini
24 mm
13 mm
GREEN
RED
BLUE
Scout VS600 BLACK
GREEN
RED
BLUE
Instruction Manual for FrSky Scout VS600 Series

Specifications

Model Name L*W*H(mm)
Scout VS600 RED 31.5*23.6*4.5
Scout VS600 Black 31*24*4.9
Scout VS600 Mini 15.5*13.5*4
• Transmission Frequency: 5.8 GHz
Transmission Power: ＜0.01mW (pit mode) /25mW
•

Features

• Support S.Port
• Support inverted S.Port
• Built-in microphone（Scout VS600 Red & Black）
• Adjustable RF power
• Support set parameters by gTrans.lua /Button /FreeLink(PC)/FreeLink App.

Transmission Frequency

CH
CH1 CH2 CH3
FR（MHz）
5865 5845 5825
A
5733 5752 5771
B
C
D
5740 5760 5780
E
5732
F

LED State

LED Green
Indication Power
Flash 1 time Pit Mode
Flash 2 times 25mW
Flash 3 times /
Flash 4 times /
Flash 5 times /
Flash 6 times /
Flash 7 times /
Flash 8 times /
The Scout VS600 Series has a green LED/red LED/blue LED which indicates the RF power/frequency band/chan-
nel. As you press the button key, the LED will flash, indicating the corresponding RF power level/frequency
band/channel.

Configuration method

1. Manual configuration（by the Button）
Press the button for (3s) to enter the power/channel/frequency selection mode, press the button for (3s) again
to switch between power/channel/frequency.
Weight(g) Available Channel Operating Voltage
4.2 26CH 2-6S
4 26CH 2-6S
1.2 26CH 5V
CH4 CH5 CH6 CH7
5805 5785 5765 5745
5790 5809 5828 5847
5800 5820 5840 5860
5769 5806 5843
Red Blue
Band Channel
A CH1
B CH2
C CH3
D CH4
E CH5
F CH6
/ CH7
/ CH8
CH8
5866
