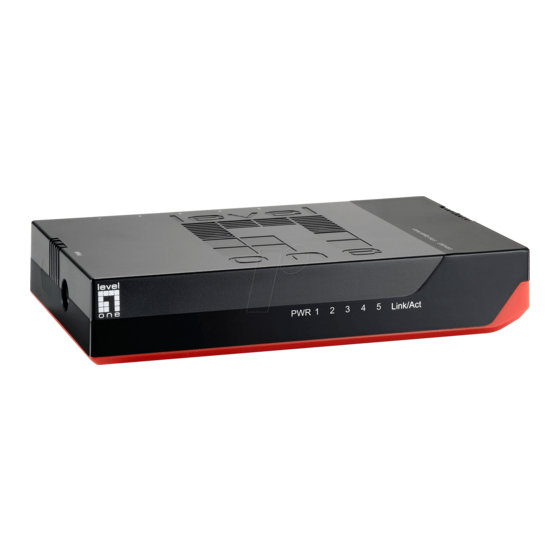

- Page 1 LevelOne User Manual GSW-0507 / GSW-0807 5/8-Port Gigabit Ethernet Switch V1.0.0-0803...
-
Page 2: Fcc Certifications
FCC Certifications This Equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. - Page 3 10/100/1000Mbps connection to every attached client with no bandwidth congestion issue. The GSW-0507/GSW-0807 switch also supports auto MDI / MDI-X function. Each port could be used to connect to another switch or hub with no crossover RJ-45 cable.
- Page 4 If any of the above items are damaged or missing, please contact your dealer immediately. Installation The setup of the GSW-0507/GSW-0807 Switch can be performed using the following steps: 1. Install the Switch in a fairly cool and dry place. See Technical Specification for the acceptable operation temperature and humidity ranges.
-
Page 5: Led Definition
(1~5/1~8) Blinking The port is transmitting/receiving data. Rear Panel The rear panel of the GSW-0507/GSW-0807 switch consists of a DC power connector and 5/8 10/100/1000Mbps RJ45 Ports. The following figure shows the rear panel of the Switch. GSW-0507... - Page 6 Stations Connection Connect each station to the switch by twisted-pair cable. Plug one RJ-45 connector into a RJ-45 port of the switch, and plug the other RJ-45 connector into the station’s network adapter. Power on the switch and then system is ready. For cable selection, refer to the following table.
- Page 7 Ports (GSW-0507/GSW-0807) NWay Protocol 10Mbps: Full/Half duplex Support 100Mbps: Full/Half duplex 1000Mbps: Full duplex only MAC Address 1K MAC Address entries (GSW-0507) Table 8K MAC Address entries (GSW-0807) Buffer Memory 832K bits (GSW-0507) 144KBytes (GSW-0807) Jumbo Frame 9K Byte (GSW-0507/GSW-0807)
-
Page 8: Technical Support
Technical Support Thank you for selecting LevelOne products. LeveOne’s website contains the latest user documentation and soft-ware updates for LevelOne products. Please contact LevelOne Technical Support through our website. World Wide Web http://www.level1.com...
