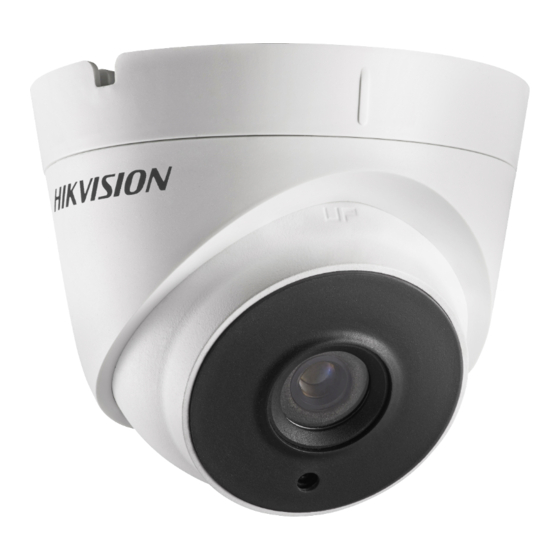

Turbo hd turret & dome camera
Hide thumbs
Also See for TURBO HD H0T Series:
- User manual (16 pages) ,
- User manual (17 pages) ,
- User manual (14 pages)
Table of Contents
Advertisement
Quick Links
H0T Series Turret & Dome
User Manual
Thank you for purchasing our product. If there are any
questions, or requests, do not hesitate to contact the
dealer.
This manual applies to the models below:
Type
Type I Camera
Type II
Camera
Type III
Camera
This manual may contain technical incorrect places or
printing errors, and the content is subject to change
without notice. The updates will be added to the new
version of this manual. We will readily improve or update
the products or procedures described in the manual.
TURBO HD
User Manual
Model
DS-2CE56H0T-IT1E
DS-2CE56H0T-IT3E
DS-2CE56H0T-ITME
DS-2CE56H0T-VPITE
Camera
0100001080321
Advertisement
Table of Contents
Related Manuals for HIKVISION TURBO HD H0T Series
Summary of Contents for HIKVISION TURBO HD H0T Series
- Page 1 TURBO HD H0T Series Turret & Dome Camera User Manual User Manual Thank you for purchasing our product. If there are any questions, or requests, do not hesitate to contact the dealer. This manual applies to the models below: Type Model DS-2CE56H0T-IT1E Type I Camera...
- Page 2 Regulatory Information FCC Information Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC compliance: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules.
- Page 3 Safety Instruction These instructions are intended to ensure that user can use the product correctly to avoid danger or property loss. The precaution measure is divided into “Warnings” and “Cautions”. Warnings: Serious injury or death may occur if any of the warnings are neglected.
- Page 4 While in delivery, the camera shall be packed in its original packing, or packing of the same texture. Mark Description Table 0-1 Mark Description Mark Description DC Voltage 1 Introduction 1.1 Product Features The main features are as follows: High performance CMOS sensor ...
-
Page 5: Installation
1.2.3 Overview of Type III Camera Power Cord 12 VDC Mounting Video Cable TVI Base Tilt Adjusting IR LED Photoresistor Screw Black Liner Bubble Safty Rope Figure 1-3 Overview of Type III Camera 2 Installation Before you start: Make sure that the device in the package is in good ... - Page 6 Figure 2-2 Drill Template Note: Drill the cable hole, when adopting the ceiling outlet to route the cable 5. Attach the mounting base to the ceiling/wall, and secure them with supplied screws. Figure 2-3 Attach the Mounting Base to the Ceiling Note: The supplied screw package contains self-tapping ...
- Page 7 2). Move the camera body up and down to adjust the tilt position [0° to 75°]. 3). Rotate the camera body to adjust the rotation position [0° to 360°]. 2.1.2 Mounting with Inclined Ceiling Mount Before you start: You need to purchase an inclined ceiling mount first. Steps: 1.
- Page 8 2.2 Installation of Type II Camera Before you start: Both wall mounting and ceiling mounting are suitable for the turret camera. Ceiling mounting will be taken as an example in this section. You can take steps of ceiling mounting as the reference, when adopting the wall mounting.
- Page 9 Figure 2-13 Secure the Camera 8. Connect the corresponding cables, such as power cord, and video cable. 9. Power on the camera to check whether the image on the monitor is gotten from the optimum angle. If not, adjust the camera according to the figure below to get an optimum angle.
- Page 10 Figure 2-15 Drill Template of the Junction Box Note: Drill the cable hole, when adopting the ceiling outlet to route the cable. 3. Take apart the junction box, and align the screw holes of the turret camera’s mounting base with those on junction box’s cover.
- Page 11 Figure 2-18 Install the Mounting Base to the Bracket 5. Route the cables through the bracket. 6. Repeat steps 7 to 9 of 2.1.1 Ceiling/Wall Mounting without Junction Box to complete the installation. 2.4 Ceiling Mounting of Type III Camera Steps: 1.
-
Page 12: Adjusting Screw
Figure 2-21 Fix the Mounting Base 5. Route the cables through the cable hole, or the side opening. 6. Connect the corresponding cables, such as power cord, and network cable. 7. Power on the camera to check whether the image on the monitor is gotten from the optimum angle. - Page 13 VIDEO FORMAT EXPOSURE MODE BACK EXPOSURE EXIT SAVE & EXIT AUTO COLOR DAY/NIGHT BACK EXIT SAVE & EXIT WHITE BALANCE MAIN MENU BRIGHTNESS CONTRAST SHARPNESS VIDEO SETTINGS SATURATION MIRROR BACK EXIT SAVE & EXIT FACTORY DEFAULT EXIT SAVE & EXIT Figure 3-2 Main Menu Overview 5.
-
Page 14: Exposure Mode
EXPOSURE MODE You can set the EXPOSURE MODE as GLOBAL, BLC, and DWDR. GLOBAL GLOBAL refers to the normal exposure mode which performs exposure according to the whole image brightness. BLC (Backlight Compensation) BLC (Backlight Compensation) compensates light for the front object to make it clear, but this may cause the over- exposure of the background, where the light is strong. -
Page 15: Video Settings
Figure 3-5 AUTO IR LIGHT You can turn on/off the IR LIGHT to meet the requirements of different circumstances. SMART IR The Smart IR function is used to adjust the light to its most suitable intensity, and prevent the image from over exposure. -
Page 16: Factory Default
You can set the R GAIN/B GAIN value from 1 to 255 to adjust the shades of red/blue color of the image. WHITE BALANCE MANUAL MODE R-GAIN B-GAIN BACK EXIT SAVE & EXIT Figure 3-7 MANUAL MODE BRIGHTNESS Brightness refers to the brightness of the image.
