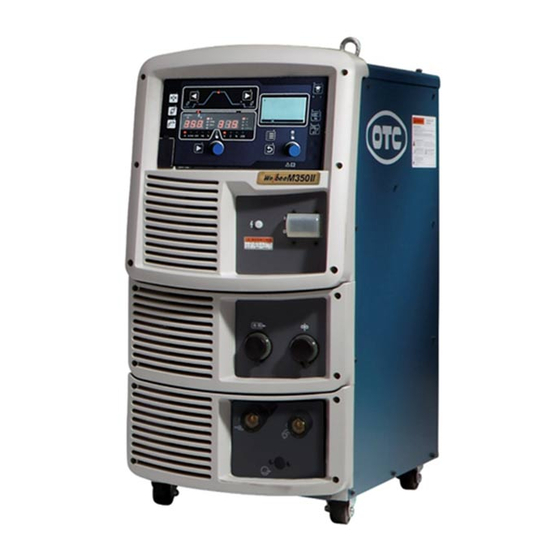

OTC Welbee M350 II Owner's Manual
  1. Manuals
  2. Brands
  3. OTC Manuals
  4. Welding System
  5. Welbee M350 II
  6. Owner's manual

OTC Welbee M350 II Owner's Manual

Hide thumbs

Advertisement

Quick Links

Download this manual

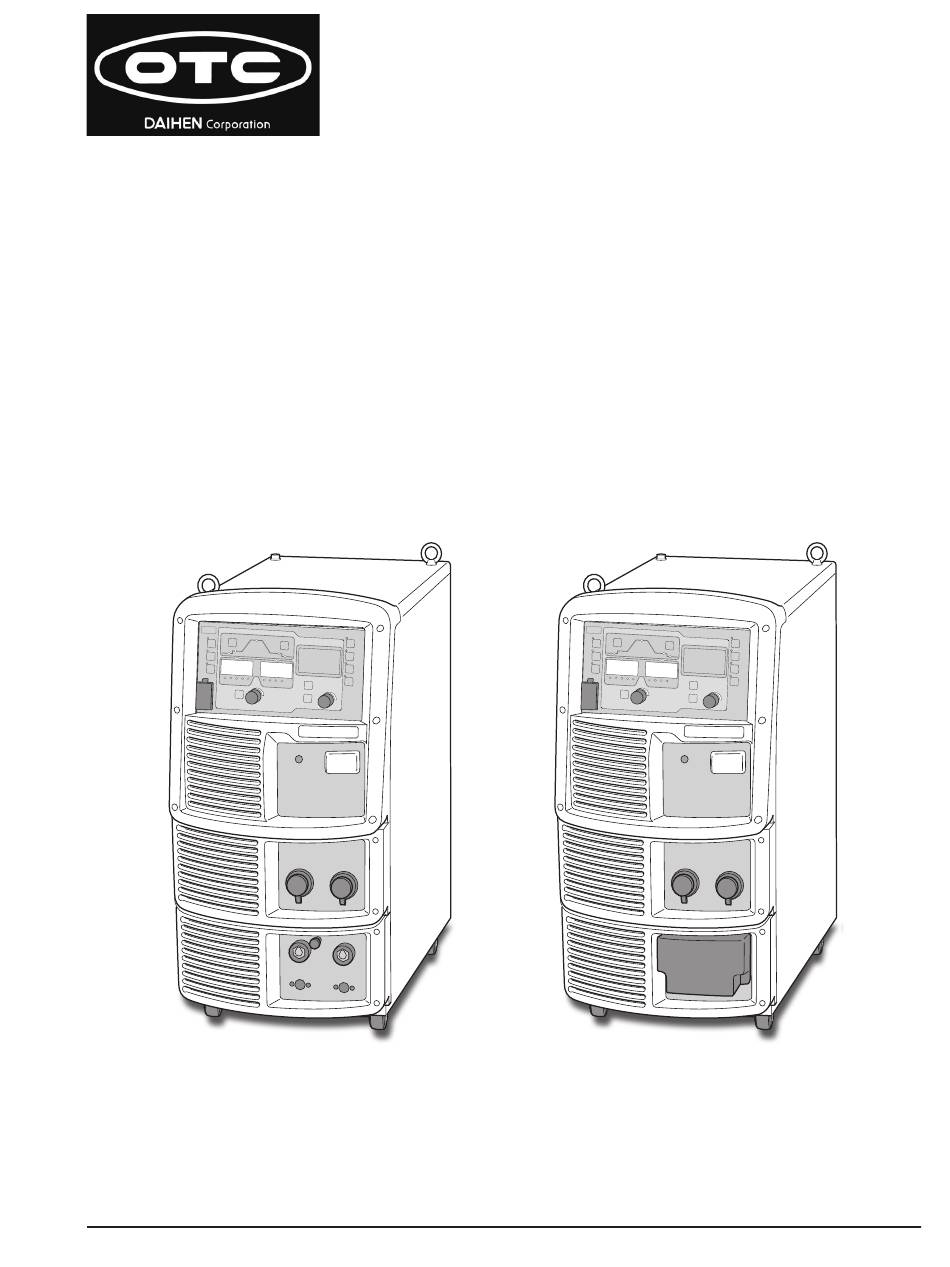

OWNER'S MANUAL
Welbee M350 II
M500 II
July, 2021
DAIHEN Corporation
Manual No. : P30355-1
