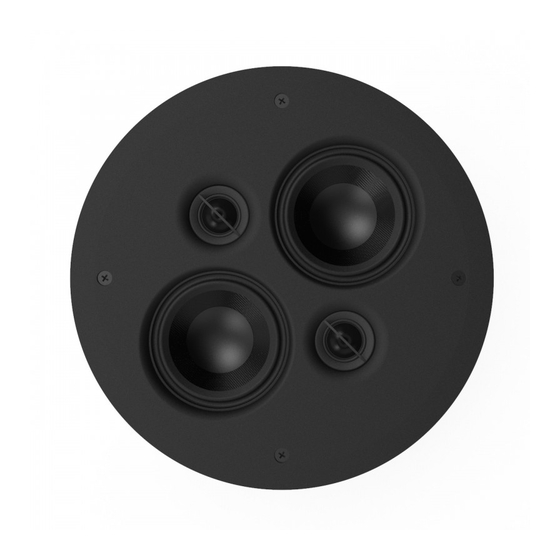

- Page 1 THINFIT COLLECTION ™ TF37DT TF37EX TFIW37 TF37EX, TF37DT, TFIW37 Installation Manual...
-
Page 2: Table Of Contents
Thinfit Collection™ Manual Table of Contents Introduction Specifications What’s Included Tools & Items Wire Recommendation Speaker Placement About Speaker Wire Installing the Wire Wire Routing Painting the Grille Cutting the Hole Connecting the Wire Installing the Speaker Installing the Grille Testing &... -
Page 3: Introduction
Introduction Thank you for purchasing the Explorer Collection. The Explorer Collection of loudspeakers from Origin Acoustics were developed to withstand the harsh conditions found in marine environments. This includes exposure to saltwater, extreme temperature changes and airborne humidity. They will produce amazing musical fidelity while spending family time on the lake or a trip on the open sea and they have the build quality to last for years in these situations. -
Page 4: Specifications
Thinfit Collection™ Manual Specifications MODEL TF37EX TF37DT PART STF3700EX STF3700DT Woofer Quad 3” Fiberglass Dual 3” Fiberglass Tweeter 3/ 4 ” Aluminum Dual ¾” Aluminum Frequency Response 120Hz-20kHz 120Hz-20kHz Power RMS 30 Watts 20 Watts/channel Power Peak 100 Watts 50 Watts/channel Impedance 6 ohm 6 ohm/channel... -
Page 5: What's Included
10.00in 254mm Thinfit Collection™ Manual 1.42in What’s Included 36mm Speaker Grille Template TF37 SCALE:1:4 Tools & Items • Drywall Saw • Measuring Tape • Stud Finder • Speaker Wire • Drill • Fish Tape • Pencil • Drill Bit ⅛” (3mm) •... -
Page 6: Speaker Placement
Thinfit Collection™ Manual Auxiliary Room (2 Speaker Placement) Position the two speakers in the middle of the room, no less than 6’ (2m) apart. Ideally, the two speakers 6’ (2m) would be placed an equal distance from the listener. If the room has a 3’... -
Page 7: About Speaker Wire
Thinfit Collection™ Manual About Speaker Wire You will need a wire that has at least two conductors; one that can be identified as the positive and the other as the negative. All two conductor wires have some means of identifying which conductor is which, but at times this identification may be subtle. -
Page 8: Wire Routing
Thinfit Collection™ Manual Wire Routing Plan how you’ll route the wire to the desired speaker location. There are several methods for routing the wire, and you may need to combine several of them. Behind the Baseboard Through Walls The wire can be routed behind the When running wires through a wall, be baseboard by cutting a groove out sure to avoid all obstacles such as AC... -
Page 9: Painting The Grille
Thinfit Collection™ Manual 2. Painting the Grille In some situations the speakers may look better if the color matched the walls, ceiling, or trim in the room. This can be accomplished by painting the grille. The grille must be painted with spray paint, and most hardware stores will mix a can of paint to match whatever color you need. -
Page 10: Connecting The Wire
Thinfit Collection™ Manual template, check the Specifications section for cutout sizes.) If you’re unsure on whether there may be obstacles (such as pipes or wires) where you plan on installing the speaker, drill a ⅛ inch hole in the center of the circle, then put a bent coat hanger through the hole to feel around. -
Page 11: Installing The Grille
Thinfit Collection™ Manual 6. Installing the Grille Fit the grille over the speaker. The grille uses magnets to be held in place. -
Page 12: Testing & Adjustments
Troubleshooting If possible, it’s often good to try to isolate the problem first. For example, if you’re playing a DVD on a television and there’s no sound, try connecting an MP3 player to the system to see if that works. If it does work, then the problem is with the television, DVD player, or the cables connecting them. -
Page 13: Technical Assistance
If you are considering returning the product, it’s required that you contact Origin Acoustics prior to any return attempts. This way we can determine if the issue can be resolved without returning the product, or if needed we can provide instructions and support for the return process. -
Page 14: Warranty
If the product is determined to be defective, it will be repaired or replaced at Origin Acoustics’ discretion. If the product must be replaced yet it is no longer manufactured, it will be replaced with a model of equal to or greater value that is the most similar to the original. -
Page 15: Return Process
Before making any return attempts, it is required that you first contact Origin Acoustics. Return product to Origin Acoustics or your dealer, either in person or by mail. It’s preferable if the product is returned in the original packaging. If this isn’t possible, the customer is responsible for insuring the shipment for the full value of the product. - Page 16 6975 S Decatur Blvd, Las Vegas, NV 89118 • www.originacoustics.com • 844-674-4461 ©2019 Origin Acoustics. All copyrighted, trademarked and patented elements mentioned herein are the sole property of Origin Acoustics.
