EXPLORER COLLECTION
D65EX
D83EX
D83DT/SUR EX
D83AEX
D85EX
Installation Manual
D65EX, D83EX, D83DT/SUR EX, D83AEX, D85EX

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the D65EX and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Origin Acoustics D65EX

  • Page 1 EXPLORER COLLECTION D65EX D83EX D83DT/SUR EX D83AEX D85EX Installation Manual D65EX, D83EX, D83DT/SUR EX, D83AEX, D85EX...
  • Page 2: Table Of Contents

    Explorer Collection™ Manual Table of Contents Introduction Specifications Dual Tweeter What’s Included Tools & Items Wire Recommendation Speaker Placement About Speaker Wire Installing the Wire Wire Routing Painting the Grille Cutting the Hole Installing the Bayonet Ring Connecting the Wire Installing the Speaker Testing &...
  • Page 3: Introduction

    Introduction Thank you for purchasing the Explorer Collection. The Explorer Collection of loudspeakers from Origin Acoustics were developed to withstand the harsh conditions found in marine environments. This includes exposure to saltwater, extreme temperature changes and airborne humidity. They will produce amazing musical fidelity while spending family time on the lake or a trip on the open sea and they have the build quality to last for years in these situations.
  • Page 4: Specifications

    Explorer Collection™ Manual EXPLORER SPECIFICATIONS Model: D83EX Part: DSC83000EX • Woofer: 8” IMG • Diameter: 9 5/ 8 ” (244mm) • Tweeter: 1” Aluminum Multi-Motion Pivoting • Grille Diameter: 10” (254mm) • Frequency Response: 38Hz-20kHz • Cutout Diameter: 8 3/ 4 ” (222mm) •...

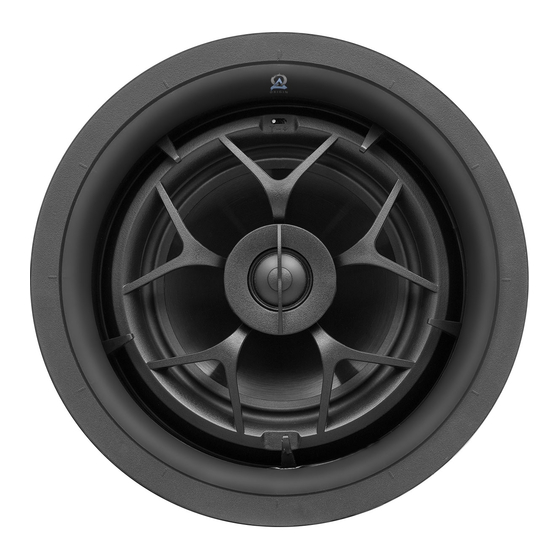

  • Page 5 Explorer Collection™ Manual EXPLORER SPECIFICATIONS Model: D65EX Part: SCD65000EX • Woofer: 6 1/ 2 ” IMG Pivoting • Diameter: 9 5/ 8 ”(244mm) • Tweeter: 1” Aluminum • Grille Diameter: 10” (254mm) • Frequency Response: 45Hz-20kHz • Cutout Diameter: 8 3/ 4 ”(222mm) •...
  • Page 6: Dual Tweeter

    Explorer Collection™ Manual Dual Tweeters The Dual Tweeter models can be used for either one channel (surround) or two channels (stereo). A switch is located on the back of the speaker to select which mode to use. One of the inputs is labeled for surround. This is the input that should be used if you’re only using one channel.
  • Page 7: What's Included

    Explorer Collection™ Manual What’s Included Speaker Bayonet Ring Grille Template Installation Manual Tools & Items • Drywall Saw • Measuring Tape • Stud Finder • Speaker Wire • Drill • Fish Tape • Pencil • Drill Bit ⅛” (3mm) • Spray Paint •...
  • Page 8: Speaker Placement

    Explorer Collection™ Manual Auxiliary Room (2 Speaker Placement) Ideally, the two speakers should be placed an equal distance from the lis- tener. If the room has a lower ceiling, 6’ (2m) the speakers can be closer together. Also, if the speaker placement is in- 3’...
  • Page 9: About Speaker Wire

    Explorer Collection™ Manual About Speaker Wire Use a two conductor wire that allows you to identify one conductor from the oth- er. This designation may be obvious or as subtle as a ridge on one conductor. It’s crucial that you keep track of which wire you use for positive (+) and negative (-).
  • Page 10: Wire Routing

    Explorer Collection™ Manual Wire Routing Plan how you’ll route the wire to the desired speaker location. There are several methods for routing the wire, and you may need to combine several of them. Behind the Baseboard Through Walls The wire can be routed behind the When running wires through a wall, be baseboard by cutting a groove out sure to avoid all obstacles such as AC...
  • Page 11: Painting The Grille

    Explorer Collection™ Manual 2. Painting the Grille In some situations the speakers may look better if the color matched the walls, ceiling, or trim in the room. This can be accomplished by painting the grille. The grille must be painted with spray paint, and most hardware stores will mix a can of paint to match whatever color you need.
  • Page 12: Installing The Bayonet Ring

    Explorer Collection™ Manual coat hanger through the hole to feel around. Use a keyhole or drywall saw to cut the hole. 4. Installing the Bayonet Ring Adjust the clips so that they’re positioned at the top of the rail. If they’re not al- ready there you can do this by pushing the release tabs (or metal “buttons”) on the inside of the rail and pulling the clips to the top of the rails.
  • Page 13: Installing The Speaker

    Explorer Collection™ Manual 6. Installing the Speaker Fit the speaker into the bayonet ring, and twist it clockwise into place. When the lines on the speaker lines up with the lines on the bayonet ring, that means the speaker is tightly in place. Be sure that the lines line up, otherwise there’s a risk that the speaker will fall out of the ceiling.
  • Page 14: Testing & Adjustments

    Explorer Collection™ Manual 7. Testing & Adjustments The midrange and tweeter can be pivoted to direct the sound towards the listen- ing area. Or for a more diffused surround sound experience, the rear speakers can be aimed towards the wall. To aim the tweeter, gently apply pressure to the rim with your thumbs to pivot the tweeter.
  • Page 15: Troubleshooting

    Explorer Collection™ Manual Troubleshooting If you have a problem, try isolating it first. For example, if you’re playing a DVD and there is no sound, try replacing the DVD with an MP3 player to see if you get sound. If it does work, then the problem is with the television, DVD player, or the cables connecting them.
  • Page 16: Technical Assistance

    If you are considering returning the product, it’s required that you contact Origin Acoustics prior to any return at- tempts. This way we can determine if the issue can be resolved without returning the product, or if needed we can provide instructions and support for the return process.
  • Page 17: Warranty

    Explorer Collection™ Manual Limited Lifetime Warranty Origin Acoustics warrants to the original retail purchaser only that this Origin Acoustics product will be free from defects in materials and workmanship, pro- vided the speaker was purchased from an Origin Acoustics authorized dealer.
  • Page 18: Return Process

    Before making any return attempts, it is required that you first contact Origin Acoustics. Return product to Origin Acoustics or your dealer, either in person or by mail. It’s preferable if the product is returned in the original packaging. If this isn’t possible, the customer is responsible for insuring the shipment for the full value of the product.
  • Page 19 Explorer Collection™ Manual NOTES...
  • Page 20 6975 S Decatur Blvd, Las Vegas, NV 89118 • www.originacoustics.com • 844-674-4461 ©2018 Origin Acoustics. All copyrighted, trademarked and patented elements mentioned herein are the sole property of Origin Acoustics.
