System Setup

[System] is selected on the Setup main screen in step 3. See "Setup
Operation" (page 24).

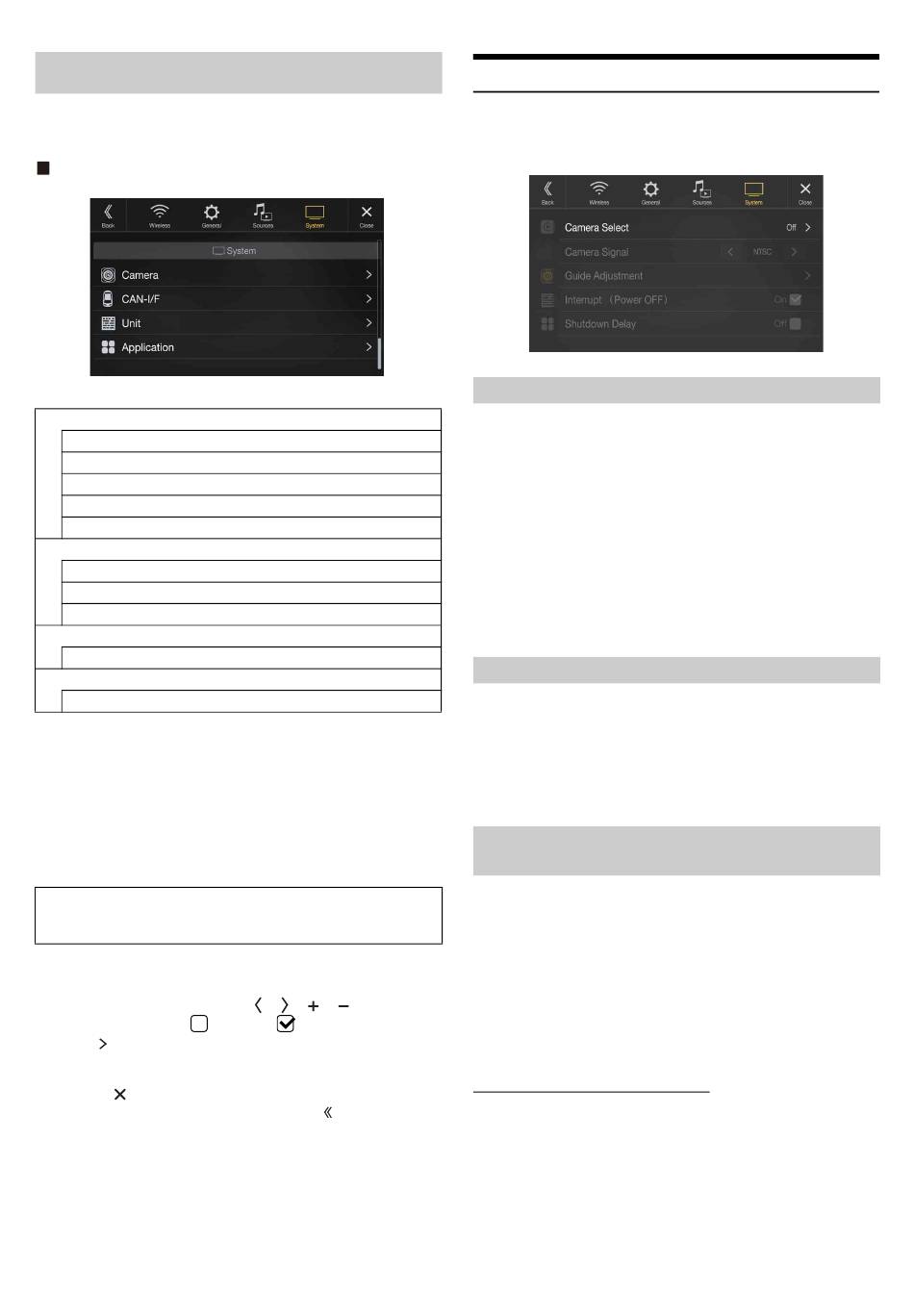

System Setup Menu screen
<Setting items>
1
Camera*
Camera Select
2
Camera Signal*
3
Guide Adjustment*
4
Interrupt (Power OFF)*
5
Shutdown Delay*
CAN-I/F
Default Vehicle Screen
Climate screen interrupt time
Parking sensor interrupt
Unit
External AP
Application
6
Alpine TuneIt App*
*1 When you select "Camera Selector" in "Camera Select", the setting item
is different. For details, see "Setting Multi Camera to On/Off "
(page 43).
*2 When Camera Select is set to "Off, " you cannot select this item.
*3 You can select this item only when Camera Select is "Front" or "Rear. "
*4 You can select this item only when Camera Select is "Rear. "
*5 You can set this item only when Camera Select is "Rear", or when
"Camera Selector" is selected and "Rear Camera" is "On".
*6 Set this setting after closing the Alpine TuneIt App.
The following steps 1 to 3 are common to each "Setting
item" of System Setup. See each section for details.
1
Select the desired item.
2
To switch the setting, touch [ ], [ ], [ ], [ ], or mark the
checkboxes "Off" (
• If " " appears, there is a further hierarchy. Touch the desired
item.
3
Touch [ ] to return to the main source screen.
• To return to the previous List screen, touch [ ]. For details, see
"About Basic Operation for List Screen" (page 16).
) or "On" ( ).

Camera Setup

[Camera] is selected on the System Setup Menu screen in step 1. See
"System Setup" (page 41).
You can set up items related to the Camera.

Setting the Camera Input

Setting item:
Camera Select
Setting contents:
Off (Initial setting) / Front / Rear / Other / Camera Selector
Front: Front camera
Rear: Rear camera
Other: Side camera, Room camera, etc.
Camera Front Camera/Rear Camera/Side Camera connected to
Selector*: the optional Multi Camera Interface module.
* When selecting Camera Selector, you can set the Front Camera/Rear
Camera/Side Camera to On/Off. For details, see "Setting Multi Camera
to On/Off " (page 43).

Setting the Camera Signal Input

When the camera is connected, the video input signal type can be
chosen.
Further setting item:
Camera Signal
Setting contents:
NTSC (Initial setting) / PAL
Switching Video Patterns for Multi View
Camera
The video pattern can be changed when connected to Multi View
Camera.
When Camera Select is set to "Off " or "Other, " you cannot select this
item.
Setting item:
Guide Adjustment
1
Touch [Guide Adjustment].
The camera guide adjustment screen is displayed.
Multi View compatible Side Camera
2
Touch [Front] or [Rear].
The view will change to the selected view.
41
