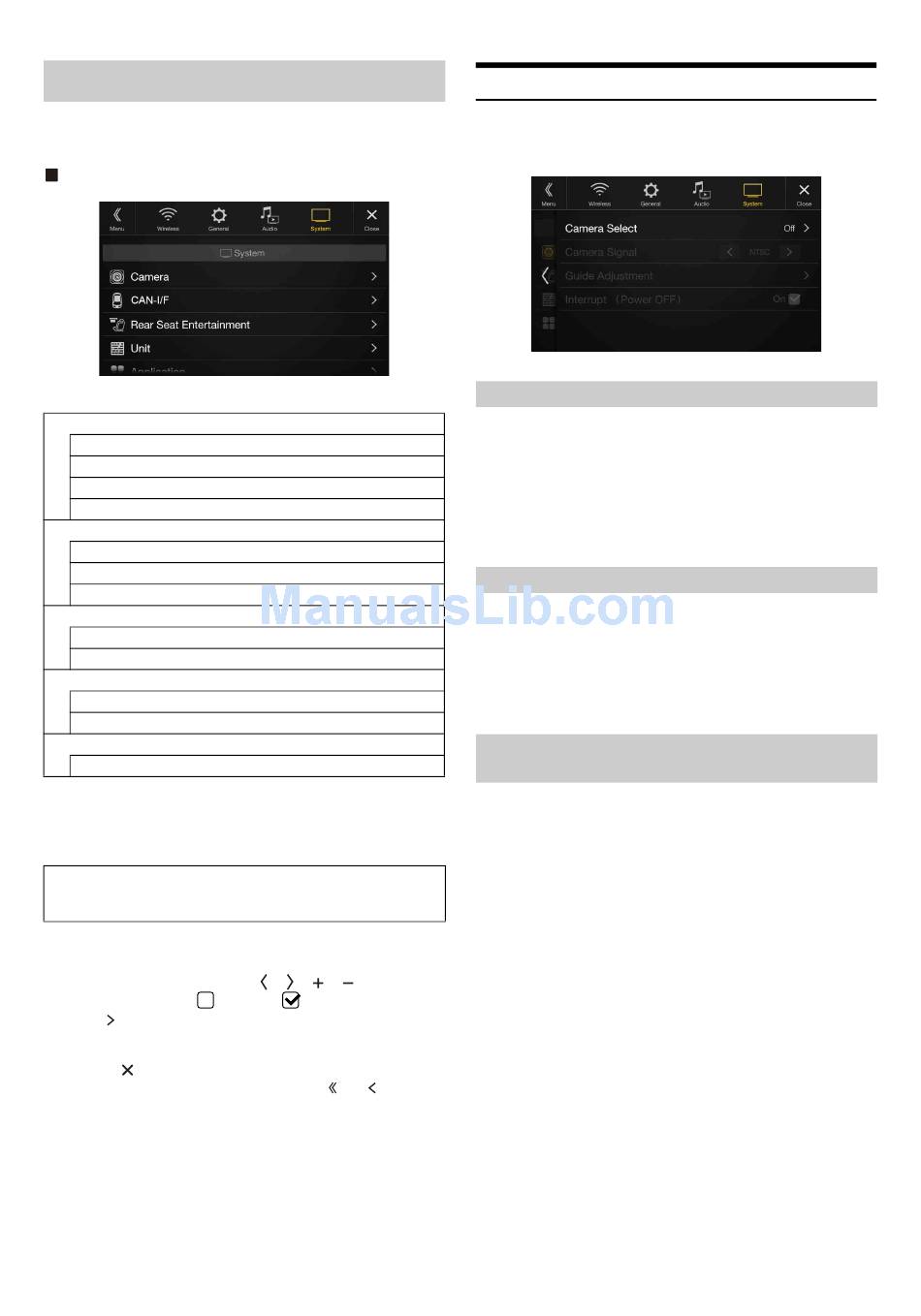

System Setup

[System] is selected on the Setup main screen in step 3. See "Setup
Operation" (page 27).
System Setup Menu screen
<Setting items>
Camera
Camera Select
1
Camera Signal*
2
Guide Adjustment*
3
Interrupt (Power OFF)*
CAN-I/F
Default Vehicle Screen
Climate screen interrupt time
Parking sensor interrupt
Rear Seat Entertainment
Rear Seat Entertainment
Remote Sensor
Unit
External AP
Additional AUX BOX
Application
4
Alpine TuneIt App*
*1 When Camera Select is set to "Off, " you cannot select this item.
*2 You can select this item only when Camera Select is "Front" or "Rear. "
*3 You can select this item only when Camera Select is "Rear. "
*4 Set this setting after closing the Alpine TuneIt App.
The following steps 1 to 3 are common to each "Setting
item" of System Setup. See each section for details.
1
Select the desired item.
2
To switch the setting, touch [ ], [ ], [ ], [ ], or mark the
checkboxes "Off" ( ) or "On" (
• If " " appears, there is a further hierarchy. Touch the desired
item.
3
Touch [ ] to return to the main source screen.
• To return to the previous List screen, touch [ ] or [ ] in the
previous page. For details, see "About Basic Operation for List
Screen" (page 17).
44
-EN

Camera Setup

[Camera] is selected on the System Setup Menu screen in step 1. See
"System Setup" (page 44).
You can set up items related to the Camera.
Setting item:
Setting contents:
When the camera is connected, the video input signal type can be
chosen.
Further setting item:
Setting contents:
The video pattern can be changed when connected to HCE-C252RD/
HCE-C257FD.
When Camera Select is set to "Off, " you cannot select this item.
Setting item:
1
2
).
• For an explanation of video patterns, see the camera Owner's Manual.

Setting the Camera Input

Camera Select
Off (Initial setting) / Front / Rear / Other
Front: Front camera
Rear: Rear camera
Other: Side camera, Room camera, etc.

Setting the Camera Signal Input

Camera Signal
NTSC (Initial setting) / PAL
Switching Video Patterns for Rear Camera &
Front Camera
Guide Adjustment
Touch [Guide Adjustment].
The camera guide adjustment screen is displayed.
Touch [Back], [Panorama], [Corner], or [Top].
The view will change to the selected view.
• [Back] will not appear for the Front camera.
