Ghost Controls AXWK Manual

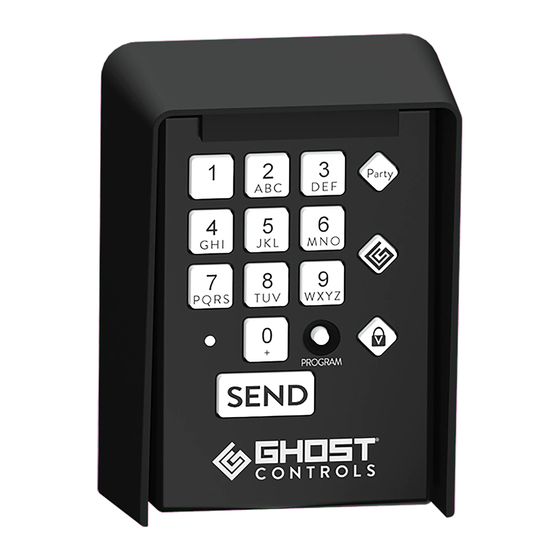

AXWK WIRELESS KEYPAD
MANUAL
FEATURES:
40 Access PINs + 1 Primary Pin
1.
Xtend Access: Once a valid PIN is entered and
2.
sent, any number key can operate the gate
for at least 30 seconds. Each key pressed restarts
the 30 second timer.
PartyMode: Hold gate open.
3.
PartyMode Secure or 1-Key Mode: Any key on
4.
the keypad can operate the gate.
VacationMode: Disable all wireless transmitter.
5.
Time based temporary PINs: Automatically
6.
expired after X number of days.
Number of use based Temporary PINs:
7.
automatically expired after X number of uses.
Compatible with ALL Ghost Controls gate
8.
opener system.
Compatible with most automatic gate systems
9.
when used with the Ghost Controls Universal
Receiver AXUR.
PROGRAMMING THE KEYPAD FOR THE 1ST TIME:
A. Installing the batteries (Need 2 C Batteries) _______________________________________________________ 2
B. Programming your PRIMARY PIN ________________________________________________________________ 2
C. Teaching your remote to the keypad (MUST DO) _________________________________________________ 3
D. Test your PRIMARY PIN __________________________________________________________________________ 3
E. Adding an ACCESS PIN __________________________________________________________________________ 3
F. Mounting the keypad ______________________________________________________________________________4
Changing your PRIMARY PIN ___________________________________________________________________________________4
Adding an ACCESS PIN _________________________________________________________________________________________4
Adding a time based temporary ACCESS PIN ____________________________________________________________________ 5
Adding a use based temporary ACCESS PIN _____________________________________________________________________ 5
Delete an ACCESS PIN __________________________________________________________________________________________6
Delete all ACCESS PINs _________________________________________________________________________________________6
Enable/disable PartyMode ________________________________________________________________________________________6
Enable/Disable PartyMode Secure or 1-Key mode ________________________________________________________________ 7
Enable/Disable VacationMode ____________________________________________________________________________________ 7
Factory reset the keypad__________________________________________________________________________________________ 7
Troubleshooting __________________________________________________________________________________________________8
NUMBER KEYS (0-9)
Use to enter numbers for
Primary and Access PIN
STATUS LED
Provides visual feedback
for programming and
entering pins
SEND
Press after your PIN
is entered to open
gate

TABLE OF CONTENTS

PARTYMODE (ON/OFF)
®
Use with PRIMARY PIN to
turn PARTYMODE function
ON/OFF
PARTYMODE SECURE
1KEY (ON/OFF)
TM
Use with PRIMARY PIN to turn
PARTYMODE SECURE
1KEY function ON/OFF
TM
VACATION MODE
Use with PRIMARY PIN to
turn VACATIONMODE
function ON/OFF
PROGRAM
Use to enter programming
mode to perform various
programming operations
© G h o s t C o n t r o l s 2 0 2 0
OR
TM
or
TM
(ON/OFF)
®
®
1
