Ghost Controls AXWK Manual

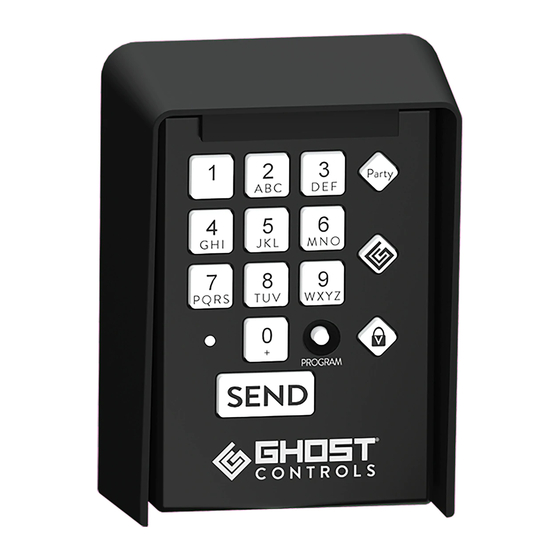

Wireless keypad
Hide thumbs Also See for AXWK:
Table of Contents

Advertisement

Quick Links

AXWK WIRELESS KEYPAD
MANUAL
FEATURES:
40 Access PINs + 1 Primary PIN
1.
Extended Access: Once a valid PIN is entered
2.
and sent, any number key will operate the
gate for at least 30 seconds. Each key pressed
restarts the 30 second timer.
PartyMode: Hold gate open.
3.
PartyMode Secure or 1-Key Mode: Any key on
4.
the keypad can operate the gate.
VacationMode: Disable all wireless transmitter.
5.
Time based temporary PINs: Automatically
6.
expired after X number of days.
Number of use based Temporary PINs:
7.
automatically expired after X number of uses.
Compatible with ALL Ghost Controls gate
8.
opener system.
Compatible with most automatic gate systems
9.
when used with the Ghost Controls Universal
Receiver AXUR.
A. Installing the batteries (Need 2 C Batteries) _______________________________________________________ 2
B. Programming your keypad (MUST DO) ___________________________________________________________ 2
C. Test PRIMARY PIN _______________________________________________________________________________ 3
D. Mounting the keypad ______________________________________________________________________________ 3
Adding additional ACCESS PIN __________________________________________________________________________________4
Adding a time based temporary ACCESS PIN ____________________________________________________________________4
Adding a use based temporary ACCESS PIN _____________________________________________________________________4
Delete an ACCESS PIN __________________________________________________________________________________________ 5
Delete all ACCESS PINs _________________________________________________________________________________________ 5
Changing your 4 Digit PRIMARY PIN ___________________________________________________________________________6
Enable PartyMode ________________________________________________________________________________________________ 7
Disable PartyMode _______________________________________________________________________________________________ 7
Enable Partymode Secure or 1-Key mode ________________________________________________________________________ 7
Disable PartyMode Secure or 1-Key mode ________________________________________________________________________ 7
Enable VacationMode ____________________________________________________________________________________________8
Disable VacationMode ____________________________________________________________________________________________8
Factory reset the keypad__________________________________________________________________________________________8
Troubleshooting __________________________________________________________________________________________________9
NUMBER KEYS (0-9)
Use to enter numbers for
Primary and Access PIN
STATUS LED
Provides visual feedback
for programming and
entering pins
SEND
Press after your PIN
is entered to open
gate
PARTYMODE
(ON/OFF)
®
Use with PRIMARY PIN to
turn PARTYMODE function
ON/OFF
PARTYMODE SECURE
1KEY
(ON/OFF)
TM
Use with PRIMARY PIN to turn
PARTYMODE SECURE
1KEY
function ON/OFF
TM
VACATION MODE
®
Use with PRIMARY PIN to
turn VACATIONMODE
function ON/OFF
PROGRAM
Use to enter programming
mode to perform various
programming operations
© G h o s t C o n t r o l s 2 0 2 1
OR
TM
or
TM
(ON/OFF)
®
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AXWK and is the answer not in the manual?

Questions and answers

Related Manuals for Ghost Controls AXWK

Summary of Contents for Ghost Controls AXWK

  • Page 1: Table Of Contents

    Compatible with ALL Ghost Controls gate gate opener system. Compatible with most automatic gate systems when used with the Ghost Controls Universal Receiver AXUR. PROGRAMMING THE KEYPAD FOR THE 1ST TIME: A. Installing the batteries (Need 2 C Batteries) _______________________________________________________ 2 B.

  • Page 2: Programming The Keypad For The 1St Time

    IMPORTANT MUST READ BEFORE PROGRAMMING Make sure you have a Ghost Controls transmitter that is already programmed to operate the gate. ■ You MUST CREATE a NEW PRIMARY PIN and LEARN your remote to the keypad in order to use the keypad.

  • Page 3: Test Primary Pin

    C. TEST PRIMARY PIN: Test to verify gate opens. (Make sure DIP#2 on System control board is to the right so that you can hear the WARNING from the gate opener system.) 1. Enter your 4 DIGIT PRIMARY PIN 2. Press SEND Once the valid access PIN and SEND is entered, the keypad will stay active for 30 seconds.

  • Page 4: Adding Additional Access Pin

    ADD ADDITIONAL ACCESS PINS (CANNOT USE 0 0 0 0): 1. Press and Release PROGRAM BUTTON (the PartyMode, 1-Key, Vacation LEDs comes on) 2. Enter your PRIMARY PIN 3. Press and Release PROGRAM BUTTON 4. Enter 2 2 5. Press and Release PROGRAM BUTTON 6.

  • Page 5: Delete An Access Pin

    4. Enter 2 8 5. Press and Release PROGRAM BUTTON 6. Enter NEW USE BASED ACCESS PIN 7. Press and Release PROGRAM BUTTON 8. Enter the NUMBER OF USES Allowed EXAMPLE: for 5 uses..0 5 9. Press and Release PROGRAM BUTTON DELETE AN ACCESS PIN: (deleted pin will no longer operate the gate) 1.

  • Page 6: Changing Your 4 Digit Primary Pin

    CHANGING YOUR 4 DIGIT PRIMARY PIN (CANNOT USE 0 0 0 0): 1. Press and Release PROGRAM BUTTON (the PartyMode, 1-Key, Vacation LEDs comes on) 2. Enter your PRIMARY PIN 3. Press and Release PROGRAM BUTTON 4. Enter 7 6 5.

  • Page 7: Enable Partymode

    ENABLE PARTYMODE: (this holds your gate open) When Partymode is enabled the gate will stay open and autoclose (if enabled) is suspended. The gate opener will BEEP TWICE if attempting to close the gate while PartyMode is enabled. 1. Press and Release PARTY BUTTON 2.

  • Page 8: Enable Vacationmode

    ENABLE VACATION MODE: (This keeps your gate closed and all remotes or codes to keypad are Denied access to property until taken off this mode) THE GATE MUST BE FULLY CLOSED BEFORE PUTTING IN THIS MODE. When Vacation Mode is enabled the gate will stay closed and all RF remote devices that control the gate will not be able to open the gate.

  • Page 9: Troubleshooting

    TROUBLESHOOTING: QUESTIONS ANSWERS This is normal. After valid PIN is entered and send, any After entering my PIN, any key would open/close the gate. number key on the keypad will operate the gate until the keypad returns to Standby Mode. Make sure the ‘1-Key’...
  • Page 10 WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov Made in China, AXWKIM | Rev. 2021-04 GhostControls.com ©2021 GHOST CONTROLS ® © G h o s t C o n t r o l s 2 0 2 1...
