Ghost Controls AXWK Instructions

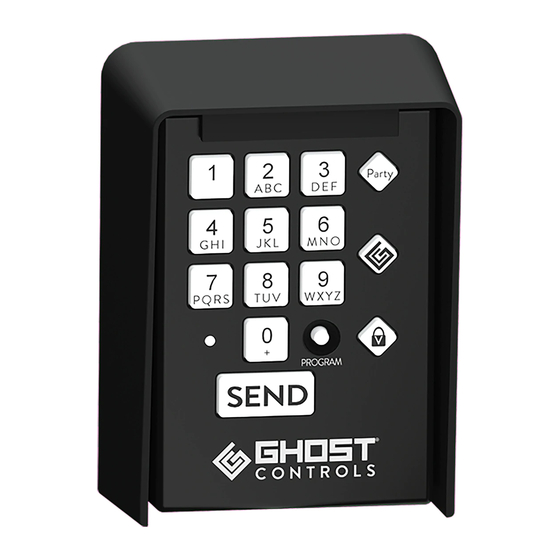

WIRELESS KEYPAD
AXWK INSTRUCTIONS

BEFORE YOU BEGIN

1) Keypad housing must be removed and two (2) C batteries (not included) need to be installed
before programming. Installing the batteries requires you to unscrew the bottom two screws and
to insert the batteries.
2) You must create a Master PIN for your Ghost Controls keypad before any other programming
functions can be performed. The keypad will store only one master pin and can store an
additional 19 access pins. The master pin must be used to enable additional features.
The keypad will remain in programming mode for up to 1 minute between button presses to allow
adequate time to go through each step. If you enter an invalid sequence, the keypad will immediately
drop out of programming mode and you will have to start back at Step 1 of the programming sequence.
STEP 1. PROGRAMMING YOUR MASTER PIN
PROGRAM Press 0 0 0 0 PROGRAM
BUTTON BUTTON
1) Press and release the Program Button
2) Enter 0 0 0 0
3) Press and release the Program Button
4) Enter 7 6
5) Press and release the Program Button
6) Enter your 4 digit master pin (cannot use 0000)
5) Press and release the Program Button
STEP 2. TEACHING YOUR REMOTE TO THE KEYPAD
YOUR MASTER PIN
PROGRAM PROGRAM
BUTTON BUTTON
1) Press and release the Program Button
2) Enter your 4 digit master pin
3) Press and release the Program Button
4) Enter 5 8
5) Press and release the Program Button
6) Press the bottom edge of the remote transmitter against
the keypad below the send button as shown (needs to
touch keypad)
7) PRESS & HOLD THE
until you hear 3 beeps, and then 2 beeps from the keypad
STEP 3. MOUNT KEYPAD
Keypad can be mounted no further then 60' and has to be within site from the gate.
BACK OF
HOUSING
Press 76 PROGRAM Your MASTER PIN #
BUTTON
Press 58 PROGRAM
BUTTON
BUTTON ON THE REMOTE
PROGRAM
NUMBER KEYS (0-9)
BUTTON
Use to enter numbers for
Master and Access PIN
STATUS LED
Provides visual feedback
for programming and
entering pins
SEND
Press after your PIN
is entered to open
gate
PARTYMODE (ON/OFF)
®
Use with MASTER PIN to
turn PARTYMODE function
ON/OFF
PARTYMODE SECURE
1KEY
Use with MASTER PIN to turn
PARTYMODE SECURE
1KEY
VACATION MODE
Use with MASTER PIN to
turn VACATIONMODE
function ON/OFF
PROGRAM
Use to enter programming
mode to perform various
programming operations
lineup remote with LEARN button
facing keypad. Then touch remote
to keypad as shown under the send
button and press and hold the
to learn the remotes code
OUTDOOR MOUNTING PEDESTAL (AXGN)
Accessory for mounting keypad to post
OR
TM
(ON/OFF)
TM
or
TM
function ON/OFF
TM
(ON/OFF)
®
®
