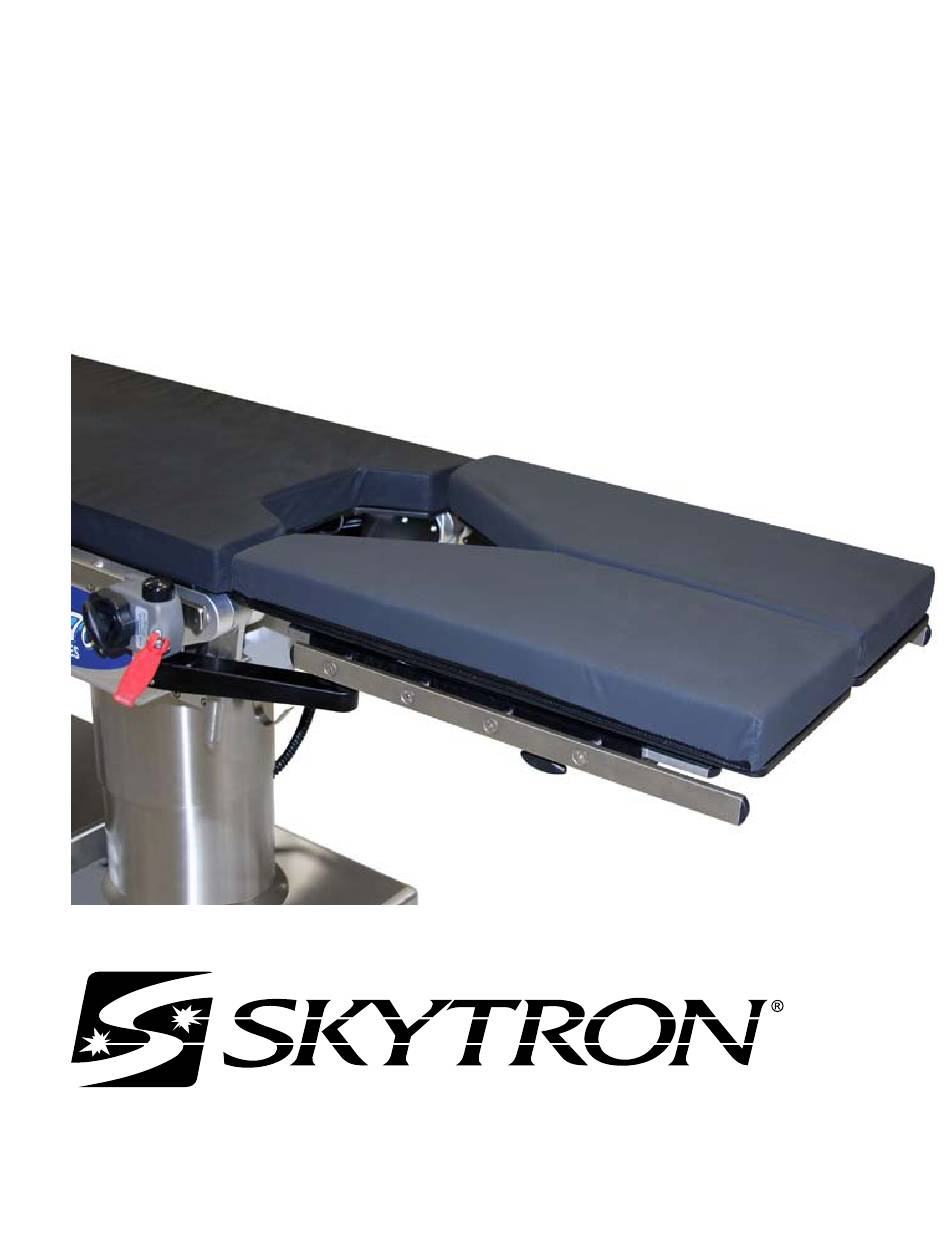

- Page 1 UNIVERSAL SPLIT LEG SECTION P.N. 4-030-60 ACCESSORY FOR 3600B TABLES and the 3500, 6002, 6700 SERIES TABLES OWNERS MANUAL TEC-D-0035 REV0 11/09...
- Page 2 Page 2 GENERAL DIMENSIONS AND SPECIFICATIONS 30" - 36.5" 21" 13.4” 9.5" 24.5” 4.9” 4.4" 13.4" Complete Accessory Weight: 31.6 lbs.
- Page 3 Page 3 Prior to use, all personnel that may operate this The following precautions should be reviewed accessory must be instructed in the correct by all personnel prior to operating the table. operational procedures. This accessory is de- signed for use by trained and qualified personnel for human medical purposes only.
-
Page 4: Safety Information
Use with other tables is not recommended. In order to properly utilize and fully appreciate the SKYTRON Split Leg Section be sure to follow these instructions carefully. Initial use should not begin until after the users have been instructed by the manu- facturers representative. - Page 5 Page 5 PREPARE THE SURGICAL TABLE 5. Ensure that the Split Leg Section is secure by 1. Lower or remove the leg section from the pulling towards the operator as shown in the picture surgical table. below. 2. If the table has a removable leg section, press the leg down on the pendant until leg section cast- ings are completely retracted.
- Page 6 Page 6 TO ADJUST FOR ABDUCTION / ADDUCTION To adjust the accessory for abduction or adduc- CAUTION tion, loosen the Accessory Lock Handle as shown below and abduct or adduct the Split Leg Section If the red warning strip is visible, the as required.
-
Page 7: Cleaning And Maintenance
5. Make certain the product is dry prior to use to avoid damage. CAUTION Damage may result if the product is cleaned with bleach. SERVICE / PARTS This device is not field serviceable and must be returned to SKYTRON for service. - Page 8 5085 Corporate Exchange Blvd. S.E. Grand Rapids, MI 49512 • 1.616.656.2900 • FAX 1.616.656.2906...
