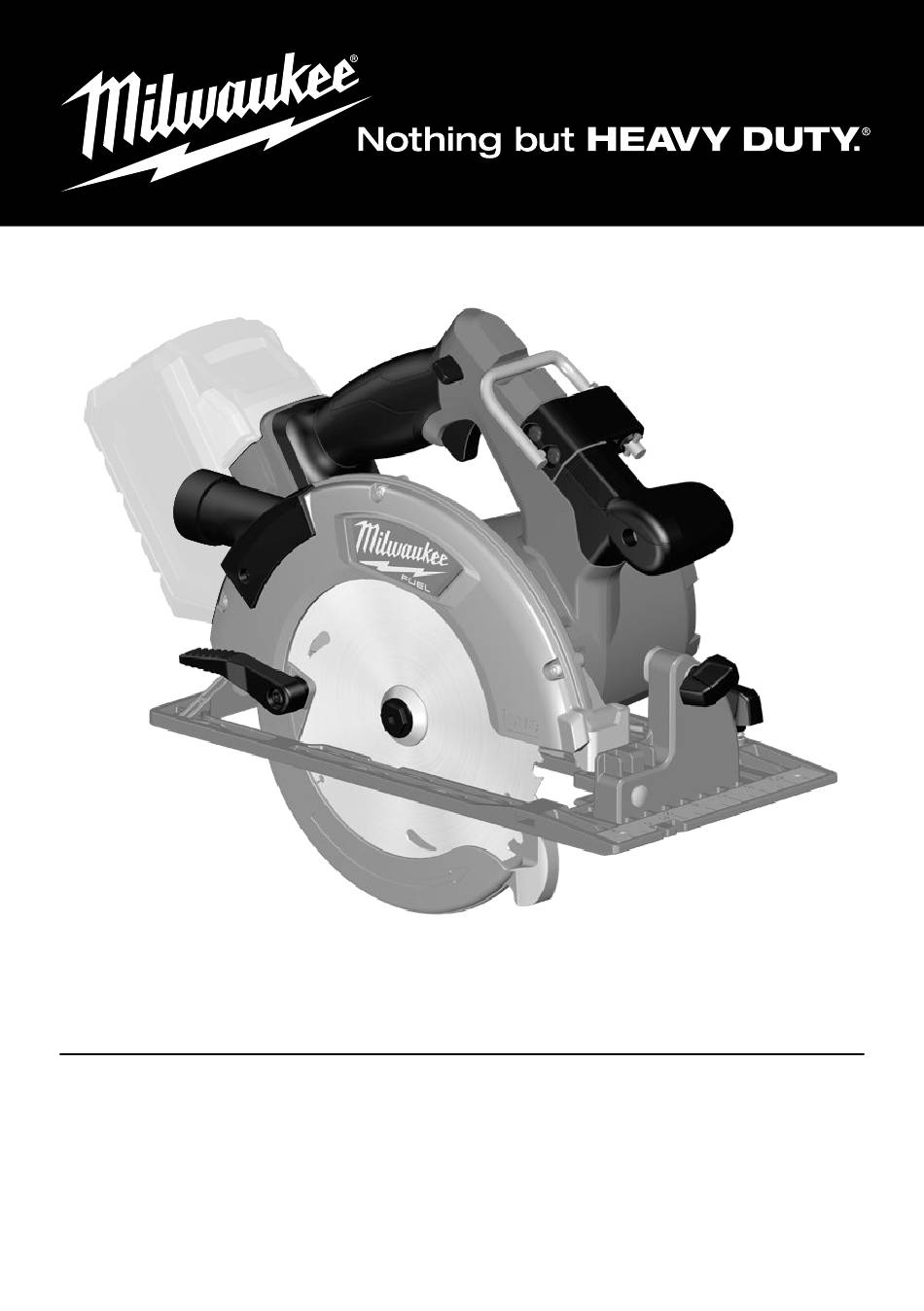

  • Page 1 M18 FCS66 Original instructions...
  • Page 2 M18 FCS66 Original instructions Alkuperäiset ohjeet Algupärane kasutusjuhend Originalbetriebsanleitung Πρωτότυπο οδηγιών χρήσης Оригинальное руководство по эксплуатации Notice originale Orijinal işletme talimatı Istruzioni originali Původním návodem k používání Оригинално ръководство за Manual original Pôvodný návod na použitie експлоатация Manual original Instrukcją oryginalną...
  • Page 3 VIII Technical Data,Safety Instructions, Specified Conditions of Use, Declaration of Conformity, Batteries, Maintenance, Symbols 90° Please read and save these instructions!
  • Page 6 78-100 % 55-77 % 33-54 % 10-32 % <10 %...
  • Page 8 EN 847-1...
  • Page 9 TEST...
  • Page 10 START STOP For safety reasons this power tool is fitted with a switch lock and the On-/Off switch cannot be locked in the „On“ position...
  • Page 11 Insulated gripping surface...
  • Page 12 Adjust the cutting depth to the thickness of the workpiece. Less than a full tooth of the blade teeth should be visible below the workpiece.
  • Page 13 0-66 0-66 mm...
  • Page 14 0°- 50° 40 45 50...
  • Page 15 0° 45° x mm x mm Carry out a test cut...
  • Page 16 START VIII 2. 3. STOP...
  • Page 17 VIII 0° > 0° START 2. 5. STOP...
  • Page 18 max. > 66 mm 66 mm...
  • Page 20 90° 0° If a correction of the 90° angle of the guide-plate to the saw blade is necessary, use the correction screw.
  • Page 21 90° 90°...
  • Page 22 AS 2-250 4931 4472 95 AS300 AS-30 4931 4472 94 AS-42...

  • Page 23: Technical Data

    TECHNICAL DATA M18 FCS66 Circular saw Production code 4674 55 02 ..000001-999999 Battery voltage 18 V No-load speed 5800 min Saw blade dia. x hole dia 190 x 30 mm Saw blade thickness 1,6 mm Blade teeth Max. Cutting depth at 0° / 45° / 56°...

  • Page 24: Working Instructions

    Kickback causes and related warnings c) The lower guard may be retracted manually only for special cuts such as „plunge cuts“ and „compound cuts“. – kickback is a sudden reaction to a pinched, jammed or misaligned Raise the lower guard by the retracting handle and as soon saw blade, causing an uncontrolled saw to lift up and out of the as the blade enters the material, the lower guard must be workpiece toward the operator;...

  • Page 25: Transporting Lithium Batteries

    Milwaukee service agents (see our list of Do not store the battery pack together with metal objects (short guarantee/service addresses).
  • Page 26 GB-DECLARATION OF CONFORMITY SYMBOLS We declare as the manufacturer under our sole responsibility that the product described under „Technical Data“ fulfills all the relevant CAUTION! WARNING! DANGER! provisions of the following Regulations S.I. 2012/3032 (as amended), S.I. 2008/1597 (as amended), Please read the instructions carefully before starting the S.I.
  • Page 27 Copyright 2020 Techtronic Industries GmbH Techtronic Industries (UK) Ltd Max-Eyth-Straße 10 Fieldhouse Lane 71364 Winnenden Marlow Bucks SL7 1HZ Germany +49 (0) 7195-12-0 (11.20) www.milwaukeetool.eu 4100 4252 36...
