WARNING:
FIRE OR EXPLOSION HAZARD
Failure to follow safety warnings exactly could result in serious injury,
death, or property damage.
— Do not store or use gasoline or other flammable vapors and
liquids in the vicinity of this or any other appliance.
— WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any
phone in your building.
• Leave the building immediately.
• Immediately call your gas supplier from a neighbour's
phone. Follow the gas supplier's instructions.
• If you cannot reach your gas supplier, call the fire
department.
— Installation and service must be performed by a qualified
installer, service agency or the gas fitter.
DaNger
A barrier designed to reduce the risk of burns from the
hot viewing glass is provided with this appliance and
must be installed for the protection of children and
other at-risk individuals.
Installation & Maintenance Manual
®
C
US
HOT GLASS wIll
cAuse buRns.
DO NOT TOUcH glAss
untIl cooled.
NEvER Allow chIldRen
to touch glAss.

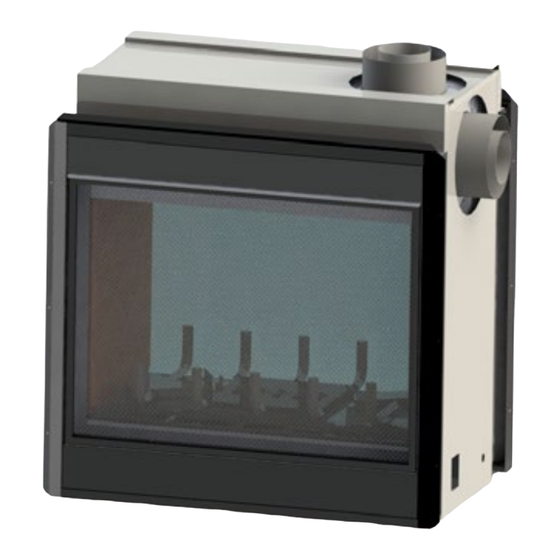

Divine See-Through
INDOOR GAS FIREPLAcE
H38FSDN Natural Gas
H38FSDL Propane Gas
H38FSDNI Natural Gas
H38FSDLI Propane Gas
• The installation of this fireplace must be done by a
qualified and certified gas appliance installer.
• Check local codes and read all instructions prior to
installation.
Notice
Installer: leave this manual with the appliance.
consumer: Retain this manual for suture reference.
cautioN
Installation and service must be performed by a qualified installer,
service agency or the gas fitter.
DaNger
Read and understand this manual. Improper installation, adjustment,
alteration, service or maintenance can cause serious injury, property
damage or even death. For assistance or additional information
consult a qualified installer, service agency or the gas supplier.
WarNiNg
some materials used in the manufacturing process of this product can
expose you to benzene which is known in the state of california to
cause cancer and birth defects or other reproductive harm. For more
information go to www.P65warnings.ca.gov
H42FSDN Natural Gas
H42FSDL Propane Gas
H42FSDNI Natural Gas
H42FSDLI Propane Gas
xg0207 - 170223
Advertisement
Table of Contents
Related Manuals for Montigo Divine See-Through H38FSDN
Summary of Contents for Montigo Divine See-Through H38FSDN
- Page 1 Installation & Maintenance Manual Divine See-Through INDOOR GAS FIREPLAcE H38FSDN Natural Gas H42FSDN Natural Gas H38FSDL Propane Gas H42FSDL Propane Gas H38FSDNI Natural Gas H42FSDNI Natural Gas H38FSDLI Propane Gas H42FSDLI Propane Gas • The installation of this fireplace must be done by a qualified and certified gas appliance installer. ® • Check local codes and read all instructions prior to installation. Notice WARNING: FIRE OR EXPLOSION HAZARD Failure to follow safety warnings exactly could result in serious injury,...
-
Page 2: Safety Alert Key
Introduction congratulations on your purchase of a Montigo Fireplace. with over 30 years of experience, Montigo is committed to providing you with a gas fireplace that is not only a beautiful addition to your space, but that is also designed and manufactured to the highest safety, reliability and engineering standards. -
Page 3: Table Of Contents
General contents Safety Alert Key .................. 2 Finishing around the fireplace ..............24 Introduction ..................2 Section 7: Screen Installation and Removal ......... 25 Rating Plate Sample ..................6 Removing the Screen...................25 Section 1: Product Dimensions ............7 To Install Screens ..................25 H38FSD Dimentions ..................7 Replacement Screens ..................25 H42FSD Dimentions ..................7 Section 8: Installing & Removing the Door ........ - Page 4 • should it be impossible to meet the venting requirements laid out in Notice section 3: Venting, please contact a local Montigo dealer regarding the use of a Montigo Power Vent. • lay out the Vent run; calculating the required elbows and straight do not use this appliance if any part has been under water.
- Page 5 General Standard Installation checklist this standard installation checklist is to be used by the installer in conjunction with, not instead of, the instructions contained within this installation manual. customer date Installed: Install Address: location of Fireplace: Installer: dealer Phone: Model (circle one): n, h38 l, h38 nI, h38...
-
Page 6: Rating Plate Sample
General Rating Plate Sample Figure 1.1 Rating Plate for standing pilot (SIT) Figure 1.2 Rating Plate for IPI electronic ignition xg0207 - 170223... -
Page 7: Section 1: Product Dimensions
General Section 1: Product Dimensions Please review the Installation checklist for general information on 2 " preparing for a successful installation of your fireplace. The fireplace may be installed in any location that maintains proper 8 " clearances to air conditioning ducts, electrical wiring and plumbing. Safety, as well as efficiency of operation, should be considered when 5"... -
Page 8: Section 2: Framing
Installation Section 2: Framing In wall framing dimensions Shelf over the fireplace, Top vent CombusTible note: when constructing the framed opening, please ensure there is maTerial baCkframe access to install the gas line when the unit is installed 46'' 50'' CombusTible header non-CombusTible header (h42sT only) 17½'' 19'' Both walls typical. May not be exactly as shown 46½'' 42½'' 49½''... -
Page 9: Clearances H38Df*St
Installation clearances H38DF*ST Installing the Nailing Flange Extension When installing a shelf over the top of the fireplaces, the following note: The nailing flange extension can be substituted with a guidelines must be adhered to: piece of non-Combustible material of the same size and thermal characteristics, ie: cement board or equivalent. This is recommended For side Vent applications, the minimum clearance is 2" from the side of in applications where the facing materials will not adhere to the the fireplace to a wall, or any combustible materials, and 10"... -
Page 10: Section 3: Venting
Installation Section 3: venting Montigo supplies a variety of direct venting and termination options. the direct vent termination location Must be selected such that it is the 8" outer Flue highest point in the venting assembly. It should also be selected such cover Plate that it provides the shortest vent run possible. -
Page 11: Section 3-2: Installing A Roof Mounted Direct Vent Termination
Installation Section 3-2: Installing a Roof Mounted Direct Vent Termination this section applies to installations where the direct vent termination PVtK1 termination will be roof mounted. storm collar 2' min Roof flashing Section 3-2-1: Venting Layout support ring selection of components and details of venting lay out should adhere support plate 32' max to the following guidelines: •... - Page 12 Installation MVtK1 termination 2' min. storm collar Roof flashing PeXt solid sections Firestop support plate 32' max support ring Firestop 90° Elbow 12" max. Figure 6.d Side vent, Roof mounted venting (1 = 90° bend). xg0207 - 170223...
-
Page 13: Section 3-3: Installing A Wall Mounted Termination 5''/8
NOTE: If subject to a highly corrosive environment A termination with a MosR Frame is installed from the inside of the i.e. seaside, Montigo recommends using stainless steel termination. structure. these are commonly used in high-rise construction. -
Page 14: Section 3-3-1: H38St Venting Layout: Wall Mounted Termination
Installation Section 3-3-1: H38ST Venting Layout: Wall Mounted Termination Top venting Graph heat shield 42'' Measure the vertical height from the fireplace hearth to the centre of Max. the termination and the horizontal run from the fireplace flue collar to termination the wall flange of the termination. Plot on the Venting Graph with an 'X'. If the 'X' falls on or above the top boundary of the shaded area, the installation is acceptable. -
Page 15: Side Venting Graph
Installation Side venting Graph 12'' Max. horozontal PXt extention Measure the vertical height from the fireplace hearth to the centre of run with no vertical lift the termination and the horizontal run from the fireplace flue collar to heat sheild the wall flange of the termination. -
Page 16: Section 3-3-2: H42St Venting Layout: Wall Mounted Termination
Installation Section 3-3-2: H42ST Venting Layout: Wall Mounted Termination Top venting Graph heat shield 36'' Max. ng Measure the vertical height from the fireplace hearth to the centre of Insulated 12'' Max. Propane the termination and the horizontal run from the fireplace flue collar to sleve termination required the wall flange of the termination. -
Page 17: Side Venting Graph
Installation Side venting Graph 30'' Measure the vertical height from the fireplace hearth to the centre of Max. the termination and the horizontal run from the fireplace flue collar to the wall flange of the termination. Plot on the Venting Grap with an 'X'. Flex or Rigid If the 'X' falls on or above the top boundary of the shaded area, the 14½''... -
Page 18: Section 3-3-2: Venting Components
E - Rigid Pipe Extension PXT - 5 (5" f/f Section) • Montigo recommends the use of a flex section for the final pipe PXT - 12 (12" f/f Section) connected directly to the fireplace offering greater flexibility of PXT - 20 (20" f/f Section) installation and absorption of movement. -
Page 19: Section 3-3-2.2: Alternate Venting Components
Installation Section 3-3-2.2: Alternate Venting Components the following components are approved for use with Montigo products. Please contact your local Montigo dealer for further information. component simpson duravent MetalFab selkirk Flexmaster Montigo Part number Part number Part number Part number Part number Part number... -
Page 20: Section 3-3-3: Heat Shields 5''/8
Installation Section 3-3-3: Heat Shields 5''/8'' Installing a Wall Mounted RHS8 heat shield Installing a Wall Mounted RHS101 Heat shield the Rhs8 heat shield cAnnot be used wIthIn 36" horizontal or 60" the Rhs101 heat shield Must be used where the Rhs8 termination vertically of the fireplace, (see figure 18a). For applications within these (Figure 18 and 18a) cAnnot be used. -
Page 21: Section 4: Wiring
Installation Section 4: Wiring OPTIONAL BATTERY bAtteRY PAcK PACK 1.5V AA type 1.5V AA tYPe 1.5V AA type 1.5V AA tYPe sPARK SPARK gReen GREEN 1.5V AA tYPe 1.5V AA type whIte WHITE blAcK 1.5V AA tYPe BLACK 1.5V AA type blAcK BLACK MAIn Power... -
Page 22: Pod - Pilot On Demand
Installation POD - Pilot on Demand What is POD and cPI mode? Installing the CPI Jumper Cable This fireplace is equipped with an “On Demand” intermittent pilot 1). Access the control box. ignition system (IPI) which also includes a continuous pilot ignition (cPI) mode with an integrated seven day timer. In IPI mode, the pilot will light before the main burner, when the appliance is turned on using a wall switch, remote or from a thermostat. -
Page 23: Isection 5: Installing The Gas Line
• To check pressures, control valves have a provision to remove a 1/8” N.P.T. plug to be fitted with a hose barb. • Montigo requires a service shut off valve be located in an accessible Gas Access 3”x 2” Ø 1 3/4”... -
Page 24: Section 6: Finishing
Installation Section 6: Finishing Mantels & Surrounds Finishing around the fireplace combustible mantels and mouldings may be safely installed over the note: national canadian gas Association mantel test requirements top and on the front of the fireplace provided that they do not project are for fire hazard prevention to combustible materials. -
Page 25: Section 7: Screen Installation And Removal
Installation Section 7: Screen Installation and Removal Removing the Screen Replacement Screens Grasp each top outer corner of the screen with your thumb and finger For replacement part order numbers, please refer to section and pull towards yourself. when the upper screen studs are free, lift "Replacement Parts" the screen at an angle from the lower slots from which the screen bottom tabs are held. -
Page 26: Section 8: Installing & Removing The Door
Installation Section 8: Installing & Removing the Door Removing the door STEP 4: the doors are removed in a few simple steps. Follow these below to Ensure the tool is firmly remove the horizontal access panel, unlatch the door buckles and, in the lower end of the remove the door. Replace in reverse order. slot, (as shown), then pull toward you. -
Page 27: Section 9: Installing The Accessories
Installation Section 9: Installing the Accessories H38ST Installing the Logs and Embers H42ST Installing the Logs and Embers STEP 1: Place Logs' "A" on Left & Right stands. STEP 1: The two bottom logs ("A" & "B") are mounted on the burner grate as shown LOG A LOG A LOG A Figure 22.c STEP 2: Place logs' "b"... -
Page 28: (Linear Conv.) Installing The Firestones Or Optional Fireglass
Figure 21.b Completed firestone installation WARNING: this appliance is intended for use only with the included Montigo burners and accessories. never install or add any additional or alternative media, rock wool or other material in this appliance. the use of additional or alternative materials may pose potential safety hazards, damage to the appliance, and void manufacturer’s warranty. -
Page 29: Section 10: Start Up Sequence
Operation Section 10: Start up Sequence For Your Safety - READ BEFORE LIGHTING: with American Flame Electronic Ignition WARNING If the information in these instructions is not followed exactly, a fire or explosion may result causing property damage, personal injury or death. WARNING/ CAUTION: Hot while in operation. -
Page 30: Sit Proflame 2 Electronic Ignition
Operation SIT Proflame 2 Electronic Ignition For Your Safety - READ BEFORE LIGHTING: with American Flame Electronic Ignition stoP! Read the safety information above on this label. Turn fireplace "ON" using wall switch or remote control. Remove the lower horizontal access panel. If the Fireplace does not light, the system will cycle through two trials, (one minute audible clicking, thirty seconds of silence, and then another one Turn "ON"... -
Page 31: Remote Operation
Operation Remote Operation The Proflame 2 System consists of the following elements: 1. Pilot Assembly blue back lit lcd display 2. Proflame gas Valve. 3. Proflame 2 control Module On/Off key 4. wiring harness thermostat key 5. Variable speed fans (If applicable) Up/Down arrow key 7. -
Page 32: Initializing The System For The First Time
Operation Initializing the System for the first time Temperature Indication Display 1. set master override switch to off position. with the system in the "off" position, press the thermostat Key and the Mode Key at the same time. look at the lcd screen on 2. - Page 33 Operation Remote-Flame Control Room Thermostat (Remote control Operation) when you turn on the fireplace it starts on high. the proflame 2 has six (6) flame levels. each time you press the down Arrow Key the Remote control can operate as a room thermostat. the once the flame height will reduce by one step.
-
Page 34: Disabling Thermostat
Operation Disabling Thermostat Fan Speed control the fireplace is equipped with optional hot air circulating fans. some jurisdictions and bedroom installations require the the speed of the fans can be controlled by the Proflame system. thermostat to be disabled. the fan speed can be adjusted through six (6) speeds. to activate this function use the Mode Key, see Figure 27, to index to the fan 1. -
Page 35: Section 10: Cleaning And Maintenance
Operation Section 10: cleaning and Maintenance General Hi-Lo Burner Adjustment: (SIT Nova 820). • Have the fireplace and installation inspected yearly. The inspection must include, but is not limited to, the following: the h*34dF* is equipped with an adjustable burner, allowing you to raise or lower the flames. To adjust the flames, locate the black knob •... -
Page 36: Troubleshooting Sit Nova 820
2. check wall switch for proper connection If your fireplace still does not operate correctly, consult your local Montigo dealer. All service and repairs should be performed by a qualified Technician. All spare parts, optional fans, and optional trim finishes are available from your local Montigo dealer. xg0207 - 170223... -
Page 37: Replacement Parts
Rgc1006 Propane gas Valve Rgc1005 Rgc1005 ng Pilot RPA020 RPA020 Propane Pilot RPA021 RPA021 ng burner contact local Montigo dealer contact local Montigo dealer Propane burner contact local Montigo dealer contact local Montigo dealer thermocouple Rtc182 Rtc182 thermopile RPg001 RPg001... -
Page 38: Indoor Fireplace In Protected Outdoor Applications
Appendix Indoor fireplace in protected outdoor applications This fireplace may be installed into outdoor locations provided they are suitably protected from direct water impingement. However, all installation clearances in the appliance manual must be observed. Framing, clearances to combustibles, Mantel heights, Facing Requirements, Venting Installation, etc. -
Page 39: Appendix A: Venting Terminations
Appendix Appendix A: venting Terminations Covered Covered Alcove Detail Alcove Detail Vinyl Siding 2’ 2’ 2’ 2’ 17.5’’ 29.5’’ 11.5’’ 17’’ Must use Vinyl Siding Termination Shield location Canada* usa** clearance to the termination frame above grade, veranda, porch, deck, or balcony 12 inches 12 inches clearance to top of doors or operable windows... -
Page 40: Appendix B: Warranty
(collectively referred to herein as "the companies"), warrants the If the components of the appliance covered by this warranty Montigo gas appliance (referred to herein as 'the appliance') to are found to be defective within the time frame stated (see the... -
Page 41: Appendix B: Warranty Continued
Montigo dealer (www.Montigo.com) or contact Montigo direct at techsupport@ montigo.com. ensure you have your sales receipt and the model and serial number of your appliance. DO NOT ATTEMPT TO DO ANY SERvIcE WORK YOURSELF If you cannot locate the installing dealer, or nearest dealer/ distributor, you must notify the companies in writing. -
Page 42: Appendix C: Amendment
Appendix Appendix c: Amendment (Gas Fireplace / Equipment sold in the State of Massachusetts) 5.08: Modifications to NFPA-54, Chapter 10 (1) Revise nFPA-54 section 10.5.4.2 by adding a second exception as 4. InsPectIon. the state or local gas inspector of the side wall follows: horizontally vented gas fueled equipment shall not approve the installation unless, upon inspection, the inspector observes... - Page 43 Notes xg0207 - 170223...
