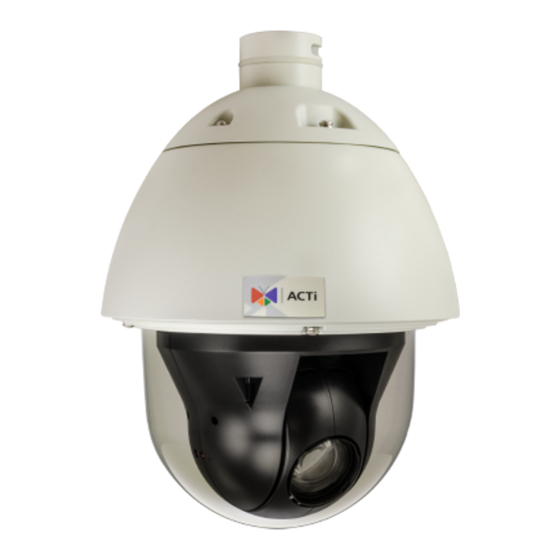

ACTi B916 Hardware Manual
Outdoor ptz / speed dome camera
Hide thumbs
Also See for B916:
- Hardware manual (49 pages) ,
- Hardware manual (49 pages) ,
- Quick installation manual (4 pages)
Related Manuals for ACTi B916
Summary of Contents for ACTi B916
- Page 1 Outdoor PTZ / Speed Dome Camera Hardware Manual B916, B917 I93, I94, I95, I96, I97, I910 2016/06/20...
-
Page 2: Table Of Contents
How to Waterproof the Cable Using the Conduit Gland ......23 How to Use the Junction Box ..............27 Connect to Network ................. 28 Other Cable Connections ........29 How to Use the Power Adapter ............... 29 How to Replace the Fuse ..............30 www.acti.com... - Page 3 How to Remove the Memory Card ............37 How to Attach the Safety Wire Strap ............38 How to Replace the Dome Cover ............40 Accessing the Camera ......... 42 Configure the IP Addresses ..............42 Access the Camera .................. 46 www.acti.com...
-
Page 4: Precautions
Every reasonable care has been taken during the writing of this manual. Please inform your local office if you find any inaccuracies or omissions. We cannot be held responsible for any typographical or technical errors and reserve the right to make changes to the product and manuals without prior notice. www.acti.com... - Page 5 This product has been tested and found to comply with the limits for Class B Information Technology Equipment according to European Standard EN 55022 and EN 55024. In a domestic environment, this product may cause radio interference in which cause the user may be required to take adequate measures. www.acti.com...
-
Page 6: Safety Instructions
Safety Check Upon completion of any service or repairs to this video product, ask the service technician to perform safety checks to determine if the video product is in proper operating condition. www.acti.com... -
Page 7: Introduction
Introduction List of Models This hardware manual contains the following model: 2MP Video Analytics Outdoor Speed Dome with D/N, Extreme WDR, B916 SLLS, 20x Zoom lens 2MP Video Analytics Outdoor Speed Dome with D/N, Extreme WDR, B917 SLLS, 30x Zoom lens... -
Page 8: Package Contents
Power Adapter Universal Converter Gland Rubber Rings Cable Gland Conduit Gland Hex Screwdriver (x2) Quick Installation Safety Strap Screws Warranty Card Guide DI/DO Terminal Blocks (x2) NOTE: The above pictures are for reference only; actual items may slightly vary. www.acti.com... -
Page 9: Physical Description
Supoorts microSDHC and microSDXC cards. Power LED The Power LED lights red when the camera is powered up. Audio Output This jack connects to an audio output device, such as a speaker. See How to Connect Audio Devices on page 36. www.acti.com... - Page 10 This jack connects to the power adapter and power cord to supply power to the camera. See How to Use the Power Adapter on page 29. Ethernet Port The Ethernet port connects to a network using a standard Ethernet cable. www.acti.com...
-
Page 11: Mounting Options
Mounting Options There are several mounting options that you can use to install the camera. Below are some examples. For more information about mounting solutions and accessories, please visit our website (http://www.acti.com/mountingselector). Mount Types Accessories Pendant Suitable when mounting the Outdoor PTZ on a hard ceiling. -
Page 12: Other Mounting Accessories
Horizontal Suitable when mounting the Outdoor PTZ on a horizontal pole. Pole Mount PMAX-0102 PMAX-0503 Corner Suitable when mounting the Outdoor PTZ on a corner wall. Mount PMAX-0312 PMAX-0402 Other Mounting Accessories Accessories PMAX-0702 (Junction Box) PMAX-0104 (Extension Tubes) www.acti.com... -
Page 13: Before Installation
1. Loosen the four (4) screws using the hex screwdriver included in the camera package. 2. Carefully lift the camera cover and place it aside. NOTE: The cover is attached to the camera by a metallic wire strap; do not abruptly lift the cover. www.acti.com... - Page 14 3. Remove the styrofoam and silicon bags from the camera. 4. If a memory card will be used for local recording, insert the memory card at this point. 5. Align the screw holes and tightly secure the screws using the bundled hex screwdriver. www.acti.com...
-
Page 15: Attach The Safety Strap
2. Insert the removed set screw to the smaller hole of the safety strap. 3. Attach the set screw back to the camera. 4. Attach the other end of the safety strap to the designated screw of the mounting accessory during installation (refer to the applicable installation guide for details). www.acti.com... -
Page 16: Installation Procedures
Below are the basic installation procedures when mounting the camera with PMAX-0312 Wall Mount with access behind the wall. For detailed information and other mounting solutions, download the Installation Guide from the website (http://www.acti.com/mountingselector). NOTE: The following pictures are for reference only, actual camera and cable connections may slightly vary. - Page 17 Connections on page 18.) DISCLAIMER: ACTi will not be responsible for camera damage caused by water entering the cable connections. 3. Mount the camera 1. Align the gap on the camera to the tab inside the mounting solution and insert the camera through the mounting tube.
-
Page 18: Waterproof The Cable Connections
For use with an exterior-grade Ethernet cable included in the package). (not included in the package). How to Waterproof the Cable Using How to Waterproof the Cable Using the Conduit Gland on page 23. the Cable Gland on page 19. www.acti.com... -
Page 19: How To Waterproof The Cable Using The Cable Gland
NOTE: Not included in the camera package. NOTE: Not included in the camera package. 2. Detach the cable gland as shown below. Gland Body Clamping Nut Sealing Rubber and Claw 3. Insert the clamping nut through the Ethernet cable. www.acti.com... - Page 20 Make sure the rubber ring is completely aligned on the gap on the gland body. 6. Attach the gland body to the Ethernet port of the camera. IMPORTANT! Make sure the rubber ring is completely aligned and flat on the gland body to avoid possible water leakage. www.acti.com...
- Page 21 8. Insert the sealing rubber and claw into the cable gland body. 9. Attach the clamping nut to the cable gland body. Make sure the clamping nut is tightly secured and the rubber is squeezed in to avoid water leakage. www.acti.com...
- Page 22 (see How to Use the Junction Box on page 27). DISCLAIMER: ACTi will not be responsible for camera damage caused by improper use of the power adapter. www.acti.com...
-
Page 23: How To Waterproof The Cable Using The Conduit Gland
Not included in the camera package. camera package. 2. Detach the conduit gland as shown below. Gland Body Clamping Nut Sealing Rubber 3. Insert the Ethernet cable through the flexible conduit. Then insert the clamping nut through the flexible conduit. www.acti.com... - Page 24 Make sure the rubber ring is completely aligned on the gap on the gland body. 6. Attach the gland body to the Ethernet port of the camera. IMPORTANT! Make sure the rubber ring is completely aligned and flat on the gland body to avoid possible water leakage. www.acti.com...
- Page 25 7. Connect the Ethernet connector to the Ethernet port of the camera. 8. Insert the sealing rubber into the conduit gland body. 9. Attach the clamping nut to the conduit gland body. Make sure the clamping nut is tightly secured to avoid water leakage. www.acti.com...
- Page 26 It is recommended to place the power adapter indoors or housed it inside a junction box (see How to Use the Junction on page 27). DISCLAIMER: ACTi will not be responsible for camera damage caused by improper use of the power adapter. www.acti.com...
-
Page 27: How To Use The Junction Box
Then connect the necessary cables. (Refer to the Installation Guide in using PMAX-0702 for detailed instructions). 3. Secure the flex conduit fitting onto the junction box hole. NOTE: The PMAX-0702 Junction Box is not a bundled accessory. Contact your sales agents to purchase. www.acti.com... -
Page 28: Connect To Network
High PoE Injector available for purchase. Using other accessories not approved by the manufacturer may cause damage to the equipment. Accessing the Camera on page 42 for more information on how to access the Live View of the camera. www.acti.com... -
Page 29: Other Cable Connections
1. Slide the voltage switch to set the adapter voltage according to the voltage standard in your location. 2. Connect the power cord to the power adapter. 3. Connect the power connector of the camera to the cable connector of the adapter. Camera Side Power Adapter Side www.acti.com... -
Page 30: How To Replace The Fuse
1. Use a flat-head object, such as a screwdriver, to pull and remove the fuse holder from the power adapter. 2. Remove the main fuse from its bay and pull to retrieve the replacement fuse. Main Fuse Replacement Fuse 3. Push the replacement fuse onto its bay. www.acti.com... -
Page 31: How To Connect Digital Input / Digital Output Devices
For example, you can connect an “alarm horn” to the camera; as such when an event occurs inside the camera (e.g. detected intruder), the alarm horn will sound. Other common DO device applications are motion-triggered lights, electric fence, magnetic door locks, etc. www.acti.com... - Page 32 DO device wires to the following: DO1 and 12V Digital Output 1 DO2 and 12V Digital Output 2 NOTE: In case of connecting two (2) DO devices, the 12V pin can be commonly shared by the two (2) DO devices. www.acti.com...
- Page 33 DI/DO device to an external power source. In this case, use the GND and the DI1 cables to connect a DI device and use the 12V and the DO1 cables to connect a DO device. See wiring scheme below: www.acti.com...
- Page 34 Note that when choosing an appropriate relay, please refer to its specifications and make sure they match the above design. The triggering circuit voltage has to be around 12V DC and the switch-controlled circuit voltage has to match the external power supply (e.g. 110V AC or 220V AC). www.acti.com...
- Page 35 The illustration below is a graphic example of connecting a relay to a high voltage DO device. 110V-220V AC External Power Source Relay (DO1 Device) Outdoor PTZ Illuminator NOTE: For more information on DI/DO connections, please refer to the article All About Digital Input and Digital Output downloadable from http://Download.acti.com?id=516. www.acti.com...
-
Page 36: How To Connect Audio Devices
If the camera is installed outdoors, be sure o wrap the audio connectors with Waterproof tape (can be purchased in hardware stores). DISCLAIMER: ACTi will not be responsible for damaged cameras due to water leakage caused by improper waterproofing of cables. Audio Input Jack... -
Page 37: Other Accessories
In case there is a need to remove the card, make sure to access the camera Web Configurator to safely “unmount” the card first (see the camera Firmware Manual for more information). Once unmounted from the firmware, push the card to eject it from the slot. www.acti.com... -
Page 38: How To Attach The Safety Wire Strap
Hardware Manual How to Attach the Safety Wire Strap Most of ACTi’s mounting accessories have a safety screw where the bundled safety wire strap can be used as additional protection to avoid dropping the camera while mounted on the high ceilings, etc. - Page 39 Hardware Manual 4. Align the bigger end of the safety wire strap on the mounting solution and then tightly attach the screw to lock the safety wire strap in place. www.acti.com...
-
Page 40: How To Replace The Dome Cover
1. Loosen the four (4) screws using the hex screwdriver included in the camera package. 2. Carefully lift the cover. Using a screwdriver, remove the screw to detach the cover from the camera. 3. Prepare the replacement dome cover. Below is an example of the smoke vandal proof cover. www.acti.com... - Page 41 Hardware Manual 4. Attach the dome cover to the camera by securing the screw through the wire strap. 5. Tighten the four (4) screws to close the dome cover. www.acti.com...
-
Page 42: Accessing The Camera
In the example below, the camera model that has just been connected to the network is successfully found. Double-click the mouse on the camera model name, the default browser of the PC is automatically launched and the IP address of the target camera is already filled in the address bar of the browser. www.acti.com... - Page 43 Search and downloand IP Utility for free from http://www.acti.com/DownloadCenter. When you launch IP Utility, the list of connected cameras in the network will be shown. See sample illustration below: The camera model name is shown on the list.
- Page 44 PC has to be configured to match the network segment of the camera. Manually adjust the IP address of the PC In the following example, based on Windows 7, we will configure the IP address to 192.168.0.99 and set Subnet Mask to 255.255.255.0 by using the steps below: www.acti.com...
- Page 45 In such case, please plug in only one camera at a time, and change its IP address by using the Web browser before plugging in the next one. This way, the Web browser will not be confused about two devices having the same IP address at the same time. www.acti.com...
-
Page 46: Access The Camera
When using Internet Explorer browser, the ActiveX control for video stream management will be downloaded from the camera directly – the user just has to accept the use of such control when prompted so. No other third party utilities are required to be installed in such case. www.acti.com... - Page 47 HTTP port of the camera is 80, which can be omitted from the address for convenience. Before logging in, you need to know the factory default Account and Password of the camera. Account: Admin Password: 123456 For further operations, please refer to the Firmware User’s Manual. www.acti.com...
- Page 48 Copyright © 2015, ACTi Corporation All Rights Reserved 7F, No. 1, Alley 20, Lane 407, Sec. 2, Ti-Ding Blvd., Neihu District, Taipei, Taiwan 114, R.O.C. TEL : +886-2-2656-2588 FAX : +886-2-2656-2599 Email: sales@acti.com...
