Pin assignments

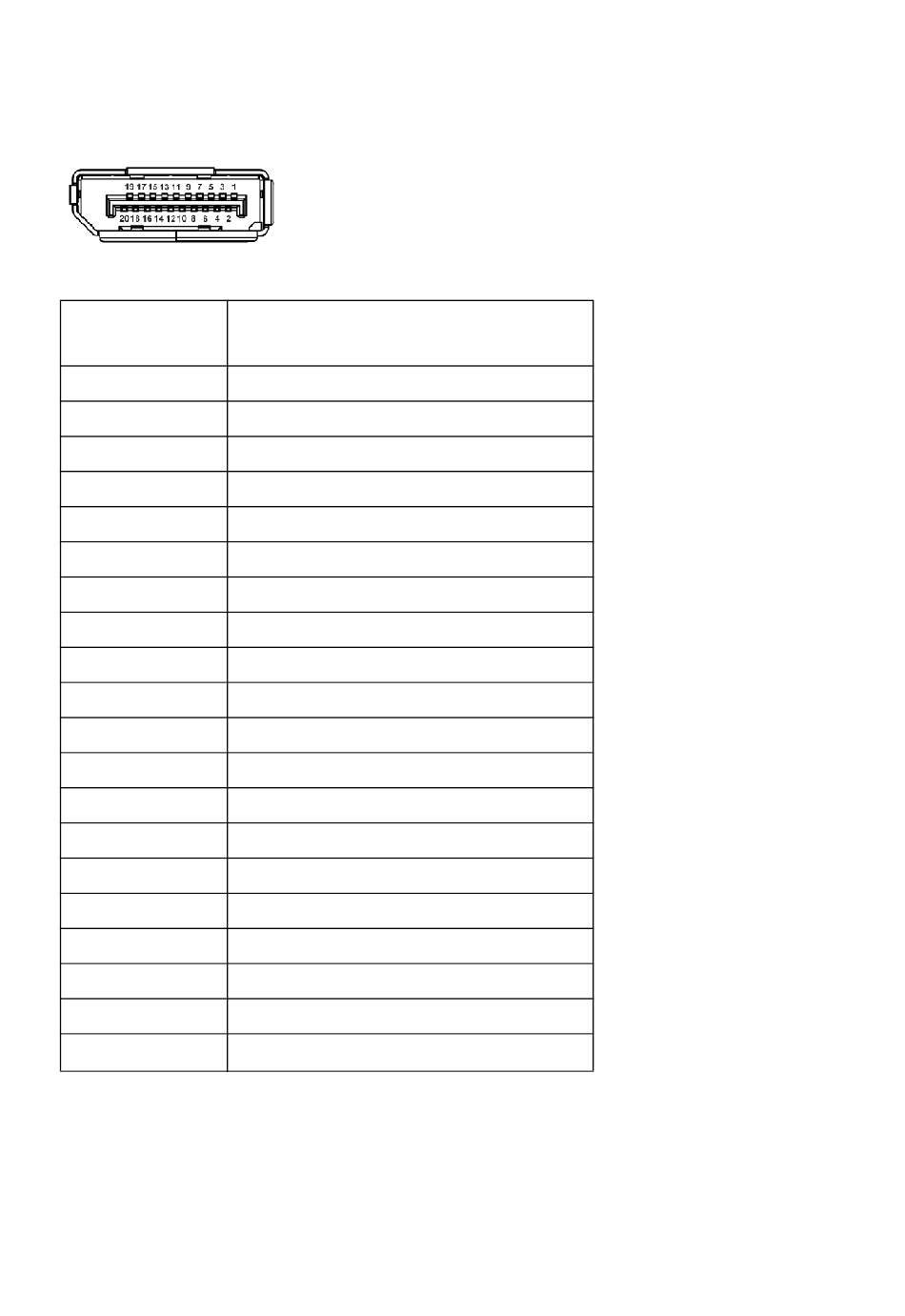

DisplayPort connector
Pin number
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
20-pin side of the connected
signal cable
ML3 (n)
GND
ML3 (p)
ML2 (n)
GND
ML2 (p)
ML1 (n)
GND
ML1 (p)
ML0 (n)
GND
ML0 (p)
GND
GND
AUX (p)
GND
AUX (n)
Hot Plug Detect
Re-PWR
+3.3 V DP_PWR
