Summary of Contents for Weidmüller BLF 7.62HP Series
Page 1

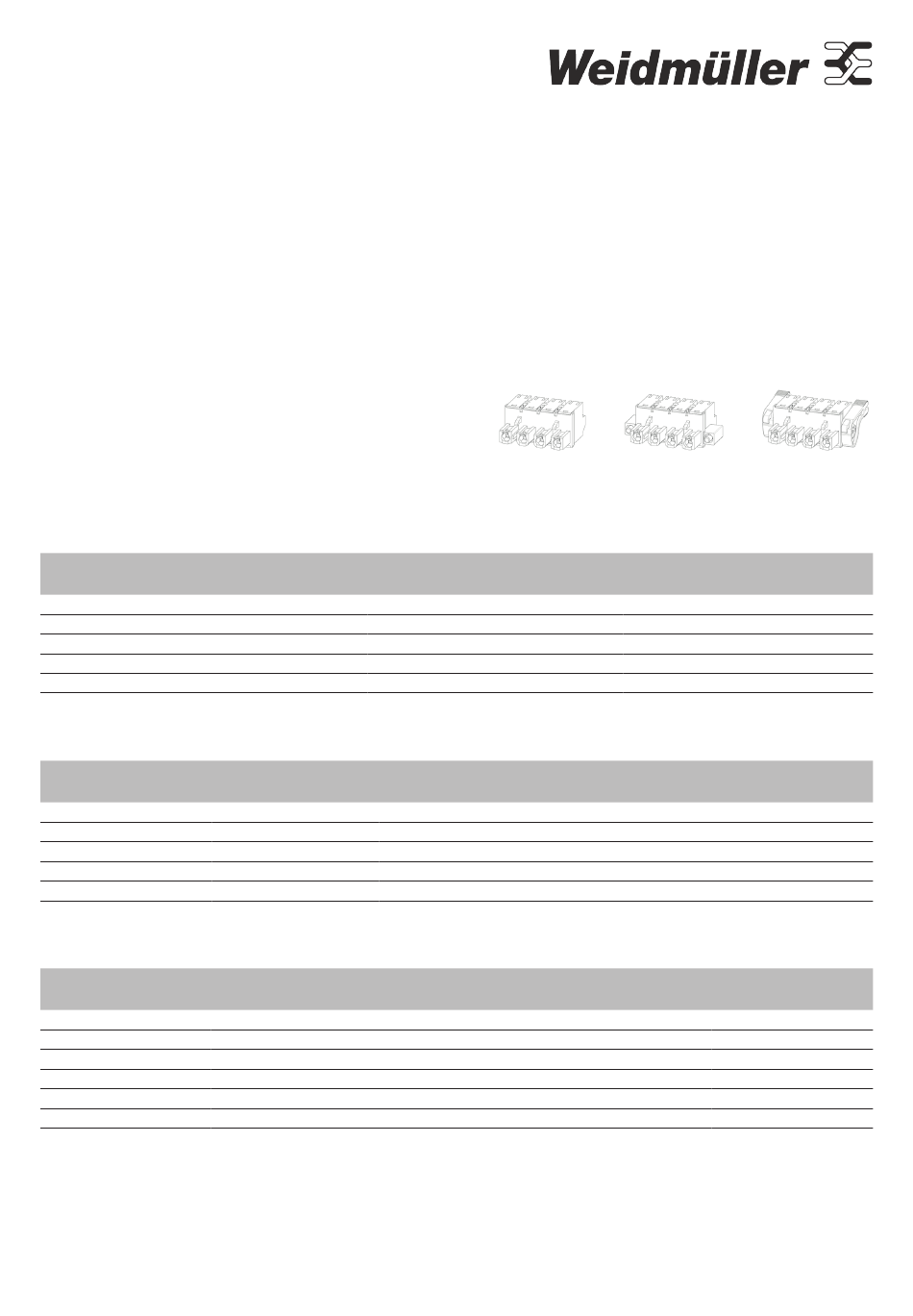

Assembly instructions PUSH IN connector with push-button – BLF 7.62HP OMNIMATE Power – series BLF 7.62HP All other technical data can be obtained from the data sheet. Cables suitable for connection: Strip the insulation from the cables to a length of approx. 10 mm ± 1 mm. If you are using wire-end ferrule with plastic collars, strip the cables according to the table below.
PUSH IN connector BLF 7.62HP push-button (slider/pusher) conductor entry spring clamp Delivery status: • The push-buttons (slider/pusher) are not engaged, the clamping units are closed. Recommended tool: • Screwdriver blade 0,6 x 3,5 x 100 • Screwdriver blade standard DIN 5264 Connecting flexible conductors: 1.
Page 3
Connecting conductors with wire-end ferrule or solid conductors: 1. Plug in the conductor into the contact unit up to the end stop. Ensure by gently pulling on the conductors that the clamping unit is securely engaged. Releasing conductors: 1. To open the clamping unit press the screwdriver individually onto the push-button (slider/pusher) until it is engaged and remove the conductor. Press the screwdriver into the appropriate slot and avoid any rotational movement or torsion of the screwdriver.
Page 4
Montageanleitung PUSH IN Steckverbinder mit Betätigungselement – BLF 7.62HP OMNIMATE Power – Serie BLF 7.62HP Alle weiteren technischen Daten sind dem Datenblatt zu entnehmen. Anschließbare Leiter: Isolieren Sie die Leitungen auf einer Länge von ca. 10 mm ±1 mm ab. Wenn Sie Aderendhülsen mit Kunststoffkragen verwenden, isolieren Sie die Leitungen gemäß...
PUSH IN Steckverbinder BLF 7.62HP Betätiger (Schieber/ Pusher) Leitereinführung Klemmfeder Auslieferungszustand: • Die Betätiger (Schieber/Pusher) sind nicht verrastet, die Klemmstellen sind geschlossen. Empfohlenes Werkzeug: • Schraubendreherklinge 0,6 x 3,5 x 100 • Schraubendreherklinge Norm DIN 5264 Anschließen von flexiblen Leitern: 1.
Page 6
Anschließen von Leitern mit Aderendhülse oder starren Adern: 1. Stecken Sie den Leiter, bis zum Anschlag, in die Klemmstelle ein. Kontrollieren Sie durch leichten Zug an den Adern, dass die Klemmstelle sicher verriegelt ist. Lösen der Leiter: 1. Zum Öffnen der Klemmstelle drücken Sie mit dem Schlitzschraubendreher einzeln auf den Betätigter (Schieber/Pusher) bis dieser einrastet und ziehen den Leiter heraus.
This manual is also suitable for:
Blf 7.62hp/05/180f sn or bxBlf 7.62hp/11/180 sn bk bx
