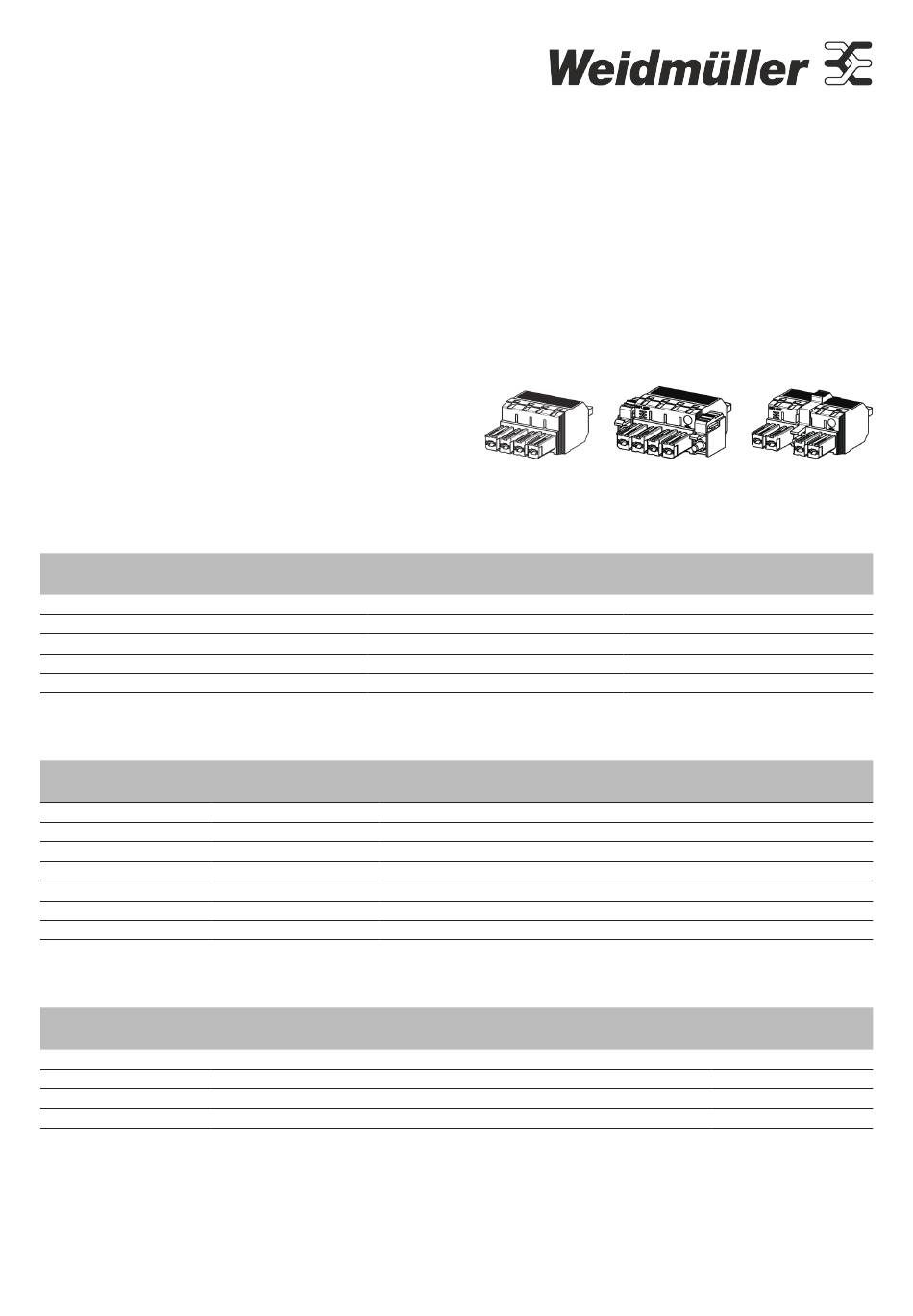

Assembly instructions
PUSH IN connector with push-button –
BVFL 7.62HP
OMNIMATE Power – series BVFL 7.62HP
All other technical data can be obtained from the data sheet.
Cables suitable for connection:
Strip the insulation from the cables to a length of approx. 12 mm ± 1 mm. If you are using wire-end ferrule with plastic collars,
strip the cables according to the table below.
Solid (H05(07) V-U)
Flexible (H05(07) V-K)
with wire-end ferrule according to DIN 46 228/1
with wire-end ferrule; with collar DIN 46 228/4
AWG
We recommend using the following wire-end ferrules with plastic collar:
Cable diameter
0.5 mm²
0.75 mm²
1 mm²
1.5 mm²
2.5 mm²
4 mm²
6 mm²
We recommend using the following wire-end ferrules without plastic collar:
Cable diameter
1.5 mm²
2.5 mm²
4 mm²
6 mm²
min.
cable connection cross-section
0.5 mm²
0.5 mm²
1.5 mm²
1.5 mm²
24
Type Weidmüller color code
Order number
H0.5/18 1076980000
H0.75/18 9025910000
H1.0/18 9025930000
H1.5/18
H2.5/18 9019170000
H4.0/20 9019200000
H6.0/20 0533500000
Type Order number
H1.5/12 9004060000
H2.5/12 0186100000
H4.0/12 0244100000
H6.0/12 0191900000
We reserve the right to make technical changes. Personal support can be found on our website: www.weidmueller.com/contact
max.
cable connection cross-section
6 mm²
6 mm²
6 mm²
6 mm²
8
DIN color code Stripping length
Order number
1076990000 14 ± 1 mm
9019060000 14 ± 1 mm
9019110000 15 ± 1 mm
9019140000 15 ± 1 mm
9019170000 14 ± 1 mm
9019200000 14 ± 1 mm
9019220000 14 ± 1 mm
Stripping length
12 ± 1 mm
12 ± 1 mm
12 ± 1 mm
12 ± 1 mm
