Indoor Siren io
Images
(link to images)
Compatible with
Short description
Scare burglars with a siren.
ng

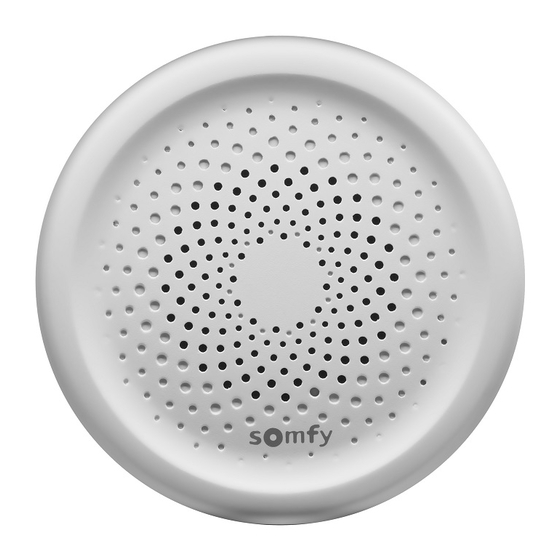

Indoor Siren io is a siren that complements Somfy TaHoma Smart Home system
Lo
description
and can be used with Somfy sensors and detectors. When unwanted situations
happen, the siren can be activated and a loud sound at 95 dB sounds.
Scare away burglars
Secure your home with Somfy TaHoma and Indoor Siren io. When a sensor
detects something in the property, such as motion or fire, the siren is activated
and scare potential burglars and warns those who live in the property.
Installing the wireless siren
Insert the supplied batteries. Add the siren to your TaHoma system by using
"configuration" and "io‐products" and "device" in the interface. Attach the siren
with the mounting plate on the back.
Versatility
Indoor Siren io can be used via the TaHoma with smoke detectors, magnetic
contacts (door and window contacts), motion detectors, water leakage sensors
or panic button (SOS) on the TaHoma remote, all from Somfy.
Automatic test
Indoor Siren io regularly test the batteries, to be sure the device is always
connected with TaHoma. You can see the current battery status in TaHoma.
Easy to maintain
Indoor siren io powered by 4 AA batteries and is normally working for
approximately 2 years.
Secure connection
Indoor siren io communicate with the Somfy unique two‐way protocol "io‐home
control," which has a secure connection using 128‐bit encryption, and a radio
range of 20 meters indoors by two concrete walls or 200 meters in open field.
2 year warranty
All Somfy products are developed in France and subjected to rigorous testing.
The warranty on the siren is 2 year.
Main
Option
TaHoma v1
TaHoma v2
Ref
EAN
RRP
Launch
Sketch
2401453
3660849508050
79£
April
Packaging
Advertisement
Table of Contents
Related Manuals for SOMFY Indoor Siren io
Summary of Contents for SOMFY Indoor Siren io
- Page 1 2401453 3660849508050 Indoor Siren io 79£ Launch April Images (link to images) Main Option Sketch Packaging TaHoma v1 TaHoma v2 Compatible with Short description Scare burglars with a siren. ng Indoor Siren io is a siren that complements Somfy TaHoma Smart Home system description and can be used with Somfy sensors and detectors. When unwanted situations happen, the siren can be activated and a loud sound at 95 dB sounds. Scare away burglars Secure your home with Somfy TaHoma and Indoor Siren io. When a sensor detects something in the property, such as motion or fire, the siren is activated and scare potential burglars and warns those who live in the property. Installing the wireless siren Insert the supplied batteries. Add the siren to your TaHoma system by using “configuration” and "io‐products" and "device" in the interface. Attach the siren with the mounting plate on the back. ...
- Page 2 Benefits • Easy to install • Discreet and can be placed anywhere in your home • Powerful siren of 95 dB sound level • Activated when one or more Somfy sensors detect actions • Discourage burglars via high tone • Can be used in conjunction with Somfy smoke detector • Wireless • Can be placed permanently or is completely portable • Battery life ‐ about 2 years. • For use with Somfy TaHoma Smart Home system. • Developed and tested in France • 2‐year warranty Content • 1x Indoor Siren • 4x AA batteries • 1x Adhesive pads for mounting Specification • Supply: 4x AA (included) • Battery life: 2 years • Communication: io (868‐870 MHz) • Range: open field: 200 m, through two concrete walls: 30 m • Protection: IP20 • Operating temperature range: 0 ° C to + 60 ° C • Dimensions: 99 x 51 x 99 mm • Weight: 135 g • Noise level: 95 dB or 65 dB (choose one of the values) • Colour: White • Warranty: 2 years Mounting 1. Fixed mounting with screws 2. Detachable stick through the mounting holes on the mounting plate. 3. Mounting with self‐adhesive pads. (included in the pack) Activation and use 1. Insert the batteries in the siren 2. Add in TaHoma ‐ Go to the main menu. ...
- Page 3 Test TaHoma ‐ Log into your TaHoma. ‐ Go to the tab "my safety" or "my house". ‐ Open the siren by clicking on the icon. ‐ Click "Test": Depending on the setting, the siren will sound a strong signal or a discrete. Factory reset To reset the siren: ‐ Remove the mounting plate from the siren. ‐ Press for 10 seconds on the "Prog": LED flashes. ‐ Then remove the siren from TaHoma. • How long will the speaker be activated when the siren goes off? The siren sounds 3 by 1.5 minute with 30 second pause in between. • The instructions in this manual is incorrect ‐ according to the instructions, the volume can be adjusted in the settings, but this is done as described above under "rename". • Note that the siren must be added in TaHoma when batteries are installed. • It is possible to adjust the volume of the siren ‐ loudly or discreetly. This is a general approach and cannot be changed for certain functions, i.e. always either 95 dB or 65 dB. • When you put the alarm on, the siren will beep 6 times. • Icon Indoor Siren io TaHoma can be confusing ‐ when in the non‐activated position, it is grey with a solid line. This is the case even in the "my safety". Only when the siren is activated (sounds), it lights red! The siren is quiet The siren is activated Product information https://somfy.egnyte.com/fl/SsCejWl93E ...
