Page 2: Product Overview

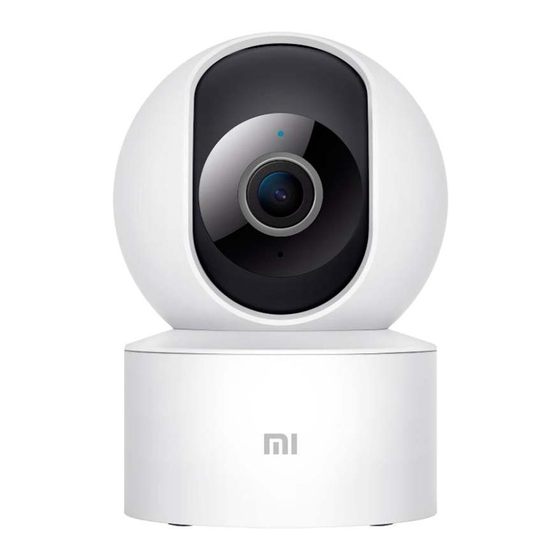

Product Overview Read this manual carefully before use, and retain it for future reference. Indicator Lens Microphone MicroSD Card Loudspeaker Slot (Visible Reset when lens is Reset Button facing upward) (Visible when Micro-USB lens is facing Power Port upward) Front View Rear View Package Contents: Mi 360°... -
Page 3: Installation
Installation The camera can be placed on a at surface such as a writing desk, dining table, co ee table, or it can be mounted on a wall. Mounting the camera on a wall: 1. First use a pencil to mark the positions for the base mounting holes on the wall, then drill two holes at the marked positions. - Page 4 3. Place the side of the base with arrows facing forward, and then align the holes. Insert the screws and then tighten them into the wall plugs with a Phillips head screwdriver. 4. Align the grooves on the bottom of the camera with the raised part on the base, and then turn it clockwise until it locks into place.
-
Page 5: How To Use
How to Use Installing a MicroSD card Make sure the camera is turned o . Push the lens upward to reveal the MicroSD card slot. Insert the microSD card into the card slot with its contact points facing downward. Note: Disconnect the camera from the power before installing or removing a MicroSD card. - Page 6 Note: When the camera is working, do not turn the lens of the camera nor force it to rotate. If the positioning of the lens is inaccurate, please calibrate it in the Mi Home/Xiaomi Home app. Indicator Blue: Connected successfully/Working properly...
- Page 7 Connect with Mi Home/Xiaomi Home App This product works with Mi Home/Xiaomi Home app*. Control your device with Mi Home/Xiaomi Home app. Scan the QR code to download and install the app. You will be directed to the connection setup page if the app is installed already.
-
Page 8: Real-Time Surveillance
Once a MicroSD card is installed and the camera is plugged in, it will automatically start recording video. The playback interface can be accessed by tapping the playback button in the camera's plugin in the Mi Home/Xiaomi Home app, drag the timeline to select and playback the desired time period. - Page 9 Then you will get the app push noti cation. The home surveillance assistant can be enabled or disabled in the camera's plugin in the Mi Home/Xiaomi Home app. You can set 24-hour, daytime, nighttime, custom period surveillance, alert...
-
Page 10: Video Sharing
To invite others to watch, the camera can be shared through the device sharing function in the settings menu of the camera's plugin in the Mi Home/Xiaomi Home app. The person the camera is shared with needs to download the Mi Home/Xiaomi Home app and sign in with a Mi account. - Page 11 Precautions The operating temperature range for this camera is between -10°C and 40°C. Do not use the camera in environments with temperatures above or below the speci ed range. The camera is a precision electronic product. In order to ensure its normal operation, do not install the camera in environments with high humidity levels nor allow water to get into it.
-
Page 12: Weee Information
WEEE Information All products bearing this symbol are waste electrical and electronic equipment (WEEE as in directive 2012/19/EU) which should not be mixed with unsorted household waste. Instead, you should protect human health and the environment by handing over your waste equipment to a designated collection point for the recycling of waste electrical and electronic equipment, appointed by the government or local authorities. -
Page 13: Speci Cations
Speci cations Name: Mi 360° Camera (1080p) Model: MJSXJ10CM Net Weight: 254 g Input: 5 V Item Dimensions: 108 × 75 × 75 mm Resolution: 1080p Viewing Angle: 110° Video Codec: H.265 Aperture: F2.1 Operating Temperature: -10°C to 40°C Compatible with: Android 4.4 & iOS 9.0 or above Storage: MicroSD card (up to 32 GB) Wireless Connectivity: Wi-Fi IEEE 802.11 b/g/n 2.4 GHz Wi-Fi Operation Frequency: 2412–2472 MHz...
