Xiaomi Mi 360 Camera MJSXJ10CM Manual

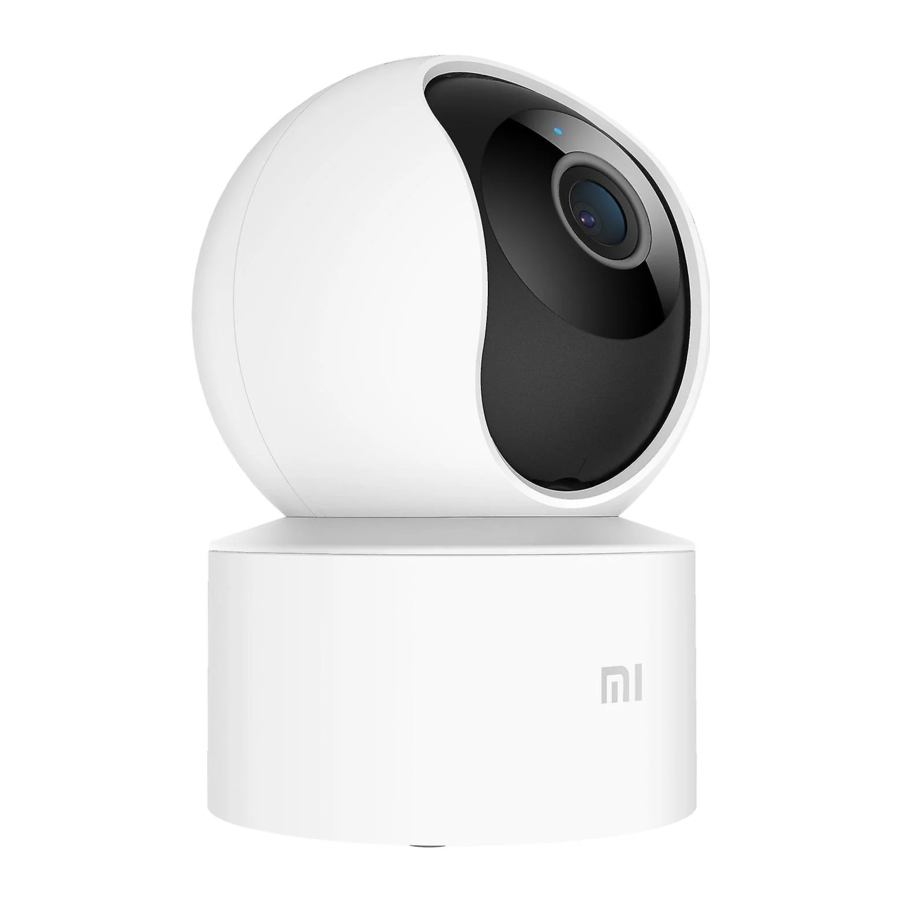

Product Overview

Package Contents: Mi 3600 Camera (1080p), charging cable, wall mounting user manual, warranty notice

Installation

The camera can be placed on a flat surface such as a writing desk, dining table, coffee table, or it can be mounted on a wall.

Mounting the camera on a wall

1. First use a pencil to mark the positions for the base mounting holes on the wall, then drill two holes at the marked positions. The diameter of each hole is approximately 6 mm, and the depth is approximately 30 mm.

2. Insert a plastic wall plug into each drilled hole.

3. Place the side of the base with arrows facing forward, and then align the holes. Insert the screws and then tighten them into the wall plugs with a Phillips head screwdriver.

4. Align the grooves on the bottom of the camera with the raised part on the base, and then turn it clockwise until it locks into place.


Notes:
The wall must be able to support at least three times the total weight of the camera.

To prevent possible injury, the camera must be securely fixed to the ceiling or wall according to the installation instructions.

How to Use

Installing a microSD card

Make sure the camera is turned off. Push the lens upward to reveal the microSD card slot. Insert the microSD card into the card slot with its contact points facing downward.
Note: Disconnect the camera from the power before installing or removing a microSD card. Please use a genuine microSD card (up to 32 GB) manufactured by a qualified supplier. It is recommended to use a card with a reading/writing speed of no less than U1/Class 10.

Turning on the unit

Plug the charging cable into Micro-USB port on the back, the camera automatically turns on, and the indicator quickly blinks orange.

Note: When the camera is working, do not turn the lens of the camera nor force it to rotate. If the positioning of the lens is inaccurate, please calibrate it in the Mi Home/Xiaomi Home app.

Indicator

Blue: Connected successfully/Working properly
Blinking blue: Network error
Quickly blinking orange: To be connected
Slowly blinking orange: Updating

Connect with Mi Home/Xiaomi Home App

This product works with Mi Home/Xiaomi Home app*. Control your device with Mi Home/Xiaomi Home app.
To use this product, it is a must to download and install the Mi Home/Xiaomi Home app. Scan the QR code to download and install the app. You will be directed to the connection setup page if the app is installed already. Or search "Mi Home/Xiaomi Home" in the app store to download and install it.
Make sure your phone has connected to the 2.4 GHz Wi-Fi. Open Mi Home/Xiaomi Home app, tap "+" on the upper right, and then follow prompts to add your device.

*The app is referred to as Xiaomi Home app in Europe (except for Russia). The name of the app displayed on your device should be taken as the default.

Note: The version of the app might have been updated, please follow the instructions based on the current app version.
Make sure the camera turns on and the network connection is stable during connecting. The indicator is quickly blinking orange when waiting for a connection, and turns into blue once the camera is successfully connected.

Restoring factory settings
In case the network the camera is connected to, or the Mi account the camera is paired with has to be changed, use a pin to press and hold the reset button for about five seconds to restore factory settings. Then reconnect the network and the app with the camera.
Note: Restoring factory settings will not delete the content on the microSD card.

Real-time Surveillance

The real-time feed of the camera can be viewed in the camera's plugin in the Mi Home/Xiaomi Home app, and the resolution and horizontal angle of the camera can be adjusted. Furthermore, you can make screenshots of or record the real-time footage, and make remote calls.

Infrared Night Vision

The camera can automatically switch to night vision mode at night according to the degree of change in the surrounding light. The built-in infrared night vision light has a night vision distance of up to 9 meters and can even shoot clearly in the dark.

Playback

• The playback feature of the camera is only available when a compatible microSD card is installed.
• Once a microSD card is installed and the camera is plugged in, it will automatically start recording video. The playback interface can be accessed by tapping the playback button in the camera's plugin in the Mi Home/Xiaomi Home app, drag the timeline to select and playback the desired time period. The maximum supported playback speed is 16x.

Home Surveillance Assistant

• When the home surveillance assistant is enabled, the camera will record videos if it detects human movement and changes in real-time within its surveilled area. Then you will get the app push notification.
• The home surveillance assistant can be enabled or disabled in the camera's plugin in the Mi Home/Xiaomi Home app.
• You can set 24-hour, daytime, nighttime, custom period surveillance, alert sensitivity and alert time intervals, etc.

Video Sharing

To invite others to watch, the camera can be shared through the device sharing function in the settings menu of the camera's plugin in the Mi Home/Xiaomi Home app. The person the camera is shared with needs to download the Mi Home/Xiaomi Home app and sign in with a Mi account.

Note: Illustrations of product, accessories, and user interface in the user manual are for reference purposes only. Actual product and functions vary due to product enhancements.

Precautions

• The operating temperature range for this camera is between -10°C and 40°C.
  Do not use the camera in environments with temperatures above or below the specified range.
• The camera is a precision electronic product. In order to ensure its normal operation, do not install the camera in environments with high humidity levels nor allow water to get into it.
• To improve the camera's performance, do not place its lens facing or next to a reflective surface, such as glass windows or white walls, as this will cause the image to appear overly bright in areas close to the camera and darker in areas further away, or cause the camera to produce white images.
• Make sure the camera is installed in an area with a strong Wi-Fi signal. Do not place the camera near the objects that may affect its Wi-Fi signal, such as metal objects, microwave ovens.
• Under normal use of condition, this equipment should be kept a separation distance of at least 20 cm between the antenna and the body of the user.

Specifications

Name: Mi 360°Camera (1080p)
Model: MJSXJ10CM
Item Dimensions: 108 x 75 x 75 mm
Viewing Angle: 110°
Aperture: F2.1
Operating Temperature: -10°C to 40°C
Compatible with: Android 7.0 & iOS 11.0 or above
Compatible with: Android 7.0 & iOS 11.0 or above
Storage: MicroSD card (up to 32 GB)
Wireless Connectivity: Wi-Fi IEEE 802.11 b/g/n 2.4 GHz
Wi-Fi Operation Frequency: 2412-2472 MHz
Wi-Fi Maximum Output Power: <20 dBm
Net Weight: 228 g
Input: 5 A 2 A
Resolution: 1080p
Video Codec: H.265

Manufactured by: Shanghai Imilab Technology Co., Ltd.
(a Mi Ecosystem company)
Address: Room 001A, Floor 11, Block 1, No. 588 Zixing Road, Minhang District, Shanghai, China
For further information, please go to www.mi.com
