Compact freely programmable automation unit
•
Application and user interface are freely
programmable with Ouflex BA Tool.
•
You can load the application to the control-
ler by using SD-card, USB-port or remotely
via the M-LINK.
Ouflex M BA has SMS support. Use of a text
messages requires that the GSM modem (op-
tional) is connected to the controller.
You can communicate with the controller by
text message using key words.
KEY WORDS
•
DIN rail-mounted module casing (6M)
•
Detachable strip connectors make
installation easier.
•
Can be as a master device and slave
device in the Modbus bus.
REMOTE
UPDATE
via M-LINK
Saving energy, creating comfort
OUFLEX M BA
Key words:
Active alarms
Alarm history
Web
UI
via M-LINK
USER MANUAL
YM0015D: Versio 2.9->
YM0015B: Version 2.6->
Advertisement
Table of Contents
Related Manuals for OUMAN OUFLEX M BA
Summary of Contents for OUMAN OUFLEX M BA
- Page 1 You can load the application to the control- ler by using SD-card, USB-port or remotely via the M-LINK. Ouflex M BA has SMS support. Use of a text messages requires that the GSM modem (op- tional) is connected to the controller.
- Page 2 Maintenance code There may be a maintenance code in use in your Ouflex M BA de- vice. In this case, you can see the information even when it’s locked, but you can’t make changes to settings without entering the main- tenance code.
-
Page 3: Table Of Contents
3.2 Bus points ..................................13 3.3 Time programs ................................13 4 Settings ..............................15 5 Measuring point control/manual control ..................16 6 Naming ..............................16 7 Remote use ............................17 Optional accessories .......................... 18 Ouflex M BA structure ........................19 Technical information ......................... 20... -
Page 4: System Settings
Time used e. g. in time programs as well as alarm indication and routing. Enter hours The Ouflex M BA clock takes daylight savings and leap years into 19:44 account automatically. The clock has a backup for power outages hh:mm up to three days. -
Page 5: Text Message (Sms) Settings
8. Retest the text message communication. SMS PIN SMS PIN: If the SIM card has PIN inquiry in use, Ouflex M BA device asks you to enter Approve: Press and hold OK the PIN. Cancel: Press and hold ESC Entering the code: 1. -
Page 6: Network Settings
1.3 Network settings (M-Link) RJ-45 -connector to the GSM-modem If you want to connect the Ouflex M BA unit to an Ethernet net- Attention! This is RS232 serial port not work, you will need an M-LINK adapter (additional equipment). ethernet M-Link is connected to COM3 port (RJ45) located in the side of the controller. - Page 7 If all the settings are correct, the status of the device is Serial number “Connected”. WEB user interface On > If Ouflex M BA is connected in the network, but you want to prevent browser connection, for example for data security reasons, select ”Off” of WEB user interface.
-
Page 8: Bus Settings
Ouflex M BA device can be a master device in two Modbus RTU. It Stop bits 1 > is shown in the first line in which the bus Ouflex M BA is the master Parity None > Delay between packages >... -
Page 9: Type Information
You can read Ouflex M BA device information and change settings. In use You can read Ouflex M BA device information but you can not change set- tings without entering the lock code. The factory setting of lock code is 0000. -
Page 10: Restore Settings And Updates
2. Ouflex M BA asks: ”Would you like to restart device?” 3. Select: ”Yes” 4. Ouflex M BA reboot to start the update of the new soft- ware. The updating of the software takes few minutes. You can save the csv-files to the memory card. You can also re- Save csv-files to memory card >... -
Page 11: Alarms
2 Alarms Active alarms In the alarm menu of Ouflex M BA device, you can check the active Alarms alarms and what alarms have been active. The number of active Active alarms > alarms will be shown in the right corner of the main view. - Page 12 4. To exit edit mode, press ESC. If the alarms are routed, alarms are forwarded as text message to alarm team according to the routing schedule. You can acknowled- ge an alarm by forwarding the same message to the Ouflex M BA.
-
Page 13: Point Info
Wireless > 3.3 Time programs Point info -> Time programs In Ouflex M BA, weekly programs can be added to different func- Time programs tions - such as temperature drops, car heating and control of H1 Heating temp. drop Off >... - Page 14 Weekly schedule Point info -> Time programs -> Weekly schedule Graphic view Weekly schedules include graphic views (in general view mode Weekly schedule and edit mode) with data on the exact time that new control com- MO > mands are received. Different control modes are shown graphi- TU >...
-
Page 15: Settings
If a GSM modem is connected to Ouflex M BA device and the setting values have been brought into SMS in- terface, you can edit settings by text message. Send a message “ Key words”. The reply message shows you which key words are in use in the application. -
Page 16: Measuring Point Control/Manual Control
25 % > If a GSM modem is connected to Ouflex M BA device and the setting values have been brought into SMS in- terface, you can edit settings by text message. Send a message “ Key words”. The reply message shows you which key words are in use in the application. -
Page 17: Remote Use
7 Remote use Communication via a mobile phone If a GSM modem is connected to the Ouflex M BA you can com- municate with the controller by text messages using command words. Send the following text message to the controller: KEY WORDS. -
Page 18: Optional Accessories
GSM phone. Ouman’s GSM modem is connected to the COM3 port (RJ45) of Ouflex M BA unit. The modem has a fixed antenna that can be RJ-45 -connector to the GSM-modem changed to an external antenna with a 2,5m cord (optional equip- Attention! This is RS232 serial port not ment) if needed. -

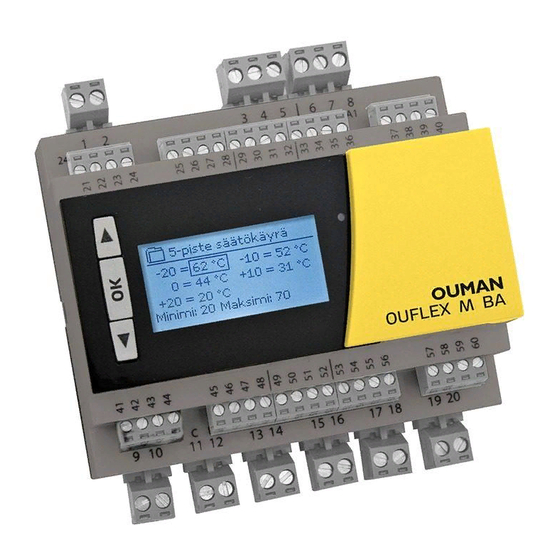

Page 19: Ouflex M Ba Structure
Ouflex M BA structure Micro-SD memory card slot USB-connector, COM5 COM4 COM2 RS-232 connection, COM3 (M-Link or SMS-modem) 3 4 5 6 7 8 RS-232 connection , COM1 (External display) OUFLEX M BA Detachable strip connectors Detachable strip connectors Detachable strip connectors (passive sensors , digital inputs and (analog outputs and PWM). -
Page 20: Technical Information
M-LINK network adapter provides Modbus TCP / IP interface for Ouflex M BA device GSM modem By connecting the Ouman GSM modem to the Ouflex M BA, you can communicate with text messages to device and receive alarms to GSM phone.
