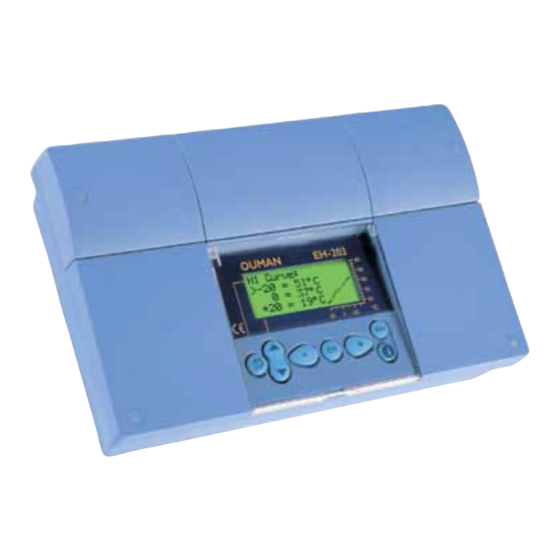

OUMAN EH-203 is a new generation heating
regulator. Its versatility, intelligence and clarity
have made it an ideal heating regulator for all
kinds of water circulation heating systems.
In addition to heating control, EH-203 has a
number of other control and alarm functions for
facilities. Measurement information can be read,
settings and controls can be checked and
adjusted, and alarms can be received and
acknowledged remotely via a GSM
telephone's text messages or a web
browser. A GSM modem (optional
equipment) must be connected to
EH-203 to enable GSM use. An EH-net
web server (optional equipment) is needed
for web use.
Types of heating systems:
•
Radiator heating
•
Floor heating
•
Air conditioning preregulation
•
Hot water regulation
Types of heating production:
•
District heating exchangers
•
Boiler plants
•
Accumulators
•
District heating substations
Remote control options:
•
EH-net
Web based user interface
Internet/Intranet
•
GSM Control
Graphic user interface
(can be freely downloaded at: www.ouman.fi)
Traditional text message use with all GSM phones
