Si001353EB

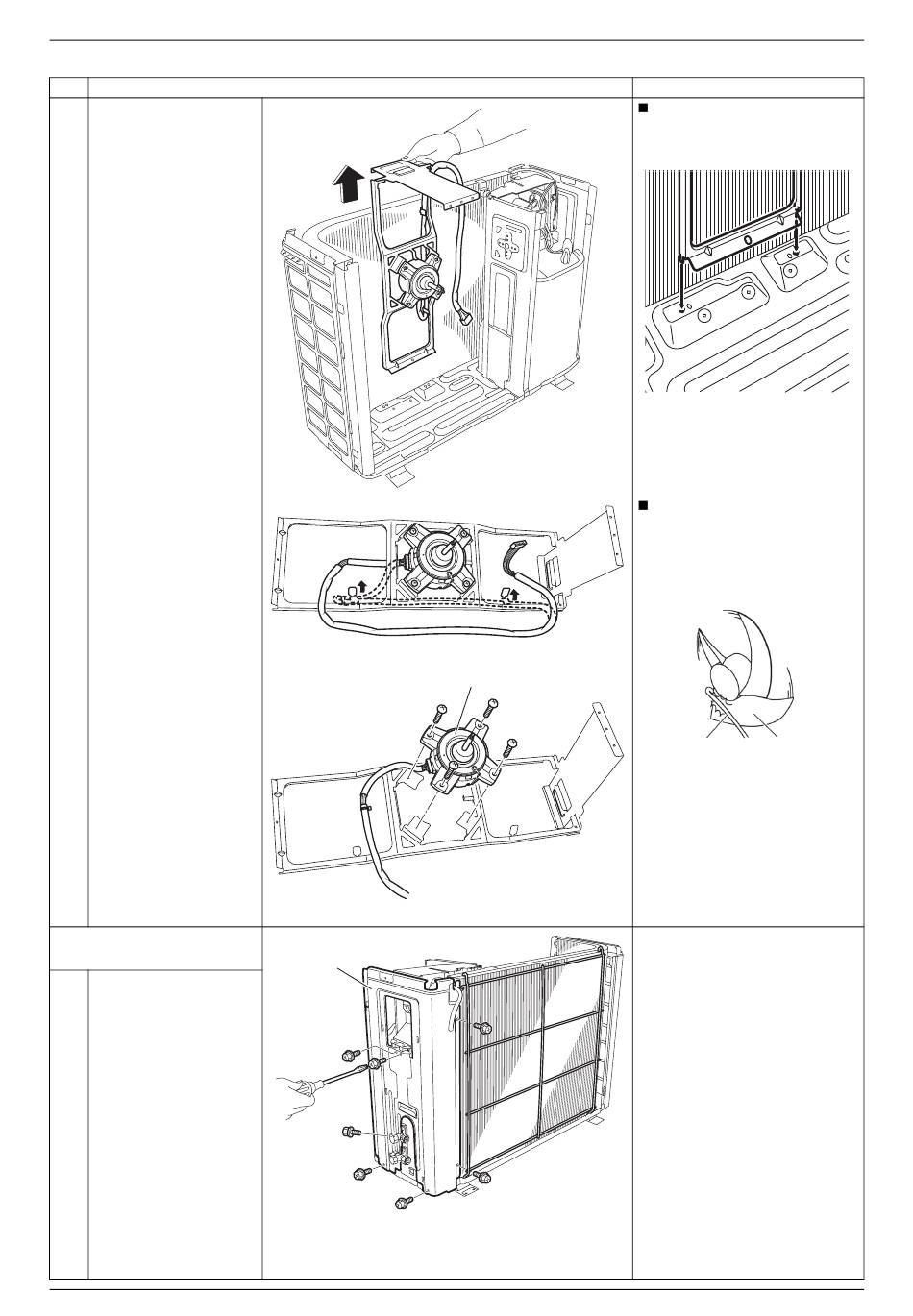

Step
7 Lift and remove the fan
motor fixing frame.
8 Release the fan motor
lead wire from the 2
hooks.
9 Remove the 4 screws
and remove the fan
motor.
3. Remove the right side
panel.
1 Remove the 7 screws
on the right side panel.
Removal Procedure
Procedure
Right side panel
(R12578)
(R12579)
Fan motor
(R12580)
(R15670)
Outer Panels / Fan Motor
Points
When reassembling, fit the 2
lower hooks into the bottom
frame.
(R7206) (R7206)
When reassembling, put the
fan motor lead wire through
the back of the fan motor so
as not to be entangled with
the outdoor fan.
Lead wire Outdoor fan
(R12215)
