Step

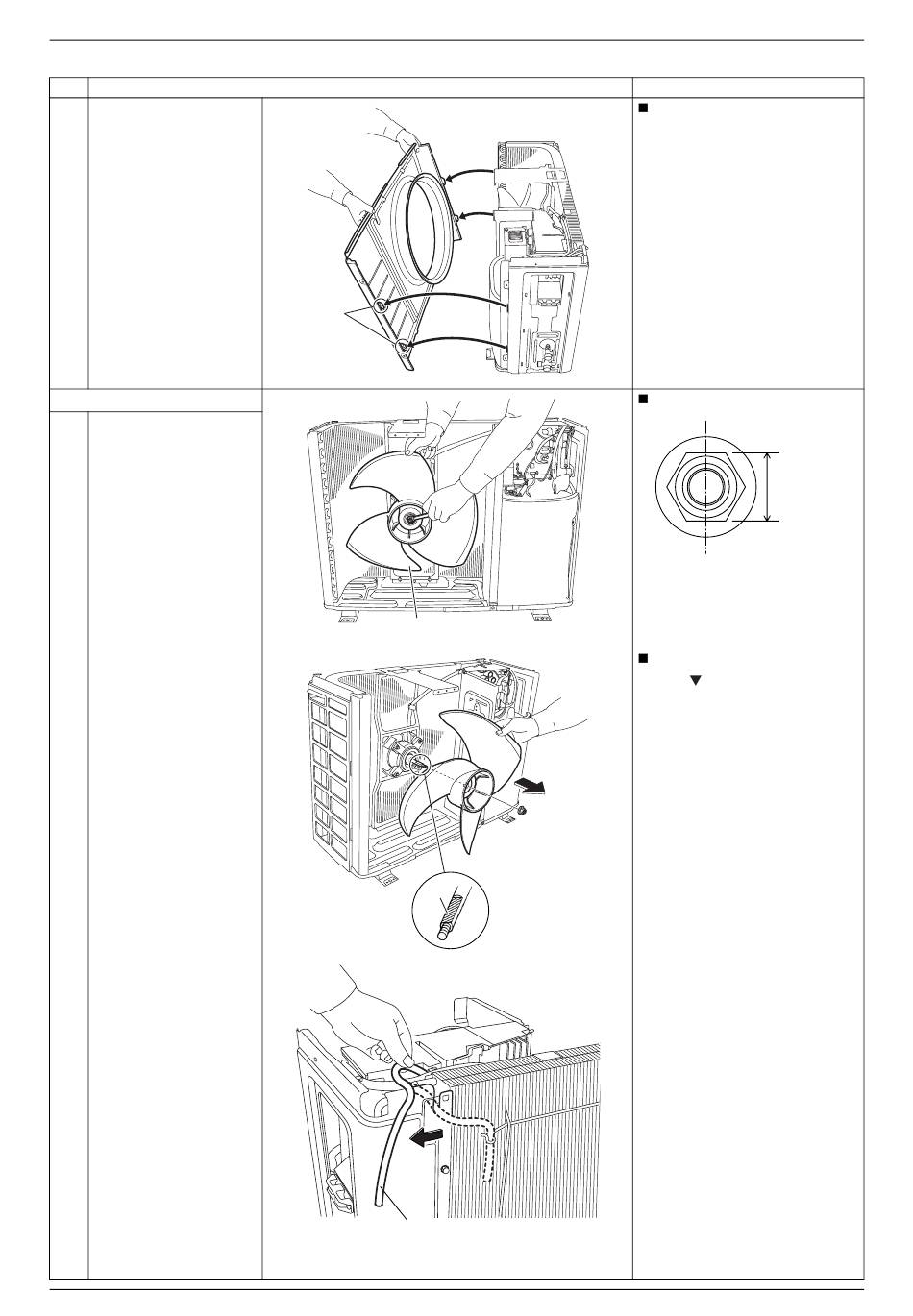

7 Unfasten the hooks.
Pull and remove the
front panel.
2. Remove the fan motor.
1 Remove the nut of the
outdoor fan.
2 Remove the outdoor
fan.
3 Release the outdoor
temperature thermistor.
Removal Procedure
Procedure
Hook
Outdoor fan
D-cut
Outdoor temperature
thermistor
Outer Panels / Fan Motor
The front panel has 4 hooks.
(R12572)
Nut size: M6
(R15669)
When reassembling, align
the mark of the outdoor
fan with the D-cut section of
the motor shaft.
(R12574)
(R11829)
Points
10 mm
(0.39 inch)
(R18954)
