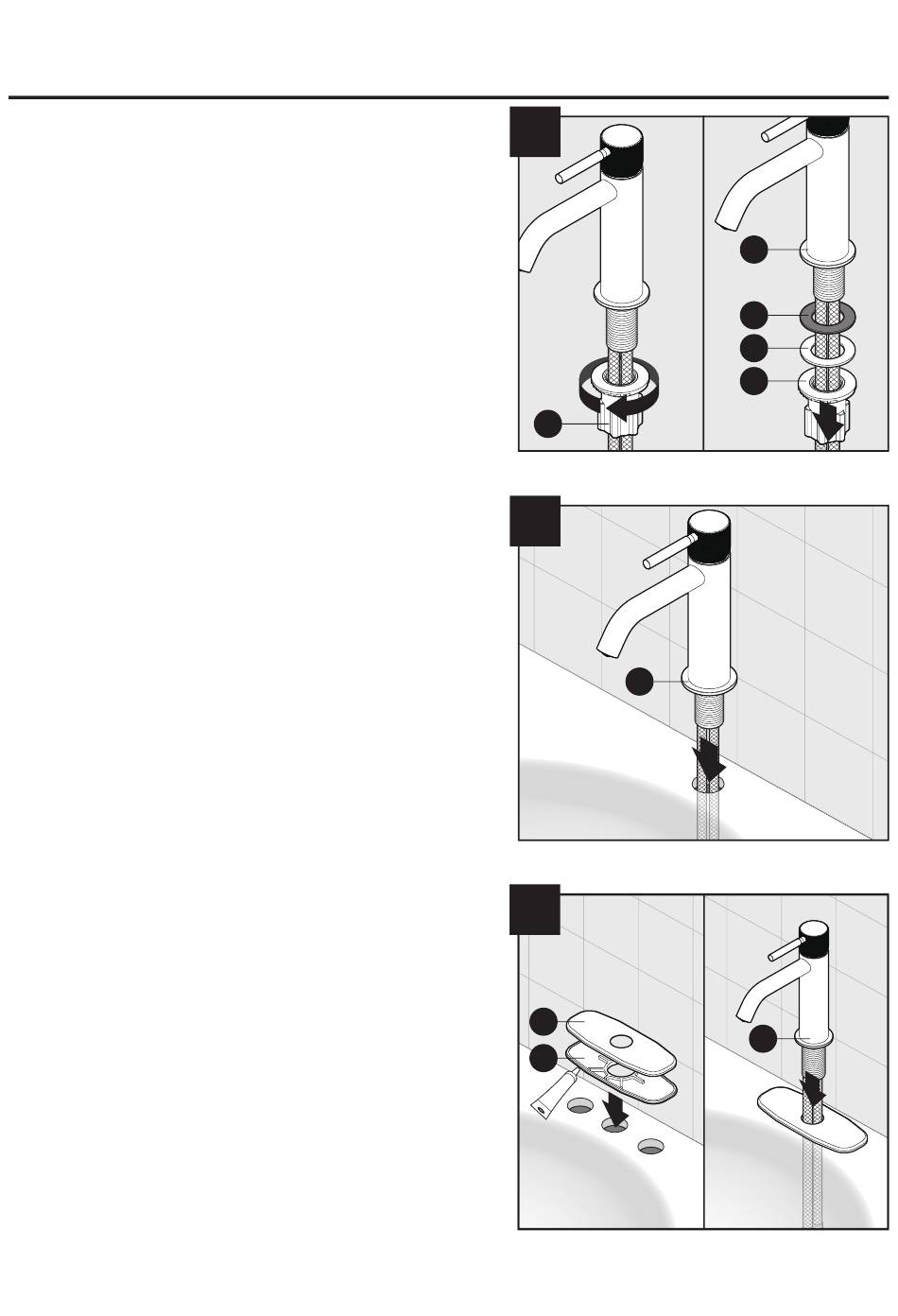

ASSEMBLY INSTRUCTIONS
2. Remove pre-assembled lock nut (G), metal
washer (E), and rubber washer (D) from shank
of faucet body (A).
3a. Without deck plate installation. Place the
faucet (A) in the appropriate faucet hole of
the sink (not included).
3b. With deck plate installation. Position the putty
plate (C) and deck plate (B) onto the sink,
install faucet (A) through top of sink.
NOTE: Place a bead of clear silicone sealant
(not included) around the putty plate.
