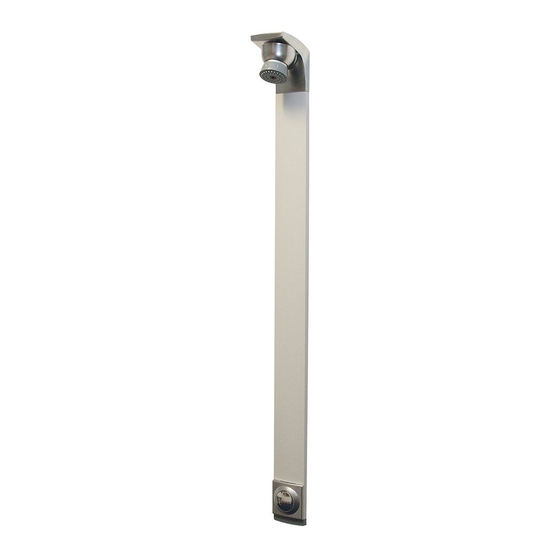

Timed flow shower panel with adjustable head

Advertisement

Quick Links

Installation Instructions
and User Guide
TFP4001 Timed Flow Shower
Panel with Adjustable Head
Model covered: TFP4001
Model covered:
Model covered:
Model covered:
Please keep this booklet for future
Reference.
Installer, when you have read these
instructions please ensure you leave them
with the user.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TFP4001 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Bristan TFP4001

  • Page 1 Installation Instructions and User Guide TFP4001 Timed Flow Shower Panel with Adjustable Head Model covered: TFP4001 Model covered: Model covered: Model covered: Please keep this booklet for future Reference. Installer, when you have read these instructions please ensure you leave them...
  • Page 2: Table Of Contents

    Contents Thank you for choosing Bristan, the UK’s leading showers and taps expert. We have designed this product with your enjoyment in mind. To ensure that it works to its full potential, it needs to be fitted correctly. These fitting instructions have been created to give you all of the information you need and, if you need any further help, please do not hesitate to give us a call on 0844 701 6273.
  • Page 3: Important Safety Information

    Important Safety Information • Please read these instructions thoroughly and retain for future use. • All products manufactured and supplied by Bristan are safe provided they are installed, used correctly and receive regular maintenance in accordance with these instructions. • This fitting needs to be installed in accordance with, and meet the requirements of the Water Supply (Water Fittings) Regulations 1999 and Scottish Byelaws 2004.
  • Page 4: General Information

    General Information The Bristan Timed Flow Shower Panel has been designed, manufactured and tested to the highest standards and satisfies the requirements of the Water Supply (Water Fittings) Regulations 1999 and current bylaws Designed to be used with systems designed to BS 6700.
  • Page 5: Product Features

    Product Features 1. 1. 1. 1. Push button control Push button control Push button control Push button control Press the push button in to turn on the flow Push of water button start The water will flow for approximately 30 seconds depending on site conditions.
  • Page 6: Specifications

    Specifications Inlet Connection: Inlet Connection: 3/4” BSP Male telescopic connection. Inlet Connection: Inlet Connection: Operating Pressure Range: Min: 1.0 bar – Max: 5.0 bar Operating Pressure Range: Operating Pressure Range: Operating Pressure Range: Maximum Static Pressure: Maximum Static Pressure: 10.0 bar Maximum Static Pressure: Maximum Static Pressure: Flow Regulator: Supplied with a 10 litres per minute flow regulator fitted.
  • Page 7: Dimensions

    Dimensions (mm’s) Need help? Need help? Give us a call on 0844 701 6273 0844 701 6273 and speak to one of our trained advisors. Need help? Need help? 0844 701 6273 0844 701 6273...
  • Page 8: Installation Requirements

    Installation Requirements These fittings need to be installed in These fittings need to be installed in These fittings need to be installed in These fittings need to be installed in Size of tap or Size of tap or Size of tap or Size of tap or Vertical distance Vertical distance...
  • Page 9: Installation

    Installation 56mm Before Installation Before Installation Before Installation Before Installation Flush through the pipework to ensure removal of debris. Turn off the water supply and close any isolating valves. 1. Fit wall bracket 1. Fit wall bracket 1. Fit wall bracket 1.
  • Page 10 Installation cont. 2. Remove push button cover 2. Remove push button cover 2. Remove push button cover 2. Remove push button cover Using a suitable screw driver remove the bottom end cover. Pull the push button cover up from the panel and remove.
  • Page 11 Installation cont. 4. Mark bottom fixings 4. Mark bottom fixings 4. Mark bottom fixings 4. Mark bottom fixings Ensure the shower panel is vertical (using a spirit level) and flat against the wall and mark the bottom fixing holes either side of the push button.
  • Page 12 Installation cont. 5. Fit the shower panel 5. Fit the shower panel 5. Fit the shower panel 5. Fit the shower panel Fit the shower panel to the wall ensuring the locking plate fits securely into the wall bracket and line up the holes in the bottom of the panel with the holes drilled in the wall surface.
  • Page 13 Installation cont. 6. Connect water supply 6. Connect water supply 6. Connect water supply 6. Connect water supply Supply Ensure the telescopic connector is fully Pipework extended by pulling it up to access the (not supplied) built in isolation valve. Telescopic Connection Tip:...
  • Page 14: Operation & Commissioning

    The shower head swivels 360° in any direction. See below for different positions. Before using the Bristan Shower panel please follow the below steps to commission the unit. Ensure the supply pipework is flushed through. Open the built in isolation valve and turn on the water supply.
  • Page 15 Maintenance General Cleaning General Cleaning General Cleaning General Cleaning Your fitting has a high quality finish and should be treated with care to preserve the visible surfaces. All finishes will wear if not cleaned correctly. The only safe way to clean your product is to wipe with a soft damp cloth.
  • Page 16: Maintenance & Adjusting The Time Flow

    Cleaning the shower head Cleaning the shower head Cleaning the shower head Cleaning the shower head Your Bristan shower head has rub – clean nozzles for easy cleaning. Simply rub your fingers across the rubber spray jets regularly to remove any scale or debris.
  • Page 17 Adjusting Time Flow cont. 2. 2. 2. 2. Invert the spray plate 4. 4. 4. 4. Using a 3mm hexagonal 3. 3. 3. 3. Pull the flow cartridge holder and use to out from the shower. key turn the flow screw unscrew the clockwise for a longer flow locking collar.
  • Page 18: Map Of Hard Water Regions In The Uk

    Hard Water Regions in the UK Soft to Soft to Soft to Soft to Hard to very hard Hard to very hard Hard to very hard Hard to very hard moderately soft moderately soft moderately soft moderately soft Above 200mg/l as 0 - 100mg/l as calcium carbonate calcium carbonate...
  • Page 19: Troubleshooting

    Troubleshooting Symptom Symptom Cause Cause Remedy Remedy Symptom Symptom Cause Cause Remedy Remedy Shower will not Isolation valve closed. Open the isolation valve on the turn on when telescopic connection. push button is Check any isolation valves to the pressed in. water supply are open.
  • Page 20 Troubleshooting Symptom Symptom Cause Cause Remedy Remedy Symptom Symptom Cause Cause Remedy Remedy Shower does not Push button assembly faulty. Remove the push button cover run for long and check / replace the push enough. button assembly. Time flow requires adjustment. Adjust time flow.
  • Page 21: Notes

    Notes Please use this space to add any notes you or your installer may have regarding the plumbing system/installation of this product. Need help? Need help? Give us a call on 0844 701 6273 0844 701 6273 and speak to one of our trained advisors. Need help? Need help? 0844 701 6273...
  • Page 22: Guarantee

    Guarantee At Bristan, we want to make things as easy • Repair under this guarantee does not extend as possible for our customers. That’s why the original expiry date. The guarantee on we design products that are easy to fit and...
  • Page 23 Problems during the guarantee period Problems during the guarantee period Problems during the guarantee period out one of our Bristan Care engineers to In the unlikely event that you encounter any take a look. Bristan Care engineers provide problems with the product during the...
  • Page 24 Part Number: TFP4001 Issue: D1 Bristan Group Ltd. Birch Coppice Business Park Dordon Tamworth Staffordshire B78 1SG Web: www.bristan.com Email: enquire@bristan.com A Masco Company...
