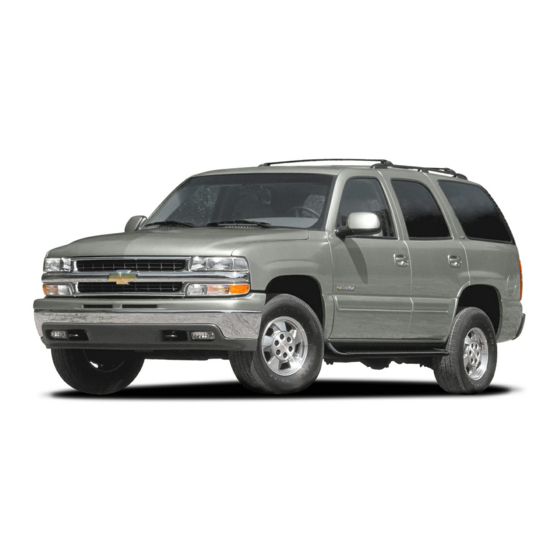

Chevrolet 2005 Tahoe Owner's Manual

Chevrolet 2005 Tahoe Owner's Manual

Hide thumbs Also See for 2005 Tahoe:

Getting to know manual (20 pages)

,

Owner's manual (64 pages)

page of 530

/ 530
Contents
Table of Contents
Bookmarks

Table of Contents

Advertisement

Quick Links

Download this manual

2005 Chevrolet Tahoe/Suburban Owner Manual

Seats and Restraint Systems ........................... 1-1

Front Seats

............................................... 1-3

Rear Seats

............................................... 1-8

Safety Belts

............................................. 1-21

Child Restraints

....................................... 1-42

Airbag System

......................................... 1-66

Restraint System Check

Features and Controls ..................................... 2-1

Keys

........................................................ 2-3

Doors and Locks

....................................... 2-8

Windows

................................................. 2-15

Theft-Deterrent Systems

Starting and Operating Your Vehicle

Mirrors

.................................................... 2-42

®

OnStar

System

...................................... 2-51

®

HomeLink

Transmitter

Storage Areas

......................................... 2-57

Sunroof

.................................................. 2-62

Vehicle Personalization

Instrument Panel ............................................. 3-1

Instrument Panel Overview

Climate Controls

...................................... 3-21

Warning Lights, Gages, and Indicators

Driver Information Center (DIC)

Audio System(s)

....................................... 3-76

............................ 1-81

............................ 2-17

........... 2-19

............................. 2-53

............................. 2-63

.......................... 3-4

........ 3-36

.................. 3-54

Driving Your Vehicle ....................................... 4-1

Your Driving, the Road, and Your Vehicle

Towing

................................................... 4-57

Service and Appearance Care .......................... 5-1

Service

..................................................... 5-3

Fuel

......................................................... 5-5

Checking Things Under the Hood

All-Wheel Drive

........................................ 5-50

Rear Axle

............................................... 5-51

Four-Wheel Drive

..................................... 5-52

Front Axle

............................................... 5-53

Bulb Replacement

Windshield Wiper Blade Replacement

Tires

...................................................... 5-61

Appearance Care

Vehicle Identiﬁcation

Electrical System

.................................... 5-109

Capacities and Speciﬁcations

Maintenance Schedule ..................................... 6-1

Maintenance Schedule

Customer Assistance and Information .............. 7-1

Customer Assistance and Information

Reporting Safety Defects

Index ................................................................ 1

M

........ 4-1

............... 5-10

.................................... 5-54

......... 5-60

................................... 5-100

............................... 5-109

................... 5-118

................................ 6-2

........... 7-2

........................... 7-10

Table of Contents

Advertisement

Chapters

Table of Contents

Need help?

Need help?

Do you have a question about the 2005 Tahoe and is the answer not in the manual?

Questions and answers

Summary of Contents for Chevrolet 2005 Tahoe

Page 1 2005 Chevrolet Tahoe/Suburban Owner Manual Seats and Restraint Systems ... 1-1 Front Seats ... 1-3 Rear Seats ... 1-8 Safety Belts ... 1-21 Child Restraints ... 1-42 Airbag System ... 1-66 Restraint System Check ... 1-81 Features and Controls ... 2-1 Keys ...
Page 2: How To Use This Manual
For vehicles ﬁrst sold in Canada, substitute the name “General Motors of Canada Limited” for Chevrolet Motor Division wherever it appears in this manual. Keep this manual in the vehicle, so it will be there if you ever need it while you are on the road.
Page 3: Safety Warnings And Symbols
Safety Warnings and Symbols There are a number of safety cautions in this book. We use a box and the word CAUTION to tell about things that could hurt you if you were to ignore the warning. CAUTION: These mean there is something that could hurt you or other people.
Page 4: Vehicle Damage Warnings
Vehicle Damage Warnings Also, in this manual you will ﬁnd these notices: Notice: These mean there is something that could damage your vehicle. A notice tells about something that can damage the vehicle. Many times, this damage would not be covered by your vehicle’s warranty, and it could be costly.
Page 5 These are some examples of symbols that may be found on the vehicle:...
Page 6 NOTES...
Page 7: Table Of Contents
Section 1 Front Seats ...1-3 Manual Seats ...1-3 Power Seats ...1-4 Power Lumbar ...1-5 Heated Seats ...1-6 Reclining Seatbacks ...1-6 Head Restraints ...1-8 Rear Seats ...1-8 Rear Seat Operation ...1-8 60/40 Split Bench Seat ...1-9 50/50 Split Bench Seat ...1-11 Bench Seat ...1-15 Bucket Seats ...1-19 Safety Belts ...1-21...
Page 8 Section 1 Airbag System ...1-66 Where Are the Airbags? ...1-69 When Should an Airbag Inﬂate? ...1-71 What Makes an Airbag Inﬂate? ...1-73 How Does an Airbag Restrain? ...1-73 What Will You See After an Airbag Inﬂates? ...1-74 Passenger Sensing System ...1-76 Seats and Restraint Systems Servicing Your Airbag-Equipped Vehicle ...1-80 Adding Equipment to Your Airbag-Equipped...
Page 9: Manual Seats
Front Seats Manual Seats CAUTION: You can lose control of the vehicle if you try to adjust a manual driver’s seat while the vehicle is moving. The sudden movement could startle and confuse you, or make you push a pedal when you do not want to.
Page 10: Power Seats
Power Seats If your vehicle has a power seat, you can adjust it with these controls located on the outboard sides of the seats. • Raise or lower the front of the seat cushion by raising or lowering the forward edge of the horizontal control.
Page 11: Power Lumbar
Power Lumbar Your vehicle’s seats may be equipped with power lumbar. You can increase or decrease lumbar support in an area of the lower seatback with this control, located on the outboard sides of the front seat(s). To increase support, press and hold the front of the control.
Page 12: Heated Seats
Heated Seats If your vehicle has this feature, the button used to control the driver’s heated seat is located on the driver’s door panel. The button used to control the passenger’s heated seat is located on the passenger’s door panel. To heat the entire seat, press the horizontal button.
Page 13 But don’t have a seatback reclined if your vehicle is moving. CAUTION: Sitting in a reclined position when your vehicle is in motion can be dangerous. Even if you buckle up, your safety belts can not do their job when you are reclined like this. The shoulder belt can not do its job.
Page 14: Rear Seat Operation
Head Restraints Adjust your head restraint so that the top of the restraint is closest to the top of your head. This position reduces the chance of a neck injury in a crash. To raise the head restraint pull up on the head restraint. Your vehicle may have rear seat head restraints that can be adjusted up and down.
Page 15: Folding The Seatbacks
60/40 Split Bench Seat Standard models: The rear seat may have a 60/40 split seat which may be folded down to give you more cargo space. Extended models: The second row rear seat of extended models may have a 60/40 split seat. Either side of the rear seat my be folded down to provide more cargo space.
Page 16 After folding the seat cushion fully forward, pull the seatback forward and fold the seatback down until it is ﬂat. If the seatback cannot fold ﬂat because it interferes with the cushion, try moving the front seat forward and/or bring the front seatback more upright. On the passenger side of the extended models, the lever at the base of the seat must be turned rearward to release the seatback.
Page 17: Tilting The 50/50 Split Bench Seat
50/50 Split Bench Seat If your vehicle has a 50/50 split bench, the seatback(s) can be folded and the entire seat(s) tilted or removed from the vehicles. Folding the Seatbacks CAUTION: If the seatback is not locked, it could move forward in a sudden stop or crash.
Page 18 Once the third seatback has been folded down, the entire seat can be tilted forward to create a ﬂat load ﬂoor. To do this, do the following: 1. Enter the rear cargo area of the vehicle. 2. Make sure the head restraints have been lowered completely.
Page 19: Removing The 50/50 Split Bench Seat
Removing the 50/50 Split Bench Seat To remove the 50/50 split bench seat, do the following: 1. Open the rear doors and enter the rear of the vehicle. 2. Fold the seatback forward onto the seat cushion by using the lever labeled 1. The seat cannot be removed unless the seatback is folded.
Page 20: Replacing The 50/50 Split Bench Seat
Replacing the 50/50 Split Bench Seat CAUTION: If the seatback is not locked, it could move forward in a sudden stop or crash. That could cause injury to the person sitting there. Always press rearward on the seatback to be sure it is locked.
Page 21: Bench Seat
Bench Seat If your vehicle has a full bench seat, the seatback can be folded and the seat can be tilted or removed from the vehicle. Folding the Seatback CAUTION: If the seatback is not locked, it could move forward in a sudden stop or crash. That could cause injury to the person sitting there.
Page 22: Tilting The Bench Seat
Tilting the Bench Seat CAUTION: If the seatback is not locked, it could move forward in a sudden stop or crash. That could cause injury to the person sitting there. Always press rearward on the seatback to be sure it is locked.
Page 23: Removing The Bench Seat
5. Tilt the seat fully forward and secure it in place using the support rod located on the underside of the seat on the passenger’s side. Make sure the rod pin is fully engaged in the lock. 6. Push and pull on the seat. Make sure the support rod is holding it ﬁrmly in place.
Page 24: Replacing The Bench Seat
3. To unlatch the seat from the ﬂoor, pull up on the release lever labeled 2, located at the rear of the seat, and lift the rear of the seat up off the ﬂoor. 4. Squeeze the release lever, located in the lower middle to unlatch the seat from the ﬂoor while pulling the seat out.
Page 25: Bucket Seats
CAUTION: A safety belt that is improperly routed, not properly attached, or twisted will not provide the protection needed in a crash. The person wearing the belt could be seriously injured. After raising the rear seatback, always check to be sure that the safety belts are properly routed and attached, and are not twisted.
Page 26 On extended models with rear bucket seats, the head restraints need to be removed in order to fold the rear seats. To do this follow these directions: 1. Lift the head restraints up until they stop. 2. Press in the button on the side of the head restraint guide cap and lift up on the head restraint.
Page 27: Safety Belts: They Are For Everyone
Once the seatbacks are folded down, the rear seat footwell area will be exposed and will have to be covered by the load ﬂoor panel. To create a load ﬂoor, do the following: 1. Release the panels from the seatbacks by pushing forward on the latches.
Page 28 CAUTION: It is extremely dangerous to ride in a cargo area, inside or outside of a vehicle. In a collision, people riding in these areas are more likely to be seriously injured or killed. Do not allow people to ride in any area of your vehicle that is not equipped with seats and safety belts.
Page 29: Why Safety Belts Work
Why Safety Belts Work When you ride in or on anything, you go as fast as it goes. Put someone on it. Take the simplest vehicle. Suppose it is just a seat on wheels. 1-23...
Page 30 Get it up to speed. Then stop the vehicle. The rider does not stop. 1-24 The person keeps going until stopped by something. In a real vehicle, it could be the windshield...
Page 31 or the instrument panel... or the safety belts! With safety belts, you slow down as the vehicle does. You get more time to stop. You stop over more distance, and your strongest bones take the forces. That is why safety belts make such good sense. 1-25...
Page 32: Questions And Answers About Safety Belts
Questions and Answers About Safety Belts Will I be trapped in the vehicle after an accident if I am wearing a safety belt? You could be — whether you are wearing a safety belt or not. But you can unbuckle a safety belt, even if you are upside down.
Page 33: Driver Position
Driver Position Lap-Shoulder Belt The driver has a lap-shoulder belt. Here is how to wear it properly. 1. Close and lock the door. 2. Adjust the seat so you can sit up straight. To see how, see “Seats” in the Index. 3.
Page 34 The lap part of the belt should be worn low and snug on the hips, just touching the thighs. In a crash, this applies force to the strong pelvic bones. And you will be less likely to slide under the lap belt. If you slid under it, the belt would apply force at your abdomen.
Page 35 What is wrong with this? The shoulder belt is too loose. It will not give nearly as much protection this way. CAUTION: You can be seriously hurt if your shoulder belt is too loose. In a crash, you would move forward too much, which could increase injury.
Page 36 What is wrong with this? The belt is buckled in the wrong place. 1-30 CAUTION: You can be seriously injured if your belt is buckled in the wrong place like this. In a crash, the belt would go up over your abdomen. The belt forces would be there, not at the pelvic bones.
Page 37 What is wrong with this? The belt is over an armrest. CAUTION: You can be seriously injured if your belt goes over an armrest like this. The belt would be much too high. In a crash, you can slide under the belt.
Page 38 What is wrong with this? The shoulder belt is worn under the arm. It should be worn over the shoulder at all times. 1-32 CAUTION: You can be seriously injured if you wear the shoulder belt under your arm. In a crash, your body would move too far forward, which would increase the chance of head and neck injury.
Page 39 What is wrong with this? The belt is twisted across the body. CAUTION: You can be seriously injured by a twisted belt. In a crash, you would not have the full width of the belt to spread impact forces. If a belt is twisted, make it straight so it can work properly, or ask your dealer to ﬁx it.
Page 40: Safety Belt Use During Pregnancy
To unlatch the belt, just push the button on the buckle. The belt should go back out of the way. Before you close the door, be sure the belt is out of the way. If you slam the door on it, you can damage both the belt and your vehicle.
Page 41: Right Front Passenger Position
Right Front Passenger Position To learn how to wear the right front passenger’s safety belt properly, see Driver Position on page 1-27. The right front passenger’s safety belt works the same way as the driver’s safety belt — except for one thing. If you ever pull the shoulder portion of the belt out all the way, you will engage the child restraint locking feature which may turn off the passenger’s frontal airbag.
Page 42: Rear Seat Passengers
To make the belt shorter, pull its free end as shown until the belt is snug. Buckle, position and release it the same way as the lap part of a lap-shoulder belt. If the belt is not long enough, see Safety Belt Extender on page 1-41. Make sure the release button on the buckle is positioned so you would be able to unbuckle the safety belt quickly if you ever had to.
Page 43: Lap-Shoulder Belt
Lap-Shoulder Belt Here is how to wear a lap-shoulder belt properly. 1. Pick up the latch plate and pull the belt across you. Do not let it get twisted. The shoulder belt may lock if you pull the belt across you very quickly. If this happens, let the belt go back slightly to unlock it.
Page 44 3. To make the lap part tight, pull down on the buckle end of the belt as you pull up on the shoulder part. The lap part of the belt should be worn low and snug on the hips, just touching the thighs. In a crash, this applies force to the strong pelvic bones.
Page 45: Rear Safety Belt Comfort Guides For Children And Small Adults
The safety belt locks if there is a sudden stop or a crash. CAUTION: You can be seriously hurt if your shoulder belt is too loose. In a crash, you would move forward too much, which could increase injury. The shoulder belt should ﬁt against your body. To unlatch the belt, just push the button on the buckle.
Page 46 2. Place the guide over the belt and insert the two 3. Be sure that the belt is not twisted and it lies ﬂat. edges of the belt into the slots of the guide. The guide must be on top of the belt. 1-40...
Page 47: Safety Belt Extender
4. Buckle, position and release the safety belt as described in Rear Seat Passengers on page 1-36. Make sure that the shoulder belt crosses the shoulder. To remove and store the comfort guides, squeeze the belt edges together so that you can take them out of the guides.
Page 48: Child Restraints
Child Restraints Older Children Older children who have outgrown booster seats should wear the vehicle’s safety belts. If you have the choice, a child should sit in a seat that has a lap-shoulder belt and get the additional restraint a shoulder belt can provide.
Page 49 CAUTION: Never do this. Here two children are wearing the same belt. The belt can not properly spread the impact forces. In a crash, the two children can be crushed together and seriously injured. A belt must be used by only one person at a time. What if a child is wearing a lap-shoulder belt, but the child is so small that the shoulder belt is very close to the child’s face or neck?
Page 50: Infants And Young Children
CAUTION: Never do this. Here a child is sitting in a seat that has a lap-shoulder belt, but the shoulder part is behind the child. If the child wears the belt in this way, in a crash the child might slide under the belt.
Page 51 CAUTION: People should never hold a baby in their arms while riding in a vehicle. A baby does not weigh much — until a crash. During a crash a baby will become so heavy it is not possible to hold it. For example, in a crash at only 25 mph (40 km/h), a 12 lb (5.5 kg) baby will suddenly become a 240 lb (110 kg) force on a person’s arms.
Page 52 What are the different types of add-on child restraints? Add-on child restraints, which are purchased by the vehicle’s owner, are available in four basic types. Selection of a particular restraint should take into consideration not only the child’s weight, height, and age but also whether or not the restraint will be compatible with the motor vehicle in which it will be used.
Page 53: Child Restraint Systems
CAUTION: The body structure of a young child is quite unlike that of an adult or older child, for whom the safety belts are designed. A young child’s hip bones are still so small that the vehicle’s regular safety belt may not remain low on the hip bones, as it should.
Page 54 A rear-facing infant seat (B) provides restraint with the seating surface against the back of the infant. The harness system holds the infant in place and, in a crash, acts to keep the infant positioned in the restraint. 1-48 A forward-facing child seat (C-E) provides restraint for the child’s body with the harness and also sometimes with surfaces such as T-shaped or shelf-like shields.
Page 55 A booster seat (F-G) is a child restraint designed to improve the ﬁt of the vehicle’s safety belt system. Some booster seats have a shoulder belt positioner, and some high-back booster seats have a ﬁve-point harness. A booster seat can also help a child to see out the window.
Page 56: Where To Put The Restraint
When choosing a child restraint, be sure the child restraint is designed to be used in a vehicle. If it is, it will have a label saying that it meets federal motor vehicle safety standards. Then follow the instructions for the restraint. You may ﬁnd these instructions on the restraint itself or in a booklet, or both.
Page 57: Top Strap
CAUTION: (Continued) restraint, no system is fail-safe, and no one can guarantee that an airbag will not deploy under some unusual circumstance, even though it is turned off. General Motors recommends that rear-facing child restraints be secured in the rear seat, even if the airbag is off. If you need to secure a forward-facing child restraint in the right front seat, always move the front passenger seat as far back as it will go.
Page 58 In Canada, the law requires that forward-facing child restraints have a top strap, and that the strap be anchored. In the United States, some child restraints also have a top strap. If your child restraint has a top strap, it should be anchored. Anchor the top strap to one of the following anchor points.
Page 59: Top Strap Anchor Location
Top Strap Anchor Location Suburban A child restraint with a top strap should only be used in the second or third row. Do not secure a child restraint in the right front passenger’s position or the third row outboard seating positions if a national or local law requires that the top strap be anchored, or if the instructions that come with the child restraint say that the top strap must...
Page 60 Tahoe A child restraint with a top strap should only be used in the second or third row. Do not secure a child restraint in the right front passenger’s position or the third row driver’s-side and center seating positions if a national or local law requires that the top strap be anchored, or if the instructions that come with the child restraint say that the top strap must be anchored.
Page 61: Lower Anchorages And Top Tethers For Children (Latch System)
Lower Anchorages and Top Tethers for Children (LATCH System) Your vehicle has the LATCH system. You will ﬁnd anchors in the center and right side passenger second row seating positions for bench seats, and the outboard passenger positions for bucket seats. This system, designed to make installation of child restraints easier, does not use the vehicle’s safety belts.
Page 62 A. Lower Anchorage B. Lower Anchorage In order to use the LATCH system in your vehicle, you need a child restraint designed for that system. 1-56 To assist you in locating the lower anchors for this child restraint system, each seating position with the LATCH system has a visible metal anchorage point in the seat where the seatback meets the seat cushion.
Page 63: Securing A Child Restraint Designed For The Latch System
Securing a Child Restraint Designed for the LATCH System 1. Find the LATCH anchorages for the seating position you want to use, where the bottom of the seatback meets the back of the seat cushion. See Lower Anchorages and Top Tethers for Children (LATCH System) on page 1-55.
Page 64 If your child restraint does not have the LATCH system, you will be using the lap-shoulder belt to secure the child restraint in this position. Be sure to follow the instructions that came with the child restraint. Secure the child in the child restraint when and as the instructions say.
Page 65: Second Row
5. To tighten the belt, push down on the child restraint, pull the shoulder portion of the belt to tighten the lap portion of the belt and feed the shoulder belt back into the retractor. If you are using a forward-facing child restraint, you may ﬁnd it helpful to use your knee to push down on the child restraint as you tighten the belt.
Page 66 The center seat position in the third row has a lap belt. Be sure to follow the instructions that came with the child restraint. Secure the child in the child restraint when and as the instructions say. 1. Make the belt as long as possible by tilting the latch plate and pulling it along the belt.
Page 67: Securing A Child Restraint In The Center Front Seat Position
5. To tighten the belt, pull its free end while you push down on the child restraint. If you are using a forward-facing child restraint, you may ﬁnd it helpful to use your knee to push down on the child restraint as you tighten the belt.
Page 68: Securing A Child Restraint In The Right Front Seat Position
Securing a Child Restraint in the Right Front Seat Position Your vehicle has a right front passenger airbag. A rear seat is a safer place to secure a forward-facing child restraint. See Where to Put the Restraint on page 1-50. In addition, your vehicle has a passenger sensing system.
Page 69 If you need to secure a forward-facing child restraint in the right front seat position, move the seat as far back as it will go before securing the forward-facing child restraint. See Power Seats on page 1-4 or Manual Seats on page 1-3. If your child restraint is equipped with the LATCH system, see Lower Anchorages and Top Tethers for Children (LATCH System) on page 1-55.
Page 70 3. Pick up the latch plate, and run the lap and shoulder portions of the vehicle’s safety belt through or around the restraint. The child restraint instructions will show you how. 4. Buckle the belt. Make sure the release button is positioned so you would be able to unbuckle the safety belt quickly if you ever had to.
Page 71 6. To tighten the belt, push down on the child restraint, pull the shoulder portion of the belt to tighten the lap portion of the belt and feed the shoulder belt back into the retractor. If you are using a forward-facing child restraint, you may ﬁnd it helpful to use your knee to push down on the child restraint as you tighten the belt.
Page 72: Airbag System
Airbag System Your vehicle has airbags — a frontal airbag for the driver and another frontal airbag for the right front passenger. Your vehicle may also have side impact airbags. Side impact airbags are available for the driver and right front passenger. If your vehicle has a side impact airbag for the driver and/or the right front passenger, the words AIR BAG will appear on the airbag covering on the side of...
Page 73 CAUTION: (Continued) or in many side crashes. And, for some unrestrained occupants, frontal airbags may provide less protection in frontal crashes than more forceful airbags have provided in the past. Side impact airbags for the driver and right front passenger are designed to inﬂate only in moderate to severe crashes where something hits the side of your vehicle.
Page 74 CAUTION: Anyone who is up against, or very close to, any airbag when it inﬂates can be seriously injured or killed. Airbags plus lap-shoulder belts offer the best protection for adults, but not for young children and infants. Neither the vehicle’s safety belt system nor its airbag system is designed for them.
Page 75: Where Are The Airbags
Where Are the Airbags? The driver’s frontal airbag is in the middle of the steering wheel. The right front passenger’s frontal airbag is in the instrument panel on the passenger’s side. 1-69...
Page 76 If your vehicle has one, the driver’s side impact airbag is in the side of the driver’s seatback closest to the door. 1-70 If your vehicle has one, the right front passenger’s side impact airbag is in the side of the passenger’s seatback closest to the door.
Page 77: When Should An Airbag Inﬂate
CAUTION: If something is between an occupant and an airbag, the airbag might not inﬂate properly or it might force the object into that person causing severe injury or even death. The path of an inﬂating airbag must be kept clear. Do not put anything between an occupant and an airbag, and do not attach or put anything on the steering wheel hub or on or near any...
Page 78 If the front of your vehicle goes straight into a wall that does not move or deform, the threshold level for the reduced deployment is about 10 to 16 mph (16 to 25 km/h), and the threshold level for a full deployment is about 20 to 30 mph (32 to 48 km/h).
Page 79: What Makes An Airbag Inﬂate
In any particular crash, no one can say whether an airbag should have inﬂated simply because of the damage to a vehicle or because of what the repair costs were. For frontal airbags, inﬂation is determined by the angle of the impact and how quickly the vehicle slows down in frontal and near-frontal impacts.
Page 80: What Will You See After An Airbag Inﬂates
What Will You See After an Airbag Inﬂates? After the airbag inﬂates, it quickly deﬂates, so quickly that some people may not even realize the airbag inﬂated. Some components of the airbag module will be hot for a short time. These components include the steering wheel hub for the driver’s frontal airbag and the instrument panel for the right front passenger’s frontal airbag.
Page 81 In many crashes severe enough to inﬂate an airbag, windshields are broken by vehicle deformation. Additional windshield breakage may also occur from the right front passenger airbag. • Airbags are designed to inﬂate only once. After an airbag inﬂates, you will need some new parts for your airbag system.
Page 82: Passenger Sensing System
Passenger Sensing System If your rearview mirror has one of the indicators pictured in the following illustrations, your vehicle has a passenger sensing system. The indicator will be visible when you turn your ignition key to START or RUN. The words ON and OFF or the symbol for on and off, will be visible on the rearview mirror during the system check.
Page 83 Your vehicle has a rear seat that will accommodate a rear-facing child restraint. A label on your sun visor says, “Never put a rear-facing child seat in the front.” This is because the risk to the rear-facing child is so great, if the airbag deploys.
Page 84 If after reinstalling the child restraint and restarting the vehicle, the on indicator is still lit, check to make sure that the vehicle’s seatback is not pressing the child restraint into the seat cushion. If this happens, slightly recline the vehicle’s seatback and adjust the seat cushion if possible.
Page 85 CAUTION: If the airbag readiness light in the instrument panel cluster ever comes on and stays on, it means that something may be wrong with the airbag system. If this ever happens, have the vehicle serviced promptly, because an adult-size person sitting in the right front passenger’s seat may not have the protection of the frontal airbag.
Page 86: Servicing Your Airbag-Equipped Vehicle
Servicing Your Airbag-Equipped Vehicle Airbags affect how your vehicle should be serviced. There are airbag system parts in several places around your vehicle. You do not want the system to inﬂate while someone is working on your vehicle. Your dealer and the service manual have information about servicing your vehicle and the airbag system.
Page 87: Restraint System Check
Because I have a disability, I have to get my vehicle modiﬁed. How can I ﬁnd out whether this will affect my advanced airbag system? Changing or moving any parts of the front seats, safety belts, the airbag sensing and diagnostic module (located under the driver’s seat), or the inside rearview mirror can affect the operation of the advanced airbag system.
Page 88: Replacing Restraint System Parts After A Crash
Replacing Restraint System Parts After a Crash CAUTION: A crash can damage the restraint systems in your vehicle. A damaged restraint system may not properly protect the person using it, resulting in serious injury or even death in a crash. To help make sure your restraint systems are working properly after a crash, have them inspected and any necessary replacements made as soon as possible.
Page 89: Features And Controls
Section 2 Keys ...2-3 Remote Keyless Entry System ...2-5 Remote Keyless Entry System Operation ...2-6 Doors and Locks ...2-8 Door Locks ...2-8 Power Door Locks ...2-9 Delayed Locking ...2-10 Programmable Automatic Door Locks ...2-11 Rear Door Security Locks ...2-13 Lockout Protection ...2-13 Liftgate ...2-14 Windows ...2-15 Manual Windows ...2-15...
Page 90 Section 2 ® OnStar System ...2-51 ® HomeLink Transmitter ...2-53 ® Programming the HomeLink Storage Areas ...2-57 Glove Box ...2-57 Cupholder(s) ...2-57 Front Storage Area ...2-57 Center Console Storage Area ...2-58 Features and Controls Luggage Carrier ...2-58 Rear Storage Area ...2-59 Convenience Net ...2-59 Transmitter ...2-54 Cargo Cover ...2-60...
Page 91: Keys
Keys CAUTION: Leaving children in a vehicle with the ignition key is dangerous for many reasons. They could operate the power windows or other controls or even make the vehicle move. The children or others could be badly injured or even killed. Do not leave the keys in a vehicle with children.
Page 92 Your vehicle has one double-sided key for the ignition and all door locks as well as the spare tire hoist lock, if equipped. If you ever lose your keys, your dealer will be able to assist you with obtaining replacements. Notice: If you ever lock your keys in your vehicle, you may have to damage the vehicle to get in.
Page 93: Remote Keyless Entry System
Remote Keyless Entry System If equipped, the keyless entry system operates on a radio frequency subject to Federal Communications Commission (FCC) Rules and with Industry Canada. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1.
Page 94: Remote Keyless Entry System Operation
Remote Keyless Entry System Operation You can lock and unlock your doors from about 3 feet (1 m) up to 100 feet (30 m) away using the remote keyless entry transmitter supplied with your vehicle. (Unlock): Press this button once to unlock the driver’s door.
Page 95: Battery Replacement
Matching Transmitter(s) to Your Vehicle Each remote keyless entry transmitter is coded to prevent another transmitter from unlocking your vehicle. If a transmitter is lost or stolen, a replacement can be purchased through your dealer. Remember to bring any remaining transmitters with you when you go to your dealer.
Page 96: Doors And Locks
Resynchronization Resynchronization may be necessary due to the security method used by this system. The transmitter does not send the same signal twice to the receiver. The receiver will not respond to a signal that has been sent previously. This prevents anyone from recording and playing back the signal from the transmitter.
Page 97: Power Door Locks
There are several ways to lock and unlock your vehicle. You can use the keyless entry system, if equipped, or you can also use your key. To lock the door from the inside, slide the lever rearward. To unlock the door, slide the lever forward.
Page 98: Delayed Locking
If your vehicle has this power door lock switch, press the bottom of the switch on either front door to lock all the doors at once. Press the top of the switch to unlock all the doors at once. The power door locks will operate at any time even when the ignition is off.
Page 99: Programmable Automatic Door Locks
Programmable Automatic Door Locks Your vehicle is equipped with an automatic lock/unlock feature which enables you to program your vehicle’s power door locks. You can program this feature through the Driver Information Center (DIC), or by the following method. Programmable Locking Feature Following are the two available programming options: Mode 1: All doors lock when the transmission is shifted into gear.
Page 100: Programmable Unlocking Feature
Programmable Unlocking Feature The following is the list of available programming options: Mode 1: Driver’s door unlocks when the transmission is shifted into PARK (P). Mode 2: All doors unlock when the transmission is shifted into PARK (P). Mode 3: All doors unlock when the key is removed from the ignition.
Page 101: Rear Door Security Locks
Rear Door Security Locks If your vehicle is equipped with this feature, you can lock the rear side doors so they cannot be opened from the inside by passengers. This feature is located on the inside edge of the rear doors. To use one of the locks do the following: 1.
Page 102: Liftgate Glass And Liftgate
Liftgate CAUTION: It can be dangerous to drive with the liftgate glass, liftgate or rear doors open because carbon monoxide (CO) gas can come into your vehicle. You cannot see or smell CO. It can cause unconsciousness and even death. If you must drive with the liftgate glass, liftgate, or rear doors open, or if electrical wiring or other cable connections must pass...
Page 103: Windows
Windows CAUTION: Leaving children, helpless adults, or pets in a vehicle with the windows closed is dangerous. They can be overcome by the extreme heat and suffer permanent injuries or even death from heat stroke. Never leave a child, a helpless adult, or a pet alone in a vehicle, especially with the windows closed in warm or hot weather.
Page 104: Power Windows
Power Windows If you have power windows, the controls are located on each of the side doors. The driver’s door has a switch for the passenger and rear windows as well. Your power windows will work when the ignition has been turned to ACCESSORY or RUN or when Retained Accessory Power (RAP) is active.
Page 105: Lighted Visor Vanity Mirror
Lighted Visor Vanity Mirror If equipped, pull the sun visor down and lift the mirror cover to turn on the lamps. There is a slide switch to adjust the brightness of the lamps. Theft-Deterrent Systems Vehicle theft is big business, especially in some cities. Although your vehicle has a number of theft-deterrent features, we know that nothing we put on it can make it impossible to steal.
Page 106: Testing The Alarm
Remember, the theft-deterrent system won’t activate if you lock the doors with a key or use the manual door lock. It activates only if you use a power door lock switch with the door open, or with the remote keyless entry transmitter.
Page 107: Passlock
® Passlock Your vehicle is equipped with the Passlock theft-deterrent system. ® Passlock is a passive theft-deterrent system. ® Passlock enables fuel if the ignition lock cylinder is turned with a valid key. If a correct key is not used or the ignition lock cylinder is tampered with, fuel is disabled.
Page 108: Ignition Positions
Ignition Positions Use the key to turn the ignition switch to four different positions. A (Lock): This position locks the ignition and transmission. It is a theft-deterrent feature. You will only be able to remove the key when the ignition is turned to LOCK.
Page 109: Starting Your Engine
Starting Your Engine Your vehicle is equipped with Starter Motor Control. This feature assists in starting the engine and protects the electrical system. This feature may cause the engine to crank even after the ignition key is not in START. Move your shift lever to PARK (P) or NEUTRAL (N).
Page 110: Adjustable Throttle And Brake Pedal
Adjustable Throttle and Brake Pedal If your vehicle is equipped with this feature, you can change the position of the throttle and brake pedals. This feature is designed for shorter drivers, since the pedals can not move farther away from the standard position, but can move toward the driver for better pedal reach.
Page 111: To Use The Engine Coolant Heater
To Use the Engine Coolant Heater 1. Turn off the engine. 2. Open the hood and unwrap the electrical cord. The cord is located on the driver’s side of the engine compartment, near the power steering ﬂuid reservoir. 3. Plug it into a normal, grounded 110-volt AC outlet. CAUTION: Plugging the cord into an ungrounded outlet could cause an electrical shock.
Page 112: Automatic Transmission Operation
Automatic Transmission Operation There are several different positions for your shift lever. Your vehicle is equipped with an automatic transmission and features an electronic shift position indicator within the instrument panel cluster. This display must be powered anytime the shift lever is capable of being moved out of PARK (P).
Page 113 REVERSE (R): Use this gear to back up. Notice: Shifting to REVERSE (R) while your vehicle is moving forward could damage the transmission. The repairs would not be covered by your warranty. Shift to REVERSE (R) only after your vehicle is stopped.
Page 114: Tow/Haul Mode
SECOND (2): This position gives you more power but lower fuel economy. You can use SECOND (2) on hills. It can help control your speed as you go down steep mountain roads, but then you would also want to use your brakes off and on. If you manually select SECOND (2) in a light duty automatic transmission, the transmission will drive in second gear.
Page 115: Front Axle Locking Feature
When Tow/Haul mode is selected the Tow/Haul indicator light will illuminate. The Tow/Haul mode also interacts with the Autoride™ feature, if your vehicle is so equipped, to enhance the ride when trailering or with a loaded vehicle. See Autoride™ on page 4-61. Four-Wheel Drive If your vehicle has four-wheel drive, you can send your engine’s driving power to all four wheels for extra...
Page 116: Automatic Transfer Case
Automatic Transfer Case CAUTION: Shifting the transfer case to NEUTRAL can cause your vehicle to roll even if the transmission is in PARK (P). You or someone else could be seriously injured. Be sure to set the parking brake before placing the transfer case in NEUTRAL.
Page 117 CAUTION: Shifting the transfer case to NEUTRAL can cause your vehicle to roll even if the transmission is in PARK (P). You or someone else could be seriously injured. Be sure to set the parking brake before placing the transfer case in NEUTRAL.
Page 118 Shifting Into 4LO To shift to the 4LO position, the ignition must be in RUN and the vehicle must be stopped or moving less than 3 mph (4.8 km/h) with the transmission in NEUTRAL (N). The preferred method for shifting into 4LO is to have your vehicle moving 1 to 2 mph (1.6 to 3.2 km/h).
Page 119: Shifting Into Neutral
Shifting into NEUTRAL To shift the transfer case to NEUTRAL do the following: 1. Make sure the vehicle is parked so that it will not roll. 2. Set the parking brake. 3. Start the vehicle or turn the ignition to RUN. 4.
Page 120: All-Wheel Drive With Stabilitrak
All-Wheel Drive with StabiliTrak With this feature, engine power is sent to all four wheels all the time. AWD is like four-wheel drive, but there is no separate lever or switch to engage or disengage the front axle. It is fully automatic, and when combined with ®...
Page 121 CAUTION: Shifting the transfer case to NEUTRAL can cause your vehicle to roll even if the transmission is in PARK (P). You or someone else could be seriously injured. Be sure to set the parking brake before placing the transfer case in NEUTRAL.
Page 122 Shifting Into 4LO To shift to the 4LO position, the ignition must be in RUN and the vehicle must be stopped or moving less than 3 mph (4.8 km/h) with the transmission in NEUTRAL (N). Press and release the 4LO switch. You must wait for the 4LO indicator light to stop ﬂashing and remain illuminated before shifting your transmission in gear.
Page 123 Shifting Into NEUTRAL To shift the transfer case to NEUTRAL, do the following: 1. Make sure the vehicle is parked so that it will not roll. 2. Set the parking brake. 3. Start the vehicle or turn the ignition to RUN. 4.
Page 124: Parking Brake
Parking Brake To set the parking brake, hold the regular brake pedal down with your right foot. Push down the parking brake pedal with your left foot. A chime will activate and the warning light will ﬂash when the parking brake is applied and the vehicle is moving at least 3 mph (5 km/h) for at least three seconds.
Page 125: Shifting Into Park (P)
Shifting Into Park (P) CAUTION: It can be dangerous to get out of your vehicle if the shift lever is not fully in PARK (P) with the parking brake ﬁrmly set. Your vehicle can roll. If you have left the engine running, the vehicle can move suddenly.
Page 126: Leaving Your Vehicle With The Engine Running
Leaving Your Vehicle With the Engine Running CAUTION: It can be dangerous to leave your vehicle with the engine running. Your vehicle could move suddenly if the shift lever is not fully in PARK (P) with the parking brake ﬁrmly set. If you have four-wheel drive and your transfer case is in NEUTRAL, your vehicle will be free to roll, even if your shift lever is in PARK (P).
Page 127: Automatic Transmission
Shifting Out of Park (P) Automatic Transmission Your vehicle has an automatic transmission shift lock control system which locks the shift lever in PARK (P) when the ignition is in the LOCK position. You have to fully apply your regular brakes before you can shift from PARK (P) when the ignition is in RUN.
Page 128: Engine Exhaust
Engine Exhaust CAUTION: Engine exhaust can kill. It contains the gas carbon monoxide (CO), which you cannot see or smell. It can cause unconsciousness and death. You might have exhaust coming in if: • Your exhaust system sounds strange or different. •...
Page 129 CAUTION: It can be dangerous to get out of your vehicle if the shift lever is not fully in PARK (P) with the parking brake ﬁrmly set. Your vehicle can roll. Do not leave your vehicle when the engine is running unless you have to. If you have left the engine running, the vehicle can move suddenly.
Page 130: Mirrors
Mirrors Manual Rearview Mirror Pull the tab under the mirror toward you to reduce glare from headlamps behind you after dark. Push the tab away from you for normal daytime operation. Automatic Dimming Rearview Mirror ® with OnStar , Compass and Temperature Display Your vehicle may have this feature.
Page 131: Automatic Dimming Mirror Operation
Automatic Dimming Mirror Operation The automatic dimming mirror function is turned on automatically each time the ignition is started. To operate the automatic dimming mirror, do the following: 1. Make sure the green indicator light, located to the left of the on/off button, is lit. If it is not, press and hold the on/off button for approximately six seconds until the green light comes on, indicating that the mirror is in automatic dimming mode.
Page 132: Passenger Air Bag Indicator
Compass Calibration The compass may need calibration if one of the following occurs: • After approximately ﬁve seconds, the display does not show a compass heading, N for North, for example, there may be a strong magnetic ﬁeld interfering with the compass. Such interference may be caused by a magnetic antenna mount, magnetic note pad holder, or a similar magnetic item.
Page 133: Temperature Display
Temperature Display The temperature can be displayed by pressing the TEMP button. Pressing the TEMP button once brieﬂy, will toggle the temperature reading on and off. To alternate the temperature reading between Fahrenheit and Celsius, press and hold the TEMP button for approximately four seconds until the display blinks F and C.
Page 134 Compass Variance The mirror is set in zone eight upon leaving the factory. It will be necessary to adjust the compass to compensate for compass variance if the vehicle is outside zone eight. Under certain circumstances, as during a long distance cross-country trip, it will be necessary to adjust for compass variance.
Page 135: Outside Manual Mirrors
Passenger Air Bag Indicator The mirror may be equipped with a passenger air bag indicator on the mirror glass, just above the buttons. If the vehicle has this feature, the mirror will display the word ON, or an airbag symbol in Canada, when the passenger airbag is enabled.
Page 136: Outside Power Mirrors
Outside Power Mirrors If your vehicle is equipped with power outside mirrors, the controls are located on the driver’s door armrest. Move the selector switch located above the control pad to the left or right to choose the mirror you want to adjust, then press the dots located on the four-way control pad to adjust the mirror.
Page 137: Outside Power Foldaway Mirrors
Outside Power Foldaway Mirrors If your vehicle is equipped with this feature, the controls are located on the driver’s door armrest. Move the upper selector switch to the left or right to choose the mirror you want to adjust; then press the dots located on the four-way control pad to adjust the mirror.
Page 138: Outside Automatic Dimming Mirror
Outside Automatic Dimming Mirror If your vehicle is equipped with this feature, the driver’s outside mirror will adjust for the glare of headlamps behind you. This feature is controlled by the on and off settings found on the electrochromic mirror. See Automatic Dimming Rearview Mirror with Compass and Temperature Display on page 2-44.
Page 139: Onstar System
® OnStar System ® OnStar uses global positioning system (GPS) satellite technology, wireless communications, and call centers to provide you with a wide range of safety, security, information, and convenience services. ® A complete OnStar user’s guide and the terms and ®...
Page 140: Onstar ® Steering Wheel Controls
® OnStar Personal Calling ® As an OnStar subscriber, the Personal Calling capability is available if your hand-held cell phone is lost, forgotten, or has a low battery. It is a hands-free wireless phone that is integrated into the vehicle. Calls can be placed nationwide using simple voice commands with no additional contracts and no additional roaming charges.
Page 141: Homelink Transmitter
® HomeLink Transmitter ® HomeLink a combined universal transmitter and receiver, provides a way to replace up to three hand-held transmitters used to activate devices such as gate operators, garage door openers, entry door locks, security systems and home lighting. Additional ®...
Page 142: Programming The Homelink Transmitter
Programming the HomeLink Transmitter ® Do not use the HomeLink Transmitter with any garage door opener that does not have the “stop and reverse” feature. This includes any garage door opener model manufactured before April 1, 1982. If you have a newer garage door opener with rolling codes, please be sure to follow Steps 6 through 8 to complete the ®...
Page 143 3. Simultaneously press and hold both the desired ® button on HomeLink and the hand-held transmitter button. Do not release the buttons until Step 4 has been completed. Some entry gates and garage door openers may require you to substitute Step 3 with the procedure noted in “Gate Operator and Canadian Programming”...
Page 144: Using Homelink
Gate Operator and Canadian Programming Canadian radio-frequency laws require transmitter signals to “time out” or quit after several seconds of transmission. This may not be long enough for ® HomeLink to pick up the signal during programming. Similarly, some U.S. gate operators are manufactured to “time out”...
Page 145: Storage Areas
Reprogramming a Single ® HomeLink Button To program a device to HomeLink button previously trained, follow these steps: 1. Press and hold the desired HomeLink Do not release the button. 2. The indicator light will begin to ﬂash after 20 seconds. While still holding the HomeLink button, proceed with Step 2 under “Programming ®...
Page 146: Center Console Storage Area
Center Console Storage Area Your vehicle may have a console compartment with cupholders between the bucket seats. To open it, press the button and swing the console lid open. The rear of the console has a cupholder that swings down for the rear seat passenger to use. Luggage Carrier If you have the luggage carrier, you can load things on top of your vehicle.
Page 147: Rear Storage Area
Your vehicle has a Center High-Mounted Stoplamp (CHMSL) located above the glass or above the rear load doors. If items are loaded on the roof of the vehicle, care should be taken not to block or damage the CHMSL unit. If your vehicle has the Z71 option, your vehicle’s luggage carrier has a roller crossrail at the rear of the vehicle.
Page 148: Cargo Cover
Cargo Cover CAUTION: An improperly stored cargo cover could be thrown about the vehicle during a collision or sudden maneuver. You or others could be injured. If you remove the cover, always store it in the proper storage location. When you put it back, always be sure that it is securely reattached.
Page 149: Cargo Tie Downs
To put the cover in the vehicle, do the following: 1. Make sure the cover slot in the holder faces rearward with the round surface facing down. 2. Then, hold the cover at an angle and place the cover holder tab into the slot in the driver’s side trim panel.
Page 150: Sunroof
Sunroof Your vehicle may be equipped with a power sliding sunroof. To open or close your sunroof, the ignition or RAP needs to be active. See Retained Accessory Power (RAP) on page 2-20. Press and release the rear side of the button located in the front overhead console to express-open the glass panel and sunshade.
Page 151: Vehicle Personalization
Vehicle Personalization Memory Seat If your vehicle has this feature, the controls for the memory function are located on the driver’s door. These buttons are used to program and recall memory settings for the driver’s seat, throttle and brake pedals and both the driver’s and passenger’s outside mirrors.
Page 152: Easy Exit Seat
Easy Exit Seat The controls for this memory function are located on the driver’s door. (Easy Exit Seat): This button is used to program and recall the desired driver’s seat position when exiting/entering the vehicle. The seat position can be saved for up to two drivers.
Page 153 Section 3 Instrument Panel Overview ...3-4 Hazard Warning Flashers ...3-6 Other Warning Devices ...3-6 Horn ...3-6 Tilt Wheel ...3-6 Turn Signal/Multifunction Lever ...3-7 Turn and Lane-Change Signals ...3-8 Headlamp High/Low-Beam Changer ...3-8 Flash-to-Pass ...3-9 Windshield Wipers ...3-9 Windshield Washer ...3-10 Cruise Control ...3-11 Headlamps ...3-14 Headlamps on Reminder ...3-15...
Page 154 Section 3 Voltmeter Gage ...3-42 Brake System Warning Light ...3-42 Anti-Lock Brake System Warning Light ...3-44 Traction Off Light ...3-44 Engine Coolant Temperature Gage ...3-45 Transmission Temperature Gage ...3-46 Tire Pressure Light ...3-47 Malfunction Indicator Lamp ...3-48 Oil Pressure Gage ...3-51 Security Light ...3-52 Cruise Control Light ...3-52 Highbeam On Light ...3-52...
Page 155 NOTES...
Page 156: Instrument Panel Overview
Instrument Panel Overview...
Page 157 A. Dome Lamp Override Button. See “Dome Lamps” under Dome Lamp Override on page 3-18. B. Headlamp Controls. See Headlamps on page 3-14. C. Air Outlets. See Outlet Adjustment on page 3-30. D. Automatic Transfer Case/StabiliTrak (AWD Vehicles)/Traction Assist System (TAS). See Four-Wheel Drive on page 2-27.
Page 158: Hazard Warning Flashers
Hazard Warning Flashers Your hazard warning ﬂashers let you warn others. They also let police know you have a problem. Your front and rear turn signal lamps will ﬂash on and off. The hazard warning ﬂasher button is located on top of the steering column.
Page 159: Turn Signal/Multifunction Lever
The tilt steering wheel lever is located on the lower left side of the column. To tilt the wheel, hold the steering wheel and pull the lever. Then move the steering wheel to a comfortable position and release the lever to lock the wheel in place. Turn Signal/Multifunction Lever The lever on the left side of the steering column includes the following:...
Page 160: Turn And Lane-Change Signals
Turn and Lane-Change Signals The turn signal has two upward (for right) and two downward (for left) positions. These positions allow you to signal a turn or a lane change. To signal a turn, move the lever all the way up or down.
Page 161: Flash-To-Pass
Flash-to-Pass This feature lets you use your high-beam headlamps to signal a driver in front of you that you want to pass. It works even if your headlamps are in the automatic position. To use it, pull the turn signal lever toward you, then release it.
Page 162: Windshield Washer
Windshield Washer (Washer Fluid): There is a paddle marked with the windshield washer symbol at the top of the multifunction lever. To spray washer ﬂuid on the windshield, push the paddle. The wipers will clear the window and then either stop or return to your preset speed. CAUTION: In freezing weather, do not use your washer until the windshield is warmed.
Page 163: Cruise Control
Cruise Control turns the system off. (On): This position activates the system. + (Resume/Accelerate): Push the lever to this symbol to make the vehicle accelerate or resume to a previously set speed. (Set): Press this button to set the speed. With cruise control, you can maintain a speed of about 25 mph (40 km/h) or more without keeping your foot on the accelerator.
Page 164: Setting Cruise Control
Setting Cruise Control CAUTION: If you leave your cruise control on when you are not using cruise, you might hit a button and go into cruise when you do not want to. You could be startled and even lose control. Keep the cruise control switch off until you want to use cruise control.
Page 165 • Move the cruise switch from on to resume/accelerate. Hold it there until you get up to the speed you want, and then release the switch. To increase your speed in very small amounts, move the switch brieﬂy to resume/accelerate. Each time you do this, your vehicle will go about 1 mph (1.6 km/h) faster.
Page 166: Headlamps
Headlamps The control on the driver’s side of your instrument panel operates the headlamps. Turn the control clockwise to operate the lamps. The headlamp control has four positions: (Off): Turning the control to this position turns off the Daytime Running Lamps (DRL) and the automatic headlamps.
Page 167: Headlamps On Reminder
Headlamps on Reminder A reminder chime will sound when your headlamps or parking lamps are manually turned on and your ignition is off, in LOCK, ACCESSORY, or your door is open. To disable the chime, turn the light off then back on. Daytime Running Lamps (DRL) Daytime Running Lamps (DRL) can make it easier for others to see the front of your vehicle during the...
Page 168: Automatic Headlamp System
Automatic Headlamp System When it is dark enough outside, your automatic headlamp system will turn on your headlamps at the normal brightness along with other lamps such as the taillamps, sidemarker, parking lamps and the instrument panel lights. The radio lights will also be dim. To turn off the automatic headlamp system, turn the exterior lamps switch to the off position and then release.
Page 169: Fog Lamps
Fog Lamps If your vehicle has fog lamps, use them for better vision in foggy or misty conditions. The fog lamp button is located on the left side of the instrument panel. Your parking lamps and/or low-beam headlamps must be on for your fog lamps to work.
Page 170: Instrument Panel Brightness
Instrument Panel Brightness (Instrument Panel Brightness): This feature controls the brightness of the instrument panel lights. The thumbwheel for this feature is located next to the headlamp control. Turn the thumbwheel up to adjust the instrument panel lights. Turn the thumbwheel up to return the radio display to full brightness when the headlamps or parking lamps are on.
Page 171: Exit Lighting
Exit Lighting With exit lighting, the interior lamps will come on when you remove the key from the ignition. The lights will not come on if the dome override button is pressed in. Front Reading Lamps The reading lamps are located on the overhead console.
Page 172: Accessory Power Outlets
Accessory Power Outlets With accessory power outlets you can plug in auxiliary electrical equipment such as a cellular telephone or CB radio. Your vehicle may have two accessory power outlets, or may have one accessory power outlet located near the cigarette lighter, if equipped. The cigarette lighter is designed to ﬁt only in the receptacle to the right of the accessory power outlet.
Page 173: Climate Controls
Climate Controls Climate Control System Fan Knob The fan knob on the left side of the control panel adjusts the fan speed. To increase airﬂow, turn the knob clockwise. To decrease airﬂow, turn it counterclockwise. To turn the fan off, turn the knob to the off position. (Off): If the fan is off, outside air will still enter the vehicle, and will be directed based on the position of the mode knob.
Page 174: Dual Climate Control System
Dual Climate Control System With this system you can control the heating, cooling and ventilation for your vehicle. (Fan): Turn the left knob clockwise or counterclockwise to increase or decrease the fan speed. Turn the knob to the off position to turn off the fan. If the knob is in off outside air will still enter the vehicle, and will be directed based on the position of the mode knob.
Page 175: Defogging And Defrosting
Temperature Control Driver’s Side: The lever on the left side of the climate control panel is used to raise or lower the temperature on the driver’s side of the vehicle. This lever also adjusts the temperature to the center console outlets (if equipped).
Page 176: Rear Window Defogger
Rear Window Defogger The lines you see on the rear window warm the glass. The rear window defogger uses a warming grid to remove fog from the rear window. < (Rear): Press this button to turn the rear window defogger on or off. An indicator light in the button will come on to let you know that the rear window defogger is activated.
Page 177 Driver’s Side Temperature Knob The driver’s side knob is used to adjust the temperature of the air coming through the system on the driver’s side. The temperature can be adjusted even if the system is turned off. This is possible since outside air will always ﬂow through the system as the vehicle is moving forward unless it is set to recirculation mode.
Page 178: Automatic Operation
Automatic Operation AUTO (Automatic): When automatic operation is active the system will control the inside temperature, the air delivery, and the fan speed. Use the steps below to place the entire system in automatic mode: 1. Press the AUTO button. When AUTO is selected, the display will change to show the current driver’s set temperature, delivery mode and fan speed.
Page 179: Manual Operation
(Off): Press this button to turn off the entire climate control system. Outside air will still enter the vehicle, and will be directed to the ﬂoor. This direction can be changed by pressing the mode button. The temperature can also be adjusted using either temperature knob.
Page 180 If you select recirculation while in defrost, defog or ﬂoor, the light in the button will ﬂash and then go out to let you know that this is not allowed. This is normal and helps to prevent fogging. When the weather is cool or damp, operating the system in recirculation for extended periods of time may cause fogging of the vehicle’s windows.
Page 181: Air Conditioning
Air Conditioning (Air Conditioning): Press this button to turn the air conditioning (A/C) compressor on and off. The snowﬂake symbol will appear on the display when the A/C is on and will turn off when the air conditioning is off. Pressing this button when the outside temperature is too cool for air conditioning will make the snowﬂake symbol ﬂash three times and then turn off to let...
Page 182: Outlet Adjustment
Rear Window Defogger If your vehicle has this feature, the lines you see on the rear window warm the glass. The rear window defogger uses a warming grid to remove fog from the rear window. < (Rear): Press this button to turn the rear window defogger on or off.
Page 183: Rear Air Conditioning System
Rear Air Conditioning System If your vehicle is equipped with the optional rear air conditioner it has two rear air conditioning fan speed selectors. One fan speed selector is located in the overhead console and the other is located in the headliner above the second row seats.
Page 184: Rear Air Conditioning And Heating System
Rear Air Conditioning and Heating System If your vehicle is equipped with this system, there are two rear heat and air conditioning controls. One control is located in the overhead console and the other is located in the headliner above the second row seats. The system can be controlled from the front controls as well as the rear controls.
Page 185: Temperature Knob
Rear Controls To use the rear control, ﬁrst turn the front control to the AUX position. Then, the rear control can be used to adjust the airﬂow speed, temperature, and airﬂow location. Fan Knob The fan knob on the left side of the control panel adjusts the fan speed.
Page 186: Rear Air Conditioning And Heating System And Electronic Climate Controls
Rear Air Conditioning and Heating System and Electronic Climate Controls With this system the front or rear passengers can control the air temperature, airﬂow and fan speed for the rear seat passengers. The climate control has an overhead control near the driver and a control on the back of the center console.
Page 187: Auto Mode
Rear Passenger Console Control To control the rear climate control from the rear passenger seat position, use the rear passenger console control. The driver overhead control fan knob must be set to the AUX position. Rear Controls The rear seat controls have the following settings: (On/Off): Press this button to turn the rear seat comfort controls on or off when the front overhead control is set to AUX.
Page 188: Warning Lights, Gages, And Indicators
Warning Lights, Gages, and Indicators This part describes the warning lights and gages that may be on your vehicle. The pictures will help you locate them. Warning lights and gages can signal that something is wrong before it becomes serious enough to cause an expensive repair or replacement.
Page 189: Instrument Panel Cluster
Instrument Panel Cluster United States Heavy Duty Transmission version shown. Canada and Light Duty Transmission Clusters similar. Your instrument cluster is designed to let you know at a glance how your vehicle is running. You’ll know how fast you’re going, about how much fuel you have and many other things you’ll need to know to drive safely and economically.
Page 190: Speedometer And Odometer
Speedometer and Odometer Your speedometer lets you see your speed in both miles per hour (mph) and kilometers per hour (km/h). Your odometer shows how far your vehicle has been driven, in either miles (used in the United States) or kilometers (used in Canada). Engine Hour Meter Display The Driver Information Center (DIC) can also display the number of hours the engine has run.
Page 191: Safety Belt Reminder Light
Safety Belt Reminder Light When the key is turned to RUN or START, a chime will be provided for several seconds to remind people to buckle their safety belts. The driver safety belt light will also be provided and stay on for several seconds, then it will ﬂash for several more.
Page 192: Passenger Airbag Status Indicator
Passenger Airbag Status Indicator If your vehicle has the passenger sensing system your rearview mirror will have a passenger airbag status indicator. Passenger Airbag Status Indicator – United States Passenger Airbag Status Indicator – Canada When the ignition key is turned to RUN or START, the passenger airbag status indicator will light ON and OFF, or the symbol for on and off, for several seconds as a system check.
Page 193: Battery Warning Light
If the word OFF or the off symbol is lit on the airbag status indicator, it means that the passenger sensing system has turned off the right front passenger’s frontal airbag. See Passenger Sensing System on page 1-76 for more on this, including important safety information. If, after several seconds, all status indicator lights remain on, or if there are no lights at all, there may be a problem with the lights or the passenger sensing...
Page 194: Voltmeter Gage
Voltmeter Gage When your engine is not running, but the ignition is in RUN, this gage shows your battery’s state of charge in DC volts. When the engine is running, the gage shows the condition of the charging system. The gage may transition from a higher to lower or a lower to higher reading, this is normal.
Page 195 If the warning light comes on and a chime sounds there could be a brake problem. Have your brake system inspected right away. United States This light should come on brieﬂy when you turn the ignition key to RUN. If it doesn’t come on then, have it ﬁxed so it will be ready to warn you if there’s a problem.
Page 196: Anti-Lock Brake System Warning Light
Anti-Lock Brake System Warning Light With the anti-lock brake system, this light will come on when you start your engine and may stay on for several seconds. That’s normal. If the light doesn’t come on then, have it ﬁxed so it will be ready to warn you if there is a problem. If the light stays on, or comes on when you’re driving, your vehicle needs service.
Page 197: Engine Coolant Temperature Gage
• If you move the shift lever to FIRST (1), the light will come on and stay on to indicate that the traction system is off. This is normal operation. To turn the system back on, move the shift lever back to a position other than FIRST (1);...
Page 198: Transmission Temperature Gage
Transmission Temperature Gage United States Your vehicle may be equipped with a transmission temperature gage. When your ignition is on, the gage shows the temperature of the transmission ﬂuid. The normal operating range is from 180°F to 200°F (82°C to 93°C). At approximately 265°F (130°C), the message center will display a TRANSMISSION HOT message and the transmission will enter a transmission protection...
Page 199: Tire Pressure Light
The following situations can cause the transmission to operate at higher temperatures: • Towing a trailer • Hot outside air temperatures • Hauling a large or heavy load • Vehicle overloading • Low transmission ﬂuid level • High transmission ﬂuid level •...
Page 200: Malfunction Indicator Lamp
Malfunction Indicator Lamp Check Engine Light Your vehicle is equipped with a computer which monitors operation of the fuel, ignition, and emission control systems. This system is called OBD II (On-Board Diagnostics Second Generation) and is intended to assure that emissions are at acceptable levels for the life of the vehicle, helping to produce a cleaner environment.
Page 201: If The Light Is Flashing
If the Light is Flashing The following may prevent more serious damage to your vehicle: • Reducing vehicle speed • Avoiding hard accelerations • Avoiding steep uphill grades • If you are towing a trailer, reduce the amount of cargo being hauled as soon as it is possible If the light stops ﬂashing and remains on steady, see “If the Light Is On Steady”...
Page 202: Emissions Inspection And Maintenance Programs
Have you recently changed brands of fuel? If so, be sure to fuel your vehicle with quality fuel. See Gasoline Octane on page 5-5. Poor fuel quality will cause your engine not to run as efficiently as designed. You may notice this as stalling after start-up, stalling when you put the vehicle into gear, misﬁring, hesitation on acceleration, or stumbling on acceleration.
Page 203: Oil Pressure Gage
Oil Pressure Gage United States The oil pressure gage shows the engine oil pressure in psi (pounds per square inch) when the engine is running. Canadian vehicles indicate pressure in kPa (kilopascals). Oil pressure may vary with engine speed, outside temperature and oil viscosity, but readings above the low pressure zone indicate the normal operating range.
Page 204: Security Light
Security Light This light ﬂashes when the vehicle security system is activated. Cruise Control Light This light comes on whenever you set your cruise control. The light will go out when the cruise control is turned off. See Cruise Control on page 3-11 for more information. 3-52 Highbeam On Light This light will come on...
Page 205: Tow/Haul Mode Light
Tow/Haul Mode Light This light is displayed when the Tow/Haul mode has been activated. For more information, see Towing a Trailer on page 4-62. Fuel Gage United States The fuel gage, when the ignition is on, tells you about how much fuel you have left in your tank. The gage will ﬁrst indicate empty before you are out of fuel, and you should get more fuel as soon as possible.
Page 206: Driver Information Center (Dic)
Driver Information Center (DIC) The Driver Information Center (DIC) display is located on the instrument panel cluster, below the speedometer. The DIC buttons, if equipped, are located on the steering wheel. The DIC can display information such as the trip odometer, fuel economy, customization features and warning/status messages.
Page 207: Dic Operation And Displays
DIC Operation and Displays The Driver Information Center (DIC) comes on when the ignition is on. After a short delay, the DIC will display the information that was last displayed before the engine was turned off. The DIC has different modes which can be accessed by pressing the four DIC buttons located on the steering wheel.
Page 208: Fuel Information Button
Tire Pressures: The tire pressure mode is available only on vehicles equipped with a tire pressure monitor. Press the trip information button until TIRE PRESSURES appears on the display. This mode shows the tire pressure in pounds per square inch (psi) or kilopascals (kPa).
Page 209: Select Button
Fuel Used: Press the fuel information button until FUEL USED appears on the display. This mode shows the number of gallons or liters of fuel used since the last reset of this menu item. To reset the fuel used information, press and hold the select button for one second while FUEL USED is displayed.
Page 210: Dic Warnings And Messages
DIC Warnings and Messages Warning messages are displayed on the Driver Information Center (DIC) to notify the driver that the status of the vehicle has changed and that some action may be needed by the driver to correct the condition. If there is more than one message that needs to be displayed, they will appear one after another.
Page 211: Buckle Passenger
BUCKLE PASSENGER If your vehicle is equipped with the passenger sensing system, this message reminds you to buckle the passenger’s seat belt. See Passenger Sensing System on page 1-76. This message will display and a chime will sound when the ignition is on, the driver’s seat belt is buckled, the passenger’s seat belt is unbuckled with the passenger airbag enabled and the vehicle is in motion.
Page 212: Check Tire Pressure
CHANGE ENGINE OIL This message is displayed when the engine oil needs to be changed. When you change the engine oil, be sure to reset the CHANGE ENGINE OIL message. This message will clear itself after 10 seconds until the next ignition cycle or until the message is reset.
Page 213: Check Washer Fluid
CHECK WASHER FLUID If the washer ﬂuid level is low, this message will appear on the DIC. Adding washer ﬂuid will clear the message. See Windshield Washer Fluid on page 5-40. Pressing any of the four DIC buttons, if equipped, will acknowledge the message and clear it from the DIC display.
Page 214: Keyfob X Battery Low
FUEL LEVEL LOW If the fuel level is low, this message will appear on the DIC and you will hear a chime. Refuel as soon as possible. See Fuel Gage on page 3-53 and Fuel on page 5-5. Pressing any of the four DIC buttons, if equipped, will acknowledge the message and clear it from the DIC display.
Page 215: Passenger Door Ajar
OIL LIFE RESET This message will appear on the DIC display for about 10 seconds after the change engine oil message is reset. See “Engine Oil Life System” under DIC Operation and Displays on page 3-55 and Engine Oil on page 5-16 for more information.
Page 216: Replace Liftgate Fuse
REDUCED ENGINE POWER This message is displayed when the cooling system temperature gets too hot and the engine further enters the engine coolant protection mode. See Engine Overheating on page 5-29 for further information. REPLACE LIFTGATE FUSE This message will be displayed if the liftgate lock malfunctions and/or the liftgate fuse blows.
Page 217: Service Charging System
SERVICE AIRBAG If there is a problem with the airbag system, this message will be displayed on the DIC. Have your GM dealer inspect the system for problems. See Airbag Readiness Light on page 3-39 and Airbag System on page 1-66 for more information. Pressing any of the four DIC buttons, if equipped, will acknowledge the message and clear it from the DIC display.
Page 218: Service Ride Control
SERVICE RIDE CONTROL If a problem occurs with the suspension system, this message will appear on the DIC. If the message appears turn off the vehicle. Restart the vehicle and check for the message on the DIC display. If the message is still displayed or appears again when you begin driving, the ride control needs service.
Page 219: Stability Sys Disabled
STABILITY SYS ACTIVE You may see the STABILITY SYS ACTIVE message on the DIC. It means that an advanced computer-controlled system has come on to help your vehicle continue to go in the direction in which you are steering. StabiliTrak activates when the computer senses that your vehicle is just starting to spin, as it might if you hit a patch of ice or other slippery spot on the road.
Page 220: Trans Hot Idle Engine
TIGHTEN FUEL CAP If the vehicle’s fuel cap is not tightened properly, this message may appear along with the check engine light on the instrument panel. Reinstall the fuel cap, making sure to fully install the cap. See Filling Your Tank on page 5-8.
Page 221: Transmission Hot
TRANSMISSION HOT If the transmission ﬂuid temperature becomes high, this message will appear on the DIC. When the transmission enters the protection mode, you may notice a change in the transmission shifting patterns. When the transmission ﬂuid temperature returns to normal, the display will turn off and the transmission shifting patterns will return to normal.
Page 222: Dic Vehicle Customization
DIC Vehicle Customization Your vehicle may have customization capabilities that allow you to program some features to one setting based on your preference. All of the customizable options listed may not be available on your vehicle. Only the options available will be displayed on your Driver Information Center (DIC).
Page 223 UNLOCK DRIVER: IN PARK: The driver’s door will be unlocked when the vehicle is shifted into PARK (P). UNLOCK DOORS: KEY OUT: All of the doors will unlock when the key is taken out of the ignition. UNLOCK DOORS: MANUALLY: The doors will not be unlocked automatically.
Page 224: Unlock Feedback
Lock Feedback Press the customization button until LOCK FEEDBACK appears in the display. To select your preference for the feedback you receive when locking the vehicle with the remote keyless entry transmitter, press the select button while LOCK FEEDBACK is displayed on the DIC. Pressing the select button will scroll through the following choices: LOCK FEEDBACK: BOTH (default): The parking...
Page 225: Headlamp Delay
Headlamp Delay Press the customization button until HEADLAMP DELAY appears in the display. To select your preference for how long the headlamps will stay on when you turn off the vehicle, press the select button while HEADLAMP DELAY is displayed on the DIC. Pressing the select button will scroll through the following choices: •...
Page 226 Easy Exit Seat Press the customization button until EASY EXIT SEAT appears in the display. To select your preference for seat position exit, press the select button while EASY EXIT SEAT is displayed on the DIC. Pressing the select button will scroll through the following choices: EASY EXIT SEAT: OFF (default): No seat exit recall will occur.
Page 227: Alarm Warning
Alarm Warning Press the customization button until ALARM WARNING appears in the display. To select your preference for alarm warning, press the select button while ALARM WARNING is displayed on the DIC. Pressing the select button will scroll through the following choices: ALARM WARNING: BOTH (default): The headlamps will ﬂash and the horn will chirp when the alarm is active.
Page 228: Display Units
Display Units Press the customization button until DISPLAY UNITS appears in the display. To select English or metric, press the select button while DISPLAY UNITS is displayed on the DIC. Pressing the select button will scroll through the following choices: •...
Page 229: Setting The Time For Radios Without Radio Data Systems (Rds)
Setting the Time for Radios without Radio Data Systems (RDS) Press and hold HR until the correct hour appears on the display. Press and hold MIN until the correct minute appears on the display. There is an initial two-second delay before the clock goes into time-set mode. Display the time with the ignition off, by pressing RCL, HR, or MIN.
Page 230: Am-Fm Radio
AM-FM Radio Playing the Radio PWR (Power): Press this knob to turn the system on and off. VOL (Volume): Turn this knob to increase or to decrease the volume. RCL (Recall): Press this knob to switch the display between the radio station frequency and the time. When the ignition is off, press this knob to display the time.
Page 231: Setting Preset Stations
Setting Preset Stations Up to 18 stations (six FM1, six FM2, and six AM) can be programmed on the six numbered pushbuttons, by performing the following steps: 1. Turn the radio on. 2. Press AM FM to select FM1, FM2, or AM. 3.
Page 232: Radio Messages
Adjusting the Speakers (Balance/Fade) AUDIO: To adjust the balance between the right and the left speakers, press and release AUDIO until BAL appears on the display. Then press and hold the up or the down arrow to move the sound toward the right or the left speakers.
Page 233: Radio With Cd
Radio with CD Base Radio Shown, Bose ® If your vehicle has the Bose audio system, your ® vehicle will have six Bose ampliﬁed speakers. Radio Data System (RDS) The audio system has a Radio Data System (RDS). RDS features are available for use only on FM stations that broadcast RDS information.
Page 234: Playing The Radio
XM™ Satellite Radio Service XM™ is a satellite radio service that is based in the 48 contiguous United States. XM™ offers 100 coast-to-coast channels including music, news, sports, talk, and children’s programming. XM™ provides digital quality audio and text information that includes song title and artist name.
Page 235: Finding A Station
Finding a Station BAND: Press this button to switch between FM1, FM2, AM, or XM1 or XM2 (if equipped). The display will show the selection. TUNE : Turn this knob to select radio stations. © ¨ SEEK : Press either the SEEK or the TYPE arrows to go to the next or to the previous station and stay there.
Page 236 Setting the Tone (Bass/Treble) AUDIO: Push and release the AUDIO knob until BASS or TREB appears on the display. Turn the knob to increase or to decrease. The display will show the bass or treble level. If a station is weak or noisy, decrease the treble.
Page 237: Rds And Xm
Finding a Program Type (PTY) Station (RDS and XM™) To select and ﬁnd a desired PTY perform the following: 1. Press the TYPE button to activate program type select mode. TYPE and a PTY will appear on the display. 2. Turn the TYPE knob or press and release the TYPE button to select a PTY.
Page 238: Rds Messages
Setting Preset PTYs (RDS Only) These buttons have factory PTY presets. Up to 12 PTYs (six FM1 and six FM2), can be programmed on the six numbered pushbuttons, by performing the following steps: 1. Press BAND to select FM1 or FM2. 2.
Page 239: Xm Radio Messages
Radio Display Message XL (Explicit Language XL on the radio display, Channels) after the channel name, indicates content with explicit language. Updating Updating encryption code No Signal Loss of signal Loading XM Acquiring channel audio (after 4 second delay) CH Off Air Channel not in service CH Unavail Channel no longer...
Page 240 Radio Display Message No Info Category Name not available No Info No Text/Informational message available Not Found No channel available for the chosen category XM Locked Theft lock active Radio ID Radio ID label (channel 0) Unknown Radio ID not known (should only be if hardware failure) Chk XMRcvr...
Page 241: Playing A Cd
Playing a CD Insert a CD part way into the slot, label side up. The player will pull it in and the CD should begin playing. If you want to insert a CD with the ignition off, ﬁrst press the eject button or the INFO knob. If the ignition or radio is turned off with the CD in the player, it will stay in the player.
Page 242 6 RDM (Random): Press this pushbutton to hear the tracks in random, rather than sequential, order. RDM ON will appear on the display. RDM T and the track number will appear on the display when each track starts to play. Press this pushbutton again to turn off random play.
Page 243: Radio With Cassette And Cd
Radio with Cassette and CD Base Radio Shown, Bose ® If your vehicle has the Bose audio system, your ® vehicle will have six Bose ampliﬁed speakers. Radio Data System (RDS) The audio system has a Radio Data System (RDS). RDS features are available for use only on FM stations that broadcast RDS information.
Page 244 XM™ Satellite Radio Service XM™ is a satellite radio service that is based in the 48 contiguous United States. XM™ offers 100 coast-to-coast channels including music, news, sports, talk, and children’s programming. XM™ provides digital quality audio and text information that includes song title and artist name.
Page 245 Finding a Station BAND: Press this button to switch between FM1, FM2, AM, or XM1 or XM2 (if equipped). The display will show the selection. TUNE : Turn this knob to select radio stations. © ¨ SEEK : Press either the SEEK or the TYPE arrows to go to the next or to the previous station and stay there.
Page 246 Setting the Tone (Bass/Treble) AUDIO: Push and release the AUDIO knob until BASS or TREB appears on the display. Turn the knob to increase or to decrease. The display will show the bass or treble level. If a station is weak or noisy, decrease the treble.
Page 247 Finding a Program Type (PTY) Station (RDS and XM™) To select and ﬁnd a desired PTY perform the following: 1. Press the TYPE button to activate program type select mode. TYPE and a PTY will appear on the display. 2. Turn the TYPE knob or press and release the TYPE button to select a PTY.
Page 248 Setting Preset PTYs (RDS Only) These buttons have factory PTY presets. Up to 12 PTYs (six FM1 and six FM2), can be programmed on the six numbered pushbuttons, by performing the following steps: 1. Press BAND to select FM1 or FM2. 2.
Page 249 Radio Display Message XL (Explicit Language XL on the radio display, Channels) after the channel name, indicates content with explicit language. Updating Updating encryption code No Signal Loss of signal Loading XM Acquiring channel audio (after 4 second delay) CH Off Air Channel not in service CH Unavail Channel no longer...
Page 250 Radio Display Message No Info Category Name not available No Info No Text/Informational message available Not Found No channel available for the chosen category XM Locked Theft lock active Radio ID Radio ID label (channel 0) Unknown Radio ID not known (should only be if hardware failure) Chk XMRcvr...
Page 251: Playing A Cassette Tape
Playing a Cassette Tape The tape player is built to work best with tapes that are up to 30 to 45 minutes long on each side. Tapes longer than that are so thin they may not work well in this player. The longer side with the tape visible should face to the right.
Page 252 3 REV (Reverse): Press this pushbutton to quickly reverse the tape. The radio will play while the tape reverses. Press it again to return to playing speed. The station frequency and REV will appear on the display. Select stations during reverse operation by using TUNE and SEEK.
Page 253: Cassette Tape Messages
Cassette Tape Messages CHK TAPE (Check Tape): If this message appears on the display, the tape will not play due to one of the following errors: • The tape is tight and the player cannot turn the tape hubs. Remove the tape. Hold the tape with the open end down and try to turn the right hub counterclockwise with a pencil.
Page 254 Playing a CD Insert a CD part way into the slot, label side up. The player will pull it in and the CD should begin playing. If you want to insert a CD with the ignition off, ﬁrst press the eject button or the INFO knob. If the ignition or radio is turned off with the CD in the player, it will stay in the player.
Page 255 4 FWD (Forward): Press and hold this pushbutton to quickly advance within a track. Press and hold this pushbutton for less than two seconds to advance at six times the normal playing speed. Press and hold it for more than two seconds to advance at 17 times the normal playing speed.
Page 256: Listening To A Dvd
CD Messages If the CD comes out, it could be for one of the following reasons: • It is very hot. When the temperature returns to normal, the CD should play. • You are driving on a very rough road. When the road becomes smoother, the CD should play.
Page 257: Radio With Six-Disc Cd
Radio with Six-Disc CD Base Radio Shown, Bose ® If your vehicle has the Bose audio system, your ® vehicle will have six Bose ampliﬁed speakers. Radio Data System (RDS) The audio system has a Radio Data System (RDS). RDS features are available for use only on FM stations that broadcast RDS information.
Page 258: Xm™ Satellite Radio Service
XM™ Satellite Radio Service XM™ is a satellite radio service that is based in the 48 contiguous United States. XM™ offers 100 coast-to-coast channels including music, news, sports, talk, and children’s programming. XM™ provides digital quality audio and text information that includes song title and artist name.
Page 259 Finding a Station BAND: Press this button to switch between FM1, FM2, AM, or XM1 or XM2 (if equipped). The display will show the selection. TUNE : Turn this knob to select radio stations. © ¨ SEEK : Press either the SEEK or the TYPE arrows to go to the next or to the previous station and stay there.
Page 260 Setting the Tone (Bass/Treble) AUDIO: Push and release the AUDIO knob until BASS, ® MID (without Bose ), or TREB appears on the display. Turn the knob to increase or to decrease. The display will show the bass, midrange (without Bose treble level.
Page 261 Finding a Program Type (PTY) Station (RDS and XM™) To select and ﬁnd a desired PTY perform the following: 1. Press the TYPE button to activate program type select mode. P-TYPE and the last selected PTY will appear on the display. 2.
Page 262 Setting Preset PTYs (RDS Only) These pushbuttons have factory PTY presets. Up to 12 PTYs (six FM1 and six FM2), can be programmed on the six numbered pushbuttons, by performing the following steps: 1. Press BAND to select FM1 or FM2. 2.
Page 263 Radio Display Message XL (Explicit Language XL on the radio display, Channels) after the channel name, indicates content with explicit language. Updating Updating encryption code No Signal Loss of signal Loading XM Acquiring channel audio (after 4 second delay) CH Off Air Channel not in service CH Unavail Channel no longer...
Page 264 Radio Display Message No Info Category Name not available No Info No Text/Informational message available Not Found No channel available for the chosen category XM Locked Theft lock active Radio ID Radio ID label (channel 0) Unknown Radio ID not known (should only be if hardware failure) Chk XMRcvr...
Page 265 Playing a CD If the ignition or radio is turned off, with a CD in the player, it will stay in the player. When the ignition or radio is turned on, the CD will start playing where it stopped, if it was the last selected audio source. When a CD is inserted, the CD symbol will appear on the display.
Page 266 To load more than one CD but less than six, complete Steps 1 through 3. When ﬁnished loading CDs, press the LOAD button to cancel the loading function. The radio will begin to play the last CD loaded. If more than one CD has been loaded, a number for each CD will appear on the display.
Page 267 REV (Reverse): Press and hold this button to reverse quickly within a track. You will hear sound at a reduced volume. Release the button to play the passage. The elapsed time of the track will appear on the display. (Forward): Press and hold this button to advance quickly within a track.
Page 268: Using Song List Mode
© ¨ SCAN : To scan one CD, press and hold either SCAN arrow for more than two seconds until TRACK SCAN appears on the display and you hear a beep. The radio will go to the next track, play for 10 seconds, then go on to the next track.
Page 269 To play the song list, press the SONG LIST button. One beep will be heard and S-LIST will appear on the display. The recorded tracks will begin to play in the order they were saved. Seek through the song list by using the SEEK or TYPE arrows.
Page 270 CD Messages CHECK CD: If this message appears on the display and/or the CD comes out, it could be for one of the following reasons: • It is very hot. When the temperature returns to normal, the CD should play. •...
Page 271: Parental Control
Rear Seat Entertainment System Your vehicle may have a DVD Rear Seat Entertainment (RSE) system. The RSE system includes a DVD player, a video display screen, two sets of wireless headphones, and a remote control. Parental Control This button is located behind the video screen. Press this button while a DVD or CD is playing to freeze the video and mute the audio.
Page 272: Stereo Rca Jacks
Battery Replacement To change the batteries, do the following: 1. Loosen the screw on the battery compartment door located on the left side of the headphone earpiece. 2. Replace the two AAA batteries in the compartment. Make sure that they are installed correctly, using the diagram on the inside of the battery compartment.
Page 273: Video Screen
Audio Output Audio from the DVD player or auxiliary inputs may be heard through the following possible sources: • Wireless Headphones • Vehicle Speakers • Vehicle wired headphone jacks on the Rear Seat Audio system (if equipped) The RSE system will always transmit the audio signal by infrared to the wireless headphones, if there is audio available.
Page 274: Dvd Player
DVD Player The DVD player is located in the overhead console. The DVD player can be controlled by the buttons on the DVD player and/or by the buttons on the remote control. See “Remote Control” later in this section for more information. The DVD player power may be turned on when the ignition is in RUN, ACCESSORY, or when Retained Accessory Power (RAP) is active.
Page 275 DVD Player Buttons (Power): Press this button to turn the RSE system on and off. The power indicator light will illuminate when the power is on. (Eject): Press this button to eject a DVD or CD. SRCE (Source): Press this button to switch between the DVD player and an auxiliary source.
Page 276: Ejecting A Disc
Playing a Disc To play a disc, gently insert the disc with the label side up into the loading slot. The DVD player will continue loading the disc and the player will automatically start, if the vehicle is in RUN, ACCESSORY, or when RAP is active.
Page 277: Remote Control Buttons
Remote Control Buttons (Power): Press this button to turn the DVD player on and off. (Title): Press this button to return the DVD to the main menu of the DVD. (Menu Navigation Arrows): Use the arrow buttons to navigate through a menu. (Set-up Menu): Press this button to adjust the color, tint, brightness, contrast, display mode, and dynamic range compression.
Page 278 10 (Double Digit Entries): Press this button to select chapter, title, and track numbers greater than 9. Press this button before inputting the number. (Clear): Press this button within three seconds after inputting a number to clear the number(s). (Illumination): Press this button to turn the remote control backlight on.
Page 279 Battery Replacement To change the batteries, do the following: 1. Remove the battery compartment door located on the bottom of the remote control. 2. Replace the two AA batteries in the compartment. Make sure that they are installed correctly, using the diagram on the inside of the battery compartment.
Page 280 Problem Recommended Action In auxiliary mode, the Check the auxiliary input picture moves or scrolls. connections at both devices. Change the Video Format to PAL or NTSC. See “Stereo RCA Jacks” previously for how to change the video format. The language in the Check the audio or audio or on the screen language selection in the...
Page 281: Dvd Messages
Problem Recommended Action Sometimes the wireless Check for obstructions, low headphone audio cuts batteries, reception range, out or buzzes. and interference from cellular telephone towers or by using your cellular telephone in the vehicle. Check that the headphones are facing the front of the vehicle.
Page 282: Navigation/Radio System
DVD Distortion There may be an experience with audio distortion in the wireless headphones when operating cellular phones, scanners, CB radios, Global Positioning Systems (GPS)*, two-way radios, mobile fax, or walkie talkies. It may be necessary to turn off the DVD player when operating one of these devices in or near the vehicle.
Page 283 The front seat audio controls always have priority over the RSA controls. If the front seat passengers switch the source for the main radio to a remote source, the RSA will not be able to control the source. You can operate the rear seat audio when the main radio is off.
Page 284: Theft-Deterrent Feature
When a cassette tape is playing, press this button to go to the other side of the tape. This function is inactive if the front seat passengers are listening to a cassette tape. When a CD is playing, press this button to go to the beginning of the CD.
Page 285: Radio Reception
PROG (Program): Press this button to play a station you have programmed on the radio preset pushbuttons. The radio will only seek preset stations with a strong signal that are in the selected band. When a cassette tape is playing, press this button to play the other side of the tape.
Page 286: Care Of Your Cassette Tape Player
Care of Your Cassette Tape Player A tape player that is not cleaned regularly can cause reduced sound quality, ruined cassettes, or a damaged mechanism. Cassette tapes should be stored in their cases away from contaminants, direct sunlight, and extreme heat. If they are not, they may not operate properly or may cause failure of the tape player.
Page 287: Care Of Your Cds And Dvds
Care of Your CDs and DVDs Handle discs carefully. Store them in their original cases or other protective cases and away from direct sunlight and dust. If the surface of a disc is soiled, dampen a clean, soft cloth in a mild, neutral detergent solution and clean it, wiping from the center to the edge.
Page 288 NOTES 3-136...
Page 289: Driving Your Vehicle
Section 4 Your Driving, the Road, and Your Vehicle ...4-2 Defensive Driving ...4-2 Drunken Driving ...4-3 Control of a Vehicle ...4-6 Braking ...4-6 Anti-Lock Brake System (ABS) ...4-7 Braking in Emergencies ...4-8 Traction Assist System (TAS) ...4-9 Locking Rear Axle ...4-10 ®...
Page 290: Your Driving, The Road, And Your Vehicle
Your Driving, the Road, and Your Vehicle Defensive Driving The best advice anyone can give about driving is: Drive defensively. Please start with a very important safety device in your vehicle: Buckle up. See Safety Belts: They Are for Everyone on page 1-21. Defensive driving really means “be ready for anything.”...
Page 291: Drunken Driving
Drunken Driving Death and injury associated with drinking and driving is a national tragedy. It is the number one contributor to the highway death toll, claiming thousands of victims every year. Alcohol affects four things that anyone needs to drive a vehicle: •...
Page 292 According to the American Medical Association, a 180 lb (82 kg) person who drinks three 12 ounce (355 ml) bottles of beer in an hour will end up with a BAC of about 0.06 percent. The person would reach the same BAC by drinking three 4 ounce (120 ml) glasses of wine or three mixed drinks if each had 1-1/2 ounces (45 ml) of liquors like whiskey, gin, or vodka.
Page 293 But the ability to drive is affected well below a BAC of 0.10 percent. Research shows that the driving skills of many people are impaired at a BAC approaching 0.05 percent, and that the effects are worse at night. All drivers are impaired at BAC levels above 0.05 percent.
Page 294: Control Of A Vehicle
Control of a Vehicle You have three systems that make your vehicle go where you want it to go. They are the brakes, the steering, and the accelerator. All three systems have to do their work at the places where the tires meet the road. Sometimes, as when you are driving on snow or ice, it is easy to ask more of those control systems than the tires and road can provide.
Page 295: Anti-Lock Brake System (Abs)
Anti-Lock Brake System (ABS) Your vehicle has anti-lock brakes. ABS is an advanced electronic braking system that will help prevent a braking skid. When you start your engine and begin to drive away, your anti-lock brake system will check itself. You may hear a momentary motor or clicking noise while this test is going on.
Page 296: Using Anti-Lock
The anti-lock system can change the brake pressure faster than any driver could. The computer is programmed to make the most of available tire and road conditions. This can help you steer around the obstacle while braking hard. As you brake, your computer keeps receiving updates on wheel speed and controls braking pressure accordingly.
Page 297: Traction Assist System (Tas)
Traction Assist System (TAS) Your vehicle may have a Traction Assist System (TAS) that limits wheel spin. This is especially useful in slippery road conditions. The system operates only if it senses that one or both of the rear wheels are spinning or beginning to lose traction.
Page 298: Locking Rear Axle
The Traction Assist System, as delivered from the factory, will automatically come on whenever you start your vehicle. To limit wheel spin, especially in slippery road conditions, you should always leave the system on. But you can turn the TAS off if you ever need to.
Page 299: Stabilitrak System
® StabiliTrak System Your vehicle may be equipped with the StabiliTrak system which combines antilock brake, traction and stability control systems and helps the driver maintain directional control of the vehicle in most driving conditions. When you ﬁrst start your vehicle and begin to drive away, the system performs several diagnostic checks to ensure there are no problems.
Page 300: Traction Control Operation
When the system is turned off, the traction off light will illuminate, and the STABILITY SYS DISABLED message will appear on the DIC to warn the driver that both the stability system and part of the traction control system are disabled. Your vehicle will still have brake-traction control when StabiliTrak will not be able to use the engine speed management system.
Page 301 If the brake traction-control system activates constantly or if the brakes have heated up due to high speed braking, brake traction-control will be disabled and the TRACTION SYS LIMITED message will be displayed. In the limited mode, the traction-control system will only use engine traction-control and is limited in it’s ability to provide optimal performance since the system will not utilize brake traction-control to control slip on the...
Page 302: Steering
Steering Power Steering If you lose power steering assist because the engine stops or the system is not functioning, you can steer but it will take much more effort. Steering Tips Driving on Curves It is important to take curves at a reasonable speed. A lot of the “driver lost control”...
Page 303: Steering In Emergencies
Steering in Emergencies There are times when steering can be more effective than braking. For example, you come over a hill and ﬁnd a truck stopped in your lane, or a car suddenly pulls out from nowhere, or a child darts out from between parked cars and stops right in front of you.
Page 304: Quadrasteer
QUADRASTEER™ The QUADRASTEER™ System has a control and diagnostic module that monitors and records current system status and operational information. If your vehicle is equipped with the 4-Wheel Steer system, it has the ability to steer the vehicle with all four wheels.
Page 305 4: In this mode, all four wheels will help steer the vehicle. If you want to use 4, and your vehicle is not in this mode, press the button, until the 4 indicator, located to the right of the 4-Wheel Steer button, comes on and stays on.
Page 306 (4-Wheel Steer Tow Mode): When towing a trailer, the 4-wheel steer tow mode provides enhanced stability allowing the trailer to follow the path of the tow vehicle more closely, especially during lane changes. In this mode the system operates much like the 4 mode, but is enhanced for trailer towing.
Page 307: Off-Road Recovery
Off-Road Recovery You may ﬁnd that your right wheels have dropped off the edge of a road onto the shoulder while you are driving. If the level of the shoulder is only slightly below the pavement, recovery should be fairly easy. Ease off the accelerator and then, if there is nothing in the way, steer so that your vehicle straddles the edge of the pavement.
Page 308 • Do not get too close to the vehicle you want to pass while you are awaiting an opportunity. For one thing, following too closely reduces your area of vision, especially if you are following a larger vehicle. Also, you will not have adequate space if the vehicle ahead suddenly slows or stops.
Page 309: Loss Of Control
Loss of Control Let us review what driving experts say about what happens when the three control systems — brakes, steering, and acceleration — do not have enough friction where the tires meet the road to do what the driver has asked.
Page 310: Off-Road Driving
Off-Road Driving This off-road guide is for vehicles that have four-wheel drive or all-wheel drive. Also, see Braking on page 4-6. If your vehicle does not have four-wheel drive or all-wheel drive, you should not drive off-road unless you are on a level, solid surface. Off-road driving can be great fun.
Page 311 The following steps must be performed on each of the push-pins to remove the air dam: 1. Insert a tool into the push-pin slot and pull downward until the push-pin snaps loose. 2. While continuing to pull downward on the push-pin, squeeze and turn the expandable end of the...
Page 312: Before You Go Off-Roading
To reinstall the lower air dam do the following: 1. Line up each push-pin with its intended retainer and push the washer portion of the push-pin towards the retainer until it locks into place. 2. Push the ﬂat end of the push-pin towards the retainer until it locks into place, making sure...
Page 313: Environmental Concerns
CAUTION: • Cargo on the load ﬂoor piled higher than the seatbacks can be thrown forward during a sudden stop. You or your passengers could be injured. Keep cargo below the top of the seatbacks. • Unsecured cargo on the load ﬂoor can be tossed about when driving over rough terrain.
Page 314: Traveling To Remote Areas
Traveling to Remote Areas It makes sense to plan your trip, especially when going to a remote area. Know the terrain and plan your route. You are much less likely to get bad surprises. Get accurate maps of trails and terrain. Try to learn of any blocked or closed roads.
Page 315: Scanning The Terrain
Scanning the Terrain Off-road driving can take you over many different kinds of terrain. You need to be familiar with the terrain and its many different features. Here are some things to consider. Surface Conditions: Off-roading can take you over hard-packed dirt, gravel, rocks, grass, sand, mud, snow or ice.
Page 316: Driving On Off-Road Hills
Driving on Off-Road Hills Off-road driving often takes you up, down or across a hill. Driving safely on hills requires good judgment and an understanding of what your vehicle can and cannot do. There are some hills that simply cannot be driven, no matter how well built the vehicle.
Page 317: Driving Uphill
Driving Uphill Once you decide you can safely drive up the hill, you need to take some special steps. • Use a low gear and get a ﬁrm grip on the steering wheel. • Get a smooth start up the hill and try to maintain your speed.
Page 318 What should I do if my vehicle stalls, or is about to stall, and I cannot make it up the hill? If this happens, there are some things you should do, and there are some things you must not do. First, here is what you should do: •...
Page 319 CAUTION: Shifting the transfer case to NEUTRAL can cause your vehicle to roll even if the transmission is in PARK (P). This is because the NEUTRAL position on the transfer case overrides the transmission. You or someone else could be injured. If you are going to leave your vehicle, set the parking brake and shift the transmission to PARK (P).
Page 320: Driving Downhill
Driving Downhill When off-roading takes you downhill, you will want to consider a number of things: • How steep is the downhill? Will I be able to maintain vehicle control? • What is the surface like? Smooth? Rough? Slippery? Hard-packed dirt? Gravel? •...
Page 321: Driving Across An Incline
Driving Across an Incline Sooner or later, an off-road trail will probably go across the incline of a hill. If this happens, you have to decide whether to try to drive across the incline. Here are some things to consider: •...
Page 322: Stalling On An Incline
Stalling on an Incline If your vehicle stalls when you are crossing an incline, be sure you (and your passengers) get out on the uphill side, even if the door there is harder to open. If you get out on the downhill side and the vehicle starts to roll over, you will be right in its path.
Page 323: Driving In Mud, Sand, Snow Or Ice
Driving in Mud, Sand, Snow or Ice When you drive in mud, snow or sand, your wheels will not get good traction. You cannot accelerate as quickly, turning is more difficult, and you will need longer braking distances. It is best to use a low gear when you are in mud — the deeper the mud, the lower the gear.
Page 324: Driving In Water
Driving in Water Heavy rain can mean ﬂash ﬂooding, and ﬂood waters demand extreme caution. Find out how deep the water is before you drive through it. If it is deep enough to cover your wheel hubs, axles or exhaust pipe, do not try it — you probably will not get through.
Page 325: Driving At Night
Driving at Night Night driving is more dangerous than day driving. One reason is that some drivers are likely to be impaired — by alcohol or drugs, with night vision problems, or by fatigue. Here are some tips on night driving. •...
Page 326: Driving In Rain And On Wet Roads
You can be temporarily blinded by approaching headlamps. It can take a second or two, or even several seconds, for your eyes to re-adjust to the dark. When you are faced with severe glare, as from a driver who does not lower the high beams, or a vehicle with misaimed headlamps, slow down a little.
Page 327: Driving Through Deep Standing Water
The heavier the rain, the harder it is to see. Even if your windshield wiper blades are in good shape, a heavy rain can make it harder to see road signs and traffic signals, pavement markings, the edge of the road, and even people walking.
Page 328: Driving Through Flowing Water
Driving Through Flowing Water CAUTION: Flowing or rushing water creates strong forces. If you try to drive through ﬂowing water, as you might at a low water crossing, your vehicle can be carried away. As little as six inches of ﬂowing water can carry away a smaller vehicle.
Page 329: Freeway Driving
Here are ways to increase your safety in city driving: • Know the best way to get to where you are going. Get a city map and plan your trip into an unknown part of the city just as you would for a cross-country trip.
Page 330: Before Leaving On A Long Trip
The most important advice on freeway driving is: Keep up with traffic and keep to the right. Drive at the same speed most of the other drivers are driving. Too-fast or too-slow driving breaks a smooth traffic ﬂow. Treat the left lane on a freeway as a passing lane. At the entrance, there is usually a ramp that leads to the freeway.
Page 331: Highway Hypnosis
Here are some things you can check before a trip: • Windshield Washer Fluid: Is the reservoir full? Are all windows clean inside and outside? • Wiper Blades: Are they in good shape? • Fuel, Engine Oil, Other Fluids: Have you checked all levels? •...
Page 332: Hill And Mountain Roads
Hill and Mountain Roads Driving on steep hills or mountains is different from driving in ﬂat or rolling terrain. 4-44 If you drive regularly in steep country, or if you are planning to visit there, here are some tips that can make your trips safer and more enjoyable.
Page 333: Winter Driving
CAUTION: Coasting downhill in NEUTRAL (N) or with the ignition off is dangerous. Your brakes will have to do all the work of slowing down. They could get so hot that they would not work well. You would then have poor braking or even none going down a hill.
Page 334: Driving On Snow Or Ice
Include an ice scraper, a small brush or broom, a supply of windshield washer ﬂuid, a rag, some winter outer clothing, a small shovel, a ﬂashlight, a red cloth, and a couple of reﬂective warning triangles. And, if you will be driving under severe conditions, include a small bag of sand, a piece of old carpet, or a couple of burlap bags to help provide traction.
Page 335 Whatever the condition — smooth ice, packed, blowing, or loose snow — drive with caution. If you have traction assist, it will improve your ability to accelerate when driving on a slippery road. But you can turn the traction assist system off if you ever need to.
Page 336: If You Are Caught In A Blizzard
If You Are Caught in a Blizzard If you are stopped by heavy snow, you could be in a serious situation. You should probably stay with your vehicle unless you know for sure that you are near help and you can hike through the snow. Here are some things to do to summon help and keep yourself and your passengers safe: •...
Page 337 CAUTION: Snow can trap exhaust gases under your vehicle. This can cause deadly CO (carbon monoxide) gas to get inside. CO could overcome you and kill you. You cannot see it or smell it, so you might not know it is in your vehicle.
Page 338: If You Are Stuck: In Sand, Mud, Ice Or Snow
If You Are Stuck: In Sand, Mud, Ice or Snow In order to free your vehicle when it is stuck, you will need to spin the wheels, but you do not want to spin your wheels too fast. The method known as rocking can help you get out when you are stuck, but you must use caution.
Page 339: Recovery Hooks
Recovery Hooks Your vehicle may be equipped with recovery hooks. The hooks are provided at the front of your vehicle. You may need to use them if you are stuck off-road and need to be pulled to some place where you can continue driving.
Page 340: Loading Your Vehicle
Loading Your Vehicle It is very important to know how much weight your vehicle can carry. This weight is called the vehicle capacity weight and includes the weight of all occupants, cargo and all nonfactory-installed options. Two labels on your vehicle show how much weight it was designed to carry, the Tire and Loading Information label and the Certiﬁcation/Tire label.
Page 341: Steps For Determining Correct Load Limit
The Tire and Loading Information label also shows the size of the original equipment tires (C) and the recommended cold tire inﬂation pressures (D). For more information on tires and inﬂation see Tires on page 5-61 and Inﬂation - Tire Pressure on page 5-68. There is also important loading information on the vehicle Certiﬁcation/Tire label.
Page 342 Example 1 Item Description Vehicle Capacity Weight for Example 1 Subtract Occupant Weight 150 lbs (68 kg) Available Occupant and Cargo Weight 4-54 Total Item 1,000 lbs (453 kg) 300 lbs (136 kg) 700 lbs (317 kg) Example 2 Description Vehicle Capacity Weight 1,000 lbs (453 kg) for Example 2...
Page 343: Certification/Tire Label
Example 3 Item Description Vehicle Capacity Weight for Example 3 Subtract Occupant Weight 200 lbs (91 kg) Available Cargo Weight Refer to your vehicle’s tire and loading information label for speciﬁc information about your vehicle’s capacity weight and seating positions. The combined weight of the driver, passengers and cargo should never exceed your vehicle’s capacity weight.
Page 344 The Certiﬁcation/Tire label also tells you the maximum weights for the front and rear axles, called Gross Axle Weight Rating (GAWR). To ﬁnd out the actual loads on your front and rear axles, you need to go to a weigh station and weigh your vehicle.
Page 345: Towing
CAUTION: Things you put inside your vehicle can strike and injure people in a sudden stop or turn, or in a crash. • Put things in the cargo area of your vehicle. Try to spread the weight evenly. • Never stack heavier things, like suitcases, inside the vehicle so that some of them are above the tops of the seats.
Page 346: Dinghy Towing
Here are some important things to consider before you do recreational vehicle towing: • What’s the towing capacity of the towing vehicle? Be sure you read the tow vehicle manufacturer’s recommendations. • How far will you tow? Some vehicles have restrictions on how far and how long they can tow.
Page 347: Dolly Towing
CAUTION: Shifting a four-wheel-drive vehicle’s transfer case into NEUTRAL can cause your vehicle to roll even if the transmission is in PARK (P). You or others could be injured. Make sure the parking brake is ﬁrmly set before you shift the transfer case to NEUTRAL.
Page 348: Four-Wheel Drive Vehicles
Four-Wheel-Drive Vehicles If your vehicle is equipped with StabiliTrak designed to be dolly towed. If you need to tow your vehicle, see “Dinghy Towing” earlier in this section. If your vehicle is not equipped with StabiliTrak following procedure to tow your vehicle: 1.
Page 349: Level Control
Level Control Automatic Level Control The automatic level control rear suspension is available on C/K 1500 vehicles and comes as a part of the Autoride™ suspension, if equipped. This type of level control is fully automatic and will provide a better leveled riding position as well as better handling under a variety of passenger and loading conditions.
Page 350: Trailer Recommendations
Trailer Recommendations You must subtract your hitch loads from the Cargo Weight Rating (CWR) for your vehicle. CWR is the maximum weight of the load your vehicle can carry. It doesn’t include the weight of the people inside. But you can ﬁgure about 150 lbs. (68 kg) for each seat. The total cargo load must not be more than your vehicle’s CWR.
Page 351: If You Do Decide To Pull A Trailer
To identify the vehicle trailering capacity of your vehicle, you should read the information in “Weight of the Trailer” that appears later in this section. If yours was built with trailering options, as many are, it’s ready for heavier trailers. But trailering is different than just driving your vehicle by itself.
Page 352 Tow/Haul Mode Tow/Haul is a feature that assists when pulling a heavy trailer or a large or heavy load. The purpose of the Tow/Haul mode is to: • Reduce the frequency and improve the predictability of transmission shifts when pulling a heavy trailer or a large or heavy load.
Page 353: Weight Of The Trailer
Weight of the Trailer How heavy can a trailer safely be? It depends on how you plan to use your rig. For example, speed, altitude, road grades, outside temperature and how much your vehicle is used to pull a trailer are all important.
Page 354 Vehicle* Axle Ratio C-2500 (2WD)* 6000 V8 3.73 (Extended Models) 4.10 3.73 6000 V8 w/4WS 4.10 8100 V8 3.73 (Extended Models) 4.10 Vehicle* Axle Ratio K-2500 (4WD)* 6000 V8 3.73 (Extended Models) 4.10 3.73 6000 V8 w/4WS 4.10 3.73 8100 V8 4.10 The Gross Combination Weight Rating (GCWR) is the total allowable weight of the completely loaded...
Page 355: Weight Of The Trailer Tongue
Weight of the Trailer Tongue The tongue load (A) of any trailer is an important weight to measure because it affects the total or gross weight of your vehicle. The Gross Vehicle Weight (GVW) includes the curb weight of the vehicle, any cargo you may carry in it, and the people who will be riding in the vehicle.
Page 356: Total Weight On Your Vehicle's Tires
Total Weight on Your Vehicle’s Tires Be sure your vehicle’s tires are inﬂated to the upper limit for cold tires. You’ll ﬁnd these numbers on the Certiﬁcation label at the rear edge of the driver’s door or see Loading Your Vehicle on page 4-52 for more information.
Page 357: Trailer Brakes
If you will be pulling a trailer that, when loaded, will weigh more than 5,000 lbs (2 270 kg) be sure to use a properly mounted weight-distributing hitch and sway control of the proper size. This equipment is very important for proper vehicle loading and good handling when driving.
Page 358: Driving With A Trailer
Driving with a Trailer CAUTION: If you have a rear-most window open and you pull a trailer with your vehicle, carbon monoxide (CO) could come into your vehicle. You cannot see or smell CO. It can cause unconsciousness or death. See Engine Exhaust on page 2-40.
Page 359: Turn Signals When Towing A Trailer
Following Distance Stay at least twice as far behind the vehicle ahead as you would when driving your vehicle without a trailer. This can help you avoid situations that require heavy braking and sudden turns. Passing You’ll need more passing distance up ahead when you’re towing a trailer.
Page 360: Driving On Grades
Driving On Grades Reduce speed and shift to a lower gear before you start down a long or steep downgrade. If you don’t shift down, you might have to use your brakes so much that they would get hot and no longer work well. You can tow in DRIVE (D).
Page 361: Maintenance When Trailer Towing
CAUTION: It can be dangerous to get out of your vehicle if the shift lever is not fully in PARK (P) with the parking brake ﬁrmly set. Your vehicle can roll. If you have left the engine running, the vehicle can move suddenly.
Page 362: Trailer Wiring Harness
Trailer Wiring Harness Your vehicle is equipped with the following wiring harnesses for towing a trailer. Basic Trailer Wiring The trailer wiring harness, with a seven-pin connector, is located at the rear of the vehicle and is tied to the vehicle’s frame. The harness connector can be plugged into a seven-pin universal heavy-duty trailer connector available through your dealer.
Page 363: Heavy-Duty Trailer Wiring Harness Package
Heavy-Duty Trailer Wiring Harness Package Your vehicle is equipped with the seven-wire trailer towing harness. This harness with a seven-pin universal trailer connector is attached to a bracket on the hitch platform. The seven-wire harness contains the following trailer circuits: •...
Page 364 Electric Brake Control Jumper CAUTION: Be sure to use only the correct trailer brake harness, the one intended for use on your vehicle. If you use some other trailer brake harness, even if it seems to ﬁt, your trailer brakes may not work at all. You could have a crash in which you or others could be injured.
Page 365 Four-Wire Harness Adapter This adapter is included with your vehicle as part of the heavy-duty trailer wiring package. Use this adapter to connect a standard four-way round pin connector to the seven-wire harness on your vehicle. Connect the adapter with the tab pointing up (see arrow). The ﬂip cap on the vehicle’s seven-wire harness will lock onto the tab and help hold the adapter in place.
Page 366: Power Winches
Power Winches If you wish to use a power winch on your vehicle, only use it when your vehicle is stationary or anchored. Step-Bumper Pad Your vehicle has a rear step bumper with a rear step pad at the center of the bumper. 4-78 If you will be using the bumper to tow a trailer,...
Page 367: Service And Appearance Care
Section 5 Service ...5-3 Doing Your Own Service Work ...5-4 Adding Equipment to the Outside of Your Vehicle ...5-5 Fuel ...5-5 Gasoline Octane ...5-5 Gasoline Speciﬁcations ...5-5 California Fuel ...5-6 Additives ...5-6 Fuel E-85 (85% Ethanol) ...5-7 Fuels in Foreign Countries ...5-8 Filling Your Tank ...5-8 Filling a Portable Fuel Container ...5-10 Checking Things Under the Hood ...5-10...
Page 368 Section 5 Tire Inspection and Rotation ...5-74 When It Is Time for New Tires ...5-75 Buying New Tires ...5-76 Uniform Tire Quality Grading ...5-77 Wheel Alignment and Tire Balance ...5-78 Wheel Replacement ...5-78 Tire Chains ...5-80 If a Tire Goes Flat ...5-81 Changing a Flat Tire ...5-82 Removing the Spare Tire and Tools ...5-83 Removing the Flat Tire and Installing the...
Page 369: Service
Service Your dealer knows your vehicle best and wants you to be happy with it. We hope you will go to your dealer for all your service needs. You will get genuine GM parts and GM-trained and supported service people. We hope you will want to keep your GM vehicle all GM.
Page 370: Doing Your Own Service Work
Doing Your Own Service Work If you want to do some of your own service work, you will want to use the proper service manual. It tells you much more about how to service your vehicle than this manual can. To order the proper service manual, see Service Publications Ordering Information on page 7-11.
Page 371: Adding Equipment To The Outside Of Your Vehicle
Adding Equipment to the Outside of Your Vehicle Things you might add to the outside of your vehicle can affect the airﬂow around it. This may cause wind noise and affect windshield washer performance. Check with your dealer before adding equipment to the outside of your vehicle.
Page 372: California Fuel
California Fuel If your vehicle is certiﬁed to meet California Emission Standards (see the underhood emission control label), it is designed to operate on fuels that meet California speciﬁcations. If this fuel is not available in states adopting California emissions standards, your vehicle will operate satisfactorily on fuels meeting federal speciﬁcations, but emission control system performance may be affected.
Page 373: Fuel E-85 (85% Ethanol)
Fuel E-85 (85% Ethanol) The 8th digit of your vehicle identiﬁcation number (VIN) shows the code letter or number that identiﬁes your engine. You will ﬁnd the VIN at the top left of the instrument panel. See Vehicle Identiﬁcation Number (VIN) on page 5-109.
Page 374: Fuels In Foreign Countries
Fuels in Foreign Countries If you plan on driving in another country outside the United States or Canada, the proper fuel may be hard to ﬁnd. Never use leaded gasoline or any other fuel not recommended in the previous text on fuel. Costly repairs caused by use of improper fuel would not be covered by your warranty.
Page 375 CAUTION: If you spill fuel and then something ignites it, you could be badly burned. Fuel can spray out on you if you open the fuel cap too quickly. This spray can happen if your tank is nearly full, and is more likely in hot weather. Open the fuel cap slowly and wait for any hiss noise to stop.
Page 376: Filling A Portable Fuel Container
Filling a Portable Fuel Container CAUTION: Never ﬁll a portable fuel container while it is in your vehicle. Static electricity discharge from the container can ignite the gasoline vapor. You can be badly burned and your vehicle damaged if this occurs. To help avoid injury to you and others: •...
Page 377: Hood Release
Hood Release To open the hood do the following: 1. Pull the handle located inside the vehicle to the lower left of the steering wheel. 2. Then go to the front of the vehicle and pull up on the secondary hood release located near the center of the grille.
Page 378: Engine Compartment Overview
Engine Compartment Overview When you open the hood on the VORTEC™ 5300 V8 engine (VORTEC™ 4800 and 6000 V8 engines similar), here is what you will see: 5-12...
Page 379 A. Engine Air Cleaner/Filter. See Engine Air Cleaner/Filter on page 5-21. B. Coolant Surge Tank and Pressure Cap. See Cooling System on page 5-32 and Coolant Surge Tank Pressure Cap on page 5-29. C. Air Filter Restriction Indicator (If Equipped). See Engine Air Cleaner/Filter on page 5-21.
Page 380 When you open the hood on the VORTEC™ 8100 V8 engine, here is what you will see: 5-14...
Page 381 A. Engine Air Cleaner/Filter. See Engine Air Cleaner/Filter on page 5-21. B. Coolant Surge Tank and Pressure Cap. See Cooling System on page 5-32 and Coolant Surge Tank Pressure Cap on page 5-29. C. Air Filter Restriction Indicator (If Equipped). See Engine Air Cleaner/Filter on page 5-21.
Page 382: Checking Engine Oil
Engine Oil If the CHECK OIL LEVEL message appears on the instrument cluster, it means you need to check your engine oil level right away. For more information, see CHECK OIL LEVEL under DIC Warnings and Messages on page 3-58. You should check your engine oil level regularly;...
Page 383: When To Add Engine Oil
All Other Engines When to Add Engine Oil If the oil is at or below the cross-hatched area at the tip of the dipstick, then you will need to add at least one quart of oil. But you must use the right kind. This section explains what kind of oil to use.
Page 384: What Kind Of Engine Oil To Use
What Kind of Engine Oil to Use Look for two things: • GM6094M Your vehicle’s engine requires oil meeting GM Standard GM6094M. You should look for and use only an oil that meets GM Standard GM6094M. 5-18...
Page 385: Engine Oil Additives
• SAE 5W-30 As shown in the viscosity chart, SAE 5W-30 is best for your vehicle. These numbers on an oil container show its viscosity, or thickness. Do not use other viscosity oils such as SAE 20W-50. Oils meeting these requirements should also have the starburst symbol on the container.
Page 386: How To Reset The Engine Oil Life System
Engine Oil Life System When to Change Engine Oil Your vehicle has a computer system that lets you know when to change the engine oil and ﬁlter. This is based on engine revolutions and engine temperature, and not on mileage. Based on driving conditions, the mileage at which an oil change will be indicated can vary considerably.
Page 387: What To Do With Used Oil
What to Do with Used Oil Used engine oil contains certain elements that may be unhealthy for your skin and could even cause cancer. Do not let used oil stay on your skin for very long. Clean your skin and nails with soap and water, or a good hand cleaner.
Page 388: How To Inspect
How to Inspect Vehicles with an Air Filter Restriction Indicator Locate the air ﬁlter restriction indicator on the engine air cleaner/ﬁlter cover. When the indicator turns black or is in the red/orange “change” zone, replace the ﬁlter and reset the indicator. See the steps following to replace the engine air cleaner/ﬁlter and to reset the air ﬁlter restriction indicator.
Page 389 3. Remove the engine air cleaner/ﬁlter from the housing. Care should be taken to dislodge as little dirt as possible. 4. Clean the engine air cleaner/ﬁlter sealing surfaces and the housing. 5. Inspect or replace the engine air cleaner/ﬁlter. 6. Reinstall the cover and tighten the screws. 7.
Page 390: Automatic Transmission Fluid
Automatic Transmission Fluid When to Check and Change A good time to check your automatic transmission ﬂuid level is when the engine oil is changed. Change both the ﬂuid and ﬁlter every 50,000 miles (83 000 km) if the vehicle’s GVWR is over 8,600 or if the vehicle is mainly driven under one or more of these conditions: •...
Page 391: Checking The Fluid Level
To get the right reading, the ﬂuid should be at normal operating temperature, which is 180°F to 200°F (82°C to 93°C). Get the vehicle warmed up by driving about 15 miles (24 km) when outside temperatures are above 50°F (10°C). If it is colder than 50°F (10°C), drive the vehicle in THIRD (3) until the engine temperature gage moves and then remains steady for 10 minutes.
Page 392 Then, without shutting off the engine, follow these steps: The transmission dipstick handle with this graphic is located at the rear of the engine compartment, on the passenger’s side of the vehicle. See Engine Compartment Overview on page 5-12 for more information on location.
Page 393: How To Add Fluid
How to Add Fluid Refer to the Maintenance Schedule to determine what kind of transmission ﬂuid to use. See Recommended Fluids and Lubricants on page 6-13. Add ﬂuid only after checking the transmission ﬂuid while it is hot. A cold check is used only as a reference. If the ﬂuid level is low, add only enough of the proper ﬂuid to bring the level up to the HOT area for a hot check.
Page 394: Checking Coolant
What to Use Use a mixture of one-half clean, drinkable water and ® one-half DEX-COOL coolant which will not damage aluminum parts. If you use this coolant mixture, you do not need to add anything else. CAUTION: Adding only plain water to your cooling system can be dangerous.
Page 395: Adding Coolant
The vehicle must be on a level surface. When your engine is cold, the coolant level should be at the FULL COLD mark. If your vehicle is equipped with a low coolant sensor, and the LOW COOLANT LEVEL message comes on and stays on, it means you are low on engine coolant.
Page 396: If No Steam Is Coming From Your Engine
If Steam Is Coming From Your Engine CAUTION: Steam from an overheated engine can burn you badly, even if you just open the hood. Stay away from the engine if you see or hear steam coming from it. Just turn it off and get everyone away from the vehicle until it cools down.
Page 397: Overheated Engine Protection Operating Mode
If you no longer have the overheat warning, you can drive. Just to be safe, drive slower for about 10 minutes. If the warning does not come back on, you can drive normally. If the warning continues, pull over, stop, and park your vehicle right away.
Page 398: Cooling System
Cooling System When you decide it is safe to lift the hood, here is what you will see: 8100 V8 Engines A. Coolant Surge Tank B. Coolant Surge Tank Pressure Cap C. Engine-Driven Cooling Fan 5-32 All Other Engines A. Coolant Surge Tank B.
Page 399 CAUTION: An electric fan under the hood can start up and injure you even when the engine is not running. Keep hands, clothing and tools away from any underhood electric fan. If the coolant inside the coolant surge tank is boiling, do not do anything else until it cools down.
Page 400: How To Add Coolant To The Coolant Surge Tank
If there seems to be no leak and your vehicle is equipped with an engine-driven cooling fan, start the engine again and see if the fan speed increases when idle speed is doubled by pushing the accelerator pedal down. If it does not, your vehicle needs service. Turn off the engine.
Page 401 CAUTION: Adding only plain water to your cooling system can be dangerous. Plain water, or some other liquid such as alcohol, can boil before the proper coolant mixture will. Your vehicle’s coolant warning system is set for the proper coolant mixture. With plain water or the wrong mixture, your engine could get too hot but you would not get the overheat warning.
Page 402 3. Fill the coolant surge tank with the proper mixture, to the FULL COLD mark. 5-36 4. With the coolant surge tank pressure cap off, start the engine and let it run until you can feel the upper radiator hose getting hot. Watch out for the engine cooling fan.
Page 403: Engine Fan Noise
Engine Fan Noise If your vehicle is equipped with a clutched engine cooling fan, when the clutch is engaged, the fan spins faster to provide more air to cool the engine. In most everyday driving conditions, the fan is spinning slower and the clutch is not fully engaged.
Page 404: Power Steering Fluid
Power Steering Fluid 8100 V8 engine 5-38 All other engines See Engine Compartment Overview on page 5-12 for reservoir location.
Page 405: When To Check Power Steering Fluid
When to Check Power Steering Fluid It is not necessary to regularly check power steering ﬂuid unless you suspect there is a leak in the system or you hear an unusual noise. A ﬂuid loss in this system could indicate a problem. Have the system inspected and repaired.
Page 406: Adding Washer Fluid
Windshield Washer Fluid What to Use When you need windshield washer ﬂuid, be sure to read the manufacturer’s instructions before use. If you will be operating your vehicle in an area where the temperature may fall below freezing, use a ﬂuid that has sufficient protection against freezing.
Page 407: Brakes
Brakes Brake Fluid Your brake master cylinder reservoir is ﬁlled with DOT-3 brake ﬂuid. See Engine Compartment Overview on page 5-12 for the location of the reservoir. There are only two reasons why the brake ﬂuid level in the reservoir might go down. The ﬁrst is that the brake ﬂuid goes down to an acceptable level during normal brake lining wear.
Page 408: Checking Brake Fluid
Checking Brake Fluid You can check the brake ﬂuid without taking off the cap. Look at the brake ﬂuid reservoir. The ﬂuid level should be above MIN. If it is not, have your brake system checked to see if there is a leak. After work is done on the brake hydraulic system, make sure the level is above the MIN but not over the MAX mark.
Page 409: Brake Pedal Travel
Brake Wear Your vehicle has four-wheel disc brakes. Disc brake pads have built-in wear indicators that make a high-pitched warning sound when the brake pads are worn and new pads are needed. The sound may come and go or be heard all the time your vehicle is moving, except when you are pushing on the brake pedal ﬁrmly.
Page 410: Replacing Brake System Parts
Replacing Brake System Parts The braking system on a vehicle is complex. Its many parts have to be of top quality and work well together if the vehicle is to have really good braking. Your vehicle was designed and tested with top-quality GM brake parts.
Page 411: Jump Starting
Jump Starting If your battery (or batteries) has run down, you may want to use another vehicle and some jumper cables to start your vehicle. Be sure to use the following steps to do it safely. CAUTION: Batteries can hurt you. They can be dangerous because: •...
Page 412 Notice: If you leave your radio or other accessories on during the jump starting procedure, they could be damaged. The repairs would not be covered by your warranty. Always turn off your radio and other accessories when jump starting your vehicle. 3.
Page 413 CAUTION: Using a match near a battery can cause battery gas to explode. People have been hurt doing this, and some have been blinded. Use a ﬂashlight if you need more light. Be sure the battery has enough water. You do not need to add water to the battery installed in your new vehicle.
Page 414 6. Connect the red positive (+) cable to the positive (+) terminal of the vehicle with the dead battery. Use a remote positive (+) terminal if the vehicle has one. 7. Do not let the other end touch metal. Connect it to the positive (+) terminal of the good battery.
Page 415 Notice: If the jumper cables are removed in the wrong order, electrical shorting may occur and damage the vehicle. The repairs would not be covered by your warranty. Remove the jumper cables in the correct order, making sure that the cables do not touch each other or other metal.
Page 416: All-Wheel Drive
All-Wheel Drive Lubricant checks in this section also apply to these vehicles. However, there are two additional systems that need lubrication. Transfer Case When to Check Lubricant Refer to the Maintenance Schedule to determine how often to check the lubricant. See Scheduled Maintenance on page 6-4.
Page 417: Rear Axle
Rear Axle When to Check Lubricant It is not necessary to regularly check rear axle ﬂuid unless you suspect there is a leak or you hear an unusual noise. A ﬂuid loss could indicate a problem. Have it inspected and repaired. How to Check Lubricant 1500 Series shown, 2500 similar To get an accurate reading, the vehicle should be on a...
Page 418: Four-Wheel Drive
Four-Wheel Drive Lubricant checks in this section also apply to these vehicles. There are two additional systems that need lubrication. Transfer Case When to Check Lubricant It is not necessary to regularly check transfer case ﬂuid unless you suspect there is a leak, or you hear an unusual noise.
Page 419: Front Axle
Front Axle When to Check Lubricant It is not necessary to regularly check front axle ﬂuid unless you suspect there is a leak or you hear an unusual noise. A ﬂuid loss could indicate a problem. Have it inspected and repaired. How to Check Lubricant To get an accurate reading, the vehicle should be on a level surface.
Page 420: Bulb Replacement
Bulb Replacement For the proper type of replacement bulbs, see Replacement Bulbs on page 5-59. For any bulb changing procedure not listed in this section, contact your dealer. Halogen Bulbs CAUTION: Halogen bulbs have pressurized gas inside and can burst if you drop or scratch the bulb. You or others could be injured.
Page 421: Front Turn Signal, Sidemarker And Daytime Running Lamps
A. Low-Beam Headlamp B. High-Beam Headlamp 3. Pull the headlamp assembly out. 4. Unplug the electrical connector. 5. Turn the bulb counterclockwise and remove it from the headlamp assembly. 6. Put the new bulb into the headlamp assembly and turn it clockwise until it is tight. Use care not to touch the bulb with your ﬁngers or hands.
Page 422: Side Identiﬁcation Marker Lamps
2. Press the retainer clip (B), located behind the turn signal housing, towards the outside of the vehicle. 3. Pull the turn signal housing out of the vehicle. 4. Press the locking release lever, turn the bulb socket counterclockwise and remove it from the turn signal housing.
Page 423: Roof Marker Lamps
Roof Marker Lamps To replace a roof marker lamp bulb, do the following: 1. Remove the two screws and lift off the lens. 2. Remove the six screws on the center roof marker lamps. 3. Turn the old bulb counterclockwise to remove it from the socket.
Page 424: Taillamps
4. Put a new bulb into the socket and turn clockwise until it locks in place. 5. Reinstall the lens and tighten the screws. 5-58 Taillamps A. Turn Signal Lamp B. Back-up Lamp C. Stoplamp To replace a taillamp bulb, do the following: 1.
Page 425: Replacement Bulbs
2. Remove the taillamp assembly. 3. Press the release tab and turn the bulb socket counterclockwise to remove it from the taillamp housing. 4. Pull the old bulb straight out from the socket. 5. Press a new bulb into the socket, insert the socket into the taillamp housing and turn the socket clockwise into the taillamp housing until it clicks.
Page 426: Windshield Wiper Blade Replacement
Windshield Wiper Blade Replacement Windshield wiper blades should be inspected at least twice a year for wear and cracking. See Scheduled Maintenance on page 6-4 for more information. Replacement blades come in different types and are removed in different ways. For proper type and length, see Normal Maintenance Replacement Parts on page 6-15.
Page 427: Tires
Tires Your new vehicle comes with high-quality tires made by a leading tire manufacturer. If you ever have questions about your tire warranty and where to obtain service, see your GM Warranty booklet for details. For additional information refer to the tire manufacturer’s booklet included with your vehicle’s Owner’s Manual.
Page 428: Tire Sidewall Labelling
Tire Sidewall Labelling Useful information about a tire is molded into the sidewall. The following illustrations are examples of a typical P-Metric and a LT-Metric tire sidewall. Passenger (P-Metric) Tire (A) Tire Size: The tire size code is a combination of letters and numbers used to deﬁne a particular tire’s width, height, aspect ratio, construction type and service description.
Page 429 Light Truck (LT-Metric) Tire (A) Tire Size: The tire size code is a combination of letters and numbers used to deﬁne a particular tire’s width, height, aspect ratio, construction type and service description. See the “Tire Size” illustration later in this section for more detail. (B) TPC Spec (Tire Performance Criteria Speciﬁcation): Original equipment tires designed to GM’s speciﬁc tire performance criteria have a...
Page 430: Tire Size
Tire Size The following examples show the different parts of a tire size. Passenger (P-Metric) Tire Light Truck (LT-Metric) Tire (A) Passenger (P-Metric) Tire: The United States version of a metric tire sizing system. The letter P as the ﬁrst character in the tire size means a passenger vehicle tire engineered to standards set by the U.S.
Page 431: Tire Terminology And Deﬁnitions
Tire Terminology and Deﬁnitions Air Pressure: The amount of air inside the tire pressing outward on each square inch of the tire. Air pressure is expressed in pounds per square inch (psi) or kiloPascal (kPa). Accessory Weight: This means the combined weight of optional accessories.
Page 432 Intended Outboard Sidewall: The side of an asymmetrical tire, that must always face outward when mounted on a vehicle. KiloPascal (kPa): The metric unit for air pressure. Light Truck (LT-Metric) Tire: A tire used on light duty trucks and some multipurpose passenger vehicles. Load Index: An assigned number ranging from 1 to 279 that corresponds to the load carrying capacity of a tire.
Page 433 Rim: A metal support for a tire and upon which the tire beads are seated. Sidewall: The portion of a tire between the tread and the bead. Speed Rating: An alphanumeric code assigned to a tire indicating the maximum speed at which a tire can operate.
Page 434: Inﬂation - Tire Pressure
Inﬂation - Tire Pressure Tires need the correct amount of air pressure to operate effectively. Notice: Do not let anyone tell you that under-inﬂation or over-inﬂation is all right. It is not. If your tires do not have enough air (under-inﬂation), you can get the following: •...
Page 435: How To Check
How to Check Use a good quality pocket-type gage to check tire pressure. You cannot tell if your tires are properly inﬂated simply by looking at them. Radial tires may look properly inﬂated even when they’re underinﬂated. Check the tire’s inﬂation pressure when the tires are cold.
Page 436 An example of the Improved Ride label is shown here. This label is attached to the lower section of the driver’s door edge, for 2500 Series vehicles only. 5-70 Operating your vehicle with a light load means: • The total weight of occupants in your vehicle is less than the total seating capacity number your vehicle was designed to carry multiplied by 150 lbs (68 kg).
Page 437: Tire Pressure Monitor System
Tire Pressure Monitor System The Tire Pressure Monitor (TPM) system uses radio and sensor technology to check tire pressure levels. If your vehicle has this feature, sensors are mounted on each tire and wheel assembly, except the spare tire. The TPM sensors transmit tire pressure readings to a receiver located in the vehicle.
Page 438 TPM Sensor Identiﬁcation Codes Each TPM sensor has a unique identiﬁcation code. Any time you rotate your vehicle’s tires or replace one or more of the TPM sensors, the identiﬁcation codes will need to be matched to the new tire/wheel position. Each tire/wheel position is matched to a sensor, by increasing or decreasing the tire’s air pressure.
Page 439 6. Proceed to the right (passenger’s side) front tire, and repeat the procedure in Step 5. 7. Proceed to the right (passenger’s side) rear tire, and repeat the procedure in Step 5. 8. Proceed to the left (driver’s side) rear tire, and repeat the procedure in Step 5.
Page 440: Tire Inspection And Rotation
Tire Inspection and Rotation Tires should be rotated every 5,000 to 8,000 miles (8 000 to 13 000 km). Any time you notice unusual wear, rotate your tires as soon as possible and check wheel alignment. Also check for damaged tires or wheels. See When It Is Time for New Tires on page 5-75 and Wheel Replacement on page 5-78 for more information.
Page 441: When It Is Time For New Tires
CAUTION: Rust or dirt on a wheel, or on the parts to which it is fastened, can make wheel nuts become loose after a time. The wheel could come off and cause an accident. When you change a wheel, remove any rust or dirt from places where the wheel attaches to the vehicle.
Page 442: Buying New Tires
Buying New Tires To ﬁnd out what kind and size of tires you need, look at the Certiﬁcation/Tire label or the Tire and Loading Information label. See Loading Your Vehicle on page 4-52 for more information about these labels and where they can be found on your vehicle.
Page 443: Uniform Tire Quality Grading
CAUTION: If you use bias-ply tires on your vehicle, the wheel rim ﬂanges could develop cracks after many miles of driving. A tire and/or wheel could fail suddenly, causing a crash. Use only radial-ply tires with the wheels on your vehicle. Uniform Tire Quality Grading Quality grades can be found where applicable on the tire sidewall between tread shoulder and maximum...
Page 444: Wheel Alignment And Tire Balance
Temperature – A, B, C The temperature grades are A (the highest), B, and C, representing the tire’s resistance to the generation of heat and its ability to dissipate heat when tested under controlled conditions on a speciﬁed indoor laboratory test wheel. Sustained high temperature can cause the material of the tire to degenerate and reduce tire life, and excessive temperature can lead to sudden tire failure.
Page 445: Used Replacement Wheels
If you need to replace any of your wheels, wheel bolts or wheel nuts, replace them only with new GM original equipment parts. This way, you will be sure to have the right wheel, wheel bolts and wheel nuts for your vehicle. CAUTION: Using the wrong replacement wheels, wheel bolts or wheel nuts on your vehicle can be...
Page 446: Tire Chains
Tire Chains CAUTION: If your vehicle has P265/75R16, LT265/75R16, P265/70R16 or P265/70R17 size tires, don’t use tire chains. They can damage your vehicle because there’s not enough clearance. Tire chains used on a vehicle without the proper amount of clearance can cause damage to the brakes, suspension or other vehicle parts.
Page 447: If A Tire Goes Flat
If a Tire Goes Flat It’s unusual for a tire to “blowout” while you’re driving, especially if you maintain your tires properly. If air goes out of a tire, it’s much more likely to leak out slowly. But if you should ever have a “blowout,” here are a few tips about what to expect and what to do: If a front tire fails, the ﬂat tire will create a drag that pulls the vehicle toward that side.
Page 448: Changing A Flat Tire
Changing a Flat Tire If a tire goes ﬂat, avoid further tire and wheel damage by driving slowly to a level place. Turn on your hazard warning ﬂashers. CAUTION: Changing a tire can be dangerous. The vehicle can slip off the jack and roll over or fall on you or other people.
Page 449: Removing The Spare Tire And Tools
Removing the Spare Tire and Tools Tahoe Rear Access Panel A. Retaining Bracket C. Jack and Wing Nut D. Wing Nut Holding B. Tool Kit and Tire Blocks Jack Tools E. Wheel Blocks Suburban A. Knob F. Mounting Bracket B. Removable Tray G.
Page 450 On the Tahoe, the equipment is located behind the left trim panel in the rear of the vehicle. Unlatch the release lever to open the trim panel door. Skip the ﬁrst step and follow the last three. On the Suburban, the equipment you’ll need is under the storage tray in the left trim panel.
Page 451 2. Assemble the wheel wrench (H) and the two jack handle extensions (I) as shown. 3. Insert the hoist end (open end) (F) of the extension through the hole (G) in the rear bumper. Be sure the hoist end of the extension connects to the hoist shaft (E).
Page 452: Removing The Flat Tire And Installing The Spare Tire
6. Tilt the retainer (D) at the end of the cable when the tire has been lowered, so it can be pulled up through the wheel opening. 7. Put the spare tire near the ﬂat tire. 5-86 Removing the Flat Tire and Installing the Spare Tire Use the following pictures and instructions to remove the ﬂat tire and raise the vehicle.
Page 453 1. Remove the center cap by placing the chisel end of the wheel wrench in the slot on the wheel and gently prying the cap out. If the wheel has bolt-on wheel covers, loosen the plastic nut caps by turning the wheel wrench in a counterclockwise direction.
Page 454 Notice: If your vehicle has QUADRASTEER™ and you use a jack to raise the vehicle without positioning it correctly, you could damage the QUADRASTEER™ system. When raising your vehicle on a jack, avoid contact with tie rods and tie rod boots. Jacking Locations (Overall View) A.
Page 455 3. Position the jack under the vehicle as shown. Front Position Front Tire Flat: If the ﬂat tire is on a front tire of the vehicle, you’ll need to use the jack handle (C) and only one jack handle extension (D). Attach the wheel wrench to the jack handle extension.
Page 456 4. Remove all the wheel nuts and take off the ﬂat tire. CAUTION: Rust or dirt on the wheel, or on the parts to which it is fastened, can make the wheel nuts become loose after a time. The wheel could come off and cause an accident.
Page 457 6. Put the wheel nuts back on with the rounded end of the nuts toward the wheel after mounting the spare. 7. Tighten each wheel nut by hand. Then use the wheel wrench to tighten the nuts until the wheel is held against the hub.
Page 458: Secondary Latch System
9. Tighten the nuts ﬁrmly in a crisscross sequence as shown by turning the wheel wrench clockwise. When you reinstall the regular wheel and tire, you must also reinstall the either the center cap, or bolt-on hub cap, depending on what your vehicle is equipped with.
Page 459 To release the spare tire from the secondary latch, do the following: 1. Check under the vehicle to see if the cable end is visible. If the cable is not visible proceed to Step 6. 2. If it is visible, ﬁrst try to tighten the cable by turning the wheel wrench clockwise until you hear two clicks or feel it skip twice.
Page 460 8. Attach the jack handle, extension, and wheel wrench to the jack and place it (with the wheel blocks) under the vehicle toward the front of the rear bumper. 5-94 9. Position the center lift point of the jack under the center of the spare tire.
Page 461 12. Lower the jack by turning the wheel wrench counterclockwise. Keep lowering the jack until the spare tire slides off the jack or is hanging by the cable. CAUTION: Someone standing too close during the procedure could be injured by the jack. If the spare tire does not slide off the jack completely, make sure no one is behind you or on either side of you as you pull the jack out...
Page 462: Storing A Flat Or Spare Tire And Tools
Storing a Flat or Spare Tire and Tools CAUTION: Storing a jack, a tire, or other equipment in the passenger compartment of the vehicle could cause injury. In a sudden stop or collision, loose equipment could strike someone. Store all these in the proper place. Notice: Storing an aluminum wheel with a ﬂat tire under your vehicle for an extended period of time or with the valve stem pointing up may damage the...
Page 463 2. Tilt the retainer (D) downward and through the wheel opening. Make sure the retainer is fully seated across the underside of the wheel. 3. Attach the wheel wrench (H) and extensions (I) together. 4. Insert the hoist end (F) through the hole (G) in the rear bumper and into the hoist shaft.
Page 464 7. Make sure the tire is stored securely. Push, pull, (A) and then try to turn (B) the tire. If the tire moves, use the wheel wrench to tighten the cable. 8. Reinstall the spare tire lock (if equipped). 5-98 To store the tools, follow these procedures: For Tahoe, do the following: 1.
Page 465 4. Use the retaining clip to fasten the tool kit on the stud in the storage compartment in the rear left trim panel and turn the wing nut clockwise to secure. 5. Return the storage tray. Tahoe Rear Access Panel A.
Page 466: Spare Tire
Spare Tire Your vehicle, when new, had a fully inﬂated spare tire. A spare tire may lose air over time, so check its inﬂation pressure regularly. See Inﬂation - Tire Pressure on page 5-68 and Loading Your Vehicle on page 4-52 for information regarding proper tire inﬂation and loading your vehicle.
Page 467: Fabric/Carpet
Do not use any of these products unless this manual says you can. In many uses, these will damage the vehicle: • Alcohol • Laundry Soap • Bleach • Reducing Agents Fabric/Carpet Use a vacuum cleaner often to get rid of dust and loose dirt.
Page 468: Special Fabric Cleaning Problems
Using Cleaner on Fabric 1. First, try the cleaner on an area of the fabric that is not easily seen to make sure the cleaner does not affect the color of the fabric. 2. For liquids: blot with a clean, soft, white cloth. For solids: remove as much as possible and then vacuum or brush.
Page 469: Leather
Leather Use a soft cloth with lukewarm water and a mild soap or saddle soap and wipe dry with a soft cloth. Then, let the leather dry naturally. Do not use heat to dry. • For stubborn stains, use a leather cleaner. •...
Page 470: Weatherstrips
Weatherstrips Silicone grease on weatherstrips will make them last longer, seal better, and not stick or squeak. Apply silicone grease with a clean cloth. During very cold, damp weather frequent application may be required. See Recommended Fluids and Lubricants on page 6-13. Washing Your Vehicle The paint ﬁnish on the vehicle provides beauty, depth of color, gloss retention, and durability.
Page 471: Protecting Exterior Bright Metal Parts
Foreign materials such as calcium chloride and other salts, ice melting agents, road oil and tar, tree sap, bird droppings, chemicals from industrial chimneys, etc., can damage your vehicle’s ﬁnish if they remain on painted surfaces. Wash the vehicle as soon as possible.
Page 472: Aluminum Or Chrome-Plated Wheels
Aluminum or Chrome-Plated Wheels The vehicle may be equipped with either aluminum or chrome-plated wheels. Keep the wheels clean using a soft clean cloth with mild soap and water. Rinse with clean water. After rinsing thoroughly, dry with a soft clean towel. A wax may then be applied.
Page 473: Sheet Metal Damage
Sheet Metal Damage If the vehicle is damaged and requires sheet metal repair or replacement, make sure the body repair shop applies anti-corrosion material to parts repaired or replaced to restore corrosion protection. Original manufacturer replacement parts will provide the corrosion protection while maintaining the warranty.
Page 474: Vehicle Care/Appearance Materials
Vehicle Care/Appearance Materials See your GM dealer for more information on purchasing the following products. Description Polishing Cloth Interior and exterior Wax-Treated polishing cloth. Tar and Road Removes tar, road oil, Oil Remover and asphalt. Chrome Cleaner Use on chrome or and Polish stainless steel.
Page 475: Vehicle Identiﬁcation
Vehicle Identiﬁcation Vehicle Identiﬁcation Number (VIN) This is the legal identiﬁer for your vehicle. It appears on a plate in the front corner of the instrument panel, on the driver’s side. You can see it if you look through the windshield from outside your vehicle.
Page 476: Instrument Panel Fuse Block
Windshield Wiper Fuses The windshield wiper motor is protected by an internal circuit breaker and a fuse. If the motor overheats due to heavy snow, etc., the wiper will stop until the motor cools. If the overload is caused by some electrical problem and not snow, etc., be sure to get it ﬁxed.
Page 477 Fuses RR WPR Rear Window Wiper Switch Special Equipment Option SEO ACCY Accessory WS WPR Windshield Wipers Truck Body Controller TBC ACCY Accessory IGN 3 Ignition, Heated Seats Fuses HTR A/C LOCK HVAC 1 L DOOR CRUISE UNLOCK RR FOG LP BRAKE Usage DRIVER UNLOCK...
Page 478: Center Instrument Panel Fuse Block
Fuses Left Turn Signals and LT TRN Sidemarkers Vehicle Stoplamps, Brake VEH STOP Module, Electronic Throttle Control Module RT TRLR ST/TRN Right Turn Signal/Stop Trailer Right Turn Signals and RT TRN Sidemarkers BODY Harness Connector Driver Door Module Rear Cargo Area Power AUX PWR 2 Outlets LOCKS...
Page 479: Underhood Fuse Block
Device BODY Body Wiring Connector DEFOG Rear Defogger Relay HDLNR 1 Headliner Wiring Connector 1 SPARE RELAY Not Used Driver and Passenger Seat CB SEAT Module Circuit Breaker Right Power Window CB RT DOOR Circuit Breaker SPARE Not Used Infotainment Harness INFO Connection Underhood Fuse Block...
Page 480 5-114...
Page 481 *1 — Gasoline Engine and Fuel Injection Rail #2. *2 — Gasoline Engine and Fuel Injection Rail #1. *3 — Gasoline Engine; Oxygen Sensors. *4 — Gasoline Engine; Oxygen Sensors. *5 — PCM Ignition Fuses GLOW PLUG Not Used CUST FEED Gasoline Accessory Power HYBRID Hybrid...
Page 482 Fuses Auxiliary Power AUX PWR Outlet – Console IGN 1 Ignition Relay PCM 1 Powertrain Control Module Electronic Throttle Control, ETC/ECM Electronic Brake Controller Instrument Panel Cluster, Air Conditioning Relay, IGN E Turn Signal/Hazard Switch, Starter Relay Ride Control TRL B/U Backup Lamps Trailer Wiring Powertrain Control Module, PCM B...
Page 483 Fuses Mid Bussed Electrical Center, SEO B1 HomeLink, Rear Heated Seats LO HDLP-LT Headlamp Low Beam-Left Brake Transmission Shift BTSI Interlock System CRNK Starting System LO HDLP-RT Headlamp Low Beam-Right FOG LP Fog Lamp Relay FOG LP Fog Lamps HORN Horn Fuse HORN Horn Relay...
Page 484: Capacities And Speciﬁcations
Capacities and Speciﬁcations The following approximate capacities are given in English and metric conversions. See Recommended Fluids and Lubricants on page 6-13 for more information. Application Air Conditioning Refrigerant Tahoe Utility with front and rear A/C Suburban (1500 Series) with front and rear A/C Suburban (2500 Series) with front and rear A/C Cooling System —...
Page 485: Engine Specifications
Application Fuel Tank Tahoe Suburban (1500 Series) Suburban (2500 Series) Wheel Nut Torque †Oil ﬁlter should be changed at every oil change. After reﬁll, the level must be rechecked. Add enough engine coolant so that the ﬂuid is within the proper operating range.
Page 486 NOTES 5-120...
Page 487 Section 6 Maintenance Schedule ...6-2 Introduction ...6-2 Maintenance Requirements ...6-2 Your Vehicle and the Environment ...6-2 Using Your Maintenance Schedule ...6-2 Scheduled Maintenance ...6-4 Additional Required Services ...6-6 Maintenance Footnotes ...6-8 Maintenance Schedule Owner Checks and Services ...6-10 At Each Fuel Fill ...6-10 At Least Once a Month ...6-10 At Least Once a Year ...6-11 Recommended Fluids and Lubricants ...6-13...
Page 488: Maintenance Schedule
Maintenance Schedule Introduction Important: Keep engine oil at the proper level and change as recommended. Have you purchased the GM Protection Plan? The Plan supplements your new vehicle warranties. See your Warranty and Owner Assistance booklet or your dealer for details. Maintenance Requirements Notice: Maintenance intervals, checks, inspections, replacement parts and recommended ﬂuids and...
Page 489 Because of all the different ways people use their vehicles, maintenance needs vary. You may need more frequent checks and replacements. So please read the following and note how you drive. If you have any questions on how to keep your vehicle in good condition, ®...
Page 490: Scheduled Maintenance
Owner Checks and Services on page 6-10 tells you what should be checked, when to check it and what you can easily do to help keep your vehicle in good condition. The proper replacement parts, ﬂuids and lubricants to use are listed in Recommended Fluids and Lubricants on page 6-13 and Normal Maintenance Replacement Parts on page 6-15.
Page 491 Scheduled Maintenance Service Maintenance I Maintenance II Change engine oil and ﬁlter. See Engine Oil on page 5-16. Reset oil life system. See Engine Oil Life System on page 5-20. An Emission Control Service. Lubricate chassis components. See footnote #. Visually check for any leaks or damage.
Page 492: Additional Required Services
Additional Required Services The following services should be performed at the ﬁrst maintenance service (I or II) after the indicated miles (kilometers) shown for each item. Service and Miles (Kilometers) Inspect fuel system for damage or leaks. Inspect exhaust system for loose or damaged components.
Page 493 Additional Required Services (cont’d) 25,000 50,000 75,000 100,000 125,000 150,000 Service and Miles (Kilometers) (41 500) (83 000) (125 000) (166 000) (207 500) (240 000) Four-wheel drive: Change transfer case ﬂuid. See footnote (g). Inspect evaporative control system. An Emission Control Service. See footnotes †...
Page 494: Maintenance Footnotes
Maintenance Footnotes † The U.S. Environmental Protection Agency or the California Air Resources Board has determined that the failure to perform this maintenance item will not nullify the emission warranty or limit recall liability prior to the completion of the vehicle’s useful life. We, however, urge that all recommended maintenance services be performed at the indicated intervals and the maintenance be recorded.
Page 495 (f) Lubricate all key lock cylinders, hood latch assembly, secondary latch, pivots, spring anchor, release pawl, rear compartment hinges, outer liftgate handle pivot points, rear door detent link, roller mechanism, liftgate handle pivot points, latch bolt, fuel door hinge, cargo door hinge, locks and folding seat hardware.
Page 496: Owner Checks And Services
Owner Checks and Services These owner checks and services should be performed at the intervals speciﬁed to help ensure the safety, dependability and emission control performance of your ® vehicle. Your GM Goodwrench dealer can assist you with these checks and services. Be sure any necessary repairs are completed at once.
Page 497: At Least Once A Year
At Least Once a Year Starter Switch Check CAUTION: When you are doing this inspection, the vehicle could move suddenly. If the vehicle moves, you or others could be injured. 1. Before you start, be sure you have enough room around the vehicle.
Page 498: Ignition Transmission Lock Check
Ignition Transmission Lock Check While parked, and with the parking brake set, try to turn the ignition to LOCK in each shift lever position. • The ignition should turn to LOCK only when the shift lever is in PARK (P). •...
Page 499: Recommended Fluids And Lubricants
Recommended Fluids and Lubricants Fluids and lubricants identiﬁed below by name, part number or speciﬁcation may be obtained from your dealer. Usage Fluid/Lubricant Engine oil which meets GM Standard GM6094M and displays the American Petroleum Institute Certiﬁed for Gasoline Engines starburst symbol.
Page 500 Usage Fluid/Lubricant SAE 75W-90 Synthetic Axle Front Axle Lubricant (GM Part No. U.S. (All-Wheel 12378261, in Canada 10953455) Drive) meeting GM Speciﬁcation 9986115. SAE 75W-90 Synthetic Axle Lubricant (GM Part No. U.S. Rear Axle 12378261, in Canada 10953455) meeting GM Speciﬁcation 9986115. Synthetic Axle Lubricant;...
Page 501: Normal Maintenance Replacement Parts
Normal Maintenance Replacement Parts Replacement parts identiﬁed below by name, part number, or speciﬁcation can be obtained from your GM dealer. Normal Maintenance Replacement Parts Part Engine Air Cleaner /Filter High Capacity Standard Oil Filter 4800 V8; 5300 V8; 6000 V8 8100 V8 Spark Plugs 4800 V8;...
Page 502: Maintenance Record
Maintenance Record After the scheduled services are performed, record the date, odometer reading, who performed the service and the type of services performed in the boxes provided. See Maintenance Requirements on page 6-2 in this section. Any additional information from Owner Checks and Services on page 6-10 can be added on the following record pages.
Page 503 Maintenance Record (cont’d) Odometer Maintenance I or Date Serviced By Services Performed Reading Maintenance II 6-17...
Page 504 Maintenance Record (cont’d) Odometer Maintenance I or Date Serviced By Services Performed Reading Maintenance II 6-18...
Page 505 Section 7 Customer Assistance and Information ...7-2 Customer Satisfaction Procedure ...7-2 Online Owner Center ...7-3 Customer Assistance for Text Telephone (TTY) Users ...7-4 Customer Assistance Offices ...7-4 GM Mobility Reimbursement Program ...7-5 Roadside Assistance Program ...7-6 Courtesy Transportation ...7-7 Vehicle Data Collection and Event Data Recorders ...7-9 Customer Assistance and Information Reporting Safety Defects ...7-10...
Page 506: Customer Assistance And Information
Information Customer Satisfaction Procedure Your satisfaction and goodwill are important to your dealer and to Chevrolet. Normally, any concerns with the sales transaction or the operation of your vehicle will be resolved by your dealer’s sales or service departments. Sometimes, however, despite the best intentions of all concerned, misunderstandings can occur.
Page 507: Online Owner Center
The BBB Auto Line Program is an out of court program administered by the Council of Better Business Bureaus to settle automotive disputes regarding vehicle repairs or the interpretation of the New Vehicle Limited Warranty. Although you may be required to resort to this informal dispute resolution program prior to ﬁling a court action, use of the program is free of charge and your case will generally be heard within...
Page 508: Customer Assistance Offices
Customer Assistance Offices Chevrolet encourages customers to call the toll-free number for assistance. If a U.S. customer wishes to write to Chevrolet, the letter should be addressed to Chevrolet’s Customer Assistance Center. United States — Customer Assistance Chevrolet Motor Division Chevrolet Customer Assistance Center P.O.
Page 509: Overseas - Customer Assistance
Overseas — Customer Assistance Please contact the local General Motors Business Unit. Mexico, Central America and Caribbean Islands/Countries (Except Puerto Rico and U.S. Virgin Islands) — Customer Assistance General Motors de Mexico, S. de R.L. de C.V. Customer Assistance Center Paseo de la Reforma # 2740 Col.
Page 510: Roadside Assistance Program
Roadside Assistance Program As the owner of a new Chevrolet vehicle, you are automatically enrolled in the Chevrolet Roadside Assistance program. This value-added service is intended to provide you with peace of mind as you drive in the city or travel the open road. Call Chevrolet’s...
Page 511: Canadian Roadside Assistance
1-800-CHEV-USA (1-800-234-8872), text telephone (TTY) users, call 1-888-889-2438. Chevrolet reserves the right to limit services or reimbursement to an owner or driver when, in Chevrolet’s judgement, the claims become excessive in frequency or type of occurrence. Roadside Assistance is not part of or included in the coverage provided by the New Vehicle Limited Warranty.
Page 512: Additional Program Information
Transportation Options Warranty service can generally be completed while you wait. However, if you are unable to wait, Chevrolet helps minimize your inconvenience by providing several transportation options. Depending on the circumstances, your dealer can offer you one of the following:...
Page 513: Vehicle Data Collection And Event Data Recorders
Please contact your GM dealer for speciﬁc information about availability. All Courtesy Transportation arrangements will be administered by appropriate dealer personnel. Canadian Vehicles: For warranty repairs during the Complete Vehicle Coverage period of the General Motors of Canada New Vehicle Limited Warranty, alternative transportation may be available under the Courtesy Transportation Program.
Page 514: Reporting Safety Defects
To read this information, special equipment is needed and access to the vehicle or the device that stores the data is required. GM will not access information about a crash event or share it with others other than: • with the consent of the vehicle owner or, if the vehicle is leased, with the consent of the lessee, •...
Page 515: Reporting Safety Defects To The Canadian Government
General Motors In addition to notifying NHTSA (or Transport Canada) in a situation like this, we certainly hope you will notify General Motors. Please call the Chevrolet Customer Assistance Center at 1-800-222-1020, or write: Chevrolet Motor Division Chevrolet Customer Assistance Center P.O.
Page 516: Current And Past Model Order Forms
Service Bulletins Service Bulletins give technical service information needed to knowledgeably service General Motors cars and trucks. Each bulletin contains instructions to assist in the diagnosis and service of your vehicle. In Canada, information pertaining to Product Service Bulletins can be obtained by contacting your General Motors dealer or by calling 1-800-GM-DRIVE (1-800-463-7483).
Page 517 Accessory Power Outlets ... 3-20 Adding Equipment to Your Airbag-Equipped Vehicle ... 1-80 Additives, Fuel ... 5-6 Add-On Electrical Equipment ... 5-109 Adjustable Throttle and Brake Pedal ... 2-22 Air Cleaner/Filter, Engine ... 5-21 Air Conditioning ... 3-21, 3-22, 3-24 Airbag Passenger Status Indicator ...
Page 518 Audio System(s) (cont.) Fixed Mast Antenna ... 3-135 Navigation/Radio System ... 3-130 Radio with Cassette and CD ... 3-91 Radio with CD ... 3-81 Radio with Six-Disc CD ... 3-105 Rear Seat Audio (RSA) ... 3-130 Setting the Time for Radios with Radio Data Systems (RDS) ...
Page 519 Care of Safety Belts ... 5-103 Your Cassette Tape Player ... 3-134 Your CD and DVD Player ... 3-135 Your CDs and DVDs ... 3-135 Cargo Cover ... 2-60 Center Console Storage Area ... 2-58 Center Passenger Position, Safety Belts ... 1-35 Chains, Tire ...
Page 520 Climate Control System (cont.) Comfort Guides, Rear Safety Belt ... 1-39 Content Theft-Deterrent ... 2-17 Control of a Vehicle ... 4-6 Convenience Net ... 2-59 Coolant Engine Temperature Gage ... 3-45 Heater, Engine ... 2-22 Surge Tank Pressure Cap ... 5-29 Cooling System ...
Page 521 Driving (cont.) Recovery Hooks ... 4-51 Rocking Your Vehicle to Get it Out ... 4-50 Winter ... 4-45 Dual Automatic Climate Control System ... 3-24 Dual Climate Control System ... 3-22 Rear Seat Entertainment System ... 3-119 Electrical System Add-On Equipment ... 5-109 Center Instrument Panel Fuse Block ...
Page 522 Front Storage Area ... 2-57 Fuel ... 5-5 Additives ... 5-6 California Fuel ... 5-6 E-85 (85% Ethanol) ... 5-7 Filling a Portable Fuel Container ... 5-10 Filling Your Tank ... 5-8 Fuels in Foreign Countries ... 5-8 Gage ... 3-53 Gasoline Octane ...
Page 523 ® HomeLink Transmitter ... 2-53 ® HomeLink Transmitter, Programming ... 2-54 Hood Checking Things Under ... 5-10 Release ... 5-11 Horn ... 3-6 How to Use This Manual ... ii How to Wear Safety Belts Properly ... 1-26 Ignition Positions ... 2-20 Infants and Young Children, Restraints ...
Page 524 Light (cont.) Tire Pressure ... 3-47 Tow/Haul Mode ... 3-53 Traction Off ... 3-44 Lighting Entry ... 3-18 Exit ... 3-19 Locking Rear Axle ... 4-10 Lockout Protection ... 2-13 Locks Delayed Locking ... 2-10 Door ... 2-8 Lockout Protection ... 2-13 Power Door ...
Page 525 Mirrors (cont.) Outside Power Foldaway Mirrors ... 2-49 Outside Power Mirrors ... 2-48 MyGMLink.com ... 7-3 Navigation/Radio System ... 3-130 New Vehicle Break-In ... 2-19 Normal Maintenance Replacement Parts ... 6-15 Odometer ... 3-38 Odometer, Trip ... 3-38 Off-Road Driving ... 4-22 Off-Road Recovery ...
Page 526 Power (cont.) Retained Accessory (RAP) ... 2-20 Seat ... 1-4 Steering Fluid ... 5-38 Windows ... 2-16 Programmable Automatic Door Locks ... 2-11 ® Programming the HomeLink Transmitter ... 2-54 QUADRASTEER™ ... 4-16 Questions and Answers About Safety Belts ... 1-26 Radios ...
Page 527 Removing the Flat Tire and Installing the Spare Tire ... 5-86 Removing the Spare Tire and Tools ... 5-83 Replacement Bulbs ... 5-59 Reporting Safety Defects Canadian Government ... 7-11 General Motors ... 7-11 United States Government ... 7-10 Restraint System Check Checking Your Restraint Systems ...
Page 528 Securing a Child Restraint Center Front Seat Position ... 1-61 Center Rear Seat Position ... 1-59 Designed for the LATCH System ... 1-57 Rear Outside Seat Position ... 1-57 Right Front Seat Position ... 1-62 Security Light ... 3-52 Service ... 5-3 Adding Equipment to the Outside of Your Vehicle ...
Page 529 Throttle, Adjustable ... 2-22 Tilt Wheel ... 3-6 Tire Pressure Light ... 3-47 Tires ... 5-61 Aluminum or Chrome-Plated Wheels, Cleaning ... 5-106 Buying New Tires ... 5-76 Chains ... 5-80 Changing a Flat Tire ... 5-82 Cleaning ... 5-106 If a Tire Goes Flat ...
Page 530 Vehicle Control ... 4-6 Damage Warnings ... iv Symbols ... iv Vehicle Customization, DIC ... 3-70 Vehicle Data Collection and Event Data Recorders ... 7-9 Vehicle Identiﬁcation Number (VIN) ... 5-109 Service Parts Identiﬁcation Label ... 5-109 Vehicle Personalization Memory Seat ... 2-63 Ventilation Adjustment ...
