Assembly Instructions
Customer Service
US: 1-800-645-2986
Before you begin: Check components to verify all are included. Assembly requires two people and must be performed on a flat and
even surface. Do not overtighten hardware as damage can occur.
Page 1 of 3
TM
Ref.
Qty.
Description
Pre-Assembled
1
1
Top
Base
2
3
Supports
Left Seats
3
3
Right Seats
Step 1
Secure anchor blocks to the bottom of each seat using 3 1/2" hex
lag screws and flat washers. The pre-drilled hole in the block will
face the seat side with three edges. Each seat will have one (1)
anchor block.
Step 2
Place the three (3) support arms on a flat surface. Fasten the
support arms together with 3" deck screws, two (2) per side.
Do not overtighten.

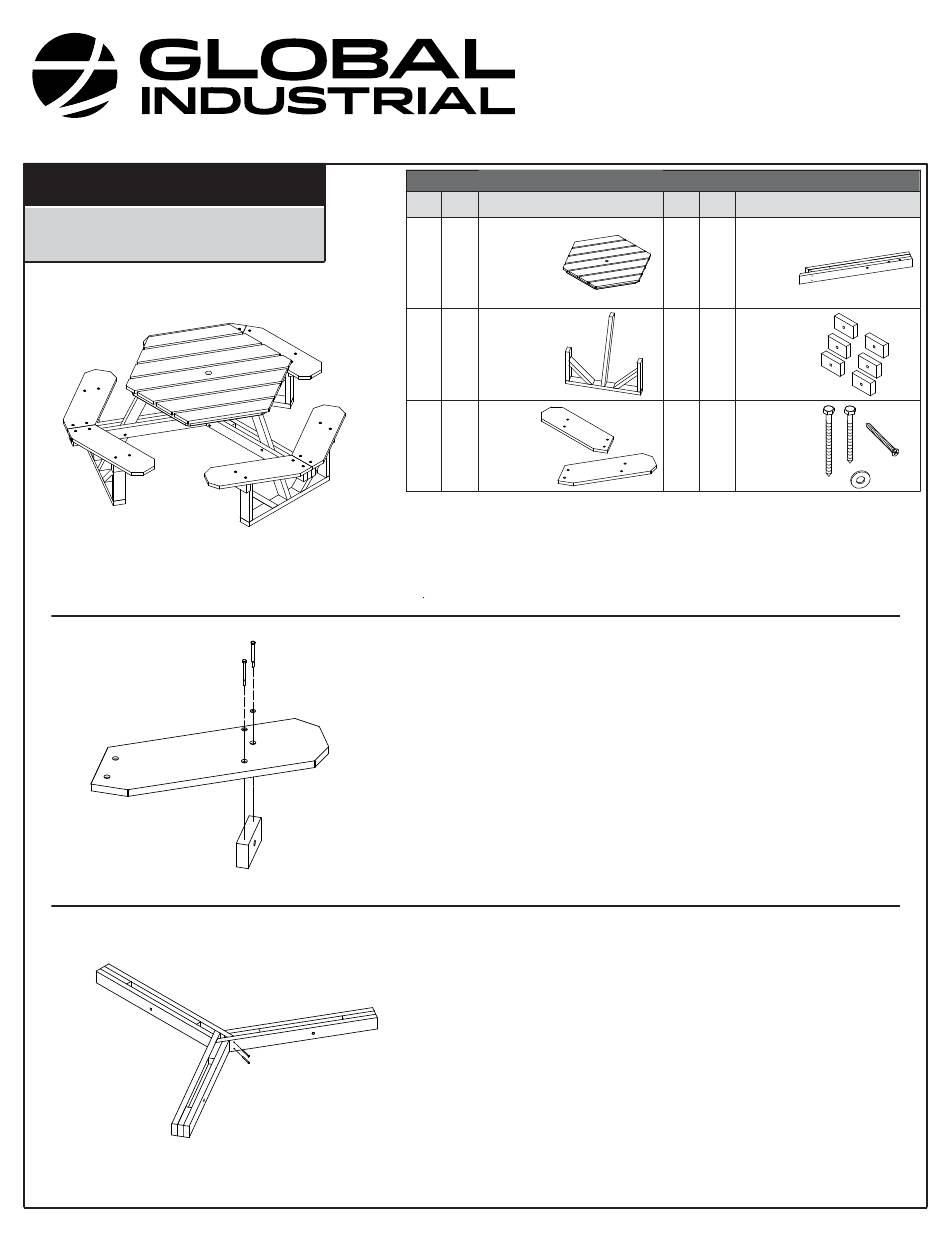

72" Hex Table
Assembly Instructions
Model #s: B264040, B264042, B2331053
CONTENTS
Ref.
Qty.
Support
4
3
Arms
5
6
Anchor
Blocks
Hardware
H1
1
Pack*
*Contains:
(6) 2 1/2" Hex Lag Screws
(30) 3 1/2" Hex Lag Screws
(36) Flat Washers
(9) 3" Deck Screws
Description
As of 01/2020
