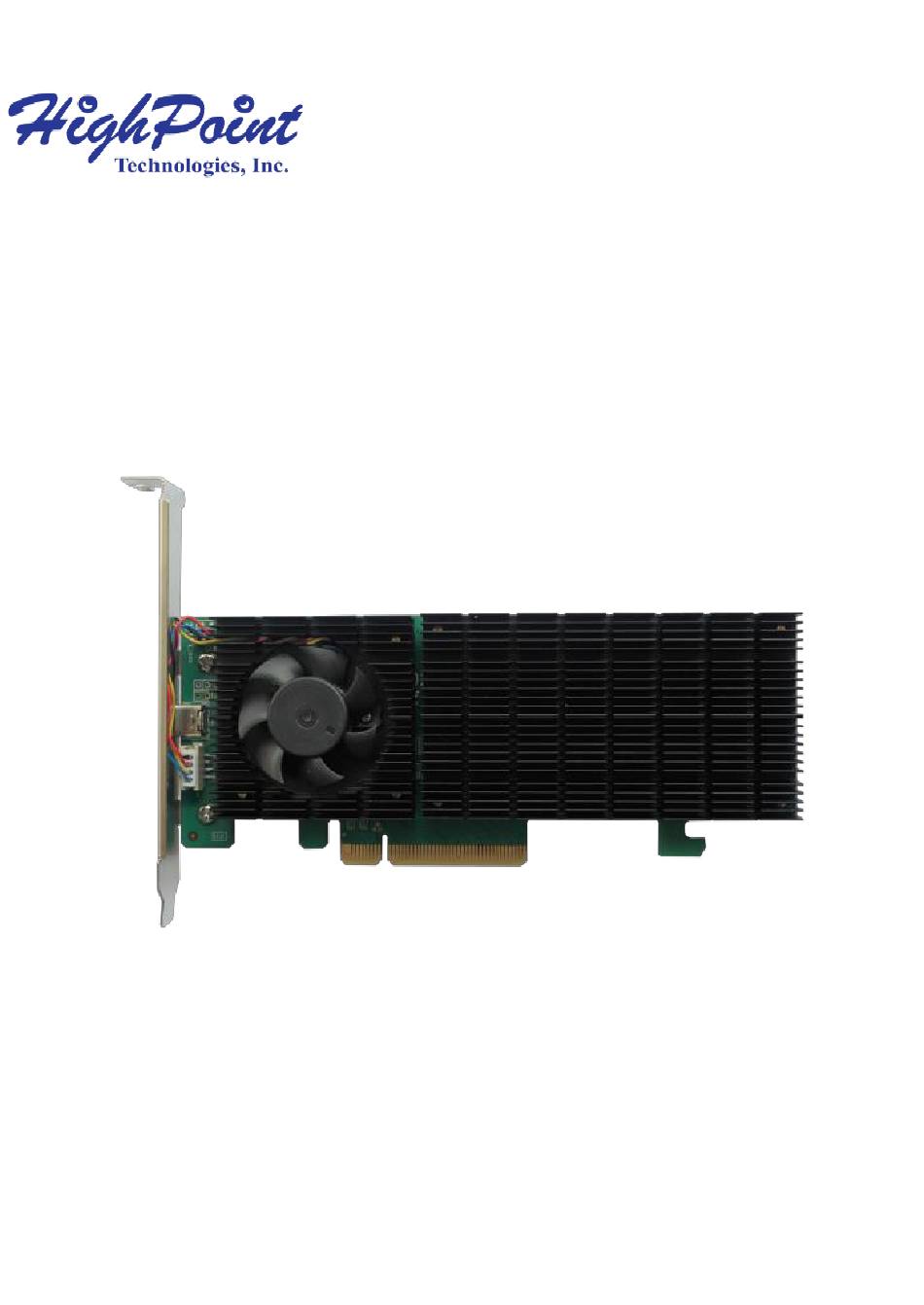

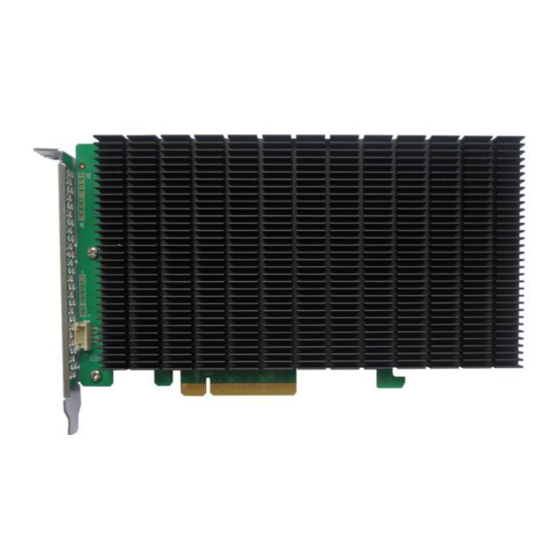

- Page 1 SSD6202 2x M.2 Port to PCIe 3.0 x8 NVMe RAID Controller Quick Installation Guide V1.00...
-
Page 2: System Requirements
System with a free PCIe 4.0/3.0 x16 or PCIe 4.0/3.0 x8 slot • Windows • Linux • VMware For more information, please visit the SSD6200 Series Product Page: https://highpoint-tech.com/USA_new/series-ssd6200-overview.html SSD6202 Kit Content • SSD6202 Controller Card • Low-Profile bracket •... - Page 3 SSD6202 Hardware Front View Fan for NVMe chipset Low-Profile bracket Heat sink for M.2 SSD’s RAID Switch Fan power connector PCIe 3.0 x8 Host Interface...
- Page 4 SSD6202 Hardware Installation Step 1. On the rear of the SSD6202, remove the four screws that secure the unit’s heat sink to the PCB. After removing the screws, carefully remove the heat sink from the SSD6202...
- Page 5 Step 2. These 2 screws are used to install the NVMe SSD’s. Step 3. Please remove the screws on the right side of the SSD6202. Gently insert the SSD into the slot.
- Page 6 Step 4. Refasten the screw to secure the SSD. Step 5. Repeat Steps 3 & 4 to install the remaining SSD. The following example shows two M.2 NVMe SSD’s installed into Port 1 & 2:...
- Page 7 Step 6. Align and install the heatsink; on the rear of the SSD6202, refasten the 4 screws that were removed in step 1. Note: The SSD6202 can create RAID arrays via RAID Switch settings. (You can also create RAID arrays using the UEFI, CLI & WebGUI tools).
- Page 8 Note: Using the RAID Switch to configure an array will destroy any data stored on the NVMe SSD’s. Make sure to backup any important data before using this feature. Resources We recommend visiting the SSD6200 Series Product Page for the latest software and installation guides. Software Download: https://highpoint-tech.com/USA_new/series-ssd6200-overview.html...
-
Page 9: Customer Support
Customer Support If you encounter any problems while utilizing the SSD6202, or have any questions about this or any other HighPoint Technologies, Inc. product, feel free to contact our Customer Support Department. Web Support: https://www.highpoint-tech.com/websupport/main.php HighPoint Technologies, Inc. websites: https://www.highpoint-tech.com...
