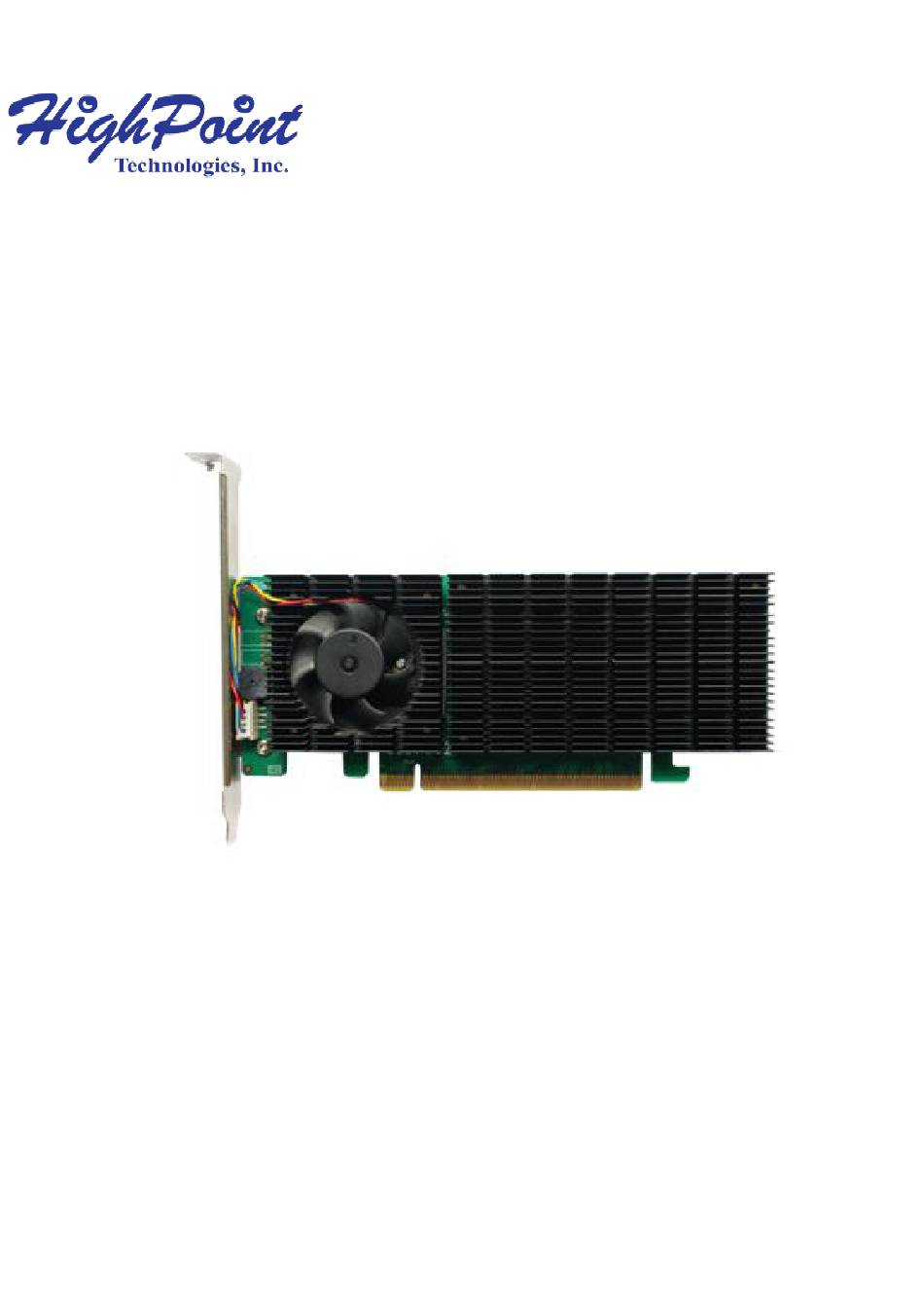

- Page 1 SSD7502 2x M.2 Port to PCIe 4.0x16 NVMe RAID Controller Quick Installation Guide V1.00...
-
Page 2: System Requirements

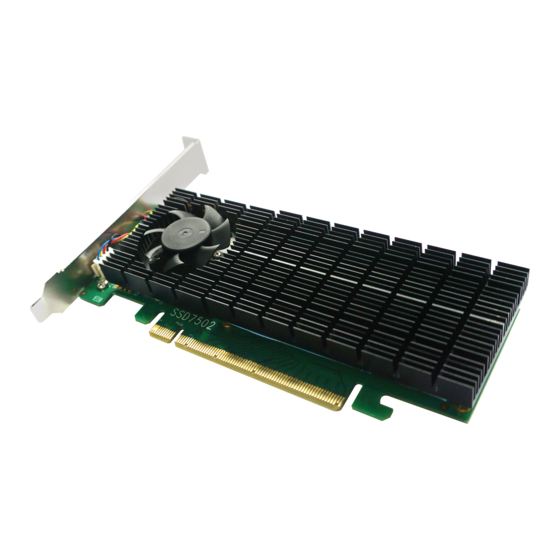

System with a free PCIe 4.0 x16 or PCIe3.0 x16 slot • Windows 10，Windows Server 2016 or later，Microsoft Hyper-V • Linux kernel 3.10 and later • MacOS 10.13 and later SSD7502 Kit Content • SSD7502 Controller Card • Quick Installation Guide Low Profile Bracket •... - Page 3 SSD7502 Hardware Front View Low-Profile bracket Fan for NVMe chipset Heat sink for M.2 SSD’s PCIe 3.0 x16 Host Interface...
- Page 4 SSD7502 Hardware Installation: Step 1. On the rear of the SSD7502, remove the four screws that secure the unit’s heat sink to the PCB. After removing the screws, carefully remove the heat sink from the SSD7502. Step 2. After removing the casing, carefully turn it over to view the thermal pad.
- Page 5 Step 3. These 2 screws are used to install the NVMe SSD’s. Step 4. Please remove the screws on the right side of SSD7502...
- Page 6 Step 5. Gently insert the SSD into the slot. Refasten the screw to secure the SSD. Repeat Steps 3 to 5 to install the remaining SSD. Note: Make sure the SSD’s are carefully, but securely installed into each M.2 port. Loose connections can cause a variety of stability and performance issues, and may ultimately result in data loss.
- Page 7 Step 6. Replace the heat sink after installing all SSDs Step 7. On the rear of the SSD7502, refasten the 4 screws that were removed in step 1. Note: Make sure the heatsink & fan assembly are properly aligned with the controller board (PCB), and that it makes full contact with the thermal pad, before refastening it to the SSD7502.
-
Page 8: Customer Support
Resources A variety of manuals, guides and FAQ’s are available for the SSD7502 RAID controller. In addition, we recommend visiting the Software Downloads webpage for the latest drivers, management interfaces, and installation guides. Software Download: https://highpoint-tech.com/USA_new/series-ssd7502-overview.html Customer Support If you encounter any problems while utilizing the...
